Spark Tester / Laser Diameter Gauge | Extrusion Machinery Manufacturer - TaiZheng

Spark tester: for cable insulation crush, needle,flaw, bare copper, and other defect testing on the cable surface.

Laser diameter gauge: for cable outer diameter or profiles height & thickness measurement.
Availability:
Inquire

sharethis sharing button


Model TZ-10AC TZ-15AC
Picture 高频火花机 (4) 工频火花机 (9)_400
Power supply AC220V/250V±15% AC220V/250V±15%
Power frequency 50±2Hz  50±2Hz
Input Power 120VA 150VA
Testing voltages AC 0-10 KV AC 0-15 KV
Breakdown sensitivity I=600±50uA，t≤0.005s I=600±50uA，t≤0.1s
Speed allowed.Max 1000 m/min 600 m/min
Output frequency
 2.5-3.5KHz 2.0-3.5KHz
Cable diam.Max
 5.0 mm 25.0 mm


1. Conditions for operation

Power supply: 220V±10% , AC, 50Hz～60Hz

Power consumption: ≤15W

Ambient temperatures: 5～45 ℃

Relative humidity: ≤80%（without condensed water）

No corrosive gas, oil, steam and considerable dust in the atmosphere


2. Technical Parameters

Model Measuring Range(Dynamic) Accuracy Picture

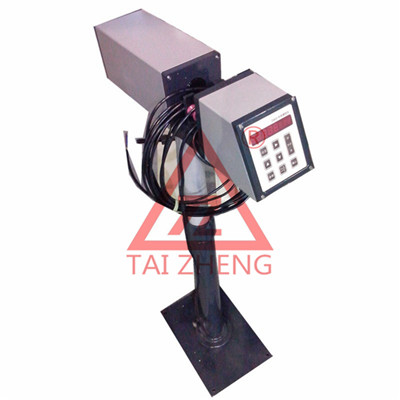

DM-25 0.2-20.0 mm 0.001 mm 单向测径仪 (4)_副本
DM-50 0.5-45.0 mm 0.001 mm
DM-100
 0.5-95.0 mm 0.01 mm
DM-25XY
 0.2-20.0 mm 0.001 mm 20120911090107-491883490
DM-50XY
 0.5-45.0 mm 0.001 mm
