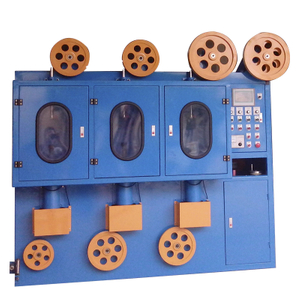

Vertical Four Layer Automatic Mica Tapping Machine | TaiZheng

HS code:84224000
Model:TZ-TF800V & TZ-TF630V
Application:for fire-resistant,water-resistant cable
Suitable materials:non-metal tapes
Production capacity:2000 rpm
Warranty:12 months
Availability:
sharethis sharing button

Designed for mica taping on fire resistant cables
suitable for copper and aluminum foils,textile,PE,paper as well as for other"non metal" tapes
Tape tension control is done through hysteresis brake
Taping head and pulling capstan are driven independently by AC servo motor
HMI+PLC control system for pre-setting taping pitch, tape tension compensation and speed synchronization



Application :

Widely used for fire-resistant & water resistant cable manufacturing.

Available for single,double,triple and four layer tapping process.


Features of automatic mica tapping machine

Dual operation system with customized PLC control(optional)

All the electronic parts are original imported with CE certificate

Using the magnetic clutch to keep the wire laying in stable tension(optional)

Motorized take-up with accurate traversing and smooth performance.

Humanize design for noise reduction system and operation language.

Equipped with wire broken automatic stop device.(optional)

Synchronous control of four layer tapping and capstan process.


Production Line Composition:(Model TZ-TF800V)

1.800mm magnetic clutch pay-off                           1 set

2.Vertical four layer tapping machine                      1 set

3.800mm motorized take-up machine                     1 set







Automatic mica tapping machine


Model

TZ-TF630V

TZ-TF800V

Inlet wire diam

Flexible wire/coreφ1.5-12mm(annealed conductors under 35 sq.mm)

Tapping type

Concentric vertical type

Tapes size (mm)

ODφ200-350,Inner holeφ50-80,width3-20,thickness≤2.0

Tensile control

Magnetic clutch on pay-off & tapping processing

Pay-offs bobbin size

OD 500-630 mm

OD 630-800 mm

Take-up bobbin size

OD 630mm

OD 800mm

Pulleys specifics

OD 250mm*1,300mm*6,400mm*2 (available upon request)

Motor power

Tapping motor: AC motor 2HP*4

Take -up motor:20N.M torque motor

Traction motor

5 HP reducer motor

Rotation

2000rpm

Remarks

Specifics may changed accordingly to products design without prior notice
