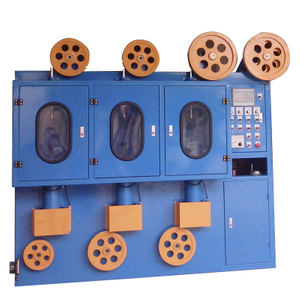

Vertical Singe Layer Automatic Taping Machine | TaiZheng

HS code:84224000
Model:TZ-TS630V & TZ-TS800V
Application:for fire-resistant,water-resistant cable
Suitable materials:non-metal tapes
Production capacity:2000rpm
Warranty:12 months

Singe Layer Automatic Taping Machine


Designed for mica taping on fire resistant cables
Suitable for copper and aluminum foils,textile,PE,paper as well as for other"non metal" tapes
Tape tension control is done through hysteresis brake
Taping head and pulling capstan are driven independently by AC frequency motor
HMI+PLC control system for pre-setting taping pitch, tape tension compensation and speed synchronization


Application :

Widely used for fire-resistant & water resistant cable manufacturing. For single layer tapping only.



Features of singe layer taping machine

Dual operation system with customized PLC control(optional).

All the electronic parts are original imported with CE certificate.

Using the magnetic clutch to keep the wire laying in stable tension.

Motorized take-up with accurate traversing and smooth performance.

Humanize design for noise reduction system and operation language.

Equipped with tape broken automatic stop device.(optional)

Synchronous control of tapping and capstan process.


Typical Production Line Composition:(Model TZ-TS630V)

630mm magnetic clutch pay-off                               1 set

Vertical single layer tapping machine                      1 set

630mm motorized take-up machine                         1 set




Model

TZ-TS630V

TZ-TS800V

Inlet wire diam

Flexible wire/coreφ0.8-12mm(annealed conductors under 16 sq.mm)

Tapping type

Concentric vertical type

Tapes size (mm)

ODφ200-350,Inner holeφ50-80,width3-20,thickness≤2.0

Tensile control

Passive on pay-off & magnetic device for tapping tension

Pay-offs bobbin size

Flange OD 500-630 mm

Flange OD 630-800 mm

Take-up bobbin size

Flange OD 630mm

Flange OD 800mm

Pulleys specifics

OD 200mm*1,400mm*2 (available upon request)

Motor power

Tapping motor:2HP AC motor

Take -up motor:20N.M torque motor

Traction motor

2 HP reducer motor

Rotation

2000rpm

Remarks

Specifics may changed accordingly to products design without prior notice
