A cable extrusion line is a complete production system used to apply plastic insulation or outer sheath onto wire and cable conductors through a controlled extrusion process. A typical cable extrusion line includes a pay-off unit, preheater, extruder, crosshead, cooling trough, diameter control system, spark tester, capstan, and take-up unit. Depending on the cable product, it may be configured for insulation extrusion, sheathing extrusion, single-layer extrusion, or multi-layer extrusion.
For wire and cable manufacturers, the extrusion line is one of the most important production stages. It affects insulation thickness, cable diameter consistency, surface quality, adhesion, concentricity, production speed, and downstream cable performance. A properly configured cable extruder machine can help factories produce power cables, building wires, communication cables, control cables, automotive wires, appliance cables, and other cable products with stable output and consistent quality.
This guide explains how a cable extrusion line works, what key equipment modules are included, how different materials affect extrusion, what quality controls are important, and how to choose a suitable plastic extruder machine for wire and cable production.

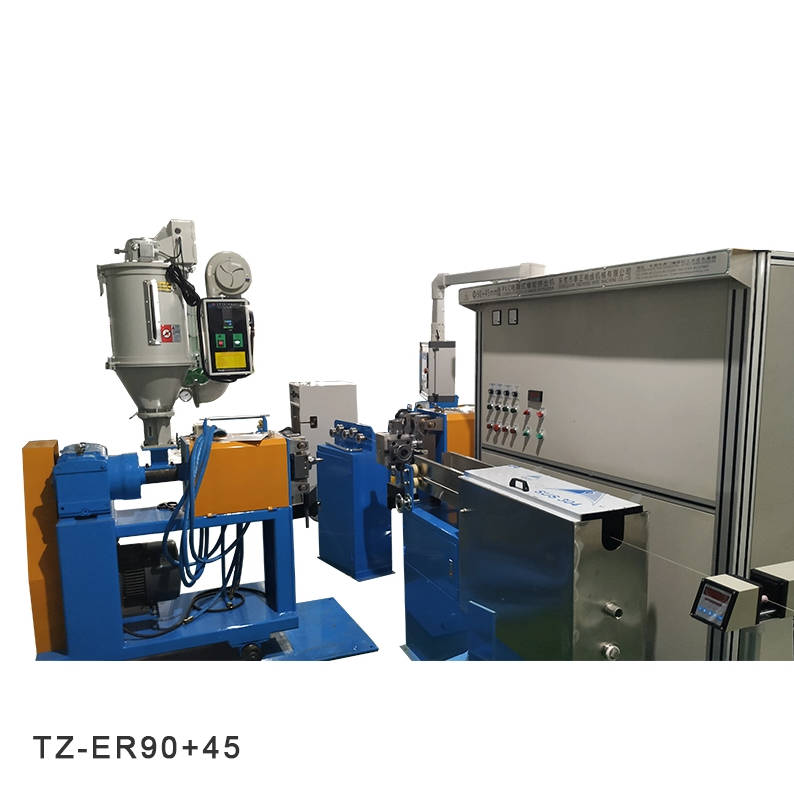

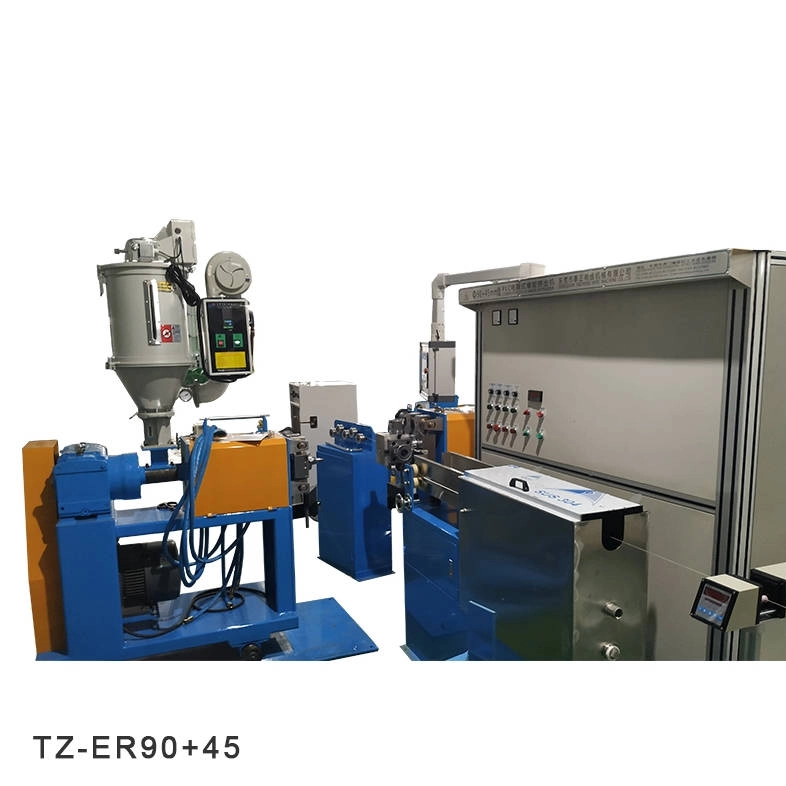

A cable extrusion line is a coordinated set of machines used to melt plastic material and apply it around a conductor, wire core, or cable assembly. The extrusion process forms a continuous insulation layer or protective sheath around the cable.
The line usually begins with a pay-off device that feeds the conductor or cable core into the process. The material is then heated, plasticized, and pushed through the extruder and crosshead. After coating, the cable passes through cooling, diameter inspection, electrical testing, traction, and take-up.
The main purpose of a cable extrusion line is to produce a uniform plastic layer around wire or cable with controlled thickness, stable diameter, smooth surface, and suitable mechanical properties.
Common extrusion applications include:
Wire insulation extrusion
Cable sheathing extrusion
PVC wire coating
PE cable jacket extrusion
Power cable insulation
Control cable sheathing
Building wire insulation
Communication cable jacket production
Automotive wire insulation
Appliance wire extrusion
The exact line configuration depends on cable type, conductor size, insulation material, sheath material, layer structure, target output, and factory layout.
Cable extrusion can be divided into insulation extrusion and sheathing extrusion. These two processes are related, but their purposes are different.
Cable insulation extrusion applies an insulating layer directly around a conductor. The insulation must provide electrical separation, stable thickness, and suitable adhesion or stripping behavior depending on cable design.
Cable sheathing extrusion applies an outer protective layer around insulated cores, cable assemblies, or cable bundles. The sheath protects the cable from mechanical damage, moisture, abrasion, chemical exposure, or environmental conditions depending on the material and application.
Comparison Point | Cable Insulation Extrusion | Cable Sheathing Extrusion |
Main purpose | Electrical insulation around conductor | Outer protection around cable core |
Position in cable structure | Directly over conductor | Outer layer of cable |
Key quality concern | Concentricity, insulation thickness, electrical performance | Surface quality, jacket thickness, mechanical protection |
Typical materials | PVC, PE, XLPE or other insulation compounds depending on product | PVC, PE, TPU, rubber-like materials or other jacket compounds depending on application |
Common equipment focus | Crosshead precision, conductor preheating, spark testing | Extrusion stability, cooling, diameter control, take-up |
Main defect risk | Eccentric insulation, pinholes, poor adhesion | Surface roughness, uneven sheath, poor diameter control |
Insulation extrusion focuses more on electrical protection and concentric coating, while sheathing extrusion focuses more on cable protection, appearance, and mechanical performance.
A wire and cable factory may need one line for insulation, another line for sheathing, or a configurable extrusion line depending on product range.
The extrusion process determines how well the plastic layer is applied to the cable. Even if the conductor is well made, poor extrusion can cause major quality problems.
A poorly configured or unstable cable extrusion line may cause:
Uneven insulation thickness
Eccentric coating
Surface roughness
Air gaps or voids
Poor adhesion
Diameter fluctuation
Pinholes or insulation defects
Overheating or material degradation
Poor cooling and deformation
Downstream winding problems
For cable manufacturers, extrusion quality depends on the whole line, not only the extruder. Pay-off stability, crosshead design, cooling control, capstan synchronization, testing, and take-up all affect the final cable.
That is why buyers should evaluate the cable extrusion line as a complete production system.
A complete cable extrusion line usually includes multiple machine sections. Each section has a specific role in production stability and cable quality.
The pay-off unit feeds the conductor, wire, or cable core into the extrusion line. It must release material smoothly and maintain stable feeding tension.
Key considerations include:
Pay-off bobbin size
Conductor or cable core weight
Tension control
Brake system
Loading method
Centering and alignment
Compatibility with upstream conductor production
If the pay-off tension is unstable, the cable may move unevenly through the crosshead, causing eccentric coating or diameter fluctuation.
A preheater may be used to warm the conductor before extrusion. Preheating can help remove surface moisture, improve adhesion in some applications, and reduce thermal shock when plastic material is applied.
Preheating is especially useful in certain insulation extrusion processes, but the exact requirement depends on conductor material, insulation compound, production speed, and cable specification.
The extruder is the core machine that melts and plasticizes polymer material. It usually includes a feeding system, barrel, screw, heating zones, drive system, temperature control, and extrusion head connection.
The extruder must provide stable melt output. Poor plasticization or unstable pressure can cause surface defects, thickness variation, or inconsistent cable quality.
Important extruder factors include:
Factor | Why It Matters |
Screw design | Affects melting, mixing, and material output stability |
Barrel heating | Controls material plasticization |
Drive system | Affects output stability and production speed |
Temperature control | Prevents under-melting or material degradation |
Material compatibility | Different compounds require different processing behavior |
Output capacity | Must match cable size and line speed |
A suitable plastic extruder machine should be selected according to cable material, extrusion layer type, cable diameter, and output requirement.
The crosshead guides the molten plastic around the conductor or cable core. The die and tip determine the coating shape, thickness, and concentricity.
Crosshead design is especially important for insulation extrusion because the insulation layer must be centered around the conductor.
Key crosshead considerations include:
Cable diameter range
Material flow balance
Die and tip selection
Centering adjustment
Pressure stability
Ease of cleaning
Layer structure requirement
If the crosshead is not properly adjusted, the cable may have eccentric insulation or uneven sheath thickness.
After extrusion, the cable enters a cooling trough to solidify the plastic layer. Cooling must be controlled carefully. If cooling is too sudden or uneven, the cable surface may deform, shrink unevenly, or develop internal stress.
Cooling systems may include water troughs, warm water sections, cold water sections, or multi-stage cooling depending on cable material and line design.
Key cooling factors include:
Cooling length
Water temperature
Cable diameter
Line speed
Material type
Surface quality requirement
Cable support and guiding
Cooling is not only about reducing temperature. It also affects cable roundness, surface finish, and final dimensional stability.
A diameter control system monitors the cable outer diameter during production. In many applications, laser diameter gauges or other measuring devices are used to detect diameter changes and support process adjustment.
Diameter control helps operators maintain consistent product dimensions and reduce material waste.
Diameter control is important because small changes in extrusion output, line speed, or cooling can affect cable size and insulation or sheath thickness.
A stable line should coordinate extruder output and capstan speed to maintain the required cable diameter.
A spark tester is commonly used in cable production to detect insulation defects such as pinholes, weak points, or coating discontinuities. It applies a test voltage to check whether the insulation layer has defects.
Spark testing is especially important for insulated wires and cables where electrical integrity is required.
Important considerations include:
Cable insulation type
Test voltage requirement
Cable size
Line speed
Safety protection
Product standard or customer requirement
Spark testing does not replace full quality control, but it is a useful online inspection tool for detecting certain insulation defects during production.
The capstan pulls the cable through the extrusion line at a controlled speed. It must synchronize with extruder output, cooling, and take-up.
If capstan speed is unstable, cable diameter and extrusion thickness may fluctuate. If pulling force is too high, the cable may stretch or deform. If pulling force is too low, the line may become unstable.
The capstan is therefore essential for line speed control and product consistency.
The take-up unit winds the finished cable onto a bobbin, reel, or drum. Good take-up winding supports storage, handling, testing, and downstream processing.
Take-up considerations include:
Reel size
Cable diameter
Winding tension
Traverse control
Cable surface protection
Loading and unloading method
Production length
Poor take-up winding can damage the cable surface or create problems in later processing.
A typical cable extrusion line may follow this sequence:
Step | Process | Purpose |
1 | Pay-off | Feed conductor or cable core into the line |
2 | Preheating | Warm conductor and remove moisture where needed |
3 | Extrusion | Melt and apply plastic material |
4 | Crosshead coating | Form insulation or sheath around cable |
5 | Cooling | Solidify plastic layer |
6 | Diameter measurement | Monitor cable outer diameter |
7 | Spark testing | Detect insulation defects where required |
8 | Capstan pulling | Control line speed |
9 | Take-up winding | Collect finished cable |
Different products may require additional modules, such as printing, marking, powdering, drying, or online inspection.
Cable extrusion materials vary by application. Material selection affects extruder configuration, temperature control, cooling, line speed, and final cable performance.
Material | Common Use | Processing Considerations |
PVC | Building wire, power cable, control cable, general insulation and sheath | Widely used, requires proper temperature control |
PE | Communication cable, jacket, insulation applications | Cooling and surface quality are important |
XLPE | Power cable insulation in many applications | May require specific processing and curing system depending on design |
TPU | Flexible and abrasion-resistant cable jacket applications | Requires attention to moisture and processing temperature |
LSZH compounds | Low-smoke halogen-free cable applications | Requires suitable screw and temperature control |
Rubber-like compounds | Flexible cable or special cable applications | Processing depends on formulation and line design |
The supplier should confirm material type before recommending the extruder, screw, temperature zone design, and cooling system.
Cable extrusion may involve one layer or multiple layers depending on product design.
Extrusion Type | Typical Use | Key Considerations |
Single-layer extrusion | Basic insulation or outer sheath | Simpler configuration and operation |
Dual-layer extrusion | Special insulation or sheath structures | Requires coordinated material flow |
Co-extrusion | Multiple materials or layers in one process | Requires more complex control and tooling |
Sheathing extrusion | Outer cable jacket | Focus on surface, thickness, and protection |
Insulation extrusion | Direct conductor coating | Focus on concentricity and electrical quality |
For many factories, single-layer extrusion is sufficient for standard products. Multi-layer or co-extrusion may be used when the cable requires special performance, bonding, marking, or layered material design.
Choosing a cable extrusion line requires more than selecting an extruder size. Buyers should define the complete production requirement.
Selection Factor | Why It Matters |
Cable type | Determines line structure and equipment modules |
Conductor or cable diameter | Affects crosshead, die, cooling, and capstan |
Extrusion material | Determines screw, barrel, temperature, and cooling requirements |
Layer type | Insulation, sheath, single-layer, or multi-layer |
Required output | Determines extruder capacity and line speed |
Thickness requirement | Affects crosshead design and diameter control |
Quality testing | Determines need for spark tester and diameter gauge |
Reel size | Affects pay-off and take-up configuration |
Factory layout | Determines line length and arrangement |
Automation level | Affects operation, consistency, and labor requirement |
For an accurate cable extrusion line recommendation, buyers should provide cable material, conductor diameter, finished cable diameter, extrusion layer type, output target, reel size, and quality testing requirements.
You can review Taizheng’s plastic extruder machine options or visit Taizheng Machine for broader equipment information.
Cable extrusion problems often come from material, temperature, tooling, speed, cooling, or machine coordination.
Problem | Possible Cause | What to Check |
Uneven diameter | Extruder output fluctuation or speed instability | Extruder pressure, capstan speed, diameter gauge |
Eccentric insulation | Crosshead not centered | Die, tip, conductor alignment |
Rough surface | Poor material plasticization or moisture | Temperature, screw, material drying |
Air bubbles or voids | Moisture, poor material flow, contamination | Material storage, preheating, extrusion temperature |
Poor adhesion | Low conductor temperature or unsuitable material | Preheater, material compatibility |
Pinholes | Contamination, poor coating, material defect | Spark tester, material cleanliness |
Poor cooling | Insufficient trough length or wrong water temperature | Cooling system, line speed |
Poor take-up | Tension or traverse problems | Take-up setting, reel condition |
A stable extrusion process requires consistent material, correct temperature setting, suitable tooling, proper cooling, and synchronized line speed.
Extruder size is important, but it does not define the whole line. Crosshead, cooling, diameter control, capstan, pay-off, and take-up are also critical.
Insulation extrusion and sheathing extrusion have different quality requirements. Buyers should clearly define the extrusion layer type.
PVC, PE, XLPE, TPU, LSZH, and other compounds have different processing requirements. Machine configuration should match material behavior.
Cooling affects surface quality, diameter stability, and production speed. A cooling trough that is too short or poorly controlled may limit output.
Two cable extrusion lines may look similar but include different crossheads, control systems, diameter measurement, spark testing, capstan design, and take-up structures.
A reliable supplier should help buyers evaluate the complete production process. The supplier should ask about cable type, material, diameter, layer structure, output, testing requirements, reel size, and factory layout before recommending a machine.
Useful questions to ask include:
What cable types can this extrusion line produce?
Is the line suitable for insulation extrusion, sheathing extrusion, or both?
What materials can the extruder process?
What cable diameter range is supported?
What extruder size is suitable for my output target?
What crosshead and tooling are needed?
How is diameter controlled during production?
Is spark testing required for my cable product?
What cooling system is recommended?
What pay-off and take-up reel sizes are supported?
Can the line be customized for my factory layout?
What information is needed before quotation?
A supplier that asks detailed technical questions is more likely to recommend a line that fits real production requirements.
A cable extrusion line is a production system used to apply plastic insulation or sheath onto wire and cable. It typically includes pay-off, preheater, extruder, crosshead, cooling trough, diameter control, spark tester, capstan, and take-up.
A wire extrusion line is often used for smaller wires or single conductors, while a cable extrusion line may handle larger cable cores, sheathing, or more complex cable structures. In many cases, the terms overlap depending on the product.
Cable insulation extrusion is the process of applying an insulating plastic layer directly around a conductor. It focuses on electrical insulation, thickness consistency, concentricity, and defect detection.
Cable sheathing extrusion is the process of applying an outer protective jacket around a cable core or cable assembly. It focuses on mechanical protection, surface quality, diameter control, and environmental resistance depending on material.
Common cable extrusion materials include PVC, PE, XLPE, TPU, LSZH compounds, and rubber-like compounds. The suitable material depends on cable application, electrical requirements, flexibility, flame behavior, and environmental conditions.
To choose a cable extruder machine, confirm the cable type, conductor diameter, finished cable diameter, plastic material, extrusion layer type, required output, thickness requirement, cooling method, reel size, and quality testing needs.
A spark tester is used to detect insulation defects such as pinholes, weak spots, or coating discontinuities during production. It helps identify electrical insulation problems before the finished cable moves to the next stage.
A cable extrusion line is a key production system for wire and cable manufacturers. It applies plastic insulation or sheath onto conductors and cable cores through a controlled extrusion process. A complete line may include pay-off, preheater, extruder, crosshead, cooling trough, diameter control, spark tester, capstan, and take-up.
For cable factories, the right extrusion line should be selected based on cable type, material, diameter, extrusion layer, output requirement, quality testing, reel size, and factory layout. A stable extrusion process depends on the coordination of every line section, not only the extruder.
If your factory is planning a new cable extrusion line or upgrading an existing wire extrusion line, Taizheng can discuss machine configuration based on your cable material, diameter, output, and extrusion layer type. You can review the plastic extruder machine page or visit Taizheng Machine for more wire and cable machinery information.
