The wire and cable manufacturing industry is a cornerstone of modern infrastructure, and its efficiency is directly tied to the technology it employs. For producers of everything from delicate data cables to robust power lines, the twisting process is a critical step that determines the final product's performance, durability, and signal integrity. For decades, traditional twisting machines were the standard, but the market's demand for higher speeds, superior quality, and lower operational costs has spurred the evolution of a more advanced solution: the Cantilever Single Twisting Machine.
This article is designed for manufacturing professionals and engineers who are considering an upgrade or evaluating their options. We will provide a comprehensive, head-to-head comparison to help you understand the fundamental differences between these two technologies and make an informed decision that will benefit your business in the long run.
Traditional twisting machines are characterized by their rigid, heavy-duty frame design. In this configuration, the twisting head, which holds the take-up bobbin, is supported by bearings at both the front and rear. This structure was historically valued for its perceived stability and durability. However, this design philosophy comes with inherent limitations that significantly impact modern production requirements.
The primary drawback of this dual-support system is the massive rotating weight. This heavy mass leads to a high moment of inertia, which in turn imposes several restrictions on performance:
Slower Operating Speeds: The machine cannot rotate at very high RPMs without excessive vibration and mechanical stress, limiting production speed and output.
Complex and Time-Consuming Maintenance: The enclosed, heavy frame makes it difficult for operators to access internal components. Simple tasks like wire threading and bobbin changes become laborious, leading to prolonged downtime and reduced operational efficiency.
Inconsistent Quality Control: Many traditional machines rely on mechanical gear systems for pitch control. These systems are prone to wear and tear, leading to pitch variations and inconsistent tension throughout the twisting process. For high-performance cables, this lack of uniformity can compromise electrical properties and lead to product defects.
Higher Energy Consumption: The energy required to accelerate and decelerate the heavy rotating mass is substantial, leading to higher electricity bills and a larger carbon footprint.

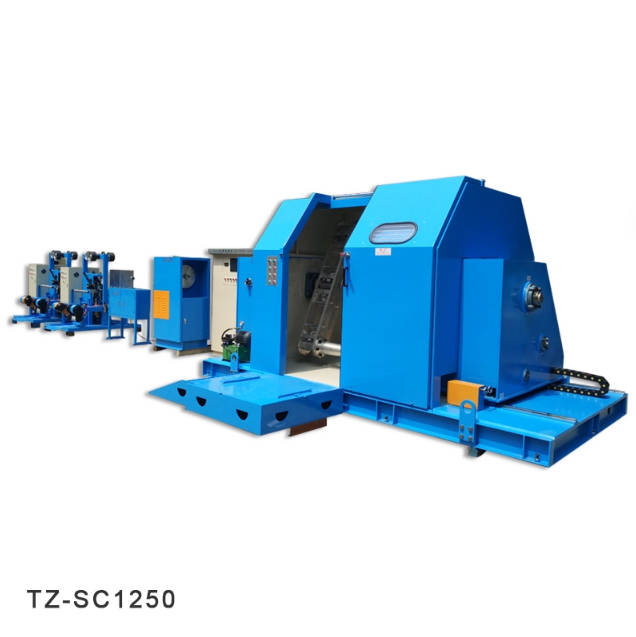

The Cantilever Single Twisting Machine represents a paradigm shift in twisting technology. Its name is derived from the innovative design where the twisting head, containing the bobbin, is supported only from one end. This cantilevered arm is a marvel of modern engineering, meticulously balanced to rotate at extremely high speeds with minimal vibration.
This lightweight, open-ended design is the key to unlocking a host of performance benefits that directly address the limitations of traditional machines. Modern cantilever machines are no longer just mechanical devices; they are sophisticated, mechatronic systems with integrated automation. Every reputable Cantilever Single Twisting Machine manufacturer now incorporates advanced components to ensure precision and reliability.
Key features that define this advanced technology include:
Lightweight, Dynamically Balanced Twisting Head: The reduced rotating mass allows for significantly higher speeds (often exceeding 3000 RPM) while maintaining stability.
Advanced Electronic Control Systems: Instead of gears, these machines use integrated PLCs (Programmable Logic Controllers) and HMIs (Human-Machine Interfaces) to digitally control and adjust the twisting pitch, tension, and speed with remarkable accuracy.
User-Centric Design: The open design simplifies everything from threading the wire to loading and unloading the bobbin. This reduces the physical labor required and slashes changeover times.
Integrated Solutions: Many modern machines from a leading Cantilever Single Twisting Machine supplier can perform multiple functions, such as combining the twisting and taping process in a single, high-speed pass.
The true value of the cantilever design becomes clear when we compare the two machine types side-by-side. The following table and detailed breakdown highlight the most significant differences that impact a manufacturer's bottom line.
Performance and Speed: The Cantilever Single Twisting Machine is engineered for maximum throughput, offering production speeds that can be 2 to 3 times faster than a traditional model. This is a direct result of its lightweight design and advanced dynamic balancing. For a modern Cantilever Single Twisting Machine manufacturing operation, this speed translates directly into higher output and a greater competitive advantage in the market.
Efficiency and Downtime: The open-ended cantilever arm completely redefines the workflow. With a traditional machine, operators might spend a significant amount of time maneuvering heavy bobbins and re-threading wires. The cantilever design simplifies this process to a few quick steps, reducing bobbin changeover time from minutes to seconds. This reduction in downtime is a massive boost to overall production efficiency.
Precision and Product Quality: For critical applications like data and telecommunication cables, the consistency of the twisted pair is non-negotiable. A key advantage of the Cantilever Single Twisting Machine is its use of a modern electronic control system to maintain a perfectly uniform twisting pitch and consistent tension from start to finish. This ensures the integrity of the finished product, minimizing costly defects and rework.
Operating Costs: While the initial investment in a modern cantilever machine might be higher, the long-term savings are substantial. The lighter rotating mass significantly reduces energy consumption. Furthermore, the simpler, more accessible design leads to less wear on components and easier maintenance, lowering both the frequency and cost of servicing over the machine's lifespan.
This is a very common and understandable concern. However, modern Cantilever Single Twisting Machine manufacturer designs use state-of-the-art engineering principles, including precision machining and dynamic balancing, to ensure the cantilever arm remains exceptionally stable, even at its highest rotational speeds. The design's structural integrity is meticulously tested to handle the specific forces involved, making it a reliable and robust solution.
The ROI is often very compelling. The calculation must factor in several key areas: increased productivity due to higher speed and reduced downtime, lower labor costs from simplified operation, reduced energy consumption, and the long-term value of producing higher-quality, more consistent products. The ability to meet tight deadlines and high-quality specifications with a reliable Cantilever Single Twisting Machine can also open up new market opportunities, further accelerating your ROI.
Yes, modern cantilever machines are highly versatile. The advanced electronic control system allows for precise adjustments of speed, tension, and pitch, making them suitable for a wide range of wire gauges and materials, including copper, aluminum, and various insulated core wires. This flexibility is a significant benefit for manufacturers producing a diverse product portfolio.
The choice between a cantilever and a traditional twisting machine is more than a simple equipment decision; it is a strategic investment in the future of your manufacturing operations. While traditional machines have served their purpose, their inherent limitations in speed, efficiency, and quality control are no longer sufficient to meet the demands of a competitive global market.
By choosing to partner with a reputable Cantilever Single Twisting Machine supplier and investing in this advanced technology, a company is positioning itself for sustained growth. The benefits—from drastically increased productivity and energy savings to the ability to produce superior-quality cables with precision and consistency—are clear. The Cantilever Single Twisting Machine is the definitive choice for any manufacturer looking to optimize their production line and stay ahead of the curve.
