Common cable foaming extrusion problems include unstable foam degree, foam cell collapse, uneven foam insulation, large or irregular cells, bubbles in cable extrusion, surface roughness, diameter fluctuation, eccentric insulation, poor electrical consistency, and take-up deformation. These defects are usually related to material condition, gas control, melt temperature, screw mixing, crosshead design, cooling stability, line speed, conductor centering, or take-up tension.
Cable foaming extrusion is widely used for foam PE insulation in coaxial cables, data cables, RF cables, and communication cables. Compared with solid insulation extrusion, foaming extrusion requires more precise control because the insulation structure contains tiny gas cells. If gas dosing, temperature, pressure, cooling, or line speed becomes unstable, both cable appearance and electrical performance may be affected.
This guide explains common cable foaming extrusion problems, possible causes, and practical troubleshooting methods. If your factory is producing foamed polyethylene cable insulation or planning to upgrade a foam insulation line, Taizheng’s physical foaming extrusion line can be reviewed as a relevant equipment option for coaxial cable and PE foam insulation production.
Foaming extrusion is more complex than standard solid plastic extrusion because the final insulation quality depends on both polymer flow and foam cell formation. In a physical foaming process, gas is introduced into the polymer melt under controlled conditions. In chemical foaming, a blowing agent releases gas during processing. In both cases, foam structure must remain stable from melt formation to cooling and take-up.
A defect may come from one factor or several factors at the same time. For example, large foam cells may be caused by unstable gas injection, poor melt strength, unsuitable temperature, excessive residence time, or insufficient cooling. Diameter fluctuation may be caused by extrusion pressure variation, capstan speed instability, cooling change, or foam expansion drift.
In cable foaming extrusion, troubleshooting should focus on the full process chain: material, gas, melt, crosshead, cooling, line speed, measurement, and take-up.
This is why operators should avoid random parameter changes. A systematic diagnosis is more effective.
Problem | Common Causes | First Checks | Possible Fixes |
Unstable foam degree | Gas dosing variation, temperature fluctuation, material inconsistency | Gas pressure, barrel temperature, material batch | Stabilize gas control, adjust temperature, check material |
Foam cell collapse | Poor melt strength, overheating, insufficient cooling, excessive take-up tension | Foam structure, cooling trough, take-up tension | Adjust material/process, improve cooling, reduce tension |
Large foam cells | Excessive gas, poor mixing, wrong temperature, low pressure stability | Gas injection, screw mixing, melt pressure | Optimize gas dosing, stabilize pressure, adjust temperature |
Uneven foam insulation | Crosshead flow imbalance, unstable line speed, poor centering | Crosshead, diameter gauge, capstan | Adjust tooling, stabilize line speed, center conductor |
Bubbles in cable extrusion | Moisture, contamination, unstable gas release, overheating | Material drying, hopper, temperature zones | Dry material, clean system, reduce overheating |
Surface roughness | Poor plasticization, skin layer instability, cooling issue | Barrel temperature, die, cooling water | Adjust temperature, clean tooling, improve cooling |
Diameter fluctuation | Output variation, foam expansion drift, capstan instability | Extruder output, line speed, diameter data | Stabilize output, control foam degree, inspect capstan |
Poor electrical consistency | Foam ratio variation, eccentric insulation, diameter drift | Capacitance, diameter, centering | Control geometry, improve online measurement |
Take-up deformation | Insulation not fully cooled, high winding tension | Cooling completion, take-up setting | Extend cooling, reduce take-up tension |
Foam degree refers to how much the polymer insulation expands because of gas cells. In cable production, stable foam degree is important because it affects insulation density, dielectric properties, cable diameter, material consumption, and mechanical behavior.
When foam degree changes during production, the cable may show:
Diameter fluctuation
Electrical performance variation
Uneven insulation appearance
Inconsistent cable weight
Surface instability
Foam collapse in some sections
Poor process repeatability
Unstable foam degree is often caused by unstable gas dosing, temperature fluctuation, melt pressure variation, material inconsistency, or cooling instability.
Check Point | What to Inspect |
Gas injection system | Pressure stability, dosing consistency, leakage, control response |
Material batch | Grade consistency, moisture, contamination, melt behavior |
Barrel temperature | Zone stability and overheating risk |
Melt pressure | Pressure fluctuation before the crosshead |
Screw speed | Output stability and mixing condition |
Line speed | Capstan speed stability |
Cooling | Water temperature and cooling length |
Diameter data | Whether diameter drift follows foam degree change |
Practical actions include:
Stabilize gas pressure and dosing.
Check whether the gas injection system has leakage or unstable control.
Keep barrel and head temperature within the material’s recommended processing range.
Use consistent material batches where possible.
Avoid sudden screw speed or line speed changes.
Improve cooling stability.
Record foam degree, diameter, line speed, and temperature settings for each production run.
Foam cell collapse means the cellular structure loses stability before the insulation is fully solidified. The cable may become dense in some areas, show surface sink marks, lose diameter stability, or fail to meet electrical performance targets.
Foam cell collapse may happen during extrusion, cooling, or take-up.
Cause | Explanation |
Melt strength too low | Polymer cannot support stable cells during expansion |
Temperature too high | Melt becomes too weak and cells may collapse |
Cooling too slow | Foam structure remains soft for too long |
Take-up tension too high | Soft foamed insulation is stretched or compressed |
Excessive foam degree | Foam structure exceeds material/process capability |
Poor gas dispersion | Large cells are easier to collapse |
Unsuitable material grade | Material may not support stable foaming |
Check whether the material grade is suitable for foaming.
Reduce excessive melt temperature if overheating is suspected.
Stabilize gas dosing and avoid excessive foam ratio.
Improve cooling trough design or cooling water control.
Reduce take-up tension if insulation is still soft.
Check whether line speed is too high for the available cooling length.
Inspect foam cell structure under quality control procedures where available.
Consult material supplier data for melt strength and foaming suitability.
Foam cell collapse should not be treated only as a cooling problem; material grade, gas control, melt temperature, pressure, and take-up tension should be reviewed together.
Fine and uniform foam cells are usually preferred in cable insulation because they support more stable electrical and mechanical properties. Large or irregular cells can cause weak points, poor diameter stability, rough surface, and inconsistent dielectric behavior.
Cause | Effect |
Excessive gas dosing | Cells grow too large or merge |
Poor melt mixing | Gas is not distributed uniformly |
Incorrect temperature | Foam expansion becomes unstable |
Low melt pressure stability | Cell nucleation becomes inconsistent |
Material contamination | Foam structure becomes irregular |
Poor screw design | Insufficient mixing or pressure control |
Sudden speed changes | Foam formation becomes unstable |
Reduce gas dosing gradually and observe cell structure.
Check screw and barrel condition.
Stabilize melt pressure before the crosshead.
Adjust barrel temperature according to material behavior.
Avoid sudden speed changes during production.
Check material cleanliness and moisture.
Confirm whether the material is suitable for fine-cell foaming.
Inspect gas injection and mixing performance.

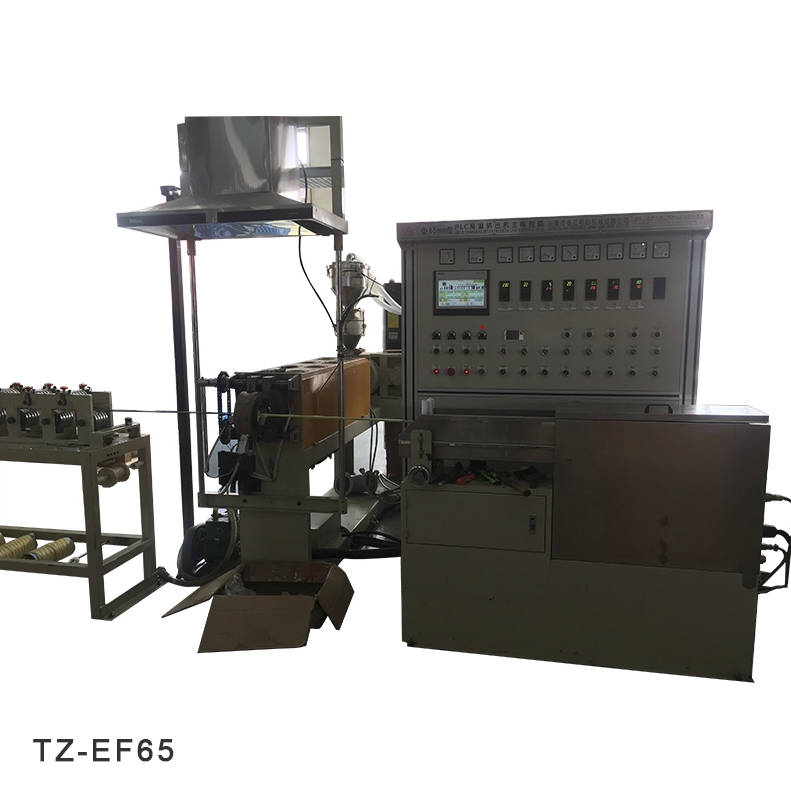

A physical foaming extrusion line should support stable gas control and melt mixing for consistent foam PE insulation production.
Uneven foam insulation means the insulation layer is not uniform around the conductor or along the cable length. This may involve uneven thickness, uneven foam density, unstable diameter, or irregular surface.
In coaxial and data cables, uneven foam insulation can affect electrical consistency because cable geometry directly influences impedance, capacitance, and signal behavior.
Cause | What Happens |
Crosshead not centered | Insulation thickness becomes eccentric |
Poor material flow balance | One side of insulation becomes different from another |
Unstable gas control | Foam density changes along the cable |
Capstan speed fluctuation | Diameter and thickness change |
Conductor vibration | Centering becomes unstable |
Cooling imbalance | Shape and foam structure change |
Poor tooling selection | Layer formation becomes unstable |
Recenter the conductor in the crosshead.
Check die and tip alignment.
Inspect material flow balance.
Stabilize gas dosing and melt pressure.
Monitor diameter continuously.
Check conductor pay-off tension.
Ensure capstan speed is stable.
Inspect cooling trough alignment and water flow.
Review whether tooling matches cable diameter and layer structure.
For coaxial cable foam insulation, conductor centering and diameter stability are critical because geometry changes can affect electrical performance.
Bubbles in cable extrusion may appear as visible voids, surface blisters, internal air pockets, or insulation defects. In foaming extrusion, operators must distinguish between controlled foam cells and unwanted bubbles.
Controlled foam cells are small, distributed, and part of the insulation design. Unwanted bubbles are usually larger, irregular, or inconsistent.
Cause | Explanation |
Material moisture | Water vapor creates bubbles during heating |
Contamination | Foreign material disturbs melt flow |
Overheating | Material degradation may release gas |
Poor drying | Moisture-sensitive materials not properly dried |
Unstable foaming agent behavior | Gas release becomes uncontrolled |
Poor venting or feeding | Air trapped in material feed |
Dead zones in tooling | Degraded material accumulates and releases gas |
Dry materials according to supplier recommendations where required.
Check hopper, feeding system, and storage conditions.
Reduce overheating and avoid excessive residence time.
Clean screw, barrel, crosshead, and die if contamination is suspected.
Check material batch quality.
Stabilize gas injection or foaming agent dosing.
Confirm whether the bubble is random contamination or regular process instability.
Use online and offline inspection to identify bubble location.
Bubbles can be a material issue, process issue, or machine cleaning issue. The troubleshooting method should match the defect pattern.
Surface roughness in cable foaming extrusion can affect appearance, shielding compatibility, jacket adhesion, and downstream processing. In skin-foam-skin structures, surface roughness may also indicate outer skin instability.
Cause | Result |
Poor plasticization | Rough or grainy surface |
Wrong temperature setting | Material flow becomes unstable |
Die contamination | Lines, marks, or irregular surface |
Cooling too aggressive | Surface stress or rough finish |
Foam instability near surface | Uneven outer appearance |
Material contamination | Random rough spots |
Excessive line speed | Surface cannot stabilize properly |
Adjust barrel and crosshead temperature.
Check whether the material is fully plasticized.
Clean die and tooling.
Inspect the outer skin layer if using SFS structure.
Check cooling water temperature and flow.
Reduce line speed temporarily to observe surface response.
Check material moisture and contamination.
Verify whether the screw is suitable for the material.
Surface roughness should be diagnosed by checking material plasticization, die condition, foam stability, and cooling together.
Diameter fluctuation is a serious issue in foam cable extrusion because it can affect both appearance and electrical performance. In coaxial cable, diameter variation may affect impedance consistency. In data cable, insulation size changes may affect transmission characteristics.
Cause | Explanation |
Extruder output fluctuation | Material flow changes |
Gas pressure instability | Foam expansion changes |
Capstan speed fluctuation | Cable stretch and thickness change |
Cooling variation | Insulation shrinkage changes |
Crosshead pressure instability | Flow distribution changes |
Material batch variation | Melt and foam behavior changes |
Take-up tension issue | Soft cable diameter may deform |
Check online diameter data trend.
Stabilize screw speed and extruder output.
Inspect gas pressure and dosing stability.
Check capstan drive and speed control.
Confirm cooling water temperature is stable.
Verify take-up tension is not deforming the cable.
Check material batch consistency.
Inspect die and crosshead pressure stability.
Diameter fluctuation should be measured, not guessed. Online diameter monitoring is useful for identifying whether the problem is gradual drift, periodic fluctuation, or sudden instability.
For coaxial, data, RF, and communication cables, electrical consistency is often the final quality target. Poor electrical consistency may appear as unstable impedance, capacitance variation, attenuation problems, or failed transmission tests.
Cause | Electrical Impact |
Foam ratio variation | Changes dielectric properties |
Eccentric insulation | Changes cable geometry |
Diameter fluctuation | Affects impedance and capacitance |
Large foam cells | Creates local inconsistency |
Poor conductor centering | Affects signal path geometry |
Material variation | Changes dielectric behavior |
Cooling instability | Affects final dimensions |
Check insulation diameter stability.
Inspect conductor centering.
Measure foam structure consistency.
Stabilize gas dosing and temperature.
Monitor capacitance or related electrical data where available.
Check material batch and formulation.
Improve process records for traceability.
Confirm tooling matches the cable design.
Electrical issues are often caused by physical geometry variation. In foam cable production, visual inspection alone is not enough.
Foamed insulation may be more sensitive to mechanical pressure before it is fully cooled and stabilized. If take-up tension is too high or winding is uneven, the cable may deform.
Cause | Result |
High take-up tension | Cable stretches or insulation compresses |
Insufficient cooling | Foam layer remains soft |
Poor traverse control | Uneven winding package |
Reel mismatch | Cable bends too tightly |
High line speed | Cooling not completed before winding |
Soft outer layer | Surface marks or deformation |
Reduce take-up tension.
Improve cooling before take-up.
Check cooling trough length and water temperature.
Use suitable reel size for the cable diameter.
Adjust traverse movement.
Avoid excessive winding pressure.
Inspect the first layers after startup.
Check whether line speed exceeds cooling capacity.
Good take-up control protects the foam structure and supports downstream cable processing.
Control Area | What to Record |
Material | Grade, batch, drying condition, storage condition |
Gas system | Pressure, flow, dosing setting, stability |
Extruder | Screw speed, barrel temperatures, melt pressure |
Crosshead | Temperature, die, tip, centering setting |
Foam structure | Foam ratio, cell size, cell uniformity |
Diameter | Online diameter data and fluctuation pattern |
Cooling | Water temperature, trough length, line speed |
Electrical test | Capacitance, impedance, spark test or related data |
Take-up | Reel size, winding tension, package shape |
Defect record | Time, location, frequency, photo, sample |
The most useful troubleshooting data includes material batch, gas setting, temperature profile, melt pressure, line speed, diameter trend, cooling condition, and defect samples.
With this information, operators and suppliers can diagnose problems more accurately.
Some cable foaming extrusion problems can be solved by parameter adjustment. Others may indicate that the extrusion line configuration does not match the product.
Possible equipment-related limitations include:
Gas injection system is not stable enough.
Screw design does not match foam PE material.
Crosshead cannot maintain stable layer distribution.
Cooling trough is too short for line speed.
Diameter control is not accurate enough.
Capstan speed control is unstable.
Take-up tension is unsuitable for foamed insulation.
Line layout does not support stable operation.
If the same problem repeats after reasonable adjustment and maintenance, the equipment configuration should be reviewed.
Before selecting or upgrading a foam extrusion line, prepare clear production information.
Information to Provide | Why It Matters |
Cable type | Coaxial, data, RF, communication, or other cable |
Conductor material | Affects preheating and centering |
Conductor diameter | Determines tooling and geometry |
Target insulation diameter | Affects extrusion output and cooling |
Material grade | Determines screw and temperature configuration |
Foam ratio target | Affects dielectric and mechanical properties |
Cell structure requirement | Helps define foaming process control |
Electrical requirement | Determines measurement and testing needs |
Line speed target | Determines extruder and cooling capacity |
Layer structure | Single foam or skin-foam-skin |
Reel size | Determines pay-off and take-up design |
Current defects | Helps supplier diagnose process limitations |
Taizheng can discuss physical foaming extrusion line configuration based on your cable structure, material, foam ratio, output target, and troubleshooting data.
When asking for support, avoid sending only a short message such as “the foam is unstable.” Provide structured data so the supplier can identify the likely cause.
Useful information includes:
Cable type
Conductor diameter
Insulation diameter
Material grade
Foaming method
Foam ratio target
Gas setting
Barrel and crosshead temperature
Screw speed
Line speed
Cooling condition
Defect photos
Diameter trend
Electrical test data
Take-up reel size
Current machine configuration
You can visit Taizheng Machine for broader wire and cable machinery information or review the physical foaming extrusion line page for foam cable extrusion equipment options.
The most common cable foaming extrusion problems include unstable foam degree, foam cell collapse, uneven foam insulation, large cells, bubbles, surface roughness, diameter fluctuation, poor electrical consistency, and take-up deformation.
Foam cell collapse is commonly caused by low melt strength, excessive temperature, unstable gas control, insufficient cooling, excessive foam ratio, poor material selection, or high take-up tension before the insulation is fully stabilized.
To fix uneven foam insulation, check conductor centering, crosshead alignment, die and tip selection, gas dosing stability, melt pressure, line speed, cooling condition, and online diameter data. The cause may be mechanical, thermal, or process-related.
Bubbles in cable extrusion may be caused by material moisture, contamination, overheating, poor drying, unstable gas release, air trapped in feeding, or degraded material in the screw, barrel, crosshead, or die.
Large foam cells may be caused by excessive gas dosing, poor melt mixing, incorrect temperature, unstable melt pressure, unsuitable material grade, contamination, or sudden line speed changes during foaming extrusion.
Cable diameter may fluctuate because of extruder output variation, gas pressure instability, foam expansion drift, capstan speed fluctuation, cooling temperature changes, material variation, or take-up tension problems.
For foaming extruder troubleshooting, provide cable type, conductor diameter, insulation diameter, material grade, foam ratio target, gas setting, temperature profile, screw speed, line speed, cooling condition, diameter trend, defect photos, and test data.
Cable foaming extrusion problems often come from the interaction of material, gas control, melt temperature, screw mixing, crosshead design, cooling, line speed, diameter control, electrical testing, and take-up tension. Common defects such as foam cell collapse, uneven foam insulation, bubbles, rough surface, diameter fluctuation, and poor electrical consistency should be diagnosed systematically rather than by random parameter changes.
For cable manufacturers, stable foam extrusion depends on good process records and suitable equipment configuration. If defects repeat after basic adjustment, the line configuration may need to be reviewed, especially gas control, screw design, cooling capacity, crosshead tooling, and online measurement.
If your factory is facing cable foaming extrusion problems, Taizheng can help evaluate your material, conductor size, insulation diameter, foam ratio, line speed, cooling condition, defect photos, and production data. You can review the physical foaming extrusion line page or visit Taizheng Machine for more wire and cable machinery information.
