Horizontal Taping Machines vs. Vertical Taping Machines: A Comprehensive Guide

Views: 0     Author: Site Editor     Publish Time: 2025-05-30      Origin: Site

Introduction

In the cable manufacturing industry, Taping Machines are indispensable for applying insulating or shielding materials, such as mica tape, aluminum foil, or polyester, to wires and cables. These machines enhance cable properties, enabling them to meet stringent requirements for fire resistance, water resistance, or electromagnetic shielding. Applications span industries like power transmission, aerospace, automotive, and construction, where specialized cables are critical. A key decision for manufacturers is choosing between Horizontal Taping Machines and Vertical Taping Machines, as the orientation significantly affects production efficiency, cable quality, and operational costs. This article explores the differences, focusing on the advantages of Horizontal Taping Machines, particularly for multi-layer applications, and addresses common questions to help manufacturers make informed decisions. We will also highlight the capabilities of the Horizontal Multi-Layer Taping Machine from Taizheng Machine (model TZ-TM400H) as a leading example.

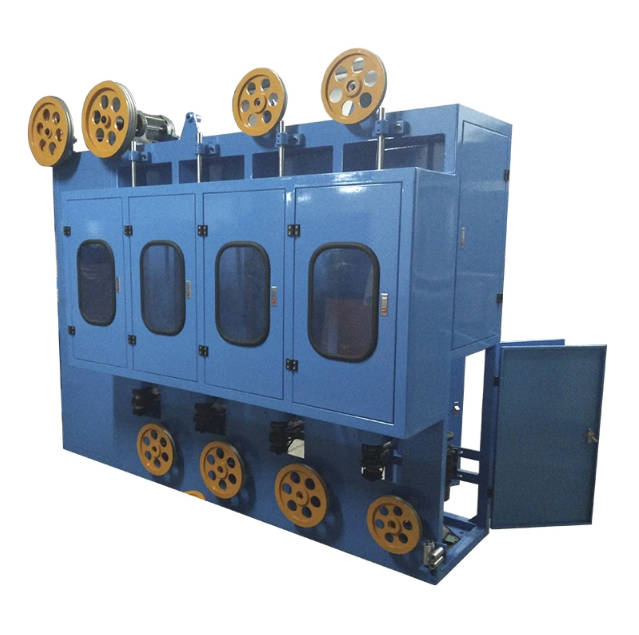

Snipaste_2025-06-05_14-57-21


Advantages of Horizontal Taping Machines

Horizontal Taping Machines offer distinct benefits that make them the preferred choice for specific cable manufacturing scenarios. Below are the key advantages, supported by industry insights and the features of Taizheng’s machine.

Handling Larger Cables

Horizontal Taping Machines are particularly effective for processing cables with larger diameters, typically exceeding 3mm. For instance, the Taizheng TZ-TM400H can handle input wire diameters from 5.0 to 30.0mm, making it ideal for heavy-duty cables used in power transmission or construction. Unlike Vertical Taping Machines, which are often designed for smaller conductors (e.g., <3mm), horizontal machines accommodate the size and weight of larger cables, ensuring stable and consistent taping.

Reduced Cable Stress

One significant advantage of Horizontal Taping Machines is their ability to keep the cable straight during the taping process, minimizing bending or twisting. This is crucial for larger or more rigid cables, where excessive stress could compromise structural integrity or performance. According to industry sources, horizontal machines ensure the wire does not bend, which is vital for maintaining cable quality in applications like high-voltage power cables or fire-resistant cables.

Better Control for Multi-Layer Taping

Multi-layer taping, where multiple layers of tape are applied to achieve specific properties, requires precise control over tension, overlap, and speed. Horizontal Taping Machines provide superior stability and control for this process. The Taizheng TZ-TM400H, for example, supports 3-6 layers of concentric taping with a tensile strength range of 100-800 mN/m, ensuring uniform application. This precision is essential for cables requiring multiple layers, such as mica tape for fire resistance or aluminum foil for shielding.

Integration into Production Lines

Horizontal Taping Machines are often easier to integrate into existing horizontal production lines, enhancing workflow efficiency. Their linear layout aligns with other machinery, reducing downtime and material handling. The Taizheng machine’s design, with components like single lever counterweight pay-off and moving shaft take-up, facilitates seamless integration, minimizing cable damage during processing.

Operator Access

The horizontal configuration offers improved accessibility for operators. Loading and unloading materials, monitoring the taping process, and performing maintenance are more straightforward compared to vertical setups. This ease of access can reduce labor costs and improve operational efficiency, particularly in high-volume production environments.


Advantage

Horizontal Taping Machine

Vertical Taping Machine

Cable Size

Ideal for larger cables (>3mm, up to 30mm)

Best for smaller cables (<3mm)

Cable Stress

Minimizes bending/twisting, maintaining cable integrity

May cause stress due to vertical pulling

Multi-Layer Taping

Superior control for 3-6 layers, precise tension and overlap

Suitable for single or double layers, less control for multiple layers

Production Line Integration

Easily integrates into horizontal setups

Better for compact, vertical setups

Operator Access

Easier access for loading, unloading, and maintenance

Limited access due to vertical orientation


Common Questions About Horizontal Taping Machines

Manufacturers often have questions when deciding between Horizontal Taping Machines and Vertical Taping Machines. Below, we address the most common concerns to provide clarity.

When to Choose Horizontal Over Vertical

Horizontal Taping Machines are the preferred choice in the following scenarios:

  • Larger Diameter Cables: Suitable for cables with diameters greater than 3mm, such as those used in power transmission or industrial applications.

  • Horizontal Production Lines: When the production facility is designed with a linear, horizontal layout, horizontal machines integrate more seamlessly.

  • Multi-Layer Taping: For applications requiring 3-6 layers of tape, such as fire-resistant cables using mica tape, horizontal machines offer better control.

  • Minimizing Cable Stress: When maintaining cable integrity is critical, especially for rigid or heavy cables.

In contrast, Vertical Taping Machines are better for smaller cables, compact production spaces, or simpler taping tasks (e.g., single or double layers).

Space Requirements

Horizontal Taping Machines typically require more floor space due to their linear design. For example, the Taizheng TZ-TM400H includes components like pay-off, take-up, and a heat melting oven, which increase its footprint. However, this design offers better accessibility for operators. Vertical Taping Machines, with their compact, tower-like structure, are ideal for facilities with limited floor space but may restrict access and limit cable size.

Cost Comparison

The initial cost of Horizontal Taping Machines can be higher due to their larger size and advanced features, such as PLC control systems and high-speed capabilities (e.g., Taizheng’s 2500 rpm). However, their ability to handle larger cables and multi-layer taping can lead to long-term savings through increased productivity and reduced material waste. Vertical Taping Machines are generally less expensive and suitable for smaller-scale operations but may not match the efficiency of horizontal machines for complex tasks.

Specific Industries or Applications

Horizontal Taping Machines are widely used in industries producing:

  • Fire-Resistant Cables: For buildings, ships, airports, and power plants, using materials like mica tape.

  • Water-Resistant Cables: For marine or underground applications, requiring robust insulation.

  • High-Voltage Power Cables: Where larger diameters and multiple layers are common.

  • Aerospace and Defense: For specialized cables needing precision and reliability.

The Taizheng TZ-TM400H, for instance, is designed for fire-resistant and water-resistant cables, supporting a variety of non-metal tapes like Teflon, cotton, and Mylar.


Multi-Layer Taping with Horizontal Machines

Multi-layer taping is a specialized process that enhances cable performance by applying multiple layers of tape, each serving a distinct purpose. Horizontal Taping Machines are particularly well-suited for this task due to their stability and advanced control features.

Explanation of Multi-Layer Taping

Multi-layer taping involves applying several layers of tape to a cable to achieve properties like fire resistance, water resistance, or electromagnetic shielding. For example, mica tape provides thermal insulation for fire-resistant cables, while aluminum foil offers shielding for high-frequency cables. The Taizheng TZ-TM400H supports 3-6 layers, handling tape specifications like 400mm outer diameter and 20mm width, customizable to meet specific needs.

Benefits of Using a Horizontal Machine for Multi-Layer Taping

  • Stability: The horizontal layout ensures the cable remains straight, preventing shifts or twists that could disrupt layer alignment.

  • Precise Control: Advanced PLC systems, like those in the Taizheng machine, allow precise adjustments of tape tension (100-800 mN/m), speed (up to 2500 rpm), and overlap, ensuring uniform application.

  • High-Speed Operation: With a line speed of up to 50 m/min, horizontal machines support continuous, high-volume production.

  • Versatility: They handle various tape materials (e.g., mica, Teflon, aluminum foil) and cable sizes (5.0-30.0mm), offering flexibility for diverse applications.

  • Safety Features: The Taizheng machine includes wire break protection and non-contact photo-electricity detection, minimizing material waste and ensuring operator safety.

Feature

Taizheng TZ-TM400H (Horizontal)

Typical Vertical Machine

Max Layers

3-6 layers, concentric taping

Typically 1-2 layers

Wire Diameter

5.0-30.0mm

Often <3mm

Rotating Speed

Max 2500 rpm

Varies, often lower

Line Speed

Max 50 m/min

Typically lower

Tape Materials

Mica, Teflon, cotton, aluminum foil, Mylar, BOPP, polyester, etc.

Similar, but less versatile for larger cables

Control System

Siemens PLC, Weinview touch screen

Varies, often simpler


Conclusion

Horizontal Taping Machines offer significant advantages for manufacturers dealing with larger cables and multi-layer taping requirements. Their ability to handle diameters up to 30mm, reduce cable stress, provide precise control for multi-layer applications, and integrate into production lines makes them ideal for industries producing fire-resistant, water-resistant, or high-voltage cables. While Vertical Taping Machines are better for smaller cables and compact spaces, horizontal machines excel in high-volume, complex taping tasks.

For manufacturers seeking a reliable solution, the Horizontal Multi-Layer Taping Machine from Taizheng Machine stands out. With its high-speed operation (2500 rpm, 50 m/min), support for 3-6 tape layers, and advanced features like Siemens PLC control and NSK bearings, it meets the demands of modern cable manufacturing. Explore this Horizontal Taping Machine for Sale to enhance your production efficiency and cable quality.
