To choose a plastic extruder for cable insulation production, manufacturers should confirm the insulation material, conductor diameter, finished wire diameter, required output, screw diameter, L/D ratio, line speed, crosshead design, cooling system, diameter control, spark testing, and take-up configuration. The right extruder should match the material and cable specification, not only the maximum output value shown in a machine catalog.
In wire and cable manufacturing, the insulation extrusion process directly affects electrical performance, insulation thickness, concentricity, surface quality, production speed, and material cost. A poorly selected cable extruder machine may cause unstable melt flow, rough surface, eccentric insulation, diameter fluctuation, pinholes, poor adhesion, or excessive scrap.
This guide explains how to evaluate a wire insulation extruder from a practical purchasing and engineering perspective. It covers screw diameter, L/D ratio, material compatibility, output, control system, line speed, auxiliary equipment, common mistakes, and supplier selection. If your factory is planning a new insulation line or upgrading an existing one, Taizheng’s plastic extruder machine can be reviewed as an equipment option for wire and cable production.
A plastic extruder for cable insulation is the core machine used to melt polymer material and apply it around a conductor through a crosshead and die tooling. The conductor passes through the center of the crosshead, while molten plastic is shaped around it to form a continuous insulation layer.
A complete cable insulation extrusion line usually includes more than the extruder itself. It may include pay-off, conductor preheater, extruder, crosshead, cooling trough, diameter gauge, spark tester, capstan, and take-up unit.
The main function of a wire insulation extruder is to provide stable melt output so the insulation layer can be formed with consistent thickness, smooth surface, and reliable process quality.
Common cable insulation applications include:
PVC wire insulation
PE wire insulation
XLPE cable insulation
LSZH wire insulation
TPE or TPU flexible wire coating
Building wire insulation
Automotive wire insulation
Appliance wire insulation
Control cable insulation
Communication wire insulation
The correct machine configuration depends on the cable product, insulation material, output requirement, conductor size, and quality standard.
The extruder is one of the most important parts of a plastic extrusion line for cable production. It determines whether the material can be melted, mixed, pressurized, and delivered steadily to the crosshead.
If the extruder is too small, the line may not reach the required output. If it is too large for the product, it may be inefficient or difficult to control at low output. If the screw design does not match the material, the insulation may have rough surface, bubbles, unstable flow, or poor thickness consistency.
A suitable cable extruder machine helps improve:
Production Requirement | Why It Matters |
Stable melt flow | Supports consistent insulation thickness |
Correct material plasticization | Reduces rough surface and unmelted particles |
Output capacity | Determines production speed and line efficiency |
Temperature control | Prevents under-melting or material degradation |
Crosshead pressure stability | Helps maintain coating quality |
Line speed coordination | Supports diameter and thickness control |
Material compatibility | Allows processing of required insulation compounds |
Process repeatability | Reduces operator adjustment and scrap |
In cable insulation production, extruder selection affects both product quality and long-term production cost.
That is why buyers should evaluate the complete production requirement instead of choosing only by price or general machine size.
Material is the first factor when choosing a plastic extruder for cable insulation. Different materials require different screw design, barrel temperature, heating control, cooling behavior, and sometimes additional process equipment.
Common insulation materials include:
Material | Common Use | Extrusion Considerations |
PVC | Building wire, appliance wire, general cable insulation | Requires stable temperature control to avoid degradation |
PE | Communication wire and insulation applications | Requires good melt stability and cooling control |
XLPE | Power cable and higher-performance insulation | May require special processing or crosslinking system depending on cable design |
LSZH | Low-smoke halogen-free cable insulation | Often requires careful screw and temperature configuration |
TPE / TPU | Flexible cable and soft wire coating | May require moisture control and careful temperature setting |
Special compounds | Application-specific cables | Must be evaluated according to material datasheet |
The selected insulation material determines the screw design, temperature zones, cooling method, line speed, and quality testing requirements.
Before requesting a quotation, buyers should provide the material type and, when available, the material datasheet. General terms such as “PVC” or “PE” are useful, but compound formulation and application grade still matter.
Screw diameter is a key specification of a plastic extruder machine. It affects material output capacity, melt stability, and the suitable product range. A larger screw diameter can usually support higher output, while a smaller screw diameter may be more suitable for fine wires, lower output, or precise control.
However, bigger is not always better. If the screw diameter is too large for a small wire insulation product, the extruder may operate below its efficient range. This can make temperature control and output stability more difficult.
Screw Diameter Consideration | Selection Impact |
Small wire diameter | May require smaller extruder for better control |
Large cable diameter | May require larger extruder output |
Thin insulation layer | Requires stable low-output control |
Thick insulation layer | Requires higher material output |
High line speed | Requires enough extrusion capacity |
Material viscosity | Affects screw load and output stability |
Product variety | May require a balanced extruder size |
A supplier should recommend screw diameter based on conductor size, finished wire diameter, insulation thickness, material type, and target line speed.
L/D ratio means the ratio between screw length and screw diameter. It is one of the technical indicators used to describe the screw’s processing length. For cable extrusion, L/D ratio influences material melting, mixing, pressure build-up, and plasticization stability.
Different materials may require different screw designs and L/D ratios. For example, PVC compounds, PE compounds, LSZH materials, and TPE grades may behave differently inside the barrel.
The L/D ratio should be evaluated together with screw design, material type, output target, and required melt quality.
Important points include:
Longer processing length may support better melting and mixing in many applications.
Some heat-sensitive materials may require careful temperature and shear control.
Material formulation may be more important than the general material name.
Screw structure and compression design also matter, not only L/D ratio.
The supplier should confirm suitability based on the insulation compound.
Buyers should avoid choosing an extruder based only on a single L/D number. The more practical question is whether the screw and barrel design can process the selected cable insulation material steadily.
Extruder output and line speed must work together. The extruder supplies molten plastic, while the capstan pulls the wire through the line. The relationship between material output and line speed determines insulation thickness and finished wire diameter.
If line speed is too high relative to material output, insulation may become too thin. If line speed is too low, the insulation may become too thick and material cost may increase. If output fluctuates, the finished wire diameter may become unstable.
Key output factors include:
Output Factor | Why It Matters |
Insulation thickness | More thickness requires more material output |
Finished wire diameter | Affects material consumption and cooling requirement |
Line speed | Determines production efficiency |
Material density and viscosity | Affects extrusion flow behavior |
Screw speed | Controls output but must remain stable |
Cooling capacity | Must match output and speed |
Diameter tolerance | Requires stable output and pulling coordination |
A cable insulation extrusion line should be designed so extruder output, line speed, cooling capacity, and diameter control work as one system.
When asking for equipment advice, provide target output or target line speed if available. If you do not have this data, provide product specifications and production goals so the supplier can estimate a suitable configuration.
Not every extruder configuration is suitable for every cable insulation material. Material compatibility affects screw design, barrel temperature, crosshead design, cooling, and auxiliary equipment.
For example:
PVC requires careful temperature control to avoid degradation.
PE requires stable melt output and cooling control.
XLPE may require additional crosslinking or curing process depending on cable design.
LSZH compounds may need suitable screw design due to filler content and flow behavior.
TPE or TPU may require drying or special handling depending on grade.
Material Question | Why It Matters |
What material will be processed? | Determines screw and temperature design |
Is the material heat-sensitive? | Affects barrel temperature control |
Does the material require drying? | Affects auxiliary equipment |
Is it for insulation or sheath? | Affects crosshead and tooling |
Is the material filled or flame-retardant? | Affects screw wear and flow behavior |
Is crosslinking required? | Affects full line configuration |
A reliable supplier should ask for material details before recommending a wire insulation extruder.
The crosshead and die tooling are critical for insulation concentricity and thickness control. Even a stable extruder cannot produce good insulation if the crosshead is poorly matched or incorrectly adjusted.
The crosshead guides molten plastic around the conductor. The die and tip shape the insulation layer. Centering adjustment helps keep the conductor in the correct position.
Important selection points include:
Conductor diameter
Finished wire diameter
Insulation thickness
Material flow behavior
Required concentricity
Die and tip size
Ease of cleaning
Crosshead heating control
Single-layer or multi-layer requirement
Poor crosshead setup can lead to eccentric insulation, uneven thickness, surface defects, or high material waste.
A good control system helps operators maintain stable extrusion conditions. Temperature control is especially important because insulation materials are sensitive to overheating, under-melting, or unstable thermal conditions.
Control system considerations include:
Control Feature | Practical Benefit |
Barrel temperature control | Maintains stable plasticization |
Screw speed control | Helps regulate material output |
Line speed coordination | Supports diameter consistency |
Fault indication | Helps operators respond quickly |
Digital parameter setting | Improves repeatability |
Production data reference | Helps standardize process recipes |
Emergency stop and safety functions | Supports safer operation |
Diameter monitoring interface | Helps improve process control |
Stable temperature and speed control help reduce extrusion defects such as rough surface, bubbles, diameter fluctuation, and material degradation.
Automation level should match factory needs. A high-output production line may require more integrated control, while a smaller production line may use a simpler control system.
A plastic extruder is only one part of the insulation extrusion line. Buyers should consider the complete line configuration.
Auxiliary Equipment | Function |
Pay-off unit | Feeds conductor into the line |
Conductor preheater | Warms conductor or removes moisture where needed |
Crosshead and die tooling | Forms insulation around conductor |
Cooling trough | Solidifies insulation layer |
Diameter gauge | Monitors finished wire diameter |
Spark tester | Detects insulation defects such as pinholes |
Capstan | Pulls wire at controlled speed |
Take-up unit | Winds finished insulated wire |
Printer or marking unit | Adds product information where required |
Drying system | Used for materials requiring moisture control |
Electrical control system | Coordinates line operation |
A complete plastic extrusion line for cable should be configured according to material, cable size, output, testing requirements, and factory layout.
Quality control should be considered during equipment selection, not only after production starts.
Important quality factors include:
Quality Item | Related Equipment or Setting |
Insulation thickness | Extruder output, line speed, die tooling |
Concentricity | Crosshead centering, conductor alignment |
Surface finish | Material plasticization, temperature, cooling |
Diameter stability | Diameter gauge, capstan, extrusion output |
Electrical integrity | Spark tester, material quality, insulation thickness |
Adhesion or stripping behavior | Material, conductor preparation, preheating |
Coil or reel quality | Take-up tension and traverse control |
Defect traceability | Production records and inspection data |
For many cable factories, adding online diameter measurement and spark testing can improve process monitoring and reduce risk before finished products move to later stages.
Cable insulation extrusion lines can vary in automation level. A basic line may require more operator adjustment, while a more integrated line can include advanced control, measurement, feedback, and inspection systems.
Comparison Point | Basic / Semi-Automatic Line | More Integrated Extrusion Line |
Investment level | Lower | Higher |
Operator involvement | More manual adjustment | More process monitoring |
Process repeatability | Depends more on operator skill | More stable with proper setup |
Quality monitoring | May be limited | Can include online measurement/testing |
Suitable production | Lower or moderate output | Higher or more standardized output |
Changeover flexibility | Often simple | Depends on system design |
Data control | Limited | Better parameter management |
The right choice depends on production volume, cable quality requirements, labor skill, and budget.
Screw diameter is important, but it must be matched with material, insulation thickness, line speed, and product size. A larger screw is not always better.
PVC, PE, XLPE, LSZH, and TPE all behave differently. Even within the same material family, different grades may require different settings.
The supplier needs both conductor diameter and finished wire diameter to recommend extruder output, crosshead tooling, and cooling capacity.
A cable insulation line requires more than an extruder. Cooling, capstan, spark testing, diameter control, pay-off, and take-up can all affect final quality.
Two quotations may not include the same screw design, crosshead, control system, measuring device, spark tester, cooling trough, or take-up unit. Buyers should compare the complete line.
For accurate machine recommendation, prepare the following information:
Information Needed | Why It Matters |
Insulation material | Determines screw design and temperature control |
Material datasheet | Helps confirm processing requirements |
Conductor material | Affects preheating and coating behavior |
Conductor diameter | Determines crosshead and tooling |
Finished wire diameter | Determines insulation thickness and output |
Required output or line speed | Determines extruder size and motor capacity |
Insulation layer type | Single-layer, dual-layer, or special structure |
Reel size | Determines pay-off and take-up configuration |
Testing requirement | Determines spark tester and diameter gauge |
Factory layout | Determines line arrangement |
Power supply standard | Helps electrical configuration |
Existing production defects | Helps identify improvement requirements |
For a practical recommendation, buyers should provide insulation material, cable size, finished diameter, target output, reel size, and testing requirements before choosing a plastic extruder.
Taizheng can discuss plastic extruder machine configuration based on your cable insulation material and production target.
A reliable supplier should not recommend an extruder only by asking “what size machine do you need?” Instead, the supplier should understand the full cable insulation process and help match machine configuration with production needs.
Useful questions to ask include:
What screw diameter is suitable for my product?
What L/D ratio and screw design are recommended for my material?
Can the machine process PVC, PE, XLPE, LSZH, or TPE?
What output can be expected for my cable size?
What line speed is practical under my conditions?
What crosshead and die tooling are required?
Is a conductor preheater needed?
What cooling trough length is recommended?
Should diameter control and spark testing be included?
What pay-off and take-up reel sizes are supported?
Can the line be customized for my factory layout?
What maintenance and spare parts should be considered?
You can visit Taizheng Machine for broader wire and cable machinery information, or review the plastic extruder machine page for extrusion equipment options.
A plastic extruder for cable insulation is a machine that melts polymer material and applies it around a conductor through a crosshead and die tooling. It is used to produce insulated wires and cable cores for electrical, automotive, communication, and industrial applications.
To choose a wire insulation extruder, confirm the insulation material, conductor diameter, finished wire diameter, insulation thickness, output target, line speed, screw diameter, L/D ratio, crosshead tooling, cooling system, and testing requirements.
The suitable screw diameter depends on insulation material, conductor size, finished wire diameter, insulation thickness, and required output. Smaller wires may need better low-output control, while larger cables or higher-speed production may require greater extrusion capacity.
L/D ratio describes the relationship between screw length and screw diameter. It affects melting, mixing, pressure build-up, and plasticization stability. The right L/D ratio should be evaluated together with screw design and material type.
One extrusion line may process multiple materials if the screw, temperature control, crosshead, cooling, and auxiliary equipment are suitable. However, some materials may require different screw design, drying, curing, or special process control.

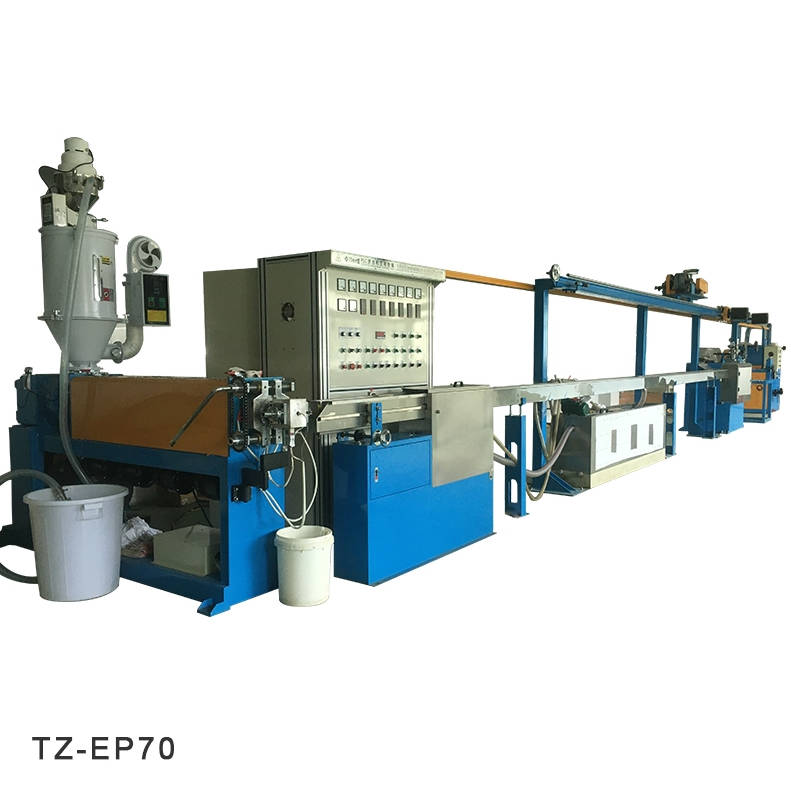

Common auxiliary equipment includes pay-off, conductor preheater, crosshead, cooling trough, diameter gauge, spark tester, capstan, take-up unit, printer, material dryer where required, and electrical control system.
For a plastic extruder quotation, provide insulation material, material datasheet if available, conductor material, conductor diameter, finished wire diameter, required output, line speed, reel size, testing requirement, and factory layout.
Choosing a plastic extruder for cable insulation production requires careful evaluation of material, cable size, output, screw diameter, L/D ratio, control system, line speed, auxiliary equipment, and quality testing. The right machine should produce stable melt flow, consistent insulation thickness, good surface quality, and reliable production performance.
For wire and cable manufacturers, the best purchasing decision starts with clear technical information. Before asking for a quotation, prepare your insulation material, conductor diameter, finished cable diameter, output target, reel size, testing requirements, and factory layout.
If your factory needs a wire insulation extruder or a complete plastic extrusion line for cable production, Taizheng can discuss suitable machine configuration based on your material, cable size, and target output. You can review the plastic extruder machine page or visit Taizheng Machine for more wire and cable machinery information.
