Controlling filament diameter tolerance in ABS extrusion requires stable polymer output, consistent pulling speed, controlled cooling, reliable online diameter measurement and stable downstream tension. The final filament diameter is not determined by the die alone—it is the result of the entire extrusion process working in balance.

For 3D printing filament, even relatively small diameter variations can affect the amount of material delivered by the printer. A thicker section delivers more plastic, while a thinner section delivers less. Excessive variation can therefore influence extrusion consistency and finished print quality.

The fundamental rule of filament diameter control is to keep the ratio between extruder output and downstream pulling speed stable.

However, this ratio is only part of the process. Material moisture, melt temperature, cooling-water conditions, laser measurement and take-up tension can all create diameter fluctuations.

A properly configured ABS filament extruder therefore needs to control the complete sequence from raw-material preparation to final winding.

What Determines ABS Filament Diameter?

A simplified filament extrusion process looks like this:

ABS Drying → Material Feeding → Extrusion → Die → Cooling → Laser Diameter Measurement → Pulling → Accumulation → Winding

The filament diameter at any moment is influenced by several variables.

Filament diameter stability is a system-control problem rather than a single-machine setting.

This is why adjusting only the die size rarely solves recurring diameter fluctuation.

Why Filament Diameter Tolerance Matters

For a filament with nominal diameter DD, its cross-sectional area is related to the square of the diameter:

Area = π × D² / 4

This means diameter variation affects material volume more strongly than the numerical diameter difference alone may suggest.

For manufacturers, poor diameter control can lead to:

• inconsistent filament weight per meter;

• unstable feeding in the 3D printer;

• changes in extrusion volume;

• quality complaints;

• excessive scrap;

• additional inspection;

• inconsistent spool-to-spool performance.

Taizheng's current ABS filament extrusion equipment is specified for standard 1.75 mm and 3.0 mm filament production, with a listed OD tolerance of ±0.03 mm for the filament products shown on its product page. Actual achievable performance in production depends on material, process settings and complete-line conditions.

Rather than simply targeting a nominal diameter, manufacturers should monitor both:

• average diameter;

• variation around that average.

A filament that averages exactly 1.75 mm can still be problematic if it repeatedly fluctuates between excessively thick and thin sections.

1. Start with Stable ABS Material Preparation

Diameter control begins before the resin reaches the screw.

ABS material condition influences:

• melt viscosity;

• extrusion pressure;

• surface quality;

• gas formation;

• output stability.

Control Material Moisture

ABS can absorb moisture during storage.

If moisture enters the extrusion process, it can contribute to:

• bubbles;

• surface irregularities;

• inconsistent melt flow.

Material should therefore be dried according to the specific resin grade supplier's processing recommendations.

Do not rely on one universal drying condition for all ABS formulations.

Differences in:

• resin grade;

• additives;

• color masterbatch;

• recycled content;

• storage conditions

can change drying requirements.

Keep Material Feeding Consistent

Check the hopper and feeding system for:

• bridging;

• irregular pellet flow;

• contamination;

• inconsistent masterbatch dosing.

If material feed into the screw fluctuates, melt output can fluctuate even when screw speed remains unchanged.

For this reason, apparent diameter-control problems sometimes begin in the hopper rather than at the laser gauge or puller.

2. Stabilize Extruder Output

The extruder determines how much molten ABS reaches the die.

For stable filament production, the following should remain controlled:

• screw speed;

• barrel temperature;

• head temperature;

• material feed;

• melt pressure.

Taizheng's 3D printing filament extrusion line uses a single-screw extruder as the main plasticizing unit and offers different screw sizes for different production requirements.

Watch for Cyclic Output Variation

If filament diameter becomes thick and thin in a repeating pattern, investigate whether extrusion output is cycling.

Possible causes include:

• inconsistent feeding;

• unstable screw drive;

• temperature-control cycling;

• material bridging;

• irregular melt pressure.

Periodic diameter variation often provides a useful clue that the problem occurs repeatedly at one stage of the process.

3. Control Melt Temperature Without Overcorrecting

Temperature changes polymer viscosity.

If melt conditions change, the relationship between screw speed, pressure and output can also change.

If Temperature Is Too Low

Possible results include:

• poor plasticization;

• rough surface;

• unstable pressure;

• inconsistent flow.

If Temperature Is Too High

Possible consequences include:

• excessive fluidity;

• thermal degradation;

• discoloration;

• black specks;

• unstable melt properties.

Taizheng notes that extrusion systems require coordinated heating and cooling to keep polymer inside the appropriate processing range.

The correct response to diameter variation is therefore not simply:

“increase the temperature.”

Instead, record:

• actual temperatures;

• set temperatures;

• pressure behavior;

• filament diameter trend.

Then determine whether thermal instability corresponds with diameter changes.

4. Understand the Relationship Between Pulling Speed and Diameter

After leaving the die, the filament is drawn by a capstan or puller.

This is one of the most important control points.

Assuming extruder output remains stable:

Increase Pulling Speed

The same amount of polymer is stretched over a greater length.

The filament becomes thinner.

Decrease Pulling Speed

More polymer is distributed over a shorter length.

The filament becomes thicker.

Therefore:

When extrusion output is stable, small controlled adjustments to pulling speed are one of the most direct methods for correcting filament diameter.

Taizheng's filament lines use either roller-type or belt-type capstan arrangements depending on machine configuration.

Pulling Speed or Screw Speed: Which Should Be Adjusted?

Both can change filament diameter, but they should not be used randomly.

If the diameter gauge reports constant rapid variation, repeatedly accelerating and slowing the puller can create another unstable control loop.

The source of the fluctuation should first be identified.

5. Cooling Conditions Directly Affect Final Diameter

ABS does not become dimensionally stable immediately after it exits the die.

It changes as it cools.

Cooling therefore influences:

• shrinkage;

• roundness;

• surface quality;

• dimensional stability.

Taizheng's ABS filament line uses an initial hot-water trough followed by a cold-water trough, with air wiping before downstream handling.

This staged arrangement illustrates an important principle: cooling should be controlled rather than treated as simply “put the hot filament into cold water.”

First-Stage Cooling

The filament is softest immediately after extrusion.

At this point, excessive disturbance can affect its shape.

Variables include:

• distance from die to cooling water;

• initial water temperature;

• water movement;

• filament vibration;

• puller tension.

If these conditions change, the filament may become:

• oval;

• dimensionally unstable;

• inconsistent in surface appearance.

Final Cooling

Before the filament reaches the puller, accumulator and take-up, it should be sufficiently stable.

If filament is still too warm downstream, mechanical contact can:

• flatten it;

• stretch it;

• change diameter;

• affect spool winding.

Cooling capacity must therefore match production speed.

Increasing output without sufficient cooling can create dimensional problems even if the extruder itself is running correctly.

6. Use Online Laser Diameter Measurement

Manual caliper measurements are useful for verification but cannot continuously monitor hundreds or thousands of meters of filament.

An online laser diameter gauge allows operators to detect:

• gradual diameter drift;

• sudden thick sections;

• sudden thin sections;

• periodic variation;

• out-of-tolerance production.

Taizheng's ABS filament line lists one-dimensional laser measurement as standard and two-dimensional X-Y measurement as an available configuration. (taizhengmachine.com)

A filament extrusion machine with laser diameter measurement therefore gives operators real-time feedback rather than relying entirely on post-production inspection.

Online measurement does not create dimensional stability by itself—it shows whether the upstream and downstream process is stable.

One-Axis vs Two-Axis Diameter Measurement

One-axis measurement monitors filament size across one measuring direction.

Two-axis measurement examines two directions.

Two-axis measurement can be particularly useful for identifying filament ovality.

For example:

• X diameter = stable;

• Y diameter = changing.

In this situation, the filament may not simply be too thick or thin. Its cross-sectional shape may be changing.

That points troubleshooting toward:

• cooling;

• guide contact;

• puller pressure;

• die condition

rather than simply changing extrusion output.

7. Closed-Loop Filament Diameter Control

A more advanced production concept is closed-loop control.

The basic logic is:

Laser Gauge Measures Diameter → Controller Compares Actual vs Setpoint → Puller or Extruder Setting Adjusts → Diameter Returns Toward Target

Closed-loop control can reduce dependence on constant manual correction when properly configured.

Taizheng also describes modern extrusion systems as capable of combining laser measurement with automatic adjustment of line speed or extruder output for tighter dimensional control.

However, a closed-loop system has limits.

It cannot fully compensate for:

• wet material;

• severe feeding instability;

• contaminated die;

• unstable cooling;

• mechanical defects.

Automation should therefore stabilize a sound process—not hide a defective one.

8. Do Not Ignore Winding Tension

The filament may already be within tolerance when it passes the laser gauge but change afterward.

One reason is excessive winding tension.

If take-up tension is too high, the filament can be stretched before it reaches the spool, particularly if it has not fully stabilized thermally.

If tension is too low:

• winding becomes loose;

• layers may cross;

• the spool may become unstable.

The take-up should therefore maintain controlled tension without using excessive force.

Taizheng's filament line includes an accumulator and dual-shaft take-up downstream of the diameter measurement and pulling stages.

The accumulator helps separate the relatively stable extrusion/pulling process from interruptions associated with take-up and spool handling.

How to Diagnose Different Diameter Variation Patterns

The way the diameter changes can help identify the cause.

The pattern of diameter variation is often more useful for troubleshooting than the maximum deviation alone.

A Practical Filament Diameter Troubleshooting Sequence

When tolerance begins to drift, avoid changing every machine parameter.

Step 1: Verify the Measurement

Check:

• laser gauge cleanliness;

• calibration;

• filament position;

• manual measurement against gauge reading.

First confirm that the reported problem is real.

Step 2: Check Raw Material

Confirm:

• resin batch;

• drying;

• feeding;

• color or additive changes.

If the defect began immediately after changing material, investigate this first.

Step 3: Check Extrusion Stability

Record:

• screw speed;

• temperatures;

• melt pressure where available;

• output behavior.

Look for cycling or sudden changes.

Step 4: Check Puller Speed

Make sure the capstan does not:

• slip;

• vibrate;

• accelerate irregularly;

• compress the filament excessively.

Step 5: Check Cooling

Confirm:

• water temperature;

• circulation;

• trough position;

• filament path;

• actual cooling capacity at current line speed.

Step 6: Check Downstream Tension

Compare filament diameter:

• after the laser gauge;

• after the puller;

• before winding;

• from the finished spool.

This helps identify where the dimensional change occurs.

Step 7: Change One Variable at a Time

Record the result after each adjustment.

This creates repeatable process knowledge instead of relying on operator memory.

Common Filament Diameter Control Mistakes

Using the Laser Gauge Only as an Alarm

If operators only react when the alarm sounds, they lose valuable process information.

Diameter trends can reveal gradual process drift before production moves outside tolerance.

Continuously Changing Puller Speed

If the actual problem is unstable feeding, constantly correcting the puller can amplify instability.

Ignoring Material Drying

A precision laser gauge cannot solve poor melt consistency caused by incorrectly prepared ABS.

Measuring Only Finished Spools

This tells you there is a problem but does not show where it began.

Use online measurement during production.

Increasing Output Without Reviewing Cooling

Higher production speed changes the thermal conditions of the filament.

Cooling must be considered whenever output increases.

Assuming Die Diameter Equals Finished Filament Diameter

The final dimension results from:

• die geometry;

• die swell;

• extrusion output;

• draw-down;

• cooling;

• shrinkage.

Tooling is only one part of the control system.

What Equipment Helps Maintain Filament Diameter Tolerance?

For manufacturers purchasing or upgrading a plastic filament extrusion line, important components include:

Taizheng's current ABS filament production line integrates these primary extrusion and downstream functions, including laser measurement, capstan, accumulator, encoder length measurement and take-up.

Information to Provide When Requesting a Diameter-Control Solution

Before selecting equipment, prepare:

If a line is already running, also provide:

• barrel temperatures;

• screw speed;

• puller speed;

• water temperature;

• gauge trend data;

• finished-filament measurements.

These details make diameter-control analysis substantially more useful than simply reporting that “1.75 mm filament is unstable.”

FAQ

What is filament diameter tolerance?

Filament diameter tolerance is the permitted variation between the nominal filament diameter and the actual measured diameter. Manufacturers should control both the average diameter and short-term variation along the spool.

How do you control ABS filament diameter during extrusion?

Control ABS filament diameter by stabilizing raw-material feeding, melt output, extrusion temperature, pulling speed and cooling while continuously monitoring the filament with an online diameter gauge.

Why does 1.75 mm filament diameter fluctuate?

Common causes include unstable pellet feeding, screw-output variation, temperature fluctuation, inconsistent pulling speed, changing cooling conditions, wet material and downstream tension.

Does faster pulling make filament thinner?

Generally, yes. If extruder output remains unchanged, increasing the pulling speed distributes the same volume of polymer over a greater length, reducing filament diameter.

Can a laser diameter gauge automatically control filament size?

A laser gauge provides real-time measurement. When integrated with a suitable control system, its measurement can be used in a closed-loop strategy to adjust puller speed or extrusion output. The exact control configuration depends on the machine.

Why is my filament diameter correct at the laser gauge but wrong on the spool?

Check downstream pulling and winding tension. Excessive tension after measurement can stretch the filament, particularly if the filament has not completely stabilized after cooling.

Does cooling-water temperature affect filament diameter?

Yes. Cooling influences polymer shrinkage, roundness and dimensional stabilization. Changes in water temperature, flow or cooling length can affect final filament dimensions.

Is one-dimensional laser measurement enough for ABS filament?

One-dimensional measurement can monitor diameter continuously. Two-dimensional measurement provides additional information about ovality by checking the filament in two directions.

What equipment is needed for stable filament diameter control?

A stable system typically requires reliable material drying and feeding, controlled extrusion, suitable cooling, online laser measurement, a stable puller, accumulator and controlled take-up.

Conclusion

Controlling filament diameter tolerance in ABS extrusion requires much more than selecting the correct die.

The most important variables are:

• ABS material condition;

• material feeding;

• melt stability;

• extrusion temperature;

• screw output;

• pulling speed;

• cooling conditions;

• laser diameter measurement;

• downstream tension.

The core control relationship is simple: extruder output determines how much polymer is supplied, while pulling speed determines how that polymer is distributed along the filament length.

Everything else—from drying to cooling and winding—must keep that relationship stable.

For recurring diameter problems, begin by studying the variation pattern. Determine whether the deviation is constant, random, periodic or speed-related, then isolate one process variable at a time.

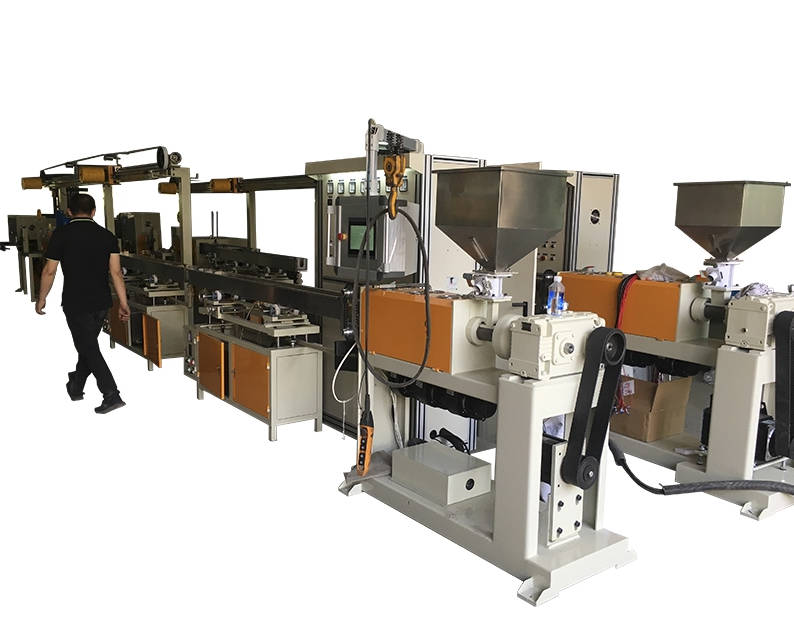

Taizheng's ABS filament extruder combines extrusion, staged cooling, laser diameter measurement, pulling, accumulation, length counting and take-up in a complete filament production configuration. For broader extrusion projects, its plastic extrusion equipment can also be configured around different polymer-processing requirements.

For a diameter-control evaluation, provide your ABS grade, target filament diameter, required tolerance, target output, current line speed and diameter variation data. This provides a much stronger basis for determining whether the main issue lies in extrusion, cooling, measurement, pulling or winding.
