To reduce wire breakage in the double twist bunching process, manufacturers should control pay-off tension, keep the wire path smooth, inspect guide components, match machine speed with wire diameter, maintain bobbin balance, and ensure proper machine alignment. In many copper wire bunching applications, breakage is not caused by one single factor. It is usually the result of several small issues accumulating across the pay-off, tensioning, twisting, and take-up sections.

Wire breakage in a bunching machine directly affects production efficiency, conductor quality, material yield, and delivery stability. For cable manufacturers, frequent breakage means more downtime, more manual joints, higher scrap rates, unstable lay length, and possible quality complaints from downstream cable extrusion or assembly processes.

This guide explains the common causes of wire breakage in copper wire bunching, how to troubleshoot them step by step, and what to consider when selecting or maintaining a double twist bunching machine for more stable long-term operation.

What Is Wire Breakage in the Double Twist Bunching Process?

Wire breakage refers to the interruption or snapping of one or more individual wires during the bunching process. In a double twist bunching machine, multiple fine wires are fed from pay-off bobbins, guided through tension control devices, combined into a strand, twisted, and wound onto a take-up bobbin.

During this process, each wire is exposed to pulling force, bending stress, friction, centrifugal force, and repeated contact with machine components. If any part of the process creates excessive stress or unstable movement, the wire may break.

In double twist bunching, wire breakage is usually related to tension instability, surface friction, guide wear, poor material consistency, speed mismatch, or incorrect machine setup.

Typical warning signs include:

• Frequent breaks at the pay-off area

• Breaks near ceramic guides, pulleys, or bow sections

• Uneven strand surface after bunching

• Irregular take-up winding

• Sudden tension fluctuation

• Wire scratches or surface marks

• Excessive vibration during high-speed running

• Increased scrap during fine wire production

For production teams, the key is not only to reconnect the broken wire, but to identify where the stress is being created.

Why Wire Breakage Matters in Copper Wire Bunching

In copper wire bunching, small process problems can quickly become costly. Copper conductors are widely used in power cables, automotive wires, electronic cables, communication cables, and flexible wiring products. Many of these applications require stable conductivity, consistent strand geometry, and reliable mechanical performance.

When wire breakage happens frequently, it can cause several production and quality issues.

For B2B cable production, reducing wire breakage is not only a maintenance issue. It is a production stability, quality control, and cost management issue.

A stable bunching process allows manufacturers to run longer production batches, reduce operator intervention, and improve consistency across different wire sizes and conductor structures.

How the Double Twist Bunching Process Works

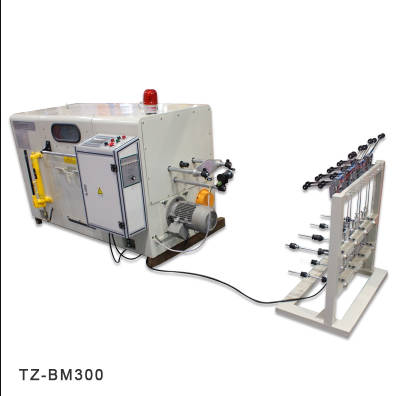

A double twist bunching machine twists multiple wires together by applying two twists during one rotation cycle. Compared with some conventional twisting methods, double twist bunching is commonly used for efficient production of flexible conductors and multi-wire copper strands.

The typical process includes:

1. Wire pay-off from multiple bobbins

2. Tension control for each individual wire

3. Wire guidance through eyelets, pulleys, or ceramic guides

4. Wire convergence before twisting

5. Twisting through the rotating bow or twisting section

6. Lay length control

7. Take-up winding onto the final bobbin

Each section must work smoothly. If the pay-off tension is too high, fine wires may break before they enter the twisting area. If the guides are worn, the wire surface may be scratched. If the take-up winding is unstable, the strand may receive additional pulling force. If machine speed exceeds what the wire structure can handle, breakage becomes more likely.

For companies evaluating equipment, a well-designed double twist bunching machine for copper wire production should support stable tension control, smooth wire routing, reliable rotation balance, and easy maintenance access.

Common Causes of Wire Breakage in Bunching Machines

Wire breakage can come from material, process, operator setup, or equipment condition. The table below summarizes the most common causes and practical troubleshooting directions.

1. Control Pay-off Tension Carefully

Pay-off tension is one of the most common causes of wire breakage in bunching machines. If the tension is too high, fine copper wires are stretched before they enter the twisting section. If the tension is too low, the wire may swing, loop, or become unstable, causing tangling or sudden tension spikes.

The correct tension setting should keep each wire stable without overstretching it before bunching.

In many production environments, operators focus mainly on machine speed and lay length while overlooking pay-off tension consistency. However, even small differences between pay-off bobbins can create unbalanced stress in the final strand.

Practical checks include:

• Make sure each pay-off bobbin rotates smoothly.

• Check whether the brake force is too strong.

• Confirm that all tensioners are set consistently.

• Inspect dancer arms for free and stable movement.

• Avoid sudden jerks when the bobbin starts or stops.

• Replace pay-off bobbins with poor winding quality.

For fine copper wires, excessive tension can create micro-stretching before visible breakage occurs. Even if the wire does not immediately snap, the finished conductor may have reduced mechanical consistency.

2. Inspect Wire Guides, Ceramic Eyelets, and Pulleys

Wire guides are small components, but they have a major impact on bunching stability. During high-speed production, copper wire repeatedly contacts ceramic eyelets, guide holes, pulleys, and other routing components. If these parts are worn, cracked, misaligned, or contaminated, they can scratch the wire surface.

Surface damage increases the chance of breakage under twisting stress.

Common guide-related problems include:

• Sharp edges inside guide holes

• Worn ceramic eyelets

• Grooves on pulleys

• Incorrect guide angle

• Copper dust accumulation

• Misaligned wire path

• Loose guide holders

A practical maintenance method is to check whether breakage repeatedly happens at the same location. If the break point is always near a specific guide or pulley, the component should be inspected immediately.

For stable copper wire bunching, guides should be smooth, clean, and correctly positioned. Operators should not wait until visible damage becomes severe. Preventive replacement is often more efficient than repeated production stops.

3. Match Machine Speed with Wire Diameter and Material

Higher machine speed can improve output, but it also increases stress on the wire. Fine copper wires, tinned copper wires, and certain alloy wires may have different mechanical properties. If the speed is increased without adjusting tension, lay length, and take-up settings, breakage may rise.

Machine speed should be selected according to wire diameter, conductor structure, material condition, and required lay length—not only according to maximum equipment capacity.

When troubleshooting speed-related wire breakage, compare breakage frequency at different running speeds. If breakage decreases significantly after reducing speed, the original setting may be too aggressive for the current material or structure.

Important parameters include:

A good production practice is to establish standard process settings for each conductor specification. This helps operators avoid relying only on experience and reduces variation between shifts.

4. Check Raw Wire Quality Before Bunching

Not all wire breakage is caused by the bunching machine. Sometimes the root cause is the incoming wire itself.

Copper wire quality can affect bunching stability in several ways. Wire with poor elongation, inconsistent diameter, surface cracks, oxidation, hard spots, or poor annealing may break more easily during twisting. If the wire has already been damaged during drawing, annealing, or spooling, the bunching process will expose the weakness.

Key inspection items include:

• Wire diameter consistency

• Surface scratches or oxidation

• Tensile strength and elongation

• Annealing quality

• Spool winding condition

• Oil or contamination on the surface

• Supplier batch consistency

If wire breakage appears randomly across different pay-off positions and machine sections, raw material quality should be checked. If the same wire batch causes problems on multiple machines, the issue is more likely related to material rather than equipment.

For B2B cable factories, cooperation between incoming quality control, production, and maintenance teams is important. A bunching operator may see the breakage first, but the source of the problem may come from upstream drawing or wire supply.

5. Maintain Bobbin Balance and Winding Quality

Bobbin balance has a direct effect on process stability. Poorly wound pay-off bobbins can cause uneven release of wire, sudden tension spikes, and wire jumping. Unbalanced take-up bobbins can create vibration, unstable winding, and additional pulling force.

Common bobbin-related issues include:

• Loose winding on pay-off bobbins

• Crossed or buried wires

• Deformed bobbin flanges

• Off-center bobbin mounting

• Poor take-up traverse adjustment

• Excessive winding tension

• Bobbin vibration at high speed

In double twist bunching, stable take-up is especially important because the finished strand must be wound evenly without excessive tension. If the take-up section pulls too strongly, breakage may occur near the final winding area or after the strand exits the twisting section.

Operators should check whether the bobbin is correctly installed, whether the traverse movement is smooth, and whether the final package shape is even.

6. Keep the Machine Aligned and Clean

Machine alignment affects how smoothly wires travel from pay-off to take-up. If the wire path is not centered, the wire may rub against guides, bow sections, or machine frames. Over time, this creates friction and surface damage.

Cleaning is also important. Copper powder, oil residue, dust, and broken wire fragments can accumulate around guides and moving parts. These contaminants increase friction and may cause sudden jams.

Recommended maintenance actions include:

• Clean wire guides regularly.

• Remove copper dust from the wire path.

• Check rotating parts for vibration.

• Inspect belt, bearing, and shaft condition.

• Verify alignment after part replacement.

• Tighten loose guide brackets or holders.

• Keep the machine floor and working area clean.

A structured maintenance checklist can reduce unexpected downtime. For factories running multiple wire sizes, cleaning and alignment checks should be part of changeover routines.

Troubleshooting Wire Breakage by Location

The location of the break can help identify the root cause. Instead of treating all breakage as the same problem, production teams should record where and when each break occurs.

Recording breakage location is one of the fastest ways to move from guesswork to systematic bunching machine troubleshooting.

Common Mistakes When Trying to Reduce Wire Breakage

Many production teams try to solve wire breakage quickly, but some actions only hide the problem temporarily.

Mistake 1: Only reducing machine speed

Reducing speed may reduce breakage, but it does not always solve the root cause. If the real problem is a worn guide or poor tension balance, breakage may return later.

Mistake 2: Ignoring individual wire tension

In multi-wire bunching, each wire should enter the process with stable and balanced tension. If one wire is much tighter than others, it becomes more likely to break.

Mistake 3: Reusing worn guides for too long

Guides may look acceptable from the outside but have small internal cracks or grooves. Regular inspection is necessary, especially for fine wire production.

Mistake 4: Blaming the machine before checking raw material

A high-quality bunching machine cannot fully compensate for poor wire quality. Incoming wire inspection should be part of the troubleshooting process.

Mistake 5: Running all products with the same settings

Different wire diameters, materials, and strand structures require different speed, tension, and take-up settings. Standardized process data is important for repeatable production.

Engineering Recommendations for More Stable Bunching

For cable manufacturers, reducing wire breakage requires a combination of process control, machine maintenance, and equipment selection.

Recommended engineering practices include:

1. Build a parameter database for each conductor size.

2. Record wire breakage location, frequency, and material batch.

3. Inspect guides and pulleys before high-speed production.

4. Standardize pay-off and take-up tension settings.

5. Train operators to identify early warning signs.

6. Use stable bobbins with good winding quality.

7. Schedule preventive maintenance instead of reactive repair.

8. Evaluate machine design when breakage remains frequent.

When equipment is outdated or difficult to adjust, process optimization may have limited results. In that case, manufacturers may need to consider a more stable and better-supported double twist bunching machine solution.

How to Choose a Double Twist Bunching Machine to Reduce Breakage Risk

When purchasing a bunching machine, buyers should not only compare price and maximum speed. They should also evaluate whether the machine can support stable operation for their specific wire range.

Important selection factors include:

For manufacturers producing copper wire, flexible conductors, power cable conductors, or electronic wire strands, machine stability has a direct impact on production output and quality. Buyers can review the available double twist bunching machine options and compare them with their wire specifications, expected output, and quality requirements.

You can also visit Taizheng Machine to learn more about wire and cable machinery solutions for different production needs.

Supplier Evaluation: What to Ask Before Buying

Before investing in a new bunching machine, purchasing managers and engineers should ask practical technical questions.

Useful questions include:

• What wire diameter range is the machine designed for?

• What conductor structures can it process?

• How is pay-off tension controlled?

• How easy is it to adjust lay length?

• What bobbin sizes are supported?

• What maintenance parts require regular replacement?

• How accessible are guides, pulleys, and tension devices?

• What information is needed for machine selection?

• Can the supplier provide configuration suggestions based on wire type?

• What after-sales support is available for troubleshooting?

A reliable supplier should be able to discuss real production problems, not only machine specifications. For example, if a buyer mentions wire breakage in bunching machine operation, the supplier should be able to ask about wire diameter, material, speed, lay length, bobbin condition, breakage location, and current tension settings.

Practical Checklist for Reducing Wire Breakage

Use the following checklist during production troubleshooting.

This checklist helps operators identify patterns and make better decisions instead of repeatedly restarting the machine without solving the cause.

FAQ

1. What causes wire breakage in a bunching machine?

Wire breakage in a bunching machine is commonly caused by excessive pay-off tension, worn guides, poor raw wire quality, unstable take-up tension, speed mismatch, bobbin imbalance, or machine misalignment. The exact cause should be identified by checking where the break occurs and under what operating conditions.

2. How can I reduce copper wire breakage during bunching?

To reduce copper wire breakage during bunching, keep pay-off tension stable, inspect ceramic guides and pulleys, match machine speed with wire diameter, use well-wound bobbins, check raw wire quality, and maintain proper machine alignment. Regular troubleshooting records also help identify repeated failure patterns.

3. Why does wire break more often at high bunching speed?

Wire may break more often at high bunching speed because higher speed increases dynamic tension, vibration sensitivity, friction, and twisting stress. If the wire diameter is small or the raw wire quality is inconsistent, excessive speed can make breakage more likely.

4. How does tension control affect wire breakage in double twist bunching?

Tension control affects how smoothly each wire enters the twisting process. If tension is too high, the wire may stretch and break. If tension is too low, the wire may swing or tangle. Balanced tension across all pay-off positions is important for stable double twist bunching.

5. Can poor wire quality cause bunching machine troubleshooting problems?

Yes. Poor wire quality can cause repeated bunching machine troubleshooting problems. Wire with inconsistent diameter, low elongation, surface scratches, oxidation, or poor annealing may break even when the machine is correctly adjusted. Incoming material inspection is important.

6. What should I check first when wire keeps breaking in a double twist bunching machine?

First, check the breakage location. If the wire breaks near the pay-off, inspect pay-off tension and bobbin winding. If it breaks near a guide, inspect the guide for wear or sharp edges. If breakage happens randomly, check raw wire quality and tension consistency.

7. When should I consider replacing or upgrading my bunching machine?

You may consider replacing or upgrading your bunching machine if wire breakage remains frequent after checking tension, guides, speed, bobbins, raw material, and maintenance condition. Older machines with unstable tension control, poor alignment, or difficult adjustment may limit production stability.

Conclusion

Wire breakage in the double twist bunching process is usually the result of tension instability, worn contact parts, raw material defects, speed mismatch, bobbin problems, or machine alignment issues. The most effective solution is a systematic troubleshooting process: identify the breakage location, check operating parameters, inspect the wire path, verify material quality, and maintain the machine regularly.

For cable manufacturers, reducing breakage improves output, lowers scrap, stabilizes conductor quality, and reduces operator workload. If your current production line frequently faces wire breakage or unstable bunching quality, evaluating a properly configured double twist bunching machine can help support more consistent wire and cable production.
