Views: 1 Author: Site Editor Publish Time: 2026-07-16 Origin: Site
Table of Contents
Cable extrusion materials such as PVC, PE, XLPE, and TPE are used to form insulation or sheathing layers around wire and cable products, but each material has different processing behavior, flexibility, electrical performance, cost level, and machine requirements. PVC is widely used for general wire insulation and sheathing, PE is valued for electrical and moisture resistance properties, XLPE is used where improved thermal and electrical performance is required, and TPE is commonly selected for flexible or soft-touch cable applications.
For wire and cable manufacturers, material selection affects more than the final cable specification. It also influences extruder configuration, screw design, temperature control, crosshead tooling, cooling system, line speed, testing requirements, and production stability. A cable extrusion line designed for one material may need adjustments or different configuration when processing another material.
This guide compares common cable extrusion materials from a practical manufacturing perspective. It explains PVC cable extrusion, PE cable extrusion, XLPE cable extrusion, and TPE cable extrusion, including applications, processing considerations, advantages, limitations, and equipment selection factors. If your factory is evaluating a plastic extruder machine for cable insulation or sheathing, this material comparison can help clarify the key technical questions before inquiry.
Cable extrusion materials are plastic or polymer compounds used to create insulation, jacket, or sheath layers around conductors, insulated cores, or cable assemblies. These materials are melted and formed through a cable extruder machine, then cooled and solidified into a continuous protective layer.
In wire and cable production, extrusion materials are selected according to several requirements:
Electrical insulation performance
Mechanical protection
Flexibility
Abrasion resistance
Heat resistance
Flame-retardant requirement
Moisture resistance
Chemical resistance
Outdoor or indoor use
Cost target
Processing stability
Customer standard or cable specification
The right cable extrusion material should match both the final cable application and the extrusion line’s processing capability.
Material selection is therefore a joint decision involving engineering, production, purchasing, and quality control teams.
A cable extrusion line does not process all materials in exactly the same way. Different compounds have different melting behavior, viscosity, thermal sensitivity, cooling behavior, surface finish, and adhesion characteristics. If the extrusion line is not configured properly, the factory may face defects even when the raw material itself is suitable.
Common extrusion problems caused by poor material-process matching include:
Problem | Possible Material or Process Cause |
Rough cable surface | Poor plasticization, unsuitable temperature, moisture, or wrong screw setup |
Bubbles or voids | Moisture, overheating, contamination, or unstable material flow |
Diameter fluctuation | Unstable melt output or poor line speed synchronization |
Poor adhesion | Material mismatch, insufficient conductor preparation, or unsuitable temperature |
Insulation eccentricity | Crosshead centering or die/tooling issue |
Cracking after cooling | Material brittleness, poor cooling, or unsuitable formulation |
Poor flexibility | Material too rigid for cable application |
Surface deformation | Insufficient cooling or excessive take-up tension |
Material choice affects not only cable performance, but also extrusion temperature control, cooling design, production speed, defect rate, and equipment configuration.
For this reason, buyers should provide material type, finished cable diameter, extrusion layer type, and output requirement before selecting a cable extrusion line.
Material | Common Use | Processing Behavior | Flexibility | Electrical Properties | Cost Level | Machine Requirement |
PVC | General wire insulation, cable sheath, building wire, control cable | Relatively easy to process with proper temperature control | Medium to good depending on formulation | Suitable for many general electrical applications | Commonly cost-effective | Standard extrusion line with suitable screw and temperature zones |
PE | Communication cable, insulation, jacket, moisture-resistant applications | Requires stable temperature and cooling control | Medium, depends on grade | Good dielectric properties in many applications | Usually moderate | Good melt control, cooling stability, and surface control |
XLPE | Power cable insulation and higher-performance insulation applications | Requires special processing and crosslinking consideration | Medium, depending on formulation | Strong electrical and thermal performance in many cable designs | Higher than general PVC in many cases | May require specific extrusion and curing/crosslinking system |
TPE | Flexible cable, soft cable jacket, appliance cable, special flexible products | Grade-dependent; may require moisture and temperature control | High flexibility in many formulations | Depends on grade and application | Often higher than PVC | Requires suitable screw, temperature control, and material handling |
This table is a general comparison. Actual performance depends on formulation, supplier datasheet, cable standard, processing setup, and application requirements.
PVC, or polyvinyl chloride, is one of the most widely used cable extrusion materials. It is commonly used for general-purpose wire insulation and cable sheathing because it offers a practical balance of processability, cost, mechanical performance, and formulation flexibility.
PVC compounds can be adjusted with plasticizers, stabilizers, fillers, flame-retardant additives, and other ingredients to meet different requirements. This makes PVC suitable for many wire and cable products.
Common PVC cable extrusion applications include:
Building wire insulation
Low-voltage cable sheath
Control cable jacket
Appliance wire insulation
General electrical wire coating
Flexible cable jacket
Indoor cable products
PVC cable extrusion is commonly selected when manufacturers need a cost-effective and versatile material for general insulation or sheathing applications.
PVC requires careful temperature control because overheating may cause degradation, discoloration, unstable flow, or surface defects. The exact processing window depends on the compound formulation and material supplier recommendation.
Key process points include:
Stable barrel temperature control
Suitable screw design for PVC compound
Avoiding excessive shear heat
Proper crosshead temperature
Good material feeding stability
Controlled cooling to maintain surface quality
Regular cleaning to avoid degraded residue
PVC can be easier to process than some specialty materials, but it still requires disciplined production control. Poor temperature settings or contaminated material can quickly create surface defects.
Advantage | Practical Meaning |
Widely available | Easy material sourcing in many markets |
Cost-effective | Suitable for high-volume general cable products |
Flexible formulation | Can be adjusted for softness, color, flame behavior, and mechanical needs |
Good processability | Compatible with many standard cable extrusion lines |
Suitable for insulation and sheath | Broad use across cable structures |
PVC may not be suitable for every cable application. It may have limitations where higher temperature resistance, special environmental requirements, low-smoke halogen-free performance, or specific electrical properties are required. In those cases, PE, XLPE, TPE, LSZH, or other materials may be considered.
PE, or polyethylene, is widely used in cable extrusion where electrical properties, moisture resistance, and stable insulation performance are important. Different PE grades, such as LDPE, MDPE, and HDPE, may be used depending on cable design.
PE is commonly used in communication cables, data cables, insulation layers, and certain jacket applications. It is valued in many cable structures because of its electrical and moisture-related performance.
Common PE cable extrusion applications include:
Communication cable insulation
Data cable insulation
PE cable jacket
Coaxial cable applications
Outdoor cable jackets in selected designs
Power or control cable layers depending on specification
PE cable extrusion is often selected when dielectric performance, moisture resistance, and stable insulation behavior are important to the cable design.
PE requires stable melt control and cooling. If cooling is not controlled properly, surface appearance, shrinkage, and dimensional stability may be affected. PE also requires attention to material cleanliness and processing temperature according to the specific grade.
Key process points include:
Stable extrusion temperature
Good melt pressure control
Suitable screw design for PE grade
Proper cooling trough length
Controlled water temperature
Diameter monitoring
Clean material handling
Avoiding surface defects caused by unstable flow
PE may behave differently depending on density, molecular structure, and additives. Buyers should provide the exact PE compound or application requirement when selecting a cable extrusion line.
Advantage | Practical Meaning |
Good electrical properties | Suitable for many insulation applications |
Moisture resistance | Useful in communication and outdoor-related cable structures |
Good surface potential | Can produce smooth jacket or insulation when processed correctly |
Material grade options | LDPE, MDPE, HDPE and other variations support different needs |
Suitable for selected jackets | Useful where moisture and protection are important |
PE may require additional design consideration when flame-retardant performance, high heat resistance, or specific mechanical flexibility is required. Some PE grades can also be less flexible than plasticized PVC or TPE, depending on formulation and cable structure.
XLPE, or cross-linked polyethylene, is used in cable applications that require improved thermal, mechanical, or electrical performance compared with standard thermoplastic materials. XLPE is widely associated with power cable insulation and other higher-performance cable structures.
Unlike ordinary thermoplastic PE, XLPE undergoes a crosslinking process. This changes the material structure and improves performance in many cable applications. However, it also makes the production process more complex.
Common XLPE cable extrusion applications include:
Power cable insulation
Medium and low-voltage cable insulation depending on product design
Heat-resistant wire insulation
Industrial cable applications
Cables requiring improved thermal endurance
XLPE cable extrusion usually requires more careful process design because the material performance depends not only on extrusion, but also on crosslinking or curing conditions.
XLPE processing may require specialized equipment or line design depending on the compound and cable standard. In some cases, a continuous vulcanization or curing system may be involved. The correct setup depends on the XLPE type, cable construction, voltage level, and production requirement.
Key process points include:
Material storage and handling
Stable extrusion temperature control
Suitable screw and crosshead design
Crosslinking or curing process where required
Clean production environment
Diameter and eccentricity control
Spark testing or other electrical inspection
Cooling and take-up control
Because XLPE is often used in cables with higher performance requirements, buyers should discuss the full production process with the equipment supplier rather than treating it as a standard PE extrusion task.
Advantage | Practical Meaning |
Improved thermal performance | Suitable for cables requiring higher operating temperature resistance |
Strong electrical performance | Used in many power cable insulation designs |
Better mechanical stability | Useful for demanding cable applications |
Common in power cable sector | Recognized material for many electrical cable structures |
Good long-term performance potential | Suitable when cable specification requires higher reliability |
XLPE extrusion is usually more complex than standard PVC or PE extrusion. It may require specific line design, curing or crosslinking control, cleaner material handling, and more careful quality inspection. Investment and process control requirements may also be higher.
TPE, or thermoplastic elastomer, is used in cable extrusion where flexibility, softness, elastic feel, or special handling performance is required. TPE materials combine some properties of rubber-like materials with thermoplastic processing behavior.
TPE is often used for flexible cable jackets, appliance cables, charging cables, portable cables, and other products where bending performance or touch feel matters.
Common TPE cable extrusion applications include:
Flexible cable jacket
Appliance wire jacket
Charging cable jacket
Portable cable applications
Soft-touch cable products
Special industrial cable jackets
Consumer electronics cable applications
TPE cable extrusion is often selected when flexibility, softness, and repeated bending performance are more important than lowest material cost.
TPE processing depends strongly on material grade. Some TPE compounds may be sensitive to moisture, temperature, or shear. Material drying may be required depending on supplier recommendation.
Key process points include:
Material drying where required
Controlled barrel temperature
Suitable screw design
Avoiding overheating or degradation
Stable extrusion pressure
Smooth cooling
Surface quality control
Compatibility with cable core and jacket requirement
Because TPE grades vary widely, buyers should provide material datasheets or application requirements when configuring the extrusion line.
Advantage | Practical Meaning |
High flexibility | Suitable for bendable and portable cable products |
Soft surface feel | Useful for consumer or appliance cable applications |
Thermoplastic processing | Can be processed on suitable extrusion equipment |
Good elastic behavior | Useful for cables requiring repeated movement |
Grade variety | Different TPE compounds can meet different needs |
TPE is often more expensive than common PVC compounds and may require more careful processing. Its electrical, thermal, and mechanical properties depend heavily on the specific grade. It is important to confirm whether the selected TPE is suitable for insulation, sheathing, or only specific jacket applications.
Cable Application | Common Material Options | Selection Notes |
Building wire | PVC, PE, XLPE depending on requirement | PVC is common for general use; XLPE may be used for higher performance needs |
Power cable insulation | XLPE, PVC, PE depending on specification | XLPE is common where thermal/electrical performance is required |
Communication cable | PE, PVC, LSZH depending on design | PE is often used for dielectric properties |
Control cable jacket | PVC, PE, TPE | PVC is common; TPE may be selected for flexibility |
Flexible cable | PVC, TPE, rubber-like compounds | TPE is useful for high flexibility; PVC is cost-effective in many designs |
Appliance cable | PVC, TPE | Selection depends on flexibility, touch feel, and standard requirements |
Outdoor cable jacket | PE, PVC, special compounds | Weather, moisture, and UV requirements matter |
Low-smoke applications | LSZH compounds, selected special materials | Requires specific formulation and processing setup |
Material choice should always follow the final cable standard, customer requirement, and operating environment.
Requirement | PVC | PE | XLPE | TPE |
Temperature control | Important to avoid degradation | Important for stable melt and surface | Critical, especially with curing/crosslinking needs | Important, grade-dependent |
Moisture control | Usually manageable, depends on compound | Clean handling important | Clean handling important | Some grades may require drying |
Screw design | PVC-suitable screw recommended | PE-suitable screw recommended | Depends on XLPE process | Depends on TPE grade |
Cooling control | Important for surface and size | Important for shrinkage and dimension | Important after extrusion/curing process | Important for surface and flexibility |
Crosshead design | Standard cable crosshead for application | Stable flow and centering important | Higher process precision may be required | Smooth flow and surface control important |
Testing need | Depends on cable type | Depends on cable type | Often stricter in power cable applications | Depends on application |
Machine complexity | Common standard line possible | Common standard or specialized line possible | Often more complex | Depends on product and grade |

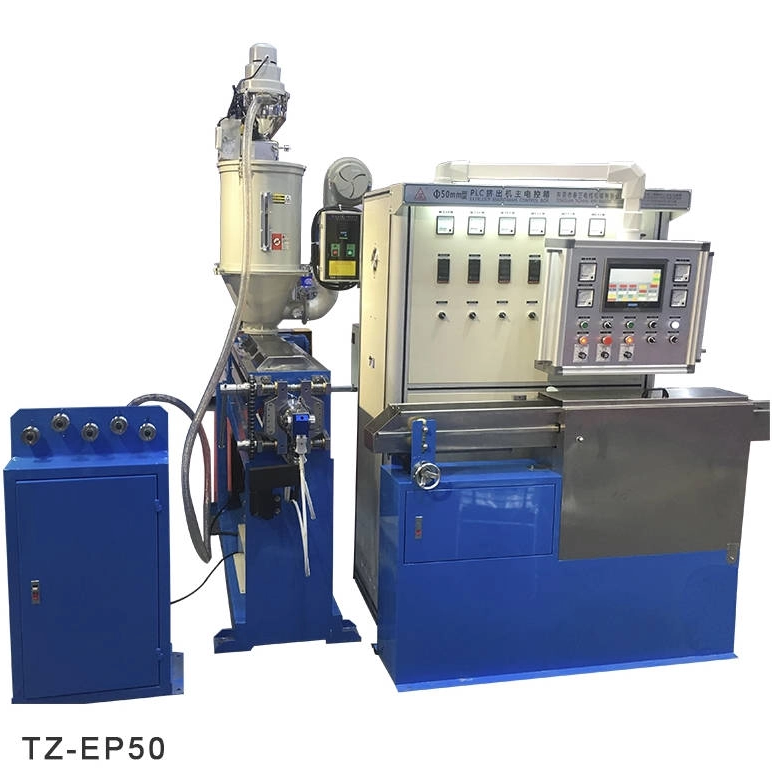

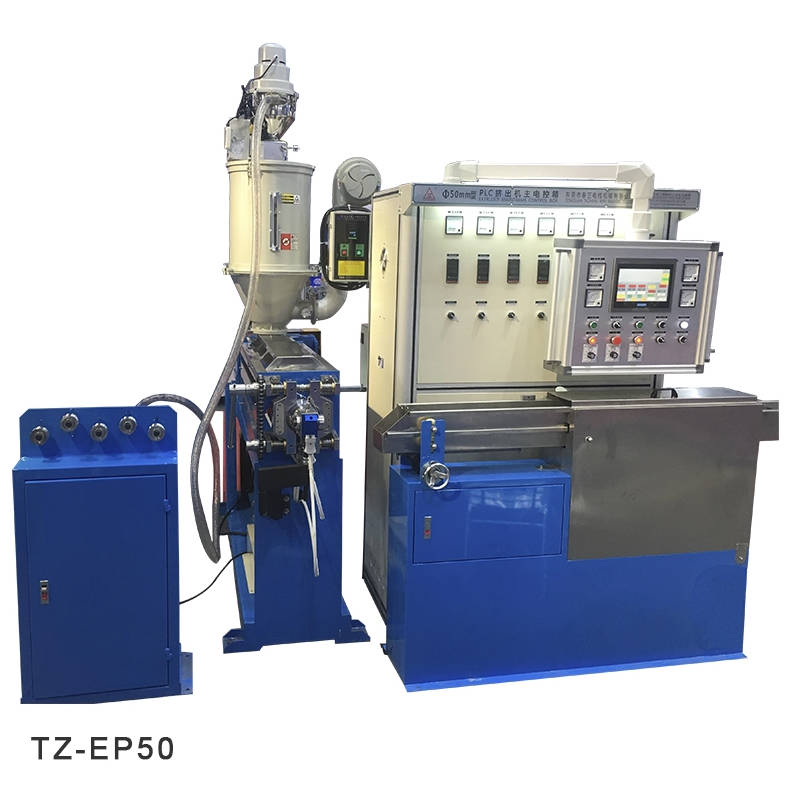

A suitable plastic extruder machine should be configured according to the specific material, not only the cable diameter.
Material selection influences nearly every section of the extrusion line.
Different materials require different screw designs to achieve stable plasticization. A screw suitable for one material may not deliver the same output or surface quality with another material.
Each material has its own processing window. Temperature settings should follow material supplier recommendations and production testing. Overheating, under-melting, or unstable heating can cause defects.
The crosshead must provide stable material flow around the conductor or cable core. Die and tip selection should match finished cable diameter, layer thickness, and material viscosity.
Cooling behavior varies by material. PE and TPE, for example, may require different cooling control depending on product design. XLPE may require additional process steps depending on crosslinking system.
Cable type and material application affect whether spark testing, diameter measurement, eccentricity control, or other inspection systems are required.
The final cable must be wound without damaging the insulation or sheath. Softer materials may need careful take-up tension and surface handling.
Lower material cost may increase production defects or reduce cable suitability if the material does not match the application. Total cost should include process stability, scrap rate, customer requirements, and cable performance.
Some materials can be processed on similar equipment with adjustments, but others require different screw, temperature, cooling, or curing configuration. Buyers should confirm material compatibility before purchase.
Material selection should follow cable standards, customer requirements, and application environment. A material that is easy to extrude may not meet the final cable requirement.
Processing temperature, drying needs, mechanical properties, and electrical performance should be confirmed with material datasheets. General material names like PVC or TPE are not enough because formulations vary widely.
Cooling and online testing are often overlooked during equipment selection. However, they directly affect diameter stability, surface quality, and insulation reliability.
Cable manufacturers can use the following decision process:
Question | Why It Matters |
Is the layer insulation or sheath? | Insulation and sheath have different requirements |
What electrical performance is required? | Determines insulation material suitability |
What temperature resistance is needed? | Helps compare PVC, PE, XLPE, TPE, and other compounds |
Is flexibility important? | TPE or flexible PVC may be considered |
Is moisture resistance important? | PE may be suitable in many designs |
Is flame performance required? | PVC, LSZH, or special compounds may be evaluated |
What is the target cost level? | Helps balance performance and production budget |
What production speed is expected? | Affects material processing and line configuration |
What testing is required? | Influences spark tester and quality control setup |
What extrusion equipment is available? | Determines whether material can be processed efficiently |
A practical cable material decision should balance final cable performance, processing stability, material cost, and extrusion line compatibility.
Before requesting equipment advice, prepare the following information:
Information Needed | Why It Matters |
Cable type | Determines insulation or sheathing requirement |
Material type | PVC, PE, XLPE, TPE, LSZH, or other compound |
Material datasheet | Helps confirm processing requirements |
Conductor or cable core diameter | Determines crosshead and die selection |
Finished cable diameter | Determines layer thickness and cooling need |
Extrusion layer type | Insulation, sheath, single-layer, or multi-layer |
Required output | Determines extruder capacity and line speed |
Reel size | Determines pay-off and take-up configuration |
Testing requirement | Determines spark tester and diameter control |
Factory layout | Determines line arrangement |
Current production defects | Helps identify improvement needs |
Taizheng can discuss plastic extruder machine configuration based on your material type, cable diameter, output, and extrusion layer requirement.
A reliable supplier should ask about material and cable design before recommending equipment. If the supplier only provides a standard machine model without discussing PVC, PE, XLPE, TPE, or other compounds, the recommendation may not fully match production needs.
Useful questions to ask include:
Can the extruder process my selected cable material?
What screw design is recommended for this material?
What temperature control configuration is needed?
Is material drying required?
What crosshead and tooling are suitable?
What cooling system is recommended?
Does XLPE processing require additional curing equipment?
Can the line support insulation and sheathing extrusion?
What diameter control or spark testing is needed?
What output can be expected under practical conditions?
Can the line be customized for my factory layout?
You can visit Taizheng Machine for broader wire and cable machinery information, or review the plastic extruder machine page for extrusion equipment options.
Common cable extrusion materials include PVC, PE, XLPE, TPE, LSZH compounds, TPU, and other special polymer compounds. PVC, PE, XLPE, and TPE are widely used for different insulation and sheathing applications.
PVC cable extrusion is commonly used for general wire insulation, building wire, control cable jackets, appliance wire, and low-voltage cable sheathing. It is widely selected because of its versatility, processability, and cost-effectiveness.
PE cable extrusion is often used for communication cables, insulation layers, and jacket applications where electrical properties and moisture resistance are important. The suitable PE grade depends on cable design and performance requirements.
PE is a thermoplastic material, while XLPE is cross-linked polyethylene. XLPE usually offers improved thermal and electrical performance for many power cable applications, but it often requires more careful processing and crosslinking or curing control.
TPE can be suitable for cable extrusion when flexibility, softness, and repeated bending performance are important. It is commonly used for flexible cable jackets, appliance cables, charging cables, and portable cable applications, depending on the grade.
Cable extrusion materials affect screw design, barrel temperature, crosshead tooling, cooling system, line speed, testing requirements, and take-up control. PVC, PE, XLPE, and TPE may require different processing setups.
Before buying a plastic extrusion line, provide cable type, material type, material datasheet, conductor or cable core diameter, finished cable diameter, extrusion layer type, required output, reel size, testing requirement, and factory layout.
PVC, PE, XLPE, and TPE are important cable extrusion materials, but they serve different production and performance needs. PVC is widely used for general insulation and sheathing, PE is often selected for electrical and moisture-related performance, XLPE is suitable for higher-performance insulation applications, and TPE is useful for flexible and soft cable products.
For wire and cable manufacturers, material selection should consider final cable application, electrical properties, flexibility, temperature resistance, cost, processing stability, and extrusion line compatibility. The right extrusion equipment should be configured according to the material, cable diameter, layer type, output, cooling requirement, and testing standard.
If your factory is planning PVC cable extrusion, PE cable extrusion, XLPE cable extrusion, or TPE cable extrusion, Taizheng can discuss extrusion line configuration based on your material and cable requirements. You can review the plastic extruder machine page or visit Taizheng Machine for more wire and cable machinery information.
