Skin-foam-skin cable extrusion is a multi-layer insulation process that forms a solid inner skin, a foamed middle layer, and a solid outer skin around a conductor. This structure is commonly used in coaxial cables, RF cables, communication cables, and selected data cable applications where low dielectric loss, stable cable geometry, smoother surface quality, and mechanical protection are important.
In an SFS cable extrusion process, the foamed core helps reduce the effective dielectric constant and cable weight, while the solid skin layers help improve surface smoothness, conductor interface stability, shielding compatibility, and mechanical robustness. Compared with a simple foam-only insulation layer, the skin-foam-skin structure can offer better process balance when the cable requires both electrical performance and physical stability.
For cable manufacturers, successful skin foam skin cable extrusion depends on material selection, layer thickness control, foam ratio, cell uniformity, conductor centering, crosshead design, cooling, diameter measurement, electrical testing, and take-up control. A suitable physical foaming extrusion line should be configured according to cable drawing, conductor size, insulation diameter, layer structure, production speed, and quality requirements.
Skin-foam-skin cable extrusion, often shortened as SFS cable extrusion, is a multi-layer extrusion method used to produce cable insulation with three functional layers:
Layer | Structure | Main Function |
Inner skin | Solid polymer layer near the conductor | Provides a stable conductor interface and smoother inner insulation surface |
Foam layer | Foamed polymer middle layer | Reduces effective dielectric constant, weight, and material density |
Outer skin | Solid polymer outer layer | Improves surface finish, mechanical protection, and compatibility with later cable processes |
The most common material system is based on polyethylene, especially for coaxial cable and data cable insulation. In many applications, the foam layer is made from foamed PE, while the skin layers may use compatible solid PE or related formulations. The exact material selection depends on cable standard, electrical requirements, extrusion line design, and customer specifications.
The purpose of SFS cable extrusion is to combine the low dielectric advantage of foam insulation with the surface and mechanical stability of solid skin layers.
This makes skin-foam-skin insulation useful when a cable must balance signal performance, dimensional stability, surface smoothness, and production reliability.
A foam-only insulation layer can reduce dielectric properties and cable weight, but it may also require careful control of surface quality, crush resistance, and dimensional stability. A solid-only insulation layer can provide mechanical strength and simpler processing, but it may not offer the same low dielectric benefit as a foamed structure.
Skin-foam-skin insulation is designed to balance these two approaches.
Insulation Structure | Main Advantage | Main Limitation |
Solid insulation | Stronger dense structure and simpler processing | Higher dielectric constant and heavier structure compared with foam |
Foam insulation | Lower effective dielectric constant and lighter weight | Requires precise foam control and may need surface/mechanical support |
Skin-foam-skin insulation | Balances low dielectric properties, smoother surface, and better structure control | Requires more complex extrusion line and process control |
SFS cable insulation is selected when the cable needs low-loss electrical performance and a more controlled physical insulation structure than simple foam extrusion.
For coaxial cables, this structure can help maintain stable impedance when conductor centering, outer diameter, foam ratio, and layer thickness are controlled. For data cables, it can support low dielectric design and stable insulation geometry where required.
Skin-foam-skin cable extrusion is commonly associated with communication and high-frequency cable products. The exact application depends on product design and cable standard.
Typical applications include:
Coaxial cables
RF signal cables
Broadband communication cables
Data transmission cables
Low-loss cable insulation
High-frequency cable insulation
Selected LAN or communication cable structures
Specialty cable designs requiring foamed insulation
For these products, insulation is not only a protective layer. It is also part of the cable’s electrical geometry. Any variation in insulation diameter, foam structure, or concentricity may affect signal transmission characteristics.
The SFS cable extrusion process is usually more complex than single-layer solid insulation extrusion. It may involve multiple extruders, a foaming system, a multi-layer crosshead, cooling equipment, online measurement, testing systems, and precision take-up.
A typical process may include the following steps:
Step | Process | Purpose |
1 | Conductor pay-off | Feeds conductor into the extrusion line |
2 | Conductor preheating | Stabilizes conductor surface and helps coating formation where needed |
3 | Solid skin material extrusion | Forms the inner skin layer |
4 | Foam material extrusion | Produces the foamed middle insulation layer |
5 | Outer skin material extrusion | Forms the outer solid skin |
6 | Multi-layer crosshead forming | Combines layers around the conductor |
7 | Cooling and sizing | Stabilizes cable diameter and insulation structure |
8 | Diameter and concentricity control | Monitors cable geometry |
9 | Electrical or online testing | Checks cable quality where required |
10 | Capstan and take-up | Pulls and winds the finished insulated conductor |
Depending on the line design, layer formation may be arranged through co-extrusion and specialized tooling. The exact configuration should be confirmed according to cable structure and required output.
In skin-foam-skin cable extrusion, stable layer distribution is as important as stable total insulation diameter.
If the overall diameter is correct but the foam layer or skin thickness is unstable, the cable may still fail electrical or mechanical requirements.
A skin-foam-skin foam insulation line may include several important modules. Each module affects the final cable quality.
The pay-off unit supplies the conductor into the extrusion line. For coaxial and data cable applications, pay-off stability is important because conductor movement affects centering and insulation concentricity.
Key considerations include:
Conductor diameter
Pay-off reel size
Tension control
Reel loading method
Conductor surface condition
Alignment with the extrusion crosshead
Unstable pay-off tension can cause eccentric insulation or signal-related quality variation.
A conductor preheater may be used to warm the conductor before extrusion. Preheating can help remove surface moisture and improve coating stability in selected processes.
The use of preheating depends on conductor material, production speed, insulation material, and cable requirement. Temperature should be controlled carefully to avoid process instability.

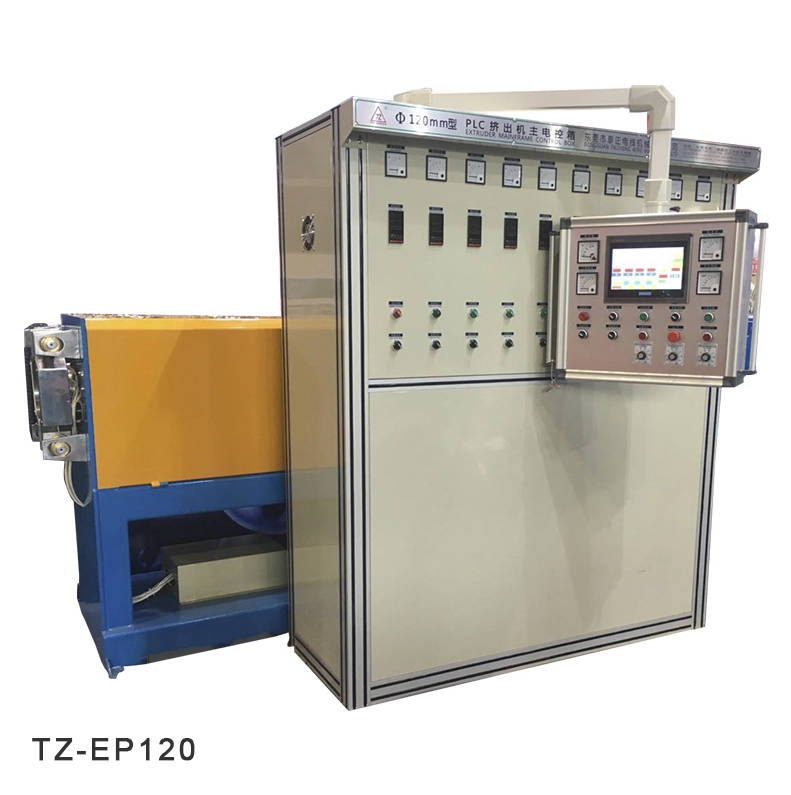

The skin layer extruder supplies material for the solid inner or outer skin. Depending on line design, one or more extruders may be used for skin layers.
The skin material must be compatible with the foam layer and cable application. Its melt flow, adhesion behavior, and processing temperature should match the multi-layer extrusion process.
The foam layer extruder is responsible for creating the foamed middle layer. In physical foaming, gas is introduced into the polymer melt under controlled conditions to form a cellular structure.
Important factors include:
PE material grade
Gas injection control
Melt pressure
Screw design
Temperature control
Foam ratio target
Cell size and cell uniformity
A physical foaming extrusion line should provide stable control of these parameters for consistent foam insulation production.
The crosshead combines the inner skin, foam layer, and outer skin around the conductor. It must distribute material evenly and support accurate layer structure.
Crosshead quality affects:
Layer thickness
Concentricity
Diameter stability
Surface smoothness
Material flow balance
Foam stability
Cable geometry
The die and tooling should be selected according to conductor diameter, insulation diameter, layer thickness, and material behavior.
Cooling is critical in SFS cable extrusion. The foam structure and skin layers must solidify without deformation, collapse, or excessive shrinkage.
Cooling considerations include:
Cooling trough length
Water temperature
Cable support
Line speed
Insulation diameter
Foam stability
Surface finish
Dimensional control
Poor cooling can cause surface defects, diameter fluctuation, foam collapse, or unstable cable roundness.
Diameter control is important for all cable extrusion processes, but it is especially important for coaxial and data cables. Cable geometry affects impedance and signal performance.
Online systems may include:
Diameter gauge
Capacitance monitoring where required
Spark tester where applicable
Eccentricity inspection in selected configurations
Surface inspection
Production data recording
For SFS cable extrusion, online measurement helps control both process stability and cable electrical consistency.
Material selection should consider electrical performance, compatibility, processing behavior, foamability, and final cable requirements.
Common material considerations include:
Material Area | Common Requirement |
Inner skin material | Smooth interface with conductor and compatibility with foam layer |
Foam layer material | Good foamability, stable cell structure, low dielectric properties |
Outer skin material | Smooth surface, mechanical protection, compatibility with shielding or later process |
Additives | Must match electrical and processing requirements |
Material cleanliness | Important for avoiding defects and electrical instability |
Melt flow behavior | Must support co-extrusion and layer stability |
Polyethylene-based materials are common in many foam cable applications, but the exact grade should be selected based on product standard and material supplier data.
The foamed middle layer introduces small cells into the insulation structure. Since air has a lower dielectric constant than solid polymer, the effective dielectric constant of the insulation can be reduced.
This is useful for coaxial and data cables where signal transmission performance matters.
Foam insulation can help reduce dielectric loss contribution in high-frequency cables. When geometry is controlled, SFS insulation can support low-loss cable design.
However, signal performance also depends on conductor quality, shielding, impedance control, diameter stability, and testing.
The outer solid skin can help improve the surface finish of the insulation. This may be important when later processes involve shielding, wrapping, cabling, or jacket extrusion.
The inner skin can create a more stable interface near the conductor. This may help with conductor contact, centering, and insulation formation, depending on cable design.
The foam layer reduces weight and dielectric properties, while the skin layers support physical structure. This balance can be useful where the cable must be both electrically efficient and mechanically stable.
Foamed insulation can reduce solid material density compared with a fully solid insulation structure. However, material saving should not be the only goal. Foam quality and electrical performance must remain stable.
Comparison Point | Foam-Only Insulation | Skin-Foam-Skin Insulation |
Structure | Single foamed layer | Solid skin + foam layer + solid skin |
Surface quality | Depends directly on foam surface | Outer skin can improve surface finish |
Dielectric performance | Can be low if foam is stable | Can be low while adding structural control |
Mechanical stability | Depends on foam density and cell structure | Skin layers can improve structure balance |
Process complexity | Lower than SFS | Higher due to multi-layer control |
Layer control | One main insulation layer | Requires skin and foam thickness control |
Common use | Selected foam cable designs | Coaxial, data, RF, and low-loss cable applications |
SFS insulation is not always necessary. It is usually selected when foam-only insulation cannot fully meet surface, mechanical, or process control requirements.
Quality control for skin foam skin cable extrusion should cover both physical and electrical factors.
Quality Item | Why It Matters |
Total insulation diameter | Affects cable geometry and downstream processing |
Layer thickness | Ensures inner skin, foam layer, and outer skin meet design |
Concentricity | Important for coaxial and signal cable performance |
Foam ratio | Affects dielectric properties and mechanical behavior |
Cell uniformity | Influences electrical consistency and structure stability |
Surface smoothness | Affects appearance and downstream processing |
Capacitance or electrical test | Helps verify signal-related performance where required |
Spark testing | Helps detect insulation defects where applicable |
Take-up tension | Prevents deformation of foamed insulation |
Cooling stability | Maintains cable shape and foam structure |
The most important quality target in SFS cable extrusion is stable geometry: conductor centering, layer thickness, foam structure, and outer diameter must remain consistent.
If any of these factors drift, the finished cable may show electrical variation even if the cable surface looks acceptable.
Defect | Possible Cause | What to Check |
Uneven layer thickness | Crosshead flow imbalance or tooling issue | Die, tip, material flow, centering |
Foam collapse | Poor cooling, unsuitable material, unstable pressure | Foam material, gas control, cooling |
Large foam cells | Temperature or gas control problem | Melt temperature, gas dosing, pressure |
Eccentric insulation | Conductor not centered | Pay-off tension, crosshead centering |
Rough surface | Outer skin instability or cooling issue | Skin material, temperature, cooling |
Diameter fluctuation | Output or line speed instability | Extruder speed, capstan, diameter gauge |
Poor electrical consistency | Geometry or foam instability | Foam ratio, concentricity, diameter, capacitance |
Deformation after take-up | Take-up tension too high or insulation not fully cooled | Cooling length, take-up tension |
Troubleshooting should start with process records. Operators should compare material batch, temperature, pressure, gas setting, line speed, cooling condition, and online test data.
Before choosing a skin-foam-skin cable extrusion line, buyers should prepare the cable design requirements. The supplier needs more information than only cable diameter.
Information to Provide | Why It Matters |
Cable type | Coaxial, RF, data, communication, or special cable |
Conductor material | Affects preheating and interface behavior |
Conductor diameter | Determines tooling and centering requirements |
Inner skin thickness | Defines first layer structure |
Foam layer thickness | Defines dielectric and foam design |
Outer skin thickness | Defines surface and mechanical structure |
Total insulation diameter | Determines cooling and line configuration |
Material grades | Determines screw, temperature, and foaming setup |
Foam ratio target | Affects electrical and mechanical performance |
Electrical requirements | Impedance, capacitance, attenuation, or related targets |
Line speed target | Determines output and cooling capacity |
Reel size | Defines pay-off and take-up configuration |
Factory layout | Helps configure line arrangement |
For accurate SFS extrusion line configuration, buyers should provide cable drawing, conductor diameter, layer thickness, material grades, foam ratio target, electrical requirement, and output target.
Taizheng can discuss physical foaming extrusion line configuration based on your coaxial cable, data cable, or communication cable production requirements.
Skin-foam-skin extrusion requires layer control, not only foam formation. Buyers should confirm whether the line can control inner skin, foam layer, and outer skin thickness.
Without cable drawing and layer thickness data, the supplier cannot accurately recommend crosshead tooling, extruder configuration, or cooling system.
Foam ratio matters, but conductor centering, insulation diameter, cell uniformity, and skin layer stability are also critical.
Foam insulation can deform if cooling is not suitable. Cooling design should match cable diameter, line speed, and material behavior.
Different SFS extrusion lines may have different extruder numbers, gas control systems, crosshead design, diameter measurement, testing systems, and take-up structures.
A reliable supplier should understand both cable performance and extrusion process control. For SFS cable extrusion, the supplier should ask detailed questions before recommending a line.
Useful questions include:
Can the line produce skin-foam-skin cable insulation?
How many extruders are required for my layer structure?
What materials can be used for skin and foam layers?
How is foam ratio controlled?
How is layer thickness controlled?
What crosshead design is recommended?
How is conductor centering adjusted?
What online measurement systems are available?
Can the line support coaxial cable electrical requirements?
What cooling system is recommended?
What take-up tension control is used?
Can the line be customized for my factory layout?
You can visit Taizheng Machine for broader wire and cable machinery information or review the physical foaming extrusion line page for foam cable extrusion equipment.
Skin-foam-skin cable extrusion is a multi-layer extrusion process that forms a solid inner skin, foamed middle layer, and solid outer skin around a conductor. It is used in coaxial, RF, data, and communication cable insulation applications.
SFS cable extrusion means skin-foam-skin cable extrusion. The structure includes a solid skin layer, a foam insulation layer, and another solid skin layer. It is designed to balance low dielectric properties with better surface and mechanical stability.
Skin-foam-skin insulation is used in coaxial cables because the foam layer helps reduce effective dielectric constant and signal loss, while the skin layers help improve surface quality, conductor interface stability, and insulation structure control.
Polyethylene-based materials are commonly used in many SFS cable insulation applications. The foam layer often uses foamable PE, while the skin layers use compatible solid materials. The exact grades depend on cable standard, process requirement, and supplier recommendation.
Yes. Foam-only extrusion creates a single foamed insulation layer, while SFS cable extrusion creates three layers: inner skin, foam core, and outer skin. SFS provides more layer control but requires more complex extrusion equipment and process management.
Important quality factors include layer thickness, foam ratio, cell uniformity, conductor centering, total insulation diameter, surface smoothness, cooling stability, electrical consistency, and take-up tension.
To choose an SFS cable extrusion line, provide cable drawing, conductor diameter, inner skin thickness, foam layer thickness, outer skin thickness, material grades, foam ratio target, electrical requirements, line speed, reel size, and factory layout.
Skin-foam-skin cable extrusion is a specialized insulation process used for coaxial, RF, data, communication, and low-loss cable applications. Its three-layer structure combines a solid inner skin, foamed middle layer, and solid outer skin to balance dielectric performance, cable weight, surface quality, and mechanical stability.
For cable manufacturers, the key to successful SFS cable extrusion is process control. Layer thickness, foam ratio, cell uniformity, conductor centering, cooling, diameter stability, electrical testing, and take-up tension must be controlled together. A suitable foaming extrusion line should be configured according to the cable drawing and production target.
If your factory is planning SFS cable extrusion or upgrading a foam insulation line, Taizheng can discuss line configuration based on your conductor diameter, layer thickness, material grades, foam ratio target, electrical requirements, and output needs. You can review the physical foaming extrusion line page or visit Taizheng Machine for more wire and cable machinery information.
