Foam PE insulation is used in coaxial and data cables because it introduces tiny air cells into polyethylene, reducing the effective dielectric constant, lowering cable weight, improving signal transmission performance, and supporting better high-frequency cable design. Compared with solid PE insulation, foamed polyethylene can help reduce capacitance and signal attenuation when the foam structure, conductor centering, diameter control, and extrusion process are properly managed.
In coaxial cables, foam PE insulation is commonly used between the inner conductor and outer shielding structure. In data cables, foamed polyethylene cable insulation may be used where lower dielectric loss, lighter construction, and stable transmission characteristics are important. For cable manufacturers, the material itself is only one part of the decision. The production line must also control foam ratio, cell uniformity, insulation diameter, concentricity, cooling, and take-up stability.
This guide explains why foam PE insulation is used in coaxial and data cables, how it affects electrical and mechanical performance, how the foaming extrusion process works, and what manufacturers should consider when choosing a physical foaming extrusion line for cable production.
Foam PE insulation, also called foamed polyethylene insulation, is a polyethylene-based insulation material that contains a controlled cellular structure. These cells are usually filled with gas or air, depending on the foaming process and production method.
Polyethylene itself is already widely used in cable insulation because of its electrical properties, moisture resistance, and processability. When PE is foamed, part of the solid material is replaced by tiny cells. Since air has a lower dielectric constant than solid polymer, the effective dielectric constant of the insulation layer can be reduced.
The main purpose of foam PE insulation is to combine the processability of polyethylene with a lower effective dielectric constant and lighter insulation structure.
Foam PE insulation is commonly used in:
Coaxial cables
RF cables
Communication cables
Data cables
High-frequency signal cables
Low-loss cable designs
Broadband cable applications
Certain structured cable products
The exact suitability depends on cable design, performance target, material formulation, foam structure, and extrusion line capability.
Coaxial and data cables are designed to transmit electrical signals. Their insulation material affects signal speed, capacitance, impedance, attenuation, and high-frequency performance. In these cables, insulation is not just mechanical protection. It is part of the electrical design.
A cable with unsuitable insulation may have higher signal loss, unstable impedance, excessive capacitance, or poor transmission consistency. For high-frequency or data transmission applications, small changes in insulation structure can affect performance.
Key electrical factors include:
Electrical Factor | Why It Matters |
Dielectric constant | Affects signal propagation and cable impedance |
Dielectric loss | Influences signal attenuation, especially at higher frequencies |
Capacitance | Affects signal loading and transmission behavior |
Impedance consistency | Important for coaxial and data cable performance |
Concentricity | Helps maintain stable electrical geometry |
Diameter stability | Affects impedance and signal consistency |
Foam PE insulation helps reduce the effective dielectric constant because the insulation structure contains small air cells inside the polyethylene layer.
This is one reason foam PE is widely used in coaxial and data cable applications where electrical performance matters.
Solid PE insulation and foam PE insulation can both be used in cable production, but they serve different design goals.
Comparison Point | Solid PE Insulation | Foam PE Insulation |
Structure | Dense solid polymer layer | Cellular PE structure with tiny gas/air cells |
Effective dielectric constant | Higher than foamed structure | Lower due to air cell content |
Cable weight | Heavier for the same geometry | Lighter in many designs |
Signal loss | Suitable for many applications | Often preferred for lower-loss signal cable designs |
Mechanical strength | Generally stronger solid structure | Depends on foam ratio and cell quality |
Diameter control | Important | More critical due to foam stability |
Process difficulty | More straightforward | Requires controlled foaming process |
Common use | General wire and cable insulation | Coaxial, RF, data, and low-loss communication cables |
Foam PE is not selected simply to replace solid PE; it is selected when the cable design benefits from lower dielectric properties, lighter structure, and controlled signal performance.
Solid PE may still be preferred where mechanical strength, simpler processing, or specific cable requirements are more important than foam-related electrical benefits.
In a coaxial cable, the insulation layer sits between the center conductor and the outer shielding structure. This layer strongly affects impedance, signal loss, capacitance, and mechanical stability.
Foam PE is used in coaxial cable foam insulation because it can help support low-loss transmission while maintaining a practical cable structure.
Common benefits include:
Lower effective dielectric constant
Reduced capacitance in many cable designs
Lower signal attenuation compared with many solid insulation structures
Lighter cable construction
Better material efficiency
Suitable structure for high-frequency coaxial cable designs
Support for stable impedance when geometry is controlled
In coaxial cables, foam PE insulation helps improve signal transmission performance by reducing the dielectric load between the inner conductor and outer shield.
However, the benefit depends on production control. Poor foam uniformity, eccentric insulation, diameter variation, or unstable conductor centering can reduce cable performance consistency.
Data cables often require stable electrical performance, controlled pair geometry, low capacitance, and consistent signal transmission. Depending on cable design, foamed polyethylene cable insulation may be used to reduce dielectric loading and support high-speed signal performance.
Foam PE can be useful in data cable applications because it may help:
Reduce insulation weight
Lower capacitance
Support high-frequency transmission
Improve signal consistency when geometry is stable
Maintain suitable flexibility
Support compact cable design
Improve material efficiency in selected products
For data cable manufacturers, insulation consistency is critical. The foam structure must be uniform, and the insulation diameter must remain stable. If insulation size changes during production, electrical properties may shift.
Signal loss in a cable is influenced by conductor loss, dielectric loss, shielding structure, frequency, cable geometry, and material properties. Foam PE mainly helps by reducing the dielectric contribution to signal attenuation.
Because foam PE contains air cells, the effective dielectric constant is lower than solid PE. This can reduce capacitance and support better signal propagation in suitable cable designs.
The result can be useful for:
RF cable transmission
Broadband coaxial cable
Data communication cables
High-frequency signal lines
Low-loss cable insulation structures
Foam PE insulation is commonly used in low loss cable insulation because its cellular structure can reduce dielectric loading compared with a fully solid polymer layer.
However, foam PE alone does not guarantee low signal loss. Cable performance also depends on conductor quality, shielding, geometry control, extrusion consistency, and testing.
Another reason foam PE insulation is used is weight reduction. Because part of the insulation volume is replaced by gas cells, the cable can be lighter than a comparable solid insulation structure.
Weight reduction can be helpful for:
Long cable runs
Communication cable installation
Transportation and storage
Large-volume cable production
Applications where cable handling matters
Material efficiency may also improve in selected designs because less solid polymer is used for a similar insulation volume. However, this depends on foam ratio, product standard, material formulation, and quality requirements.
Manufacturers should not maximize foaming only for material saving. Excessive or poorly controlled foaming can weaken insulation structure or create unstable electrical performance.
Foam PE can affect cable flexibility because the cellular insulation structure may be lighter and less dense than solid PE. This can help improve handling in some cable designs.
However, mechanical performance depends heavily on foam ratio, cell size, cell distribution, material grade, cable diameter, and outer jacket design.
Mechanical Factor | Foam PE Influence |
Cable weight | Often reduced compared with solid insulation |
Flexibility | May improve in many cable structures |
Crush resistance | Must be controlled through foam quality and cable design |
Dimensional stability | Requires stable extrusion and cooling |
Surface quality | Depends on process control and material formulation |
Handling | Lighter cable may be easier to handle |
Foam PE must be designed carefully because a very high foam ratio may reduce mechanical robustness. The right balance depends on cable application and customer requirements.
Foam PE insulation can be produced through different foaming methods. In cable production, physical foaming is widely used where fine cell structure and process control are important.
Physical foaming generally uses gas injection, such as nitrogen or another suitable gas, to create the cellular structure during extrusion. Chemical foaming uses chemical blowing agents that decompose and release gas during processing.
Comparison Point | Physical Foaming | Chemical Foaming |
Foaming method | Gas is introduced into the polymer melt | Chemical blowing agent releases gas |
Process control | Often suitable for controlled fine-cell insulation | Depends on chemical agent and processing |
Cell structure | Can support uniform fine cells with proper equipment | May vary by formulation and process |
Common cable use | Used in many high-performance foam cable applications | Used in selected applications |
Equipment requirement | Requires gas control and specialized foaming extrusion setup | Requires compatible material and process control |
Quality focus | Foam ratio, cell uniformity, diameter, concentricity | Agent dispersion, decomposition, cell formation |
For coaxial and data cables, physical foaming extrusion is often selected because foam structure consistency is important for electrical performance.
A physical foaming extrusion line should be configured based on cable type, conductor diameter, insulation diameter, material, foam ratio target, line speed, cooling design, and quality testing requirements.

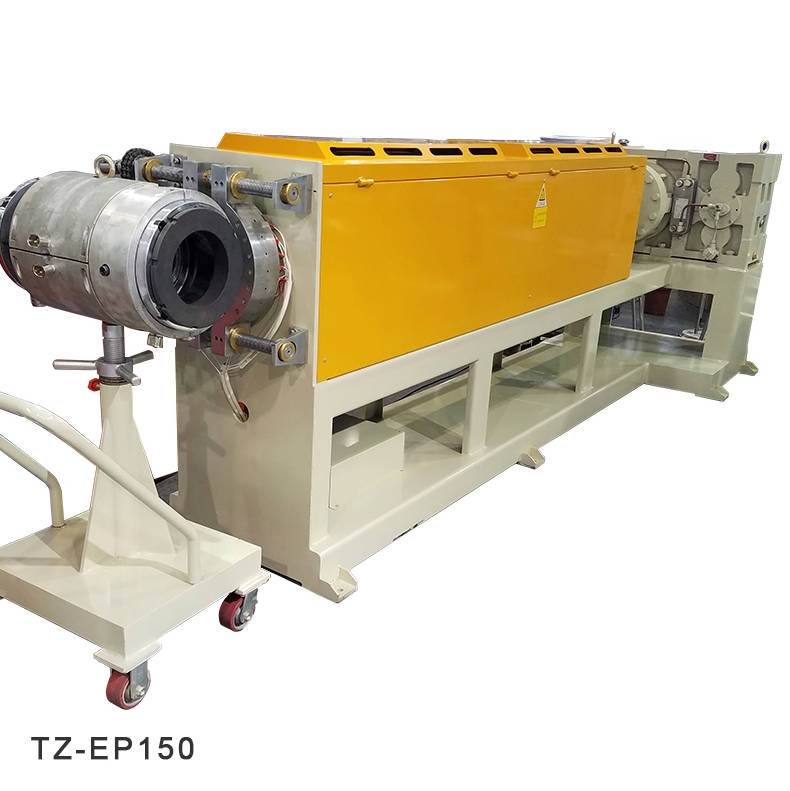

A typical foam PE insulation extrusion process includes several coordinated steps.
Step | Process | Purpose |
1 | Conductor pay-off | Feeds conductor into the extrusion line |
2 | Conductor preheating | Helps prepare conductor surface and stabilize coating |
3 | PE material feeding | Supplies polyethylene compound to the extruder |
4 | Gas injection or foaming control | Creates controlled cellular structure |
5 | Melt mixing and pressure control | Supports stable foam formation |
6 | Crosshead extrusion | Applies foam PE around the conductor |
7 | Diameter and concentricity control | Maintains cable geometry |
8 | Cooling | Stabilizes insulation shape and foam structure |
9 | Online testing | Checks diameter, spark performance, or electrical parameters |
10 | Capstan and take-up | Pulls and winds finished insulated cable |
Foam PE extrusion requires more process control than solid insulation extrusion because foam ratio, cell structure, temperature, pressure, cooling, and cable geometry must remain stable together.
If one part of the process becomes unstable, the cable may show diameter variation, uneven foam, poor surface, impedance drift, or mechanical weakness.
Parameter | Why It Matters |
PE material grade | Affects melt strength, foaming behavior, and insulation properties |
Gas pressure and dosing | Influences foam ratio and cell formation |
Screw design | Affects melting, mixing, and foam stability |
Barrel temperature | Must support stable plasticization without material degradation |
Crosshead design | Controls insulation formation around conductor |
Conductor centering | Important for coaxial cable impedance stability |
Cooling control | Helps stabilize foam structure and cable diameter |
Line speed | Affects insulation thickness and foam stability |
Diameter control | Critical for electrical consistency |
Take-up tension | Prevents deformation of foamed insulation |
For high-frequency cable production, process records are important. Operators should record material batch, temperature settings, gas parameters, line speed, diameter, and test results.
Foam PE extrusion defects often come from material, temperature, gas control, tooling, cooling, or line speed problems.
Defect | Possible Cause | What to Check |
Uneven foam structure | Unstable gas dosing or poor melt mixing | Gas control, screw, material condition |
Large or irregular cells | Poor temperature or pressure control | Barrel temperature, melt pressure |
Diameter fluctuation | Output instability or capstan speed variation | Extruder output, line speed, diameter control |
Eccentric insulation | Crosshead or conductor alignment issue | Die, tip, centering adjustment |
Surface roughness | Poor material plasticization or cooling issue | Temperature, cooling, material |
Foam collapse | Insufficient melt strength or cooling instability | Material grade, cooling, pressure |
Impedance instability | Diameter, foam, or conductor centering variation | Geometry control and online testing |
Poor take-up shape | Excessive winding tension or soft insulation | Take-up tension, cooling completion |
Troubleshooting foam PE insulation should be done carefully because electrical performance and physical appearance are closely connected.
Foam PE insulation is not necessary for every cable. It is mainly selected when the cable design benefits from lower dielectric properties, lighter structure, and signal performance.
Choose Foam PE When | Choose Solid PE When |
Low-loss signal transmission is important | Simpler processing is more important |
Coaxial or RF cable performance matters | Mechanical strength is the main priority |
Lower capacitance is required | Foam structure is not needed |
Cable weight reduction is valuable | Production budget favors simpler extrusion |
Data transmission stability is important | Application does not require low dielectric structure |
Material efficiency is part of design | Cable standard specifies solid insulation |
For many coaxial and data cables, foam PE provides a useful balance of electrical performance and manufacturability. For general-purpose cables, solid PE or other materials may still be sufficient.
Before selecting a foam extrusion line, manufacturers should define the cable and insulation requirements clearly.
Information to Provide | Why It Matters |
Cable type | Coaxial, data, communication, RF, or other cable |
Conductor material | Affects preheating and coating behavior |
Conductor diameter | Determines tooling and insulation geometry |
Target insulation diameter | Affects extrusion output and cooling |
Foam PE material | Determines processing and foam behavior |
Foam ratio target | Influences dielectric properties and mechanical strength |
Target impedance or electrical requirement | Critical for coaxial and data cables |
Line speed requirement | Determines extruder and cooling capacity |
Testing requirement | Helps define online measurement and quality control |
Take-up reel size | Affects winding and production handling |
Factory layout | Helps configure line arrangement |
For accurate foam extrusion line configuration, buyers should provide conductor size, insulation diameter, cable type, material, foam ratio target, electrical requirement, and output target.
Taizheng can discuss physical foaming extrusion line configuration based on coaxial cable, data cable, and communication cable production requirements.
Foam PE requires additional control of gas, foam ratio, cell structure, pressure, cooling, and geometry. Solid PE experience is useful, but not enough by itself.
Foaming can reduce material density, but excessive foaming may reduce mechanical strength or create unstable electrical performance. The correct foam ratio should follow cable design.
In coaxial cable foam insulation, conductor centering is critical. Poor concentricity can affect impedance and signal stability.
Foam structure and cable diameter need stable cooling. Poor cooling may cause foam collapse, deformation, or surface problems.
A foam extrusion line should be configured according to product requirements. Coaxial cable, data cable, and general communication cable may require different tooling, testing, and control levels.
A reliable supplier should understand both extrusion equipment and cable performance requirements. For foam PE insulation, the supplier should ask about cable structure, material, foam target, diameter control, and electrical requirements before recommending a line.
Useful questions to ask include:
Can the line process foam PE insulation for coaxial cables?
What conductor diameter range is suitable?
What insulation diameter range can be produced?
How is gas injection or foaming controlled?
What screw and barrel design is recommended?
How is conductor centering controlled?
What cooling system is required?
Can diameter control and online testing be integrated?
What line speed is practical for my cable design?
What reel sizes are supported?
Can the line be customized for my factory layout?
What process data should be monitored during production?
You can visit Taizheng Machine for broader wire and cable machinery information, or review the physical foaming extrusion line page for related foam cable extrusion equipment.
Foam PE insulation is polyethylene insulation with a controlled cellular structure. The air or gas cells reduce the effective dielectric constant and weight of the insulation layer, making it useful for coaxial, data, RF, and communication cables.
Foamed polyethylene is used in coaxial cables because it can reduce dielectric loading, lower capacitance, support lower signal attenuation, reduce cable weight, and help maintain high-frequency performance when cable geometry is properly controlled.
Foam PE insulation can be suitable for data cables where lower dielectric properties, stable signal transmission, lower capacitance, and lighter cable construction are required. Suitability depends on the cable design and production process.
Foam PE contains tiny cells inside the polyethylene structure, while solid PE is dense polymer. Foam PE usually has a lower effective dielectric constant and lighter weight, while solid PE may offer simpler processing and stronger dense structure.
Foam PE cable insulation is produced by feeding PE material into an extruder, introducing gas or foaming control, forming the insulation around the conductor through a crosshead, cooling the cable, measuring diameter, testing quality, and winding it onto a take-up reel.
The quality of coaxial cable foam insulation is affected by PE material grade, foam ratio, cell uniformity, gas control, extrusion temperature, conductor centering, insulation diameter, cooling stability, and take-up tension.
To choose a physical foaming extrusion line, provide cable type, conductor material, conductor diameter, target insulation diameter, foam PE material, foam ratio target, electrical requirement, line speed, testing requirement, reel size, and factory layout.
Foam PE insulation is widely used in coaxial and data cables because it helps reduce effective dielectric constant, lower cable weight, support low-loss signal transmission, and improve high-frequency cable design when properly processed. Compared with solid PE insulation, foamed polyethylene can offer important electrical and structural benefits, but it also requires more precise extrusion control.
For cable manufacturers, successful foam PE insulation production depends on material selection, foam ratio control, cell uniformity, conductor centering, diameter stability, cooling, testing, and take-up tension. The extrusion line must be configured for the actual cable type and performance target.
If your factory is developing foamed polyethylene cable, coaxial cable foam insulation, or low loss cable insulation, Taizheng can discuss foam extrusion line configuration based on your conductor diameter, insulation diameter, material, foam ratio, output, and electrical requirements. You can review the physical foaming extrusion line page or visit Taizheng Machine for more wire and cable machinery information.
