Wire Insulation Extrusion Process: Step-by-Step Guide

The wire insulation extrusion process is the continuous manufacturing process of applying a plastic insulating layer around a metal conductor using an extruder, crosshead, die tooling, cooling system, diameter control, spark testing, capstan, and take-up unit. It is widely used for electrical wire, building wire, automotive wire, appliance wire, communication cable, control cable, and many other cable products.

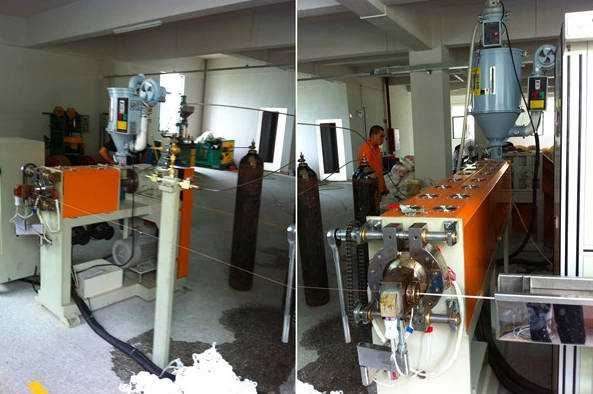

In a typical cable insulation extrusion line, the conductor is paid off from a reel, cleaned or preheated when required, guided through the extrusion crosshead, coated with molten plastic material, cooled, measured, electrically tested, pulled by a capstan, and wound onto a take-up reel. Each step affects insulation thickness, concentricity, adhesion, surface finish, electrical performance, and production stability.

For wire and cable manufacturers, understanding the wire extrusion process is important before selecting a plastic extruder machine or configuring a complete insulation extrusion line. This guide explains the process step by step, the key machine components, common materials, quality control points, and buying considerations for cable factories.

What Is Wire Insulation Extrusion?

Wire insulation extrusion is the process of coating a conductor with a continuous plastic layer. The plastic material is heated, melted, pressurized, and shaped around the conductor through an extrusion die and crosshead.

The conductor may be copper, tinned copper, aluminum, alloy wire, or another conductive material depending on the cable application. The insulation material may include PVC, PE, XLPE compounds, LSZH compounds, TPU, or other plastic materials depending on electrical, mechanical, flame-retardant, flexibility, and environmental requirements.

The purpose of wire insulation extrusion is to create a uniform, protective, and electrically insulating layer around the conductor.

Common products made with insulation extrusion include:

• Building wire

• Electrical appliance wire

• Automotive wire

• Control cable conductors

• Communication wire

• Low-voltage power cable

• Hook-up wire

• Flexible cable conductors

• Signal wire

• General plastic-coated wire

The exact production line configuration depends on conductor diameter, insulation thickness, plastic material, required output, testing standard, and reel size.

Why the Insulation Extrusion Process Matters

Wire insulation is not just a plastic covering. It affects cable safety, electrical performance, mechanical protection, processing stability, and final product reliability. If the insulation extrusion process is unstable, the cable may have uneven wall thickness, eccentricity, pinholes, bubbles, poor surface quality, or weak insulation performance.

For cable factories, extrusion quality affects:

A stable wire insulation extrusion process depends on the coordination of the entire line, not only the extruder. Pay-off tension, conductor preheating, crosshead centering, screw plasticization, cooling, diameter control, capstan speed, and take-up winding all influence final cable quality.

Step-by-Step Wire Insulation Extrusion Process

Below is a practical breakdown of the main production steps in a typical wire insulation extrusion process.

Step 1: Conductor Pay-Off

The process starts with conductor pay-off. The bare conductor is unwound from a reel or bobbin and fed into the extrusion line. The pay-off system must provide smooth and stable feeding.

If pay-off tension is unstable, the conductor may move unevenly through the crosshead, causing eccentric insulation or diameter fluctuation. Poor reel winding can also create jerks, vibration, or sudden tension changes.

Key points to check:

• Pay-off reel size

• Conductor diameter

• Conductor surface condition

• Pay-off tension control

• Reel loading stability

• Alignment with the extrusion line

• Smooth feeding without jerking

For fine wires, tension should be controlled carefully to avoid stretching or deformation. For larger conductors, the pay-off unit must support the weight and feeding force required for stable production.

Step 2: Conductor Cleaning and Preparation

Before extrusion, the conductor surface should be suitable for coating. Dust, oil, oxidation, moisture, or contamination may affect insulation adhesion and surface quality.

In many applications, conductor cleaning may be simple visual inspection and proper storage control. In other cases, cleaning, wiping, or preheating may be required depending on the material and product requirement.

Common preparation checks include:

• No obvious oxidation

• No oil contamination

• No loose dust or particles

• No damaged conductor surface

• No excessive moisture

• Stable conductor roundness

• Correct conductor diameter

Good conductor preparation helps reduce extrusion defects such as poor adhesion, bubbles, surface marks, and insulation inconsistency.

Step 3: Conductor Preheating

A preheater may be used before the conductor enters the extrusion crosshead. Preheating can help remove surface moisture, improve coating contact, reduce thermal shock, and support better process stability in some applications.

Preheating is not always required for every wire product. Its use depends on conductor material, insulation compound, production speed, adhesion requirement, and cable specification.

The correct preheating temperature should be determined according to the material and process requirement. Overheating may create other problems, so preheating should be controlled rather than treated as a general cure for all defects.

Step 4: Plastic Material Feeding

Plastic pellets or compounds are fed into the extruder hopper. The material must be clean, dry where required, and suitable for the cable application.

Common materials for wire insulation extrusion include:

Material selection should match the cable’s electrical performance, flexibility, temperature resistance, flame requirement, mechanical strength, and customer standard.

Step 5: Melting and Plasticization in the Extruder

Inside the extruder, the plastic material is heated and conveyed by the screw through different barrel zones. The screw rotates to push, melt, mix, and pressurize the material.

A stable plasticizing process is essential. If the material is not fully melted, the insulation may have rough surface, unmelted particles, or poor flow. If temperature is too high, the material may degrade, discolor, or produce unstable extrusion behavior.

Important extruder factors include:

• Screw design

• Barrel temperature zones

• Heating control

• Screw speed

• Melt pressure

• Material feeding stability

• Motor and drive stability

• Output capacity

The cable extruder machine must provide stable melt flow so the insulation layer can be formed with consistent thickness and surface quality.

A suitable plastic extruder machine for cable production should be selected according to material type, cable diameter, insulation thickness, and required output.

Step 6: Crosshead Extrusion and Die Forming

The crosshead is the section where molten plastic flows around the conductor. The conductor passes through the center of the crosshead, while the plastic material is shaped through die tooling to form the insulation layer.

Crosshead and die design are critical for insulation concentricity and thickness control. If the conductor is not centered, one side of the insulation may be thicker than the other. This can affect electrical performance, material usage, and quality inspection results.

Key crosshead considerations include:

• Die and tip selection

• Centering adjustment

• Material flow balance

• Conductor alignment

• Cable diameter range

• Ease of cleaning

• Pressure stability

• Compatibility with insulation material

The die tooling should match conductor size, target insulation thickness, and finished wire diameter.

Step 7: Cooling and Solidification

After the molten insulation is applied, the coated wire enters a cooling system. Cooling is usually performed in a water trough, but the cooling design can vary depending on wire size, material, line speed, and surface requirements.

Cooling must be controlled carefully. If cooling is too fast or uneven, the insulation may shrink unevenly, deform, or develop internal stress. If cooling is insufficient, the insulation may remain soft and deform during capstan pulling or take-up.

Important cooling factors include:

In many extrusion lines, cooling is divided into sections to help control temperature reduction more smoothly.

Step 8: Diameter Control and Online Measurement

Diameter control is important for consistent wire insulation. Online measuring devices, such as diameter gauges, can help monitor the finished wire diameter during production.

If the diameter is too large, material may be wasted and the product may not fit customer requirements. If the diameter is too small, insulation thickness may be insufficient. Diameter fluctuation may indicate unstable extruder output, capstan speed variation, material inconsistency, or cooling problems.

Diameter control helps operators maintain insulation thickness, reduce material waste, and improve product consistency during wire extrusion.

Key monitoring points include:

• Finished wire outer diameter

• Diameter fluctuation

• Concentricity where measured or inspected

• Extruder output stability

• Capstan speed coordination

• Material pressure stability

Some extrusion lines may include automatic feedback control, while others rely on operator adjustment based on measurement data.

Step 9: Spark Testing

A spark tester is often used after cooling to detect insulation defects. It applies a controlled test voltage to the insulated wire to identify pinholes, weak spots, or coating discontinuities.

Spark testing is especially important for electrical wire and cable products where insulation integrity is required.

Typical defects detected may include:

• Pinholes

• Thin insulation spots

• Cracks

• Coating discontinuities

• Certain insulation weak points

Spark testing does not replace all laboratory testing, but it provides valuable online inspection during production.

Important spark testing factors include:

• Test voltage setting

• Insulation material

• Finished wire diameter

• Line speed

• Product standard

• Safety requirements

• Calibration and maintenance

Step 10: Capstan Pulling

The capstan pulls the wire through the extrusion line at a controlled speed. It must coordinate with the extruder output and cooling process.

If capstan speed is too high relative to extruder output, insulation thickness may become too thin. If capstan speed is too low, insulation may become too thick or the surface may become unstable. Speed fluctuation can also cause diameter variation.

Capstan considerations include:

• Pulling force

• Speed stability

• Belt or wheel contact

• Cable surface protection

• Synchronization with extruder output

• Suitability for wire diameter

• Stable operation at target speed

Capstan performance is important because it controls the line speed and directly affects extrusion thickness.

Step 11: Take-Up Winding

After testing and pulling, the finished insulated wire is wound onto a take-up reel. Take-up winding should be stable, even, and suitable for storage or downstream processing.

Poor take-up winding can cause wire crossing, surface damage, uneven package shape, or pay-off problems in later production.

Take-up factors include:

• Reel size

• Winding tension

• Traverse control

• Wire diameter

• Surface protection

• Loading and unloading convenience

• Required production length

A stable take-up system completes the extrusion process and helps protect the finished wire quality.

Key Process Parameters in Wire Insulation Extrusion

These parameters should be recorded and standardized for repeat production.

Common Wire Insulation Extrusion Defects and Causes

Troubleshooting should be systematic. Operators should record the defect type, machine settings, material batch, conductor size, and defect location.

How to Choose a Wire Insulation Extrusion Line

Before purchasing or upgrading an extrusion line, buyers should define the production requirement clearly.

For accurate extrusion line configuration advice, buyers should provide conductor material, conductor diameter, insulation material, finished wire diameter, output requirement, reel size, and testing requirements.

Taizheng can discuss plastic extruder machine configurations based on wire and cable production needs.

Common Buying Mistakes

Mistake 1: Choosing Only by Extruder Size

Extruder size is important, but it is not the entire line. Crosshead, cooling, capstan, testing, pay-off, and take-up must also match the cable product.

Mistake 2: Ignoring Material Behavior

Different insulation materials require different temperature control, screw design, cooling, and handling. Buyers should confirm material type before machine selection.

Mistake 3: Not Confirming Finished Wire Diameter

The supplier needs both conductor diameter and finished wire diameter to evaluate tooling, line speed, and extrusion output.

Mistake 4: Underestimating Cooling Length

If the cooling system is not suitable, the insulation may deform or fail to stabilize before take-up.

Mistake 5: Comparing Price Without Comparing Complete Configuration

Two extrusion lines may have different crossheads, control systems, measuring devices, spark testers, and take-up structures. Buyers should compare full line configuration, not only price.

How to Choose a Reliable Supplier

A reliable supplier should understand the full wire insulation extrusion process and ask detailed questions before recommending equipment.

Useful questions to ask include:

• What insulation materials can the line process?

• What conductor diameter range is suitable?

• What finished wire diameter range can be produced?

• What extruder size is recommended for my output?

• What crosshead and die tooling are required?

• Is conductor preheating needed?

• What cooling trough length is recommended?

• Is online diameter measurement available?

• Is spark testing required for my product?

• What pay-off and take-up reel sizes are supported?

• Can the line be customized for my factory layout?

• What information is needed before quotation?

You can visit Taizheng Machine for broader wire and cable machinery information or review the plastic extruder machine page for extrusion equipment options.

FAQ

1. What is the wire insulation extrusion process?

The wire insulation extrusion process is the continuous process of applying a plastic insulating layer around a conductor using an extruder, crosshead, die tooling, cooling system, diameter control, spark tester, capstan, and take-up unit.

2. What equipment is used in cable insulation extrusion?

Cable insulation extrusion equipment typically includes pay-off, conductor preheater, plastic extruder machine, crosshead, die tooling, cooling trough, diameter gauge, spark tester, capstan, and take-up unit. The exact configuration depends on cable type and production requirement.

3. What materials are used for plastic wire coating?

Common plastic wire coating materials include PVC, PE, XLPE compounds, LSZH compounds, TPU, and other application-specific insulation materials. The suitable material depends on electrical, mechanical, flexibility, temperature, and flame requirements.

4. Why is temperature control important in the wire extrusion process?

Temperature control is important because it affects plastic melting, flow stability, surface finish, adhesion, and material quality. Low temperature may cause poor plasticization, while excessive temperature may cause degradation or discoloration.

5. What causes uneven insulation thickness in wire extrusion?

Uneven insulation thickness is commonly caused by crosshead misalignment, incorrect die or tip selection, unstable conductor path, pay-off tension fluctuation, or unstable extruder output. Centering and process stability should be checked.

6. Why is a spark tester used after wire insulation extrusion?

A spark tester is used to detect insulation defects such as pinholes, cracks, weak spots, or coating discontinuities. It helps identify electrical insulation problems during online production inspection.

7. How do I choose a wire insulation extrusion line?

To choose a wire insulation extrusion line, confirm conductor material, conductor diameter, insulation material, finished wire diameter, output target, reel size, cooling requirement, testing requirement, and factory layout.

Conclusion

The wire insulation extrusion process includes conductor pay-off, conductor preparation, preheating when needed, plastic material feeding, melting and plasticization, crosshead coating, cooling, diameter control, spark testing, capstan pulling, and take-up winding. Each step affects insulation quality, production stability, and final cable performance.

For wire and cable manufacturers, choosing the right extrusion line requires a complete understanding of conductor size, insulation material, finished wire diameter, production output, quality testing, cooling needs, and factory layout. A stable process depends on the whole line working together, not only the extruder.

If your factory needs a wire insulation extrusion line or wants to improve existing plastic wire coating production, Taizheng can evaluate your conductor material, cable diameter, insulation layer type, output target, and testing requirements. You can review the plastic extruder machine page or visit Taizheng Machine for more wire and cable machinery information.
