Constant Tension Control in Wire Coiling: Protecting Fragile Conductors and Optical Fibers

In precision winding, unmanaged tension spikes are the leading cause of micro-bending attenuation in optical fibers and irreversible elongation in fine gauge conductors. A conventional wire coiling machine running open-loop torque or friction-based braking fails because spool inertia, acceleration ramps, and expanding coil diameters continuously shift mechanical resistance. Protecting sensitive strands requires dynamic, closed-loop tension regulation that keeps tensile strain within narrow engineering thresholds across the entire package build.

This guide examines the mechanical failure modes of fragile strands, details how closed-loop control architectures eliminate tension spikes, outlines material-specific winding tolerances, and provides an engineering evaluation framework for configuring high-yield coiling equipment.

The Vulnerability of Delicate Strands: Why Static Tensioning Fails in Precision Coiling

During the winding cycle, the effective diameter of the take-up reel increases with each deposited layer. In simple mechanical setups, if the drive torque remains constant, linear tension drops as the radius grows. Conversely, if an operator attempts to maintain linear speed with uncompensated drives, pulling force surges at the core or during line speed transitions.

Fragile conductors—such as ultra-fine copper, gold-plated bonding wire, and silver-plated alloy filaments—possess low plastic deformation thresholds. Once pulling tension exceeds the material yield point, the conductor undergoes necking. This reduces the cross-sectional area, creating localized hot spots, variable electrical resistance, and insulation thinning.

For optical fibers, the issue is structural and refractive. Tension surges transmit compressive radial forces down through the winding layers. This pressure forces the glass fiber against adjacent turns or surface imperfections on the spool drum, generating micro-bends. Micro-bending shifts the light wave guidance conditions, causing significant signal attenuation across transmission bands. Under extreme peaks, micro-cracks propagate across the silica cladding, leading to catastrophic core fractures during deployment or environmental thermal cycling.

Mechanics of Constant Tension: Closed-Loop Regulation Architectures

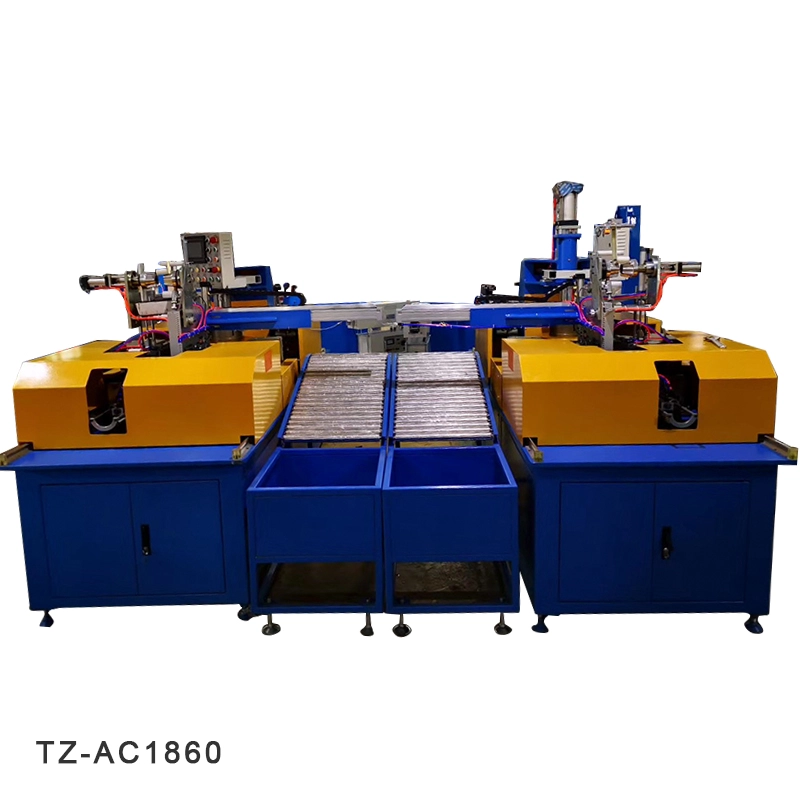

Maintaining absolute tensile stability demands active real-time adjustment rather than static mechanical resistance. A high-performance constant tension wire coiler integrates sensor feedback, programmable logic controllers (PLCs), and variable-frequency or servo motor controls to create an uninterrupted compensation loop.

[Payoff / Feed Speed Tracking]
          │
          ▼
[Dancer Arm / Load Cell Sensing] ──(Displacement / Force Data)──► [PLC Algorithm]
          ▲                                                              │
          │                                                              ▼
[Dynamic Line Variations] ◄───(Real-Time Speed / Torque Trim)◄─── [Servo Drive Output]

Sensor-Driven Feedback: Load Cells vs. Dancing Arm Accumulators

Two primary sensor architectures govern modern industrial tension regulation:

• Dancing Arm Accumulators (Dancer Rollers): A counterweighted or pneumatically balanced pivot arm rides on the wire loop. As tension rises, the wire pulls the arm against a controlled air pressure or calibrated spring; if tension drops, the arm falls. A precision rotary transducer or non-contact potentiometer monitors the arm angle. This mechanical travel provides an instantaneous buffer that physically absorbs mechanical shocks caused by out-of-round spools or drive lag before sending corrective signals to the controller.

• Inline Load Cells (Strain Gauges): Direct-measurement load cells quantify actual lateral force applied by the passing wire across a fixed guide pulley. Strain gauge arrays transmit high-frequency millivolt signals to the drive controller. While load cells offer zero mechanical accumulation, they deliver absolute force readouts suitable for extremely stiff or ultra-fine micro-wires where even minimal dancer arm inertia might over-stress the strand.

Dynamic Speed and Torque Synchronization Across Radius Changes

As the winding shaft rotates, the PLC calculates real-time spool radius using encoder pulses, material thickness inputs, or optical diameter sensors.

To maintain uniform linear surface velocity, the spindle motor rotational speed must decrease proportionally as the coil radius expands ($v = \omega \cdot r$). Concurrently, to preserve constant winding tension, torque output must scale smoothly up with the increasing lever arm of the package ($T = F \cdot r$).

During rapid acceleration, additional torque must overcome system inertia without pulling on the wire. During deceleration, regenerative braking must engage proportionally to prevent spool overrun, which would otherwise result in loose coils, strand tangling, or sharp tension shocks upon restart.

Tailored Winding Profiles for High-Sensitivity Materials

Different fragile materials exhibit distinct mechanical thresholds, requiring distinct winding profiles and path geometries.

High-Purity Optical Fibers

Optical glass fibers cannot tolerate sharp directional transitions or excessive surface friction. Coiling systems must feature large-radius guide pulleys—often exceeding 40 to 60 times the bare fiber diameter—to keep bending stresses well below static fatigue thresholds. Surface contact materials must feature polished ceramics or low-friction polymers to prevent micro-abrasions on the primary coating.

Fine Magnet Wire and Precious Alloy Conductors

Enamelled magnet wires and micro-conductor alloys require low initial winding tensions. The dynamic tension regulation system must react instantly to prevent stretching the copper substrate or shearing the ultra-thin insulating enamel coat. The layering must proceed without crossover wedging, which causes pinholes under standard high-voltage insulation tests.

Flexible Ribbon Cables and Medical Tubing

Miniature flat cables, multi-lumen tubing, and micro-coaxial assemblies require lateral alignment control in addition to tension stability. If winding tension varies, the flat geometry twists within the traverse guide, resulting in uneven winding packages and deformed internal conductors.

When your production involves non-standard geometries or sensitive polymers, off-the-shelf equipment often fails to provide the required precision, making customized wire coiling and winding solutions necessary to match specific package profiles.

Technical Checklist for Sourcing a Tension-Controlled Coiling Machine

When sourcing a precision tension control coiling machine, process engineers must verify several core mechanical and electrical attributes before committing capital.

1. Guide Pulley Materials and Surface Treatment

Every contact point along the wire path introduces mechanical friction and directional resistance.

• Pulleys should utilize lightweight aluminum with ceramic coatings or engineered polymers (such as POM or PEEK) to reduce rotational inertia.

• Bearing assemblies must use low-friction, high-precision grades to ensure pulleys spin freely at very low line tensions, preventing strand dragging.

2. Traverse Pitch Synchronization and Layer Flatness

A constant tension spindle must work in absolute synchronization with the traverse layering mechanism.

• The traverse pitch (lateral displacement per spindle revolution) must adjust electronically through a dedicated servo drive rather than rigid mechanical gears.

• Reversal points at the spool flanges must execute without dwell times to prevent wire pile-up at the edges, which causes localized high-tension bands and subsequent collapse into lower layers.

3. Tension Dynamic Range and Resolution

• Ensure the drive and sensor resolution can measure and control the lower threshold of your tension window. A heavy-duty tension system calibrated for standard power cables cannot provide the millinewton-level sensitivity required for micro-conductors.

• Review the emergency stop profile: verify how the machine handles rapid power drops or line interlocks to prevent snapped strands or loose spools.

4. Modular Adaptability for Varied Spool Dimensions

Production runs often require alternating between cylindrical spools, tapered bobbins, or coreless coiling configurations. Procuring a platform from an experienced custom wire cable coiling machine manufacturer ensures that shaft adapters, clamping assemblies, and dancer counterbalance ranges can be reconfigured for changing product lines.

Eliminating Processing Defects Through Custom-Engineered Coiling Solutions

Standard catalog coiling units are typically engineered for generic commercial wires where tension tolerances remain wide. However, when handling specialty composites, medical-grade conductors, or sensitive fiber optic bundles, standardized setups frequently generate persistent yield loss through surface scoring, erratic pitch lay, or micro-strain damage.

Addressing these non-standard parameters requires tailored machine geometry. Engineering collaboration with a specialized precision coiling machine manufacturer like Taizheng enables wire processors to configure machine kinematics around specific material constraints.

A structured engineering evaluation typically involves four design phases:

1. Material Mechanical Profiling: Analyzing tensile yield points, minimum safe bending radiuses, and outer coating friction coefficients.

2. Drive and Inertia Matching: Sizing servo motors, gear ratios, and dancer counterweights to the target spool mass and maximum acceleration/deceleration cycles.

3. Winding Path Optimization: Designing specialized fairleads, ceramic roller tracks, and non-contact traversing guides that eliminate sharp bends and scuffing.

4. Integration and Acceptance Testing: Validating real-time tension consistency across complete spooling cycles, measuring conductor resistance uniformity, and inspecting fiber packages for zero optical attenuation drift.

Optimize Your Coiling Line for Zero Material Distortion

Achieving zero-defect winding on fragile conductors and optical fibers requires replacing open-loop, uncontrolled mechanics with responsive closed-loop tension systems. Protecting delicate materials depends on eliminating tension surges, synchronizing traverse kinematics, and maintaining controlled lay pressure from the arbor core to the final layer.

If your production line is facing scrap losses from elongation, optical attenuation, or irregular packaging, consult with Taizheng’s engineering team. Provide your strand specifications, target line speeds, and package dimensions to evaluate a customized constant tension coiling system tailored to your tolerances.

Key Takeaways

• The Cause of Micro-Bending and Resistance Drifts: Conventional winding setups fail because expanding coil diameters and drive acceleration surges create uncompensated tension spikes that crack optical fibers and stretch fine conductors beyond their yield point.

• Closed-Loop Superiority: Precision winding relies on closed-loop control architectures using dancing arm accumulators or load cells to trim servo torque and rotational velocity in real time.

• Material-Specific Geometry: Preserving fiber and conductor integrity requires matching pulley diameters, contact materials (such as ceramic coatings), and bend radiuses to the material's structural limits.

• Electronic Traverse Synchronization: Preventing flange buildup and layer drop-ins requires dedicated servo-driven traverse systems that adapt pitch dynamically to wire gauge and spool geometry.

• Custom Engineering Value: Processing high-value, delicate strands often requires custom-built coiling solutions with calibrated tension sensors, low-inertia rollers, and matched drive algorithms.

Frequently Asked Questions (FAQ)

What is the fundamental difference between open-loop torque control and closed-loop dancer arm regulation?

Open-loop torque systems estimate motor output based on calculated radius without directly verifying the actual pull force on the strand, making them vulnerable to mechanical friction drifts and inertia spikes. Closed-loop dancer arm systems continuously measure physical strand displacement via position sensors, allowing the controller to actively trim spindle speed and absorb mechanical shocks in real time.

Why do line stops cause broken conductors or loose slack on conventional coilers?

During deceleration, the spool arbor and the pay-off drum possess different rotational inertias. If the coiler decelerates faster than the pay-off, tension spikes and snaps delicate strands; if the pay-off overruns the coiler, slack forms, causing crossing turns, kinks, and tangles upon restart. Constant tension coilers resolve this via dynamic regenerative braking and dancer buffering.

Can a single coiling machine handle both fine copper conductors and loose-tube optical cables?

Yes, provided the machine incorporates a wide-range closed-loop tension system, programmable electronic traverse pitch control, and modular low-inertia guide rollers. However, the system must support low-force sensor calibration and large-radius guide pulleys to ensure the bend limits of optical cables are strictly observed.

How does wire traverse pitch synchronization affect tension stability?

If the lateral traverse mechanism does not match spindle rotation precisely, strands pile up against the reel flanges or drop into gaps between turns. These structural faults create sudden drop-offs or sharp spikes in pulling tension, risking permanent conductor stretching or localized optical fiber attenuation.
