Dual-Head Continuous Cable Coilers: Eliminating Downtime at High Extrusion Speeds

Operating a high-speed extrusion line without a synchronized, non-stop packaging system creates an immediate production imbalance. When an extrusion line runs at elevated speeds, traditional single-station packaging forces operators to either slow down the entire line or stop extrusion entirely to cut, unload, and re-spool finished coils. A dual-head continuous coiling machine eliminates this bottleneck by pairing two alternating coiling stations with automated wire transfer, cutting, and tension buffering mechanisms.

For cable manufacturers, the decision to implement continuous coiling centers on three primary factors: the outer diameter (OD) and flexibility of the jacket material, the line velocity relative to target coil length, and the integration capability of line synchronization controls. This guide examines how dual-head systems maintain stable line velocities during changeovers, compares dual-head architecture against single-head alternatives, and outlines the technical parameters engineering teams must confirm before procuring customized packaging equipment.

The High-Speed Extrusion Paradox: Why Post-Extrusion Coiling Creates the Costliest Bottleneck

Modern extruders achieve high output rates, yet overall line productivity (OEE) frequently suffers from the limitations of downstream manual or semi-automatic handling. When downstream equipment cannot match extrusion velocity, it creates operational friction that directly impacts product quality and material waste.

When an extrusion line decelerates or stops for coil changeovers, several process disruptions occur:

• Melt Pressure and Wall Thickness Variations: Extrusion heads rely on steady thermal and pressure equilibria. Rapid deceleration disrupts the melt flow, generating wall thickness variations and insulation eccentricity outside allowable tolerances.

• Elevated Material Scrap: Off-spec cable produced during line deceleration, changeover pauses, and ramp-up acceleration cannot be reclaimed easily, increasing compound waste.

• Thermal Degradation in the Barrel: Extended dwell time of polymers in a heated, decelerated extruder barrel can cause thermal degradation, resin discoloration, or carbonization defects in cross-linked or fluoropolymer compounds.

• Underutilized Capital Investment: Running a continuous extruder below its rated output simply to accommodate downstream handling labor caps the return on investment of the entire line.

How Dual-Head Continuous Coiling Works: The Non-Stop Changeover Mechanism

A dual-head continuous coiler avoids process interruption by distributing coiling, cutting, and handling tasks across two distinct, independently driven axes working in coordinated cycles.

1. Active Coiling (Spindle A)

While Spindle A coils the cable at full extrusion velocity, its traversing guide maintains precise pitch control to ensure even layer distribution. During this active cycle, Spindle B remains static, allowing the operator or automated handling system to safely strap, wrap, or unload the completed coil from the previous cycle.

2. High-Speed Transfer and Clamping

As Spindle A reaches the preset meter count, an automated pneumatic or servo-driven transfer arm guides the moving cable path toward the prepared, empty arbor on Spindle B. Spindle B accelerates to match line speed prior to transfer, minimizing shock loading. Pneumatic clamps capture the leading end of the incoming wire against the new core.

3. Flying Shear Cut

A synchronized flying knife or high-speed pneumatic cutter severs the cable between the two arbors. The trailing tail wraps onto the completed coil on Spindle A, while the leading end immediately begins winding onto Spindle B without interruption.

4. Tension Buffering (Dancer Accumulation)

To absorb the brief transient shock occurring during the millisecond transition between spindles, an inline vertical dancer or accumulator acts as a pneumatic buffer. The dancer adjusts stroke position dynamically to keep line tension constant, preventing elongation, thinning, or surface burnishing of sensitive jacket compounds.

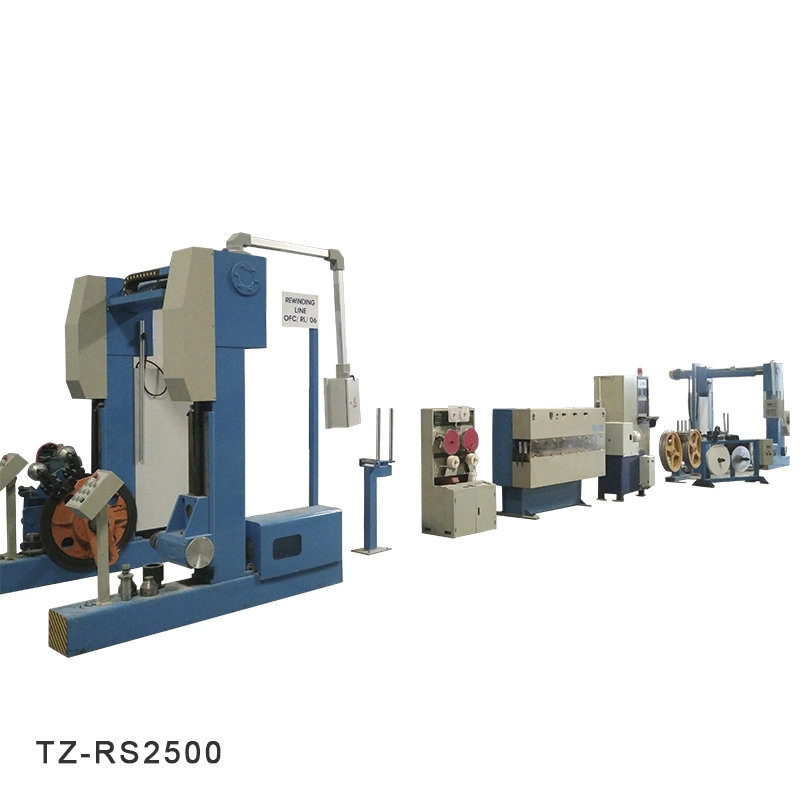

To achieve this level of synchronization across varying cable cross-sections, factories often require tailored packaging line integration. Consulting with an experienced custom wire & cable coiling machine manufacturer helps ensure the transfer kinematics, arbor expansion dimensions, and cutter assemblies align with specific compound formulations and run speeds.

Engineering Comparison: Single-Head Manual vs. Semi-Auto vs. Dual-Head Continuous Coilers

Selecting the right coiling architecture requires balancing product dimensions, changeover frequencies, and plant staffing goals.

Dual-head continuous machines provide the clearest return on investment in high-volume, standard-run environments where extruders run continuously for days on identical cable constructions. For low-volume specialty cables where dimensions change every few hours, the mechanical setup time of a dual-head unit may outweigh its continuous-speed advantages.

Critical Engineering Parameters for Customizing a High-Speed Coiling Machine

Because cable stiffness, outer diameter, and coil packaging formats vary, continuous coiling systems require custom engineering. Before standardizing line designs, project teams should define and verify several parameters with equipment builders:

When evaluating equipment configurations with a specialized partner such as Taizheng, verifying the structural integrity of collapsible arbors and clamping grippers prevents slippage when processing slippery jackets like silicone, nylon, or lubricated fluoropolymers.

Line Integration and Safety Controls: Protecting Wire Quality at Max Velocity

Integrating a continuous coiling unit into an extrusion train involves more than mechanical mounting; it requires synchronized safety and inspection feedback.

Servo Traversing Synchronization

Uniform winding requires the traversing pitch to correlate directly with the spindle’s instantaneous RPM and the wire's outer diameter. Electronic gearing driven by independent servo motors prevents edge build-up, overlapping, or loose wraps, ensuring coils easily unwind at construction sites or secondary processing stations.

In-Line Quality and Defect Sorting

When upstream spark testers, lump detectors, or laser diameter gauges detect an insulation puncture or diameter out-of-spec condition, the line controller flags the defective section's linear position. Advanced continuous coilers can be programmed to trigger a premature cut, completing the in-spec coil early and isolating the defective cable length onto the alternating arbor for rapid tagging and disposal.

Operator Safety Interlocks

Because one arbor rotates at high speeds while the other is prepared or cleared, complete physical containment is mandatory. Dual-head machines incorporate safety light curtains, pneumatic door interlocks, and mechanical isolation guards to guarantee that operators cannot reach an active, rotating spindle while tending to an unloaded coil.

Key Takeaways

• Eliminate Deceleration Losses: Dual-head continuous coilers remove packaging downtime by maintaining steady line velocity, protecting melt stability and dimension control.

• Closed-Loop Tension Control: Inline accumulators and servo-driven dancer units isolate high-speed spindle changeovers from upstream capstans, preserving insulation geometry.

• Higher Overall OEE: Continuous changeovers lower scrap generation caused by frequent starts and stops while reducing per-line manual operator requirements.

• Precise Customization is Essential: Coreless vs. bobbin-based spools, jacket friction characteristics, and defect divert protocols must be defined prior to equipment build.

Frequently Asked Questions (FAQ)

Can a dual-head continuous coiler handle both coreless coils and spools with bobbins?

Certain modular dual-head machines support dual-mode operation, using interchangeable collapsible heads for coreless winding alongside shaft adaptors for fixed bobbins or reels. Because reel clamping and flange dimensions differ substantially from expanding arbors, multi-purpose configurations should be confirmed with the machinery designer during initial project scoping.

How does the changeover mechanism prevent surface damage on softer jacket materials?

For soft compounds like low-smoke zero-halogen (LSZH), thermoplastic elastomers (TPE), or silicone, machines utilize rubberized or urethane-coated transfer rollers, pneumatic dancer pressure regulation, and precision clamping claws. These components minimize localized point-pressure during the flying cut and grab sequence.

What upstream communications are required to integrate a dual-head coiler?

The machine typically requires line speed feedforward signals (encoder pulse or bus-based communication such as Profinet or EtherCAT), run/stop interlocks, emergency stop loops, and defect marker inputs from downstream diameter gauges and spark testers.

How are completed coils bound or secured during continuous operation?

While Spindle B is actively coiling, Spindle A allows for either manual strapping using pneumatic hand tools or automated inline tying using stretch film, tape, or plastic strapping bands prior to arbor collapse and ejection.
