How Does a High-Speed Double Twist Bunching Machine Work? (A Complete Engineering Guide)

A high-speed double twist bunching machine twists multiple individual metallic conductors—most commonly bare or tinned copper—into a compact, uniform multi-wire strand by applying two twists for every single 360-degree rotation of its flyer bow. Unlike single-twist or planetary systems, the double twist mechanism operates through an internal cradle assembly suspended within a high-velocity rotating bow. By separating wire formation into two distinct entry and exit twist points, the system doubles linear output per rotor cycle while maintaining accurate pitch control.

For cable engineers and plant managers, choosing and configuring this equipment depends on linear take-up synchronization, continuous tension balance across shifting bobbin masses, and the aerodynamic integrity of the rotating bow. This guide analyzes the core mechanical kinetics of double twist bunchers, traces the complete wire path, evaluates critical engineering control points, and compares double twist architecture against alternative cabling systems.

The Core Kinematics of Double Twist Bunching

The term "double twist" defines a mechanical process where two physical twists (lays) are inserted into a conductor bundle during a single revolution of the rotating element.

1 Machine Revolution (Rotor/Bow) = 2 Wire Twists (Lay Lengths)

The machine achieves this geometric doubling by guiding the wire bundle into the rotating perimeter and then redirecting it back into a non-rotating central axis before collection.

1. First Twist: Occurs at the entrance guide pulley as the grouped conductors transition from the stationary external plane into the dynamic rotational plane of the flyer bow.

2. Second Twist: Occurs at the exit guide pulley where the conductors leave the rotational path of the bow and enter the stationary internal cradle holding the take-up bobbin.

Because rotation occurs around the collection spool rather than spinning the spool itself around a revolving pay-off rack, the mechanical inertia is significantly lower. Modern facilities deploying advanced bunching and stranding machines leverage this principle to achieve higher linear take-up velocities than conventional rotating-reel machinery.

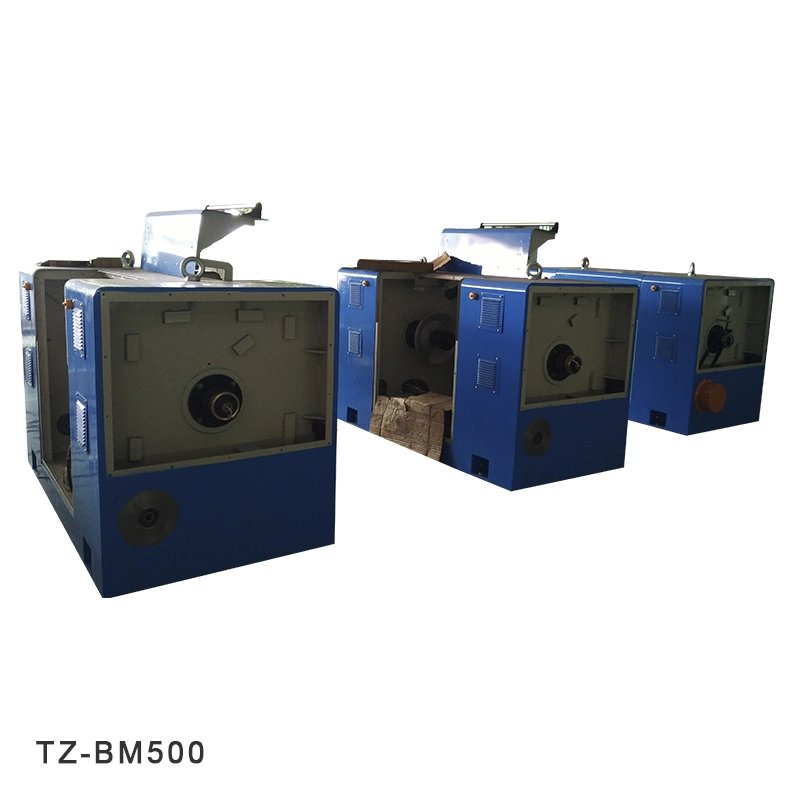

Mechanical Anatomy: Essential Components of the Buncher

A high-speed buncher operates as a balanced kinematic balance between dynamic rotational parts and an isolated, stationary payload.

+-------------------------------------------------------------+
|                     OUTER PROTECTIVE CABIN                  |
|                                                             |
|           +============== FLYER BOW =============+          |
|           |                                      |          |
|  [Inlet]--+   +------------------------------+   +-->[Capstan]
|  Closing      |      STATIONARY CRADLE       |       Internal
|   Die         |  +------------------------+  |       Take-Up
|               |  |     Take-Up Bobbin     |  |       Bobbin
|               |  +------------------------+  |          |
|           |   +------------------------------+   |      |
|           +======================================+      v
|                                                  [Traverse]
+-------------------------------------------------------------+

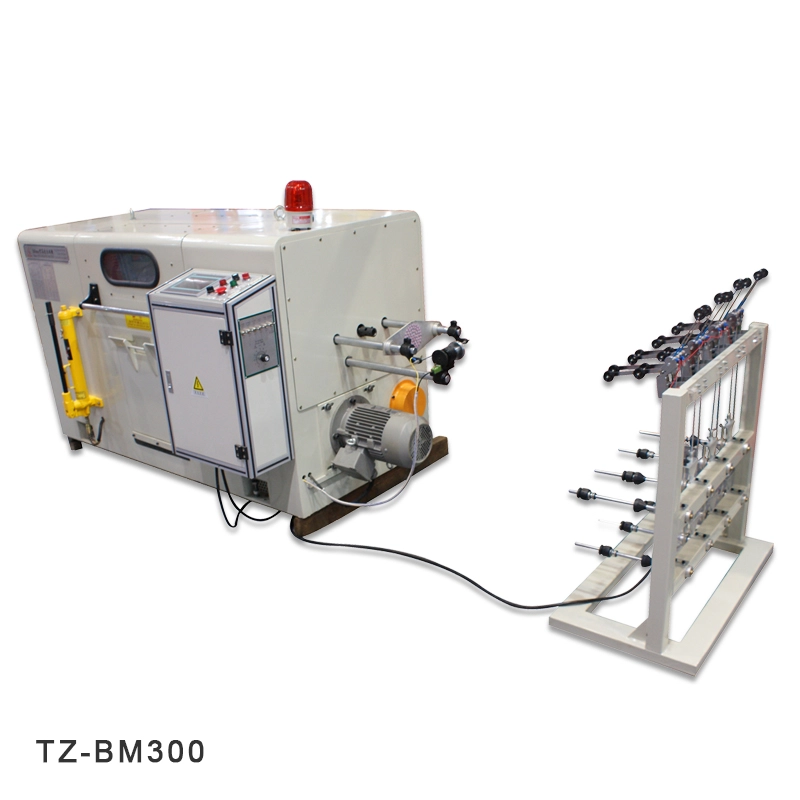

• Multi-End Pay-Off System: Positioned externally, these static or dynamic pay-off stands hold spools of single-end wires under uniform back-tension to prevent conductor crossover before entry.

• Closing Die Assembly: Tungsten carbide or ceramic dies consolidate incoming loose filaments into a round, concentric bundle prior to mechanical twisting.

• Flyer Bow: The primary rotational component, typically manufactured from carbon fiber reinforced composites or aerospace-grade alloys. It guides the wire group along an orbital loop around the cradle, fitted with wear-resistant ceramic or titanium-coated eyelets to minimize friction.

• Floating Cradle: An internal assembly mounted on bearings along the central machine axis. Weighted counterbalances or magnetic clutches hold it stationary in the horizontal plane while the surrounding flyer bow rotates at high RPM.

• Dual Capstan (Haul-off Wheel): Driven independently or geared to the main spindle, the capstan pulls the bunched wire at a precise linear speed, dictating the final lay length.

• Traverse Guide & Take-Up Reel: Located inside the cradle, a traversing mechanism shifts back and forth to wind the finished conductor evenly across the width of the take-up spool.

The 4-Phase Wire Bunching Process

The physical transformation of individual copper strands into a finished conductor bundle follows a continuous four-phase path.

Phase 1: Conductor Alignment and Consolidation

Parallel wires leave the external pay-off stands and enter the distributor plate. The plate isolates each wire to prevent tangling before entering the closing die. In the die throat, the filaments compress into a round geometry without applying rotational shear.

Phase 2: Entrance and the First Twist

The consolidated bundle enters the front spindle nose along the machine center line. As the wire passes around the entrance deflector pulley and transfers onto the rotating flyer bow, it is forced to rotate with the bow's angular velocity. This transitional step introduces the first complete 360-degree twist into the conductor bundle.

Phase 3: The High-Speed Arch Transit

The wire travels along the perimeter arc of the carbon-fiber bow. In this phase, the wire is exposed to centrifugal forces. Smooth, highly polished guide eyelets prevent skinning or scraping of bare or tinned conductor coatings. No additional twist is added while the wire travels along the bow's arc.

Phase 4: Exit, the Second Twist, and Spooling

The wire leaves the exit end of the flyer bow and loops around the cradle's nose pulley, returning to the machine's static center line. Passing from the rotating bow onto this non-rotating exit wheel imparts the second 360-degree twist in the same rotational direction. The twice-twisted wire immediately enters the capstan and traverse unit, where it spools smoothly onto the internal take-up reel.

Implementing controlled wire paths through precision double twist bunching equipment minimizes friction damage, preventing bare copper surface fatigue and diameter irregularities.

Critical Engineering Factors: Tension, RPM, and Pitch

High production speeds amplify mechanical variables. Minor variances in tension or thermal expansion can result in outer-strand looping, diameter variations, or strand rupture.

1. Dynamic Tension Control

As the internal take-up reel fills, its effective winding radius increases while the rotational speed of the reel motor must continuously decrease to maintain a constant linear take-up rate.

$$\text{Linear Velocity } (v) = \omega \cdot r$$

Where $\omega$ is angular velocity and $r$ is the increasing spool radius. If winding tension remains constant while radius changes, tension at the wire will drift:

• Tension too high: Wire stretches, causing diameter reduction, work hardening, or snapping of fine conductor ends.

• Tension too low: Results in loose layers, soft packages, wire entanglement during high-speed payoff downstream, and birdcaging.

Modern machines employ digital feedback loops, magnetic particle brakes, or dancer-arm potentiometers inside the cradle to ensure constant grams-per-conductor tension from bare spool to full spool.

2. Lay Length (Pitch) Formula and Synchronization

The lay length ($L$)—the linear advance corresponding to one complete 360-degree turn of the elements—is calculated based on haul-off linear speed ($V$, in meters per minute) and bow rotational velocity ($N$, in revolutions per minute):

$$L = \frac{V}{2 \times N}$$

Because two twists occur per bow revolution, the denominator uses $2 \times N$. Maintaining a fixed lay length requires synchronization between the main spindle motor driving the bow and the capstan motor driving linear pull. A electronic shaft system (servo synchronization) prevents pitch drift during acceleration and braking ramps.

Equipment Selection: Double Twist vs. Alternative Machinery

Selecting an appropriate bunching or stranding platform requires matching the conductor's structural specification with the kinematic limitations of each machine type.

• Use Double Twist Bunchers when: Manufacturing flexible electrical cords, automotive wiring harnesses, grounding wires, or multi-strand copper conductors where high yield and consistent pitch are the primary requirements.

• Use Single Twist or Rigid Stranders when: Twisting pre-insulated cores where individual conductors must not experience internal torsional stresses (preventing insulation wrinkle or tape rupture), or when assembling multi-pair industrial data cables.

Industrial Applications and Conductor Compatibility

High-speed bunching systems process non-ferrous conductors across multiple industries:

• Automotive Wire Harnesses: Bunching ultra-fine copper strands (e.g., 0.05 mm to 0.20 mm filament diameter) into flexible SAE or ISO standard conductors.

• Building Wire and Flexible Cords: Forming Class 5 and Class 6 flexible conductors for appliance cables, power tool cords, and portable electronics.

• Battery and EV Charging Cables: Bundling hundreds of fine conductors into heavy gauge, high-flexibility cables.

• Material Compatibility: Effectively processes bare copper, tin-plated copper, silver-plated copper, aluminum-alloy wires, and copper-clad aluminum (CCA).

Technical Troubleshooting & Operational Practices

Machine reliability at high rotational speeds requires proactive monitoring of wear components and mechanical alignment.

Common Production Problems and Mechanical Causes

                     +---------------------------------------+
                     | COMMON DOUBLE TWIST OPERATING DEFECTS |
                     +---------------------------------------+
                                         |
         +-------------------------------+-------------------------------+
         |                               |                               |
         v                               v                               v
  [Wire Breakage]                 [Loose Strands /]               [Pitch Variation]
                                   [Birdcaging]
         |                               |                               |
         +--> Grooved ceramic rings      +--> Uneven payoff back-tension +--> Capstan belt slip
         +--> Excessive brake tension    +--> Worn closing die diameter  +--> Encoder sync lag
         +--> Unbalanced flyer bow       +--> Internal cradle tilt       +--> Rapid ramp changes

• Strand Breakage Inside Bow: Inspect ceramic guides along the bow. High-friction wire generates abrasive dust that cuts micro-grooves into eyelets, snapping individual wires during high-speed passage.

• Conductor "Birdcaging" or Uneven Surface: Usually caused by inconsistent back-tension at the external payoff stand. If one individual wire enters the closing die slacker than adjacent wires, it buckles outward during the double twist cycles.

• Lay Pitch Irregularity: Check haul-off capstan belt tension and line speed encoders. Slippage between the capstan wheel and the pulling cable causes unpredictable variations in lay length.

Machine Specification Checklist for Buyers

Before issuing a request for quotation to a wire bunching machinery manufacturer, plant engineering teams should verify and document the following technical criteria:

1. Inlet Filament Parameters: Minimum and maximum single-wire diameter (mm / AWG), tensile strength, and conductor alloy.

2. Finished Strand Cross-Section: Target cross-sectional area range (e.g., $0.08\text{ mm}^2$ to $6.0\text{ mm}^2$).

3. Bobbin / Spool Standards: Required take-up spool flange diameter, barrel diameter, overall width, bore size, and maximum loaded weight.

4. Drive Architecture: Preference for dual-inverter drive, full AC servo synchronization, or mechanical gear transmission for lay setting.

5. Safety and Sound Proofing: Decibel isolation requirements (soundproof cabin ratings typically below 80–82 dBA at max RPM) and automated dynamic safety interlocks on access covers.

Key Takeaways

• Doubled Production Rate: High-speed double twist bunching machines apply two twists per bow rotation, significantly increasing production output compared to single-twist options.

• Kinematic Division: Twists are introduced at two distinct geometric transitions—entry into the flyer bow and exit into the stationary cradle.

• Critical Variable Management: Finished cable quality requires closed-loop control of linear capstan velocity and active reel tension adjustment as bobbin weight increases.

• Target Application Scope: Ideal for producing high-flexibility, non-insulated conductor bundles (Class 2, 5, and 6) across automotive, electronic, and power transmission categories.

FAQ

How is the lay length adjusted on a modern double twist bunching machine?

Lay length is adjusted by altering the speed ratio between the rotating flyer bow and the haul-off capstan. On traditional machines, this requires swapping change gears within the drive gearbox. On modern computer-controlled (PLC) bunchers, the operator inputs the target lay pitch into the human-machine interface (HMI), and synchronized servo motors automatically adapt the capstan's linear pull relative to current spindle RPM.

What is the typical operating speed of a high-speed double twist buncher?

Operating speeds vary based on spool size and material diameter. Smaller bunchers handling 300 mm to 500 mm bobbins can achieve rotational speeds between 2,000 and 3,000 RPM (equating to 4,000 to 6,000 twists per minute). Larger machines utilizing 630 mm to 800 mm bobbins run at lower rotational speeds to maintain safe peripheral speeds and aerodynamic balance.

Why does the internal cradle stay stationary while the outer bow rotates?

The cradle is mounted on precision bearings located on the main rotational axis of the machine and is weighted so that its center of gravity falls well below the rotational centerline. Gravity, combined with auxiliary magnetic or mechanical counter-torque devices, holds the cradle stationary in the horizontal plane while the surrounding flyer bow rotates freely around it.

Can a double twist bunching machine be used for insulated core cabling?

Yes, but only for select products. Because the double-twist process introduces torsional twisting into the components, standard double-twist bunchers can cause wrinkles or tension stress on delicate shielding foils or thick insulation layers. They are widely used for pairing small telecom/data cables, but large multi-core insulated power cables generally require single-twist or non-twist planetary cabling equipment.
