How To Source Wire And Cable Making Machinery From China: A Buyer’s Inspection Checklist

Views: 2     Author: Site Editor     Publish Time: 2026-09-15      Origin: Site

Sourcing wire and cable making machinery from China offers substantial capital expenditure advantages, but long-distance procurement carries distinct technical risks. Equipment that passes a basic idle run in a workshop can still suffer from excessive vibration, erratic tension, or premature bearing failure when placed under continuous factory operation.

Evaluating Chinese machine builders requires verifying internal fabrication standards, conducting a strict Factory Acceptance Test (FAT), and inspecting high-stress subsystems under load. This guide details how procurement heads, plant managers, and quality engineers can audit prospective manufacturers, systematically inspect equipment before balance payments are made, and verify high-precision units such as a high-speed bunching machine.

1. Strategic Supplier Vetting: Separating Original Manufacturers from Assemblers

The Chinese machinery ecosystem contains two primary types of suppliers: integrated original equipment manufacturers (OEMs) and trading assemblers.

Assemblers purchase laser-cut plates, structural steel, gearboxes, and bow assemblies from third-party workshops, weld the housing in a rented facility, and wire basic components. Because they lack internal fabrication control, dimensional tolerances across critical points—such as bearing seat concentricity and shaft alignment—vary significantly.

An original manufacturer maintains direct ownership of core metalworking and validation equipment. Before booking a flight or committing to a technical agreement, verify whether the builder houses the following internal capabilities:

  • In-House CNC Gantry Milling: Main frames and rotor housings must be machined on large-scale gantry mills in a single setup. Re-clamping welded frames across disparate machining centers introduces cumulative geometric errors that cause shaft misalignment.

  • Vibration Relief and Annealing Facilities: Heavy welded frames retain high internal stress. Without proper thermal annealing or vibrational stress relief prior to finish-machining, equipment beds can distort over months of operational temperature cycles.

  • Dynamic Balancing Benches: Any rotating component operating above 1,000 RPM must undergo dynamic balance testing. Qualified builders possess dedicated balancing stations and issue localized balance reports for rotors, flyer bows, and capstans.

  • Traceable Component Sourcing: Legitimate builders provide component origin certificates for linear guides, bearings, and switchgear.

Evaluation Metric

Integrated Machine Builder (OEM)

Small Trading Assembler

Machining Infrastructure

In-house 3-axis/5-axis CNC gantry mills

Outsourced manual milling and lathe work

Frame Stress Relief

Annealing furnace or controlled vibration

Air-cooled as-welded steel

Dynamic Balancing

Documented on-site balancing benches

Outsourced or skipped entirely

Technical Documentation

Tailored electrical schematics and part lists

Generic, copied manuals with missing wiring tags


2. Core Machinery Inspection Checklist: What to Test Before Shipment (FAT)

A comprehensive Factory Acceptance Test (FAT) must evaluate structural construction, power transmission, and electrical safety before the equipment is packed. The following checklist establishes pass/fail baselines for standard wire and cable manufacturing equipment.

Structural and Mechanical Integrity

  • Frame Plate Thickness: Measure the actual wall and baseplate thickness against the engineering drawing using an ultrasonic thickness gauge or vernier calipers. Budget assemblers often substitute specified 20 mm plate steel with thinner 16 mm stock to reduce material costs.

  • Weld Quality and Seams: Welds on load-bearing pillars and motor mounts must be continuous, free of undercut, slag inclusions, or surface porosity. Weld spatter must be ground flush prior to primer application.

  • Shaft Concentricity: Mount a dial indicator on driven shafts and manual rotation couplings to measure radial runout. Excessive runout indicates improper bearing bore alignment or bent shafts.

Electrical and Control Cabinets

  • Component Authenticity: Cross-check part numbers on PLCs, variable frequency drives (VFDs), contactors, and circuit breakers against the technical agreement. Ensure major control brands match specified genuine units rather than localized domestic clones.

  • Cabinet Thermal Layout: Inspect heat dissipation paths. High-capacity drives require dedicated fan-and-filter ventilation or air conditioning. Internal wiring must run inside flame-retardant slotted trunking, isolated from high-voltage motor output lines.

  • Ferrules and Terminal Labeling: Every wire terminal must feature printed, heat-shrink ferrule sleeves matching the master schematic. Hand-written numbers or unlabelled jumpers indicate substandard quality control and complicate field servicing.

  • Safety Interlocks and E-Stops: Test all physical emergency-stop pushbuttons, interlocked enclosure doors, and wire-break detector switches. The control loop must cut drive power and engage mechanical braking systems instantaneously upon tripping.

3. In-Depth Case Study: Crucial Inspection Points for a Bunching Machine

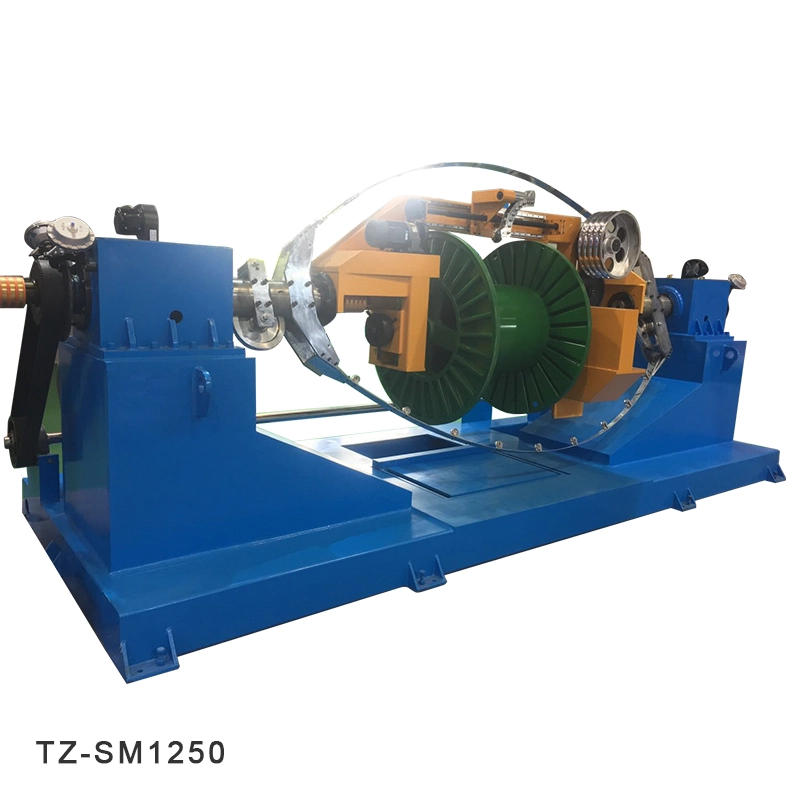

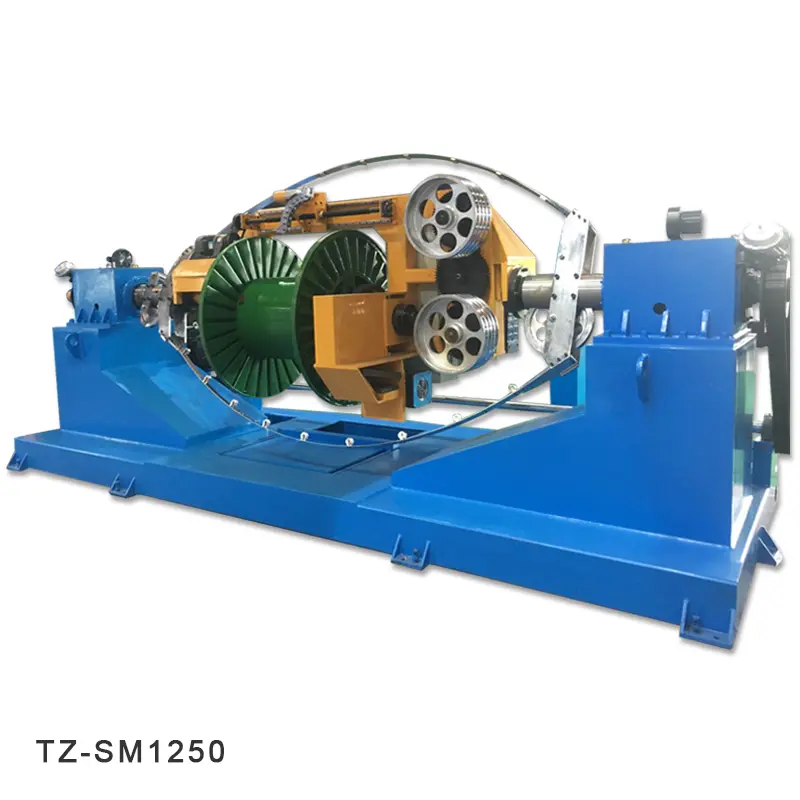

High-speed double-twist bunching machines represent one of the most mechanically demanding assets in a stranding department. Operating at rotational flyer speeds often exceeding 2,000 RPM, minor deviations in balance, wire routing, or tensioning create immediate strand breakage and irregular lay length.

When auditing specialized precision bunching and stranding machines, focus inspection protocols on three engineering subsystems:

Stage / Subsystem

Primary Engineering Focus

Critical Inspection Standard / Metric

Potential Defect / Failure Mode

1. Payoff & Tensioning

Take-up tension consistency across reel build-up

Tension drift < 5% to 8% from full to empty bobbin

Conductor stretching, wire thinning, or loose inner layers

2. Dynamic Flyer Bow

High-speed rotation dynamics & aerodynamics

Dynamic balance grade ISO 1940-1 G2.5 or better

High vibration, ceramic guide wear, and strand breakage

3. Traverse & Take-Up Reel

Spooling uniformity and pitch control accuracy

Smooth flange reversal; pitch tolerance verified against HMI

Shouldering/flange buildup, wire drop-offs, and uneven lay length

1. Flyer Bow Aerodynamics and Dynamic Balancing

The carbon fiber bow rotates at high angular velocity, subjecting the internal assembly to severe centrifugal loads.

  • Dynamic Balance Grade: Inspect the rotor and bow assembly balance report. For high-speed double-twist machinery, the dynamic balance should comply with ISO 1940-1 grade G2.5 or better. Request a live verification run using the manufacturer’s vibration spectrum analyzer.

  • Guide Ring / Ceramic Eyelet Alignment: Examine all wire pass points. Ceramic eyelets must be free of micro-cracks, chips, or rough edges that shave copper conductors. Ceramic guides must be aligned dead-center with the bow's entry and exit trajectories.

2. Take-Up Tension Control Stability

Maintaining consistent tension as the take-up bobbin builds from an empty core to a full reel is critical for preventing wire elongation.

  • Tension Drift Verification: Measure strand tension across the cycle using an offline tensiometer. Hysteresis brakes, magnetic powder clutches, or torque motor drives must automatically compensate for bobbin diameter expansion. Tension drift between an empty bobbin and a full bobbin should generally not exceed 5% to 8%, subject to the specified conductor gauge and process requirements.

  • Braking Response: Trigger an emergency stop while the machine runs at target operating speed. The bow and take-up bobbin must decelerate synchronously. If the take-up reel coasts faster than the flyer, the internal wire slackens, bird-cages, and snarls.

3. Traversing and Lay Length Consistency

  • Traversing Mechanism: Inspect whether the traverse uses an electronic servo drive (such as an independent ballscrew setup) or a mechanical rolling ring traverse (e.g., Uhing type). Check for smooth reversal at the bobbin flanges. Dwell time at the stroke limit must be minimal to prevent wire buildup ("shouldering") or drop-offs at the spool edges.

  • Lay Length Calculation: Run a trial length of multi-strand copper through the machine, cut a one-meter sample, and manually verify the strand pitch against the target recipe set on the Human-Machine Interface (HMI).

4. The 4-Hour On-Site Running Test Protocol

A visual inspection and a short 10-minute dry run do not reveal how machinery behaves under thermal equilibrium. Buyers should insist on an uninterrupted four-hour test run at the supplier's facility prior to signing off on shipment.

Phase & Timeframe

Testing Stage

Key Operational Actions

Target Verification & Acceptance Criteria

Phase 1 (0:00 – 0:30)

Step-Up Idle Baseline

Increment speed (25%, 50%, 75%, 100% rated RPM) without wire

Log baseline noise (< dB limit at 1m) and baseline bearing vibration velocity (RMS mm/s)

Phase 2 (0:30 – 2:00)

Full-Load Conductor Run

Thread production wire; accelerate to target continuous speed

Verify wire path stability; ensure zero wire fluttering or frame rubbing

Phase 3 (2:00 – 4:00)

Thermal Equilibrium Logging

Continuous run; log bearing/motor surface temperatures every 30 mins

Bearing temperature stabilizes (typically < 65°C–70°C); no runaway temperature rise

Phase 4 (At 4:00)

Full-Speed Emergency Braking

Trigger intentional emergency stop directly from maximum operating RPM

Measure deceleration time; inspect brake pads, belts, and chucks for slippage or binding

Phase 1: Step-Up Idle Baseline (0 to 30 Minutes)

  • Ramp machine speed up in 25% increments: 25%, 50%, 75%, and 100% of maximum rated RPM.

  • At each stage, measure baseline noise levels at a distance of one meter using a calibrated decibel meter.

  • Log baseline vibration velocity (RMS mm/s) on the main bearing blocks using a handheld vibration pen.

Phase 2: Full-Load Wire Run (30 to 120 Minutes)

  • Thread the machine with actual production material (e.g., bare copper or aluminum strands according to your operational specification).

  • Accelerate the machine to the contractually agreed continuous production speed.

  • Observe wire path stability: verify that the conductor does not flutter or slap against protective guards or bow housings.

Phase 3: Thermal Equilibrium Logging (120 to 240 Minutes)

  • Monitor bearing housing and motor surface temperatures every 30 minutes using an infrared thermal imaging camera or calibrated contact pyrometer.

  • Acceptance Criterion: Bearing temperatures typically level off after 90 to 120 minutes. Under standard ambient conditions (20°C to 25°C), total operating temperature on main rotor bearings should generally stabilize well below manufacturer limits (typically below 65°C to 70°C, depending on grease formulation and bearing clearance). A continuous upward temperature slope across hour three indicates inadequate lubrication, excessive pre-load, or bore misalignment.

Phase 4: Full-Speed Emergency Braking (At 240 Minutes)

  • Initiate an intentional emergency stop directly from maximum operating speed.

  • Record the stopping time against contractual parameters.

  • Immediately open the enclosure to inspect the condition of transmission belts, pneumatic disc brakes, and flyer anchor hardware for signs of slippage, mechanical binding, or heat generation.

5. Packaging, Anti-Corrosion, and Overseas Shipping Protection

Ocean transit exposes industrial machinery to high relative humidity, airborne salt spray, and extreme thermal cycling inside cargo holds. Improperly packed equipment frequently arrives at destination ports with pitted shafts, corroded control electronics, and distorted structural frames.

Verify that the supplier implements the following protective measures before containers leave the factory floor:

  • Bare Metal Vapor-Corrosion Inhibition (VCI): All ground, polished, and unpainted steel surfaces—including capstan drums, shafts, guide rails, and chucks—must be coated with heavy anti-rust grease or preservative wax and wrapped in VCI film.

  • Vacuum Barrier Bagging for Cabinets: Mainframes containing sensitive electronics and standalone control cabinets must be sealed inside multi-layer aluminum vacuum foil bags with calculated desiccant packs inside. Verify that the bag holds negative pressure before crating.

  • Internal Mechanical Locking: Heavy moving parts, counterweights, and floating cradles must be mechanically locked using rigid transit brackets. Relying solely on drive belts, ballscrews, or disc brakes to hold heavy mechanical assemblies in place during ocean transit risks brinelling the precision bearings.

  • Container Lashing and Dunnage: Machinery bases must be bolted directly to heavy timber skids. Inside the shipping container, equipment must be braced with cross-timbers and secured using certified steel lashing cables tensioned with turnbuckles to floor and wall anchor rings.


Key Takeaways

  • Vet Machining, Not Showrooms: Differentiate true machine builders from trading assemblers by auditing in-house CNC gantry milling, thermal stress-relief capabilities, and balancing equipment.

  • Enforce a Written FAT Protocol: Never rely on verbal assurances or generic inspection reports. Measure plate thickness, verify component serial numbers against technical agreements, and trace terminal wiring before authorizing balance payments.

  • Scrutinize Rotating Assemblies: When sourcing dynamic equipment like a high-speed bunching machine, require documented dynamic balance reports (ISO G2.5) and verify tension drift throughout the entire spool cycle.

  • Demand a 4-Hour Loaded Test: Measure thermal stabilization curves on critical bearing housings and execute full-speed emergency stop sequences under loaded conditions.

  • Lock and Seal for Ocean Freight: Ensure that bare steel is coated with VCI rust inhibitors, electrical cabinets are vacuum-sealed, and mechanical cradles are physically locked to prevent transit shock damage.

FAQ

Can I hire a third-party inspection agency for cable machinery in China?

Yes. International testing, inspection, and certification firms (such as SGS, Bureau Veritas, or TÜV) as well as specialized industrial sourcing agencies have local inspectors in China. Provide the agency with your detailed technical agreement, engineering drawings, and an explicit testing checklist rather than a generic quality audit scope.

What critical spare parts should be included in the initial purchase order?

For high-speed machinery such as bunching and stranding lines, negotiate an operational spare parts kit covering the first two years. This kit should include: one full set of replacement flyer bows, dedicated ceramic or tungsten carbide guide eyelets, a set of transmission belts, main spindle bearing sets, pneumatic brake pads, proximity switches, and a pre-programmed spare PLC controller/HMI unit.

How do Chinese manufacturers handle overseas commissioning and warranty claims?

Standard industry warranty terms usually cover parts for 12 to 14 months from the bill of lading date or 12 months from installation. For commissioning, reputable manufacturers send technical engineers abroad under terms where the buyer covers airfare, local accommodation, and a daily engineering stipend. Confirm whether the machine includes remote diagnostic modules (such as an Ethernet/VPN gateway on the PLC) to facilitate online troubleshooting without on-site visits.
