Wire Breakage in High-Speed Bunchers: 6 Causes & How to Fix Them

Wire breakage in bunching machine operations is primarily caused by localized mechanical friction, dynamic tension spikes, or conductor metallurgical flaws. When a single strand snaps inside a double-twist buncher or tubular strander, the line stops instantly, resulting in lost output, wasted raw conductor, and tedious re-threading cycles. Solving persistent wire snapping requires identifying whether the issue originates at the pay-off stand, along the dynamic path inside the flyer bow, through the sizing dies, or at the take-up traverse.

This guide delivers an actionable diagnostic framework to locate why copper and alloy wires break during stranding, provides precise mechanical and process corrections for the six most common failure points, and details the machine design elements required to maintain tension stability at high operational speeds.

Where Does It Snap? Quick Diagnostic Matrix by Break Location

Inspecting the physical location of the snapped wire narrows down mechanical failure points within minutes. Operators should assess where the loose end rests before clearing the machine.

6 Common Causes of Wire Breakage in Bunching Machines (And How to Fix Them)

1. Uneven or Excessive Pay-off Tension

During multi-wire bunching, individual strands must enter the gathering plate under identical, balanced tension. If one bobbin on the multi-end pay-off stand has a worn friction pad, stiff bearing, or incorrect spring setting, that single strand carries a disproportionate share of the axial load.

• The Mechanism: When the buncher accelerates, the over-tensioned strand reaches its yield point, stretches, necks down, and snaps before entering the compaction die.

• The Fix: Conduct dynamic tension testing using a calibrated handheld tensiometer across all pay-off positions during line operation. Ensure friction bands or active brake systems provide steady resistance from full spool to empty core. Replace mechanical friction bands with closed-loop pneumatic or magnetic particle braking systems if tension drift occurs across a shift.

2. Grooved or Damaged Wire Guides and Pulleys

Hard-drawn and annealed copper wires are abrasive when traveling at wire speeds exceeding hundreds of meters per minute. Over time, continuous contact cuts micro-grooves into ceramic eyelets, alumina guide rings, and nickel-plated guide wheels.

• The Mechanism: These razor-sharp micro-grooves catch fine wire filaments, causing localized surface scoring and stress concentrations. The friction rapidly generates heat, softening fine copper strands until the tensile load snaps them.

• The Fix: Implement an inspection routine using a cotton swab or a fingernail to detect micro-grooves along all ceramic eyelets, distributor plates, and deflection rollers. Any guide exhibiting surface scoring or chipping must be replaced immediately. Utilize high-purity zirconia ceramic or polished tungsten carbide guides for high-speed lines handling abrasive alloys.

3. Bow Guide Trajectory and Aerodynamic Resistance

In double-twist bunching machines, the wire bundle travels through an aerodynamic bow rotating at high rotational speeds around the take-up cradle. Centrifugal force forces the wire outward against the bow guide channel.

• The Mechanism: If the bow guide channel is worn, or if aerodynamic turbulence causes the bow to flutter, the wire experiences rapid cyclical bending fatigue and surface friction. Dust accumulation inside enclosed bow guides can also create intermittent friction points that result in sudden wire snapping.

• The Fix: Regularly clean out copper shavings and lubricant residue from the flyer bow guide channel. Verify bow balance dynamically using vibration analysis. When processing ultra-fine strands at high speed, modern reliable bunching and stranding machines utilize precision-engineered, low-aerodynamic-drag carbon fiber bows equipped with smooth, low-friction guide strips to minimize rotational turbulence and conductor stress.

4. Sizing Die Blockage, Misalignment, or Incorrect Ratio

The closing die bundles individual conductors into their final geometric cross-section. If the reduction angle is too steep or the bore diameter does not match the lay configuration, the die functions as an unintended wire-drawing die.

• The Mechanism: The bundle gets squeezed excessively, generating friction and heat. Stripped copper accumulates at the die entrance, forming a compact collar of shavings that periodically chokes the wire pass, resulting in instantaneous tensile failure.

• The Fix: Ensure the sizing die diameter adheres to the theoretical bundle formula:

  $$D = d \times \sqrt{N} \times K$$

  (Where $D$ is the die diameter, $d$ is individual strand diameter, $N$ is the number of conductors, and $K$ is the compaction coefficient, typically 1.02 to 1.05 depending on lay tightness).

  Verify die axial alignment using a straight-line laser pointer from the lay plate through the die holder to the main capstan to eliminate entry angle friction.

5. Raw Conductor Defects and Annealing Inconsistency

Not all breaks stem from machine mechanics. Inconsistent incoming wire quality accounts for a substantial percentage of bunching downtime.

• The Mechanism: If the upstream continuous annealer produces wire with inconsistent elongation percentages, or if drawing rod contains copper oxide inclusions, slivers, or poor cold-weld joints, the wire cannot withstand standard rotational twisting stresses.

• The Fix: Test elongation and tensile strength across all incoming wire spools before loading them onto the buncher pay-off. For standard bare copper, maintain elongation consistency within specified batch tolerances (typically >18–25% for fine annealed copper, subject to raw material specs). Reject supply spools displaying surface pitting, oxidation, or brittle welds.

6. Take-up Traversing and Tension Accumulation Issues

As the internal take-up spool inside the buncher cradle fills, the effective winding radius increases.

• The Mechanism: If the machine's tension control system lacks winding diameter compensation, the linear winding tension spikes as the spool fills, snapping the finished bunch. Furthermore, if the traverse pitch is incorrectly calibrated, strands can drop into gaps at the spool flanges, wedging tightly between lower layers and snapping during rotation.

• The Fix: Calibrate the traverse guide pitch to match the bundled strand diameter precisely plus a nominal clearance (typically 1.05 to 1.1 times the stranded diameter). Ensure the take-up drive automatically regulates torque or incorporates a dancer arm sensor to maintain constant linear tension from bare bobbin core to full reel capacity.

Preventive Maintenance Checklist: Stopping Snaps Before They Happen

Adhering to a standardized maintenance routine isolates wear components before they compromise processing stability:

• Pre-Shift Checks (Daily)

  • Wipe down distributor plates and closing die housings to clear loose copper dust.

  • Inspect the first entry guide ceramic and the final exit eyelet for physical chips.

  • Verify pay-off bobbin tension manually to ensure smooth, unhindered rotation.

• Weekly Service Routine

  • Run a cotton swab across all bow guide channels and ceramic pulleys to detect hairline grooves.

  • Inspect the take-up drive belts and traverse guide rails for mechanical play or slip.

  • Check the closing die for circular symmetry and clean out internal residue.

• Monthly Diagnostic Inspection

  • Check main shaft bearing play and rotor alignment using dial indicators.

  • Calibrate electronic tension load cells or dancer position sensors across pay-off and take-up zones.

  • Inspect dynamic brake pads for mechanical wear and test emergency stop braking balance to prevent inertia-driven wire breaks.

When Process Adjustments Aren't Enough: Machine Features That Minimize Breakage

When operational adjustments fail to eliminate high-speed wire snapping, the root limitation typically lies in legacy machine design. Older mechanical bunchers struggle with centrifugal frame vibration, imprecise friction brakes, and rigid steel bows that introduce substantial windage resistance.

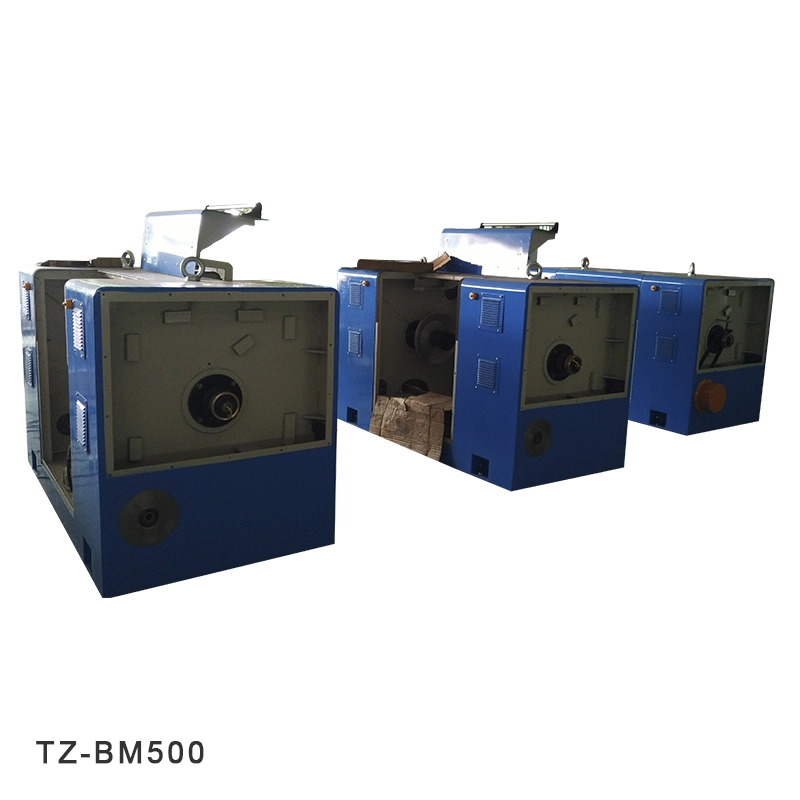

Modern manufacturing operations resolve wire breakage by upgrading to advanced high-speed bunching machine systems equipped with targeted engineering safeguards:

• Aerodynamic Carbon Fiber Bows: Lightweight, low-drag carbon fiber bows reduce rotational inertia and minimize aerodynamic wind resistance, eliminating high-speed flutter and preventing localized conductor fatigue.

• Dynamic Closed-Loop Tension Compensation: Advanced machines incorporate active dancer-arm feedback or load-cell sensors that automatically adjust take-up reel torque in real time as spool mass and diameter increase.

• Synchronized Electronic Traversing: Servo-driven traverse units eliminate mechanical gear backlash, guaranteeing precision lay placement at bobbin edges to prevent layer jamming and edge snapping.

• Precision Ceramic Wire Routing: Fully lined ceramic or tungsten carbide guides ensure that wire bundles do not encounter high-friction metal edges along the internal rotation path.

Key Takeaways

• Check the Break Location First: Snaps before the closing die point to pay-off brake binding, breaks at the bow point to grooved ceramics or rotor vibration, and take-up breaks indicate traverse jamming or uncompensated winding tension.

• Guard Against Micro-Grooves: Ceramic eyelets and bow guides must be inspected routinely; invisible micro-grooves act like blades against high-speed fine copper wires.

• Maintain Elongation Uniformity: Ensure all incoming raw wire ends share consistent elongation and tensile properties to prevent single-strand overloading.

• Ensure Sizing Accuracy: Size stranding dies according to bundle diameter formulas plus appropriate compaction clearance to prevent shavings from clogging the entry throat.

• Rely on Modern Tension Controls: Upgrading legacy equipment to machines featuring carbon fiber bows, dynamic tension compensation, and servo traversing prevents process-induced breakage at high RPMs.

FAQ

How can I determine if a wire snap is caused by machine settings or raw copper defects?

Inspect the break tip under a magnifier. If the break displays a classic "cup and cone" necking shape without external surface scratches, the wire experienced simple tensile overload—often caused by tension spikes or brittle wire with poor elongation. If the wire exhibits longitudinal scratches, flat spots, or shaved fragments before the break, it indicates physical mechanical friction from a grooved guide, clogged die, or misaligned pulley.

What is the recommended sizing die clearance to prevent wire breakage during bunching?

Depending on the material and strand count, the compaction die inner diameter should generally be sized approximately 2% to 5% larger than the theoretical uncompacted bundle diameter for flexible standard cables. If the die is too tight, it draws down the outer conductors; if too loose, the strands twist unevenly, bunching up and snapping at the machine entrance.

How often should flyer bow guide strips and ceramic eyelets be replaced?

Under continuous 24/7 production conditions running bare copper, inspect ceramic eyelets monthly. Replace any guide immediately upon detecting surface ridges. Bow guide strips or internal guide tubes typically require scheduled replacement every 6 to 12 months, depending on operational speed, wire material abrasiveness, and production volume.
