Selecting the correct wire bunching machine comes down to matching your targeted wire gauges with the appropriate take-up spool diameter. In multi-wire stranding and bunching, spool size (ranging from 300 mm bobbins to 1250 mm industrial reels) dictates your line tension limits, achievable rotational speeds (RPM), and continuous run lengths. Choosing an oversized spool for ultra-fine wires causes excessive elongation and wire breakage due to excessive inertia, while running heavy cross-sections on undersized spools results in low loading volume, frequent line shutdowns, and excessive join points.
This guide outlines the mechanical relationship between wire gauge and spool dimensions, delivers an engineering selection framework across the 300 mm to 1250 mm spectrum, and explores downstream handling to ensure your upstream stranding flows smoothly into post-processing and packaging lines.
A bunching machine functions by twisting bare or tinned conductor strands into a consolidated geometric lay while winding the finished bundle onto an internal take-up spool. In double-twist designs, every rotor revolution imparts two twists to the wire before it winds onto the bobbin. Because the spool sits inside the rotating cradle, its outer flange diameter directly governs three interdependent physical variables:
Inertia and Rotational Speed: As spool diameter increases, the rotational mass and aerodynamic resistance inside the cradle escalate exponentially. A compact 300 mm or 400 mm bunching system operates at significantly higher rotational speeds than a 1000 mm or 1250 mm unit.
Tension Sensitivity vs. Wire Tensile Strength: Fine conductors (such as AWG 36 to AWG 40) possess limited tensile strength. Large spools present substantial rotational inertia during startup and braking; this inertia can exceed the yield point of fine copper filaments, stretching or snapping the conductors. Conversely, heavy gauge wires require elevated winding tension to form uniform, tightly packed layers across the traverse barrel.
Bend Radius Constraints: Passing thick multi-core conductors around small guide pulleys and winding them onto small-diameter spool barrels induces mechanical work hardening and surface scuffing. Thick conductors demand larger barrel and flange diameters to maintain structural integrity.
The following reference matrix matches standard spool flange diameters with their typical production wire gauge ranges and primary industrial applications.
Spool Flange Diameter (mm) | Typical Wire Gauge Range | Typical Finished Cable Products | Engineering Characteristics |
300 mm – 400 mm | AWG 30 to AWG 40 (0.05 mm² to 0.25 mm²) | Micro-conductors, medical leads, ultra-fine electronic wire, sensor leads | Ultra-high rotational speeds, ultra-sensitive wire tension control, light inertia |
500 mm – 630 mm | AWG 10 to AWG 28 (0.5 mm² to 6.0 mm²) | Automotive low-voltage wire, building wire (THHN/THWN), appliance cords | High-versatility operational window, balanced capacity, primary workhorse range |
800 mm – 1000 mm | AWG 2 to AWG 14 (2.5 mm² to 35 mm²) | Industrial control cables, grounding wire, marine power distribution | Heavy take-up capacity, structural payload stability, hydraulic reel loading |
1250 mm | AWG 4/0 to AWG 4 (16 mm² to 95+ mm²) | Heavy power cable cores, overhead utility conductors, flexible welding cables | Maximum continuous length per reel, high-torque winding, low machine RPM |
Note: Specific rotational speed boundaries and loading capacities vary depending on the machine drive model, wire tensile properties, and spool manufacturer standards.
Equipped with lightweight, precision-balanced cradles, 300 mm and 400 mm double-twist bunchers are built for fine wire processing. In this range, the primary objective is maximizing rotational speed without introducing tension spikes that cause diameter variation (necking) or strand breakage.
Target Materials: Bare copper, silver-plated copper, tinned copper micro-wires, and ultra-fine alloy wires.
Primary Products: High-frequency data cables, headphone wiring, flexible sensor lines, and aerospace instrumentation leads.
Operational Profile: Because individual strand diameters can measure below 0.08 mm, the machine requires precision wire routing, low-friction ceramic or diamond eyelets, and active magnetic powder or servo-driven tension adjustment. The payload weight remains low, allowing high cycles per hour.
The 500 mm to 630 mm range constitutes the industry standard configuration in consumer cable and automotive harness factories. Machines in this segment balance line speeds with substantial spool holding capacity, reducing the downtime associated with frequent bobbin changeovers.
Target Materials: Annealed copper (Class 2 and Class 5 flexible stranded conductors) and aluminum conductors.
Primary Products: Building wire cores (1.5 mm², 2.5 mm², 4.0 mm²), automotive primary wiring, and power cord conductors.
Operational Profile: A 630 mm machine accommodates a broad range of production cross-sections. Wire elongation control remains predictable across varying winding diameters, making this format the optimal baseline investment for plants requiring high product variation on short production notices.
When processing larger cross-sections, continuous take-up length becomes the primary performance metric. Small spools fill too rapidly on large gauge wires, forcing frequent shutdowns to weld or crimp wire ends. Spool diameters from 800 mm to 1250 mm provide the physical barrel volume necessary to store long, continuous runs of thick conductors.
Target Materials: Multi-strand compact copper, aluminum alloy conductors, and steel-reinforced cores.
Primary Products: Battery cables, low-voltage power distribution cables, mining cables, and heavy earthing wires.
Operational Profile: Due to the physical weight of full 1000 mm and 1250 mm reels, these systems incorporate motorized or hydraulic loading and unloading carriages. Rotational speeds run lower to respect kinetic energy limits, and wire-laying drives rely on programmatic traverse pitch controllers to maintain flat layers without bunching at the flange edges.
Traverse Width and Barrel Geometry: Flange diameter determines machine clearance, but barrel diameter and internal traverse width dictate true volumetric capacity. A wide barrel prevents extreme bending angles on stiff conductors but reduces total winding depth; a narrow barrel maximizes storage but sharpens bend angles near the core.
Material Yield Strength: Bare copper, hard aluminum alloy, and tinned conductors display different elongations under identical mechanical pull. Ensure the bunching machine’s braking profile is configured to decelerate without overshooting reel momentum during emergency stops.
Bobbin Loading Systems: Running 800 mm to 1250 mm spools introduces worker safety and turnaround bottlenecks if manual hoisting is used. Specifying machines with built-in pneumatic or hydraulic floor lifts reduces non-operational transition periods.
Strand Compaction and Lay Length Stability: Larger wire constructions frequently require compaction dies or pre-twisting assemblies ahead of the entry bow. Verify that the entry geometry allows adequate clearance for the target cross-sectional bundle prior to entering the cradle.
A wire bunching machine delivers a semi-finished product: continuous stranded conductor wound on an industrial process spool. To transition this output into consumer-ready building wire, automotive leads, or packaged industrial coils, facilities must evaluate their post-bunching workflow.
Stage | Process Step | Equipment / Machinery | Operational Role & Handover |
Stage 1: Raw Material Infeed | Conductor Preparation | Wire Drawing & Multi-Wire Pay-Off | Supplies single bare or tinned conductor strands under synchronized entry tension. |
Stage 2: Core Stranding | Geometric Wire Bunching | Wire Bunching Machine (300mm–1250mm Spool) | Consolidates individual filaments into uniform stranded conductors wound onto process bobbins. |
Stage 3: Insulation & Jacketing | Polymer Application | Continuous Extrusion Line | Unwinds the stranded core from process spools to apply insulation and protective jacketing compounds. |
Stage 4: Finished Packaging | Coiling & Distribution Packaging | Converts extruded cable lengths into standardized, film-wrapped, or boxed coils ready for market distribution. |

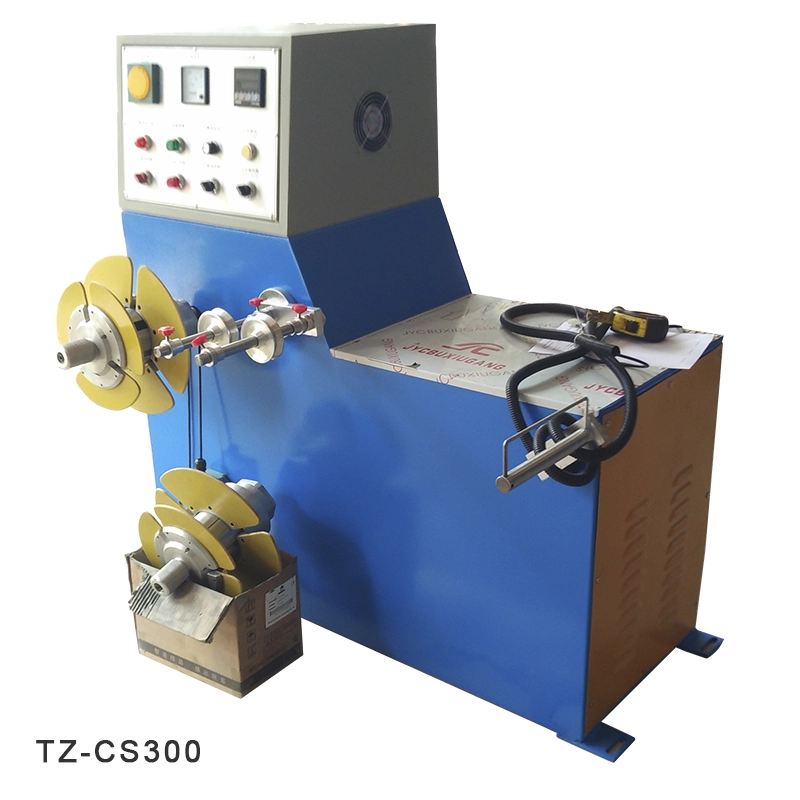

Directly shipping cables on heavy process spools is cost-prohibitive and impractical for electrical contractors. After the stranded core passes through the downstream extrusion line for insulation, integrating custom wire and cable coiling machines enables manufacturers to convert large-diameter pay-off lengths into neat, film-wrapped, or boxed coils ready for end-use distribution. Synchronizing the output capacity of your bunchers with automated coiling systems eliminates floor storage clutter and prevents packaging bottlenecks from slowing down high-speed twisting lines.
To select the right bunching machine spool size for your plant:
Calculate Maximum and Minimum Conductor Area: Audit the complete cross-sectional range (in mm² or AWG) you intend to manufacture on a single line. If your range covers both 0.2 mm² sensor wires and 16 mm² power leads, plan for two distinct bunching frames (such as a 400 mm and a 630 mm or 800 mm machine) rather than compromising on a single oversized unit.
Review Client Reel Length Demands: Align spool capacity with your downstream insulation line length requirements to prevent unnecessary mid-run splice welds.
Plan Total Line Integration: Connect intermediate bunching capacities with your extrusion lines and post-process coiling operations to maintain uninterrupted factory throughput.
300 mm to 400 mm Spools: Built for fine to ultra-fine wires (AWG 30–40); prioritize maximum rotational speeds, minimum inertia, and low-tension sensitivity.
500 mm to 630 mm Spools: Standard factory workhorses handling general building and automotive wire (AWG 10–28); offer the best balance between line speed and batch flexibility.
800 mm to 1250 mm Spools: Dedicated to heavy power conductors (AWG 4 to 4/0+); prioritize continuous storage capacity, high drive torque, and integrated mechanical loading.
Physics Governs Selection: Using a spool that is too large causes wire stretch or snapping on fine wires; using a spool that is too small leads to low loading volume and frequent line stoppages.
Downstream Alignment: Upstream bunching efficiency must pair with subsequent insulation and automated coiling equipment to avoid floor bottlenecks.
While technically capable of closing its cradle around adapted smaller spools in some setups, running ultra-fine wires (such as AWG 34 or smaller) on a 630 mm bunching platform is generally not recommended. The higher rotating mass, aerodynamic drag, and friction of the larger cradle make precise, low-gram tension control difficult to maintain, which often causes wire elongation or strand breaks.
In a double-twist buncher, the take-up spool rests inside a rotating cradle, and the wire receives two twists for each cycle of the external bow before winding onto the spool. In a single-twist machine, the spool rotates along both its winding axis and its twisting axis, applying only one twist per revolution. Single-twist units rotate slower but exert minimal torsional strain, making them suitable for delicate shielded cables or multi-conductor assembly.
Because packing efficiency decreases with larger outer wire diameters, cable volume on a spool does not scale linearly. Smaller gauges pack closely, allowing long continuous lengths. As the conductor diameter increases, the fill factor decreases, and the spool reaches its weight and dimensional limits much faster, requiring larger flange diameters (800 mm to 1250 mm) to maintain practical production runs.
