Wire Coiling Tension Control: Protecting Fragile Conductors & Optical Fibers

Precise tension stability determines whether fragile conductors and optical fibers survive the winding process intact or suffer hidden structural failures. In high-speed packaging lines, a conventional coiling machine often subjects thin materials to abrupt mechanical strain during reel speed transitions. Achieving reliable winding requires dynamic, closed-loop mechanical and electrical compensation that prevents material elongation and micro-bending attenuation.

Selecting the appropriate tension architecture requires evaluating conductor yield strength, optical bend limits, spool geometry, and traverse synchronization. This guide examines how dynamic equilibrium protects delicate wire structures, compares primary control architectures, and outlines the technical criteria required when evaluating a machine configuration for sensitive lines.

The Hidden Cost of Tension Instability in Sensitive Wire & Fiber Coiling

Tension instability during winding creates micro-defects that often bypass inline visual checks, only to fail quality control during electrical continuity or optical attenuation testing. When winding fragile metal conductors—such as ultra-fine copper, bonding wires, enameled magnet wire, or specialized micro-alloys—transient tension spikes exceed the yield point of the metal. Once a small cross-section experiences tensile yielding, local necking occurs. This localized reduction in cross-sectional area increases conductor resistance, creates hot spots under current load, and degrades flex-life performance.

For optical fibers, tension spikes and non-uniform layer compression lead to severe transmission losses. When an optical fiber is coiled under excessive or uneven pressure, it suffers from micro-bending—microscopic axial displacements along the glass core-cladding boundary. These irregularities cause light to scatter out of the fiber core, driving up decibel attenuation. In severe instances involving tight coiling radii or poorly dampened stop-start cycles, localized tensile stress induces brittle fractures in silica glass or damages protective primary acrylate coatings.

Uncontrolled deceleration and startup cycles represent the primary operational source of these defects. As the coiling head accelerates, rotational inertia demands instantaneous torque adjustment. If the tension system reacts too slowly, the wire experiences an initial violent tug, followed by over-slackening when the machine settles.

Anatomy of Constant Tension: How Advanced Coiling Systems Maintain Dynamic Equilibrium

Maintaining constant line tension across an entire coil requires continuous recalibration of rotational speed and output torque as the coil diameter expands. As layers accumulate on a take-up bobbin, the effective package diameter increases from the bare core ($D_{\text{core}}$) to the outer flange ($D_{\text{flange}}$).

To preserve a consistent linear wire velocity ($v$) and constant tensile force ($F$), the coiling spindle's rotational angular speed ($\omega$) must gradually decrease, while motor output shaft torque ($\tau$) must scale upward in direct proportion to the instantaneous radius ($r$):

$$\tau = F \times r$$

$$v = \omega \times r$$

Coiling Spindle Control Dynamics:
Empty Core (Small Radius)  ──>  High Rotational Speed (ω)  +  Low Motor Torque (τ)
Full Reel  (Large Radius)  ──>  Low Rotational Speed (ω)   +  High Motor Torque (τ)

Advanced winding machinery maintains this dynamic equilibrium through three interconnected mechanical and electrical stages:

1. Low-Inertia Dancer Assemblies: An ultra-lightweight floating dancer arm balanced by precision pneumatic regulators or magnetic counterweights acts as an immediate physical buffer. It stores or releases a continuous loop of wire during instantaneous line-speed fluctuations, compensating for reel eccentricity.

2. High-Speed Sensor Feedback: Non-contact angular encoders on the dancer pivot, or inline load cells on idler wheels, continuously monitor deviation from the targeted tension setpoint. This positional signal feeds directly into high-speed field-programmable controllers or dedicated servo drives.

3. Responsive Spindle Torque Decoupling: Variable-frequency drives or dynamic servo systems run diameter-calculation algorithms to continuously adapt the torque-to-speed ratio in milliseconds, absorbing line disturbances before tension spikes transfer to the wire.

4. Optimized Wire Path Topography: The physical guiding line utilizes high-purity ceramic guide eyelets, hard-anodized aluminum rollers, or polished tungsten carbide surfaces. Minimizing frictional resistance and maintaining generous bend radii along the wire path ensures that external drag does not introduce secondary tension errors.

Tension Control Architecture: Dancer Arm vs. Load Cell vs. Open-Loop Torque

Selecting the right tension platform requires balancing mechanical simplicity, cost, material vulnerability, and response latency. Three primary control topologies dominate modern cable machinery:

Open-loop systems using magnetic particle brakes or variable-torque drives represent a low-cost choice, but they cannot compensate for mechanical drivetrain friction, temperature-induced clutch drag, or sudden acceleration steps. When handling fine conductors, the static friction of a magnetic particle clutch can exceed the breaking strength of the wire during a cold startup.

Direct load-cell systems provide precise force measurements, yet they lack mechanical compliance. If an out-of-round bobbin induces a sudden radial displacement, the rigid load-cell roller cannot yield physically; it can only register the tension spike and signal the motor to decelerate. By the time the motor reacts, the fragile conductor has already absorbed the transient mechanical shock.

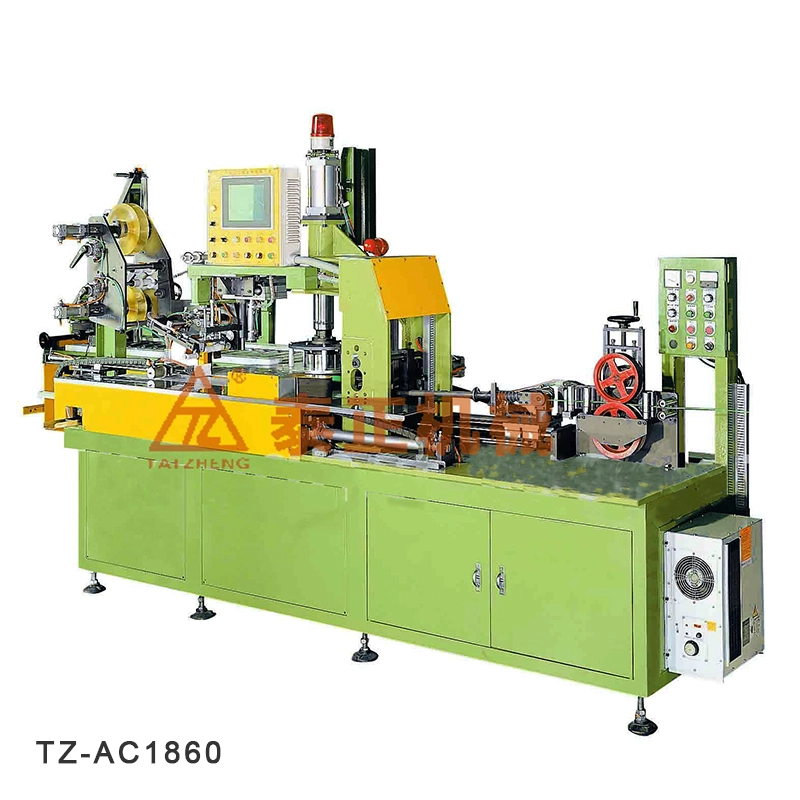

For delicate conductors and optical fibers, a dancer arm combined with servo-driven closed-loop regulation remains the engineering benchmark. The physical movement of the low-friction dancer pneumatically cushions high-frequency mechanical disturbances, giving the drive electronics the milliseconds needed to balance spindle speed without overstressing delicate cores. For non-standard production facilities handling fragile materials, integrating a custom wire and cable coiling machine configured with low-inertia dancer assemblies ensures that material elongation limits are maintained consistently across production runs.

Selection Matrix: Matching Coiling Machine Specifications to Fragile Materials

Different material compositions demand distinct machine handling parameters, surface contact treatments, and mechanical interfaces.

Material-Specific Machinery Configuration:

Ultra-Fine Enamel / Precious Metals (<0.05 mm)
  ├── Tension Range: Sub-gram to low-gram resolution
  ├── Drive System: Low-friction air-bearing dancer + Servo spindle
  └── Contact Surfaces: Mirror-polished ceramic guide rings

Optical Fiber (Singlemode / Ribbon / Loose Tube)
  ├── Tension Range: Low, highly repeatable tension
  ├── Drive System: Closed-loop dancer with active pay-off synchronization
  └── Contact Surfaces: Large-diameter urethane/ceramic-coated wheels (Bending radius > 30x dia.)

High-Temperature Medical / Fluoropolymer Wire
  ├── Tension Range: Strict zero-stretch profile
  ├── Drive System: Precision multi-axis servo with synchronized electronic traverse
  └── Contact Surfaces: Anti-static, low-drag hard anodized aluminum guides

• Ultra-Fine Metal Conductors (Gold, Silver, Fine Copper < 0.05 mm): These materials exhibit low yield limits and stretch easily under minimal force. The machine must deliver ultra-low tension capability with minimal rotational resistance. Rolling bearings must be low-friction micro-bearings, and all contact eyes must utilize mirror-polished ceramics to eliminate micro-abrasions on enameled or plated layers.

• Silica Optical Fibers (Tight-Buffered or Bare Coated Fibers): Bend radius compliance takes priority alongside tension stability. All guide pulleys must maintain large bend radiuses (typically no less than 30 to 50 times the outer fiber diameter) to avoid macroscopic bend losses. Ceramic or plasma-sprayed guide wheel grooves prevent static buildup that could attract airborne particulates and scratch the fiber cladding.

• Flexible Micro-Coaxial & Medical Leads: Multi-layer construction requires strict winding pitch accuracy. If the coiling pitch wanders, overlapping wraps pinch adjacent coils and crush the inner dielectric insulation. These applications require an electronically coupled traverse system synchronized with spindle rotation to maintain flat lay patterns without side-wall pressure buildup.

When line parameters fall outside standard catalog options, working with an experienced coiling machine manufacturer enables plant teams to tailor critical guide coatings, low-friction pneumatic dampening units, and customized spool-clamping mechanisms to their materials.

Best Operational Practices for Commissioning and Zero-Tension-Spike Operation

Proper mechanical and control commissioning on the factory floor is just as critical as machine hardware selection for eliminating tension-related scrap:

• Implement S-Curve Acceleration and Deceleration Profiles: Linear speed ramps create abrupt jerk forces ($da/dt$) at the points where speed begins to ramp up or down. Configuring the servo drives with S-curve (jerk-limited) motion profiles smooths these transitions, ensuring motor torque ramps up gradually to eliminate initial wire tugging.

• Calibrate Dancer Pneumatics at Operating Temperature: Friction within pneumatic counter-balance cylinders varies as seals reach standard operating temperatures. Perform baseline calibration using dead-weight test gauges under real line-speed conditions, ensuring the dancer floats without mechanical stick-slip behavior.

• Synchronize Electronic Traverse Gearing: Mechanical lead screws driven by manual gear trains often introduce backlash during direction changes at the spool flange. Using a dedicated servo-driven traverse mapped to the main spindle via an electronic cam (E-Cam) prevents dwell-time buildup at the reel edges. This avoids wire drop-down, edge bunching, and the tension surges that follow when dereeling the coil.

• Maintain Regular Pulley and Bearing Inspection Schedules: A single contaminated guide wheel bearing increases line friction and induces unmeasured drag downstream of the tension sensor. Establish regular audits for guide-surface grooving, particulate contamination, and free-wheeling bearing resistance.

Key Technical Questions to Ask Your Equipment Builder Before Ordering

Evaluating machine builders requires digging into control system engineering details. When preparing technical specifications for a high-sensitivity coiling setup, use this procurement checklist to verify that a prospective machine builder can meet your precision requirements:

Technical Procurement Checklist:

[ ] 1. Tension Measurement Limits
    • What is the verified minimum controllable tension threshold, and what is its calibrated tolerance?
    • Does the system rely on calculated torque or an active, closed-loop mechanical sensor?

[ ] 2. Core-to-Flange Ratio Handling
    • How does the control algorithm compensate for spool inertia as the coil builds from bare core to full reel?
    • Is there an integrated, multi-recipe storage system in the PLC for quick spool and wire changeovers?

[ ] 3. Traverse Mechanism & Edge Synchronization
    • Is the traverse independently servo-driven, and does it feature electronic reversal control to prevent edge bunching?
    • What anti-drop controls are used near the reel flange to protect delicate conductors?

[ ] 4. Line Integration & Speed Coordination
    • How does the coiling unit interface with upstream extruders, spark testers, or payoff stands?
    • In an emergency stop, does the machine provide synchronized, regenerative braking to prevent wire breakage?

[ ] 5. Tooling and Surface Contact Engineering
    • What materials and coatings are standard along the wire path (e.g., polished ceramic, plasma-coated, hard anodized)?
    • Can the guide wheel diameter and bend radius geometry be customized to our specific fiber or alloy limits?

Validating these technical factors ensures your selected equipment will integrate smoothly with upstream drawing, extruding, or testing processes. For demanding production environments requiring tight dimensional tolerances and validated winding tension, sourcing a precision cable coiling machine engineered to your wire specifications protects product integrity across every packaging cycle.

Key Takeaways

• Tension Spikes Drive Invisible Yield Loss: In fragile metal wires, tension spikes cause cross-sectional necking and resistance failures. In optical fibers, localized stress causes micro-bending signal attenuation and glass fractures.

• Diameter Ratios Demand Real-Time Torque Decoupling: As the winding package grows from core to flange, the spindle must slow down while torque scales proportionally. Without active dynamic adjustment, tension will spike or sag.

• Closed-Loop Dancer Systems Provide the Safest Buffer: Load cells measure force, but low-inertia dancer arms mechanically cushion line disturbances. This dynamic buffer makes dancer systems well-suited for high-speed, fragile conductor handling.

• Traverse Synchronization Protects Coil Integrity: Precise electronic synchronization between the traverse and the spindle eliminates edge bunching and wire drop-down, preventing tension spikes during dereeling.

• Detailed Technical Inquiries Prevent Line Mismatches: Specifying verified minimum tension limits, line path bend radii, and synchronized emergency stop profiles during procurement prevents costly operational problems after commissioning.

Frequently Asked Questions (FAQ)

What is the acceptable tension tolerance for optical fiber winding?

Acceptable tension tolerances depend on the specific fiber structure (e.g., bare coated silica, tight-buffered, or ribbon matrix) and outer diameter. Most telecommunication single-mode fibers require steady tension maintained within tight limits—often within a few grams of target variance—to prevent micro-bending losses. Exact tension limits should always be confirmed against the fiber manufacturer's mechanical specifications.

Can a standard coiling machine be retrofitted with a dynamic tension control system?

Yes, depending on the mechanical rigidity of the chassis and the drive system architecture. Retrofitting typically involves replacing fixed AC motors or friction clutches with a closed-loop servo spindle, mounting an ultra-low-friction dancer arm with an absolute rotary encoder, and upgrading the PLC software to run diameter-compensation algorithms.

How does ambient temperature affect tension control when winding polymer-coated wires?

Temperature shifts change both the friction characteristics of machine seals and the physical flexibility of polymer-coated wires. In cold startup conditions, pneumatic cylinder seals experience higher stick-slip friction, which degrades dancer sensitivity. Concurrently, fluoropolymer or PVC jackets stiffen, altering their bending resistance around small guide rollers and introducing unmeasured line drag.

What role does spool core hardness play in wire tension consistency?

If a spool core compresses under the cumulative radial pressure of tightly wound outer layers, the inner layers lose tension and turn slack. When unwinding, this slack causes tangles, snagging, and sudden tension spikes. Coiling machines must maintain a precise tension taper—gradually reducing winding tension as reel diameter grows—to balance inward radial pressure across the package.
