In the sprawling digital landscape of the 21st century, the unassuming communication cable serves as the lifeblood of global connectivity. From the intricate networks that power our homes and businesses to the vast data centers that underpin cloud computing, the performance and reliability of these cables are paramount. A single glitch, a momentary signal loss, or an increase in data corruption can have cascading effects, disrupting everything from financial transactions to mission-critical operations. The integrity of every byte of data traversing these networks begins at the point of manufacture, and for high-performance data cables, the manufacturing journey is fundamentally shaped by a highly specialized piece of equipment: the Double Twist Bunching (DTB) machine.
The term Double Twist Bunching refers to a highly efficient and precise process used to twist multiple insulated wires or conductors together to form a cohesive, single cable core. This technique, while seemingly straightforward in its objective, is a sophisticated engineering solution to a complex problem. Its fundamental purpose is to prepare multiple strands of a conductor or insulated wires, such as those found in Ethernet or coaxial cables, into a single, unified strand while simultaneously twisting them with a controlled lay length. Unlike older, less efficient methods, the DTB machine operates on a principle of "two twists per revolution," effectively doubling the speed and efficiency of the traditional single-twist process. This efficiency gain is not merely a matter of speed; it is a critical factor in maintaining the precise geometric and electrical properties required for modern data transmission.
Without Double Twist Bunching, the high-speed data transfer that we take for granted would be virtually impossible to achieve reliably. The method is particularly vital for the creation of balanced twisted-pair cables, the backbone of modern LAN networks. The precise and consistent twisting of these pairs is what enables them to reject external electromagnetic interference (EMI) and reduce internal crosstalk, two of the most significant challenges in high-frequency data transmission. The ability of DTB machines to produce cables with uniform lay lengths is a cornerstone of ensuring the final product meets stringent industry standards, such as those set by the TIA/EIA for categories like Cat5e, Cat6, and Cat7.
The necessity for precision in cable manufacturing has never been greater. As data rates climb into the multi-gigabit range, even the slightest inconsistency in the cable’s physical structure can degrade performance to an unacceptable level. A non-uniform lay length can create a ripple effect, causing impedance mismatches, signal reflections, and a significant increase in bit error rates. This is why the DTB machine has evolved from a simple bunching tool into a sophisticated, electronically controlled system. Modern machines are equipped with advanced tension control, programmable lay length settings, and real-time monitoring to ensure every meter of cable produced meets the exact specifications demanded by today’s high-speed applications. For manufacturers, investing in a high-quality DTB machine isn’t just about increasing output; it’s about securing a competitive edge by guaranteeing the quality and reliability of their products. It is the silent, yet essential, engine behind the seamless flow of data that powers our interconnected world.
In essence, the double twist bunching machine is the unsung hero of the modern cabling industry, providing the precision, speed, and reliability required to produce the high-performance communication and LAN cables that are indispensable for our digital infrastructure. This article will delve into the technical intricacies of this process, exploring its core applications, addressing common user questions, and providing a comprehensive guide for those seeking to understand its pivotal role in the manufacturing of today's most crucial data conduits.
The efficiency and precision of a Double Twist Bunching machine are not the result of a single technological leap, but rather the culmination of a finely tuned engineering process that leverages a unique mechanical principle. To truly appreciate its value in high-performance cable manufacturing, one must first understand the fundamental mechanics and key components that enable its superior performance over traditional methods.
At its core, the double twist principle is a deceptively simple yet profoundly effective concept. Unlike the single twist bunching process, where the take-up bobbin and the bunching operation are independent, in a DTB machine, they are integrated. The take-up bobbin, which spools the finished cable, is housed within a hollow spindle that rotates at high speed. As the take-up bobbin rotates, the wire or insulated conductors are fed into the machine. Crucially, for every single rotation of the spindle, the wire receives two twists. One twist is imparted as the wire enters the rotating spindle, and the second twist is applied as the wire is spooled onto the bobbin within the spindle. This synchronized, dual-action twisting mechanism is the genesis of the machine's name and its primary advantage. By generating two twists per revolution, the machine can achieve the required lay length at half the rotational speed of a single twist machine, or conversely, produce cable at twice the speed for the same rotational speed. This translates directly to higher production output and lower operational stress on the machinery, leading to increased longevity and reliability.
A typical Double Twist Bunching machine is a complex symphony of interconnected components, each playing a vital role in ensuring a smooth and precise operation. Understanding these parts is essential for any operator or manufacturer.
Payoff Stands: These stands hold the spools of individual insulated wires or conductors (typically 2, 4, or more) that will be bunched together. They are often equipped with tension control mechanisms, such as friction brakes or electronically controlled dancers, to ensure that the wire is unwound from the spool with a consistent, low tension, preventing wire stretching or breakage. The quality of the payoff stand directly impacts the consistency of the bunched cable.
Guide System: From the payoff stands, the wires are routed through a series of precision guides and pulleys. These guides ensure that the wires converge at a specific point with the correct spatial arrangement before entering the twisting mechanism. Any misalignment at this stage can lead to uneven twisting or damage to the wire insulation.
The Hollow Spindle and Flywheel: This is the heart of the DTB machine. The hollow spindle is a robust, precision-engineered component that houses the take-up bobbin. It is driven by a powerful motor, often with an inverter drive for precise speed control. The flywheel, sometimes integrated with the spindle, provides inertial stability to smooth out rotational inconsistencies and absorb vibrations, ensuring a consistent twist.
Capstan and Dancer System: The capstan is a powered wheel or a pair of wheels that pulls the bunched cable from the twisting mechanism towards the take-up bobbin. Its speed, synchronized with the spindle's rotation, determines the lay length—the axial distance required for one complete 360-degree twist. Modern DTB machines use a dancer system, a movable arm or series of pulleys, between the capstan and the take-up bobbin. This dancer is connected to a sensor that provides real-time feedback on cable tension. If the tension increases, the dancer moves, signaling the capstan or take-up motor to adjust its speed to maintain a constant, pre-set tension. This sophisticated tension control system is arguably the most critical feature of a modern DTB machine, as it prevents wire breakage, ensures uniform lay length, and guarantees consistent electrical properties of the final product.
Traversing Mechanism: As the finished cable is spooled onto the take-up bobbin, it needs to be distributed evenly across the bobbin's width. The traversing mechanism, typically a lead screw or a linear actuator, moves the guide point back and forth to ensure a neat and uniform lay on the bobbin. An uneven traverse can lead to a poorly wound bobbin, which can cause problems in subsequent manufacturing steps.
Take-up Bobbin: This is the final destination for the finished bunched cable. The bobbin must be securely held within the spindle and is often equipped with its own motor to provide the final winding tension. Efficient bobbin handling—both loading and unloading—is crucial for maximizing machine uptime and overall productivity.
The supremacy of the DTB machine in high-performance applications is best illustrated by a direct comparison with the traditional single twist bunching method.
The consistent, repeatable, and low-tension operation of Double Twist Bunching machines is fundamental to producing a final cable product that meets the stringent performance requirements of modern data networks. This is not just a matter of production efficiency; it is a quality assurance benchmark. The reduced back-twist and uniform lay length directly translate to superior electrical performance, including lower crosstalk, reduced signal loss, and improved impedance matching, all of which are essential for reliable high-speed data transmission. For manufacturers targeting the high-end market for communication and LAN cables, the investment in DTB technology is not an option but a necessity. It is the definitive method for turning raw conductors into the highly engineered conduits of the digital age.
The versatility and precision of Double Twist Bunching (DTB) machines make them indispensable tools across a wide spectrum of the cable manufacturing industry. While their core principle remains constant, their application is tailored to meet the specific demands of different cable types. In the realm of communication and LAN cables, where signal integrity is paramount, DTB machines are the workhorse behind the most critical components. This chapter will delve into the primary applications, demonstrating how DTB technology is leveraged to produce the high-performance cables that form the backbone of our digital world.
The most prominent and widespread application of Double Twist Bunching is the production of balanced twisted-pair cables, the fundamental building block of modern Ethernet networks. Cables like Cat5e, Cat6, and Cat7 are defined by their ability to transmit data at high speeds with minimal interference, and this performance is a direct result of the precisely controlled twisting of the insulated conductors.
The Science of Twisted Pairs: The twisting of two insulated conductors together is not merely for structural integrity. It is an ingenious engineering solution to a fundamental electromagnetic problem. When an electrical current flows through a wire, it generates a magnetic field. When another wire is placed parallel to it, this magnetic field can induce a current in the second wire, a phenomenon known as crosstalk. By twisting the two wires of a pair together, the magnetic fields generated by the signals in each wire are effectively canceled out. For every twist, one segment of the pair is closer to the source of interference, and the next segment is further away. This alternating proximity ensures that any induced noise is balanced and canceled out, dramatically reducing crosstalk and improving signal-to-noise ratio.
The Role of the DTB Machine: The Double Twist Bunching machine is perfectly suited for this task due to its ability to impart a highly consistent and repeatable lay length. The lay length, or pitch, is the axial distance required for one complete 360-degree twist. For LAN cables, precise control over lay length is non-negotiable, as even minor variations can lead to significant performance degradation. Modern DTB machines with advanced servo drives and PLC controls can maintain lay length with an accuracy of better than 0.1%, ensuring that every inch of a twisted pair cable meets the stringent specifications for high-frequency performance. Furthermore, for cables like Cat6 and beyond, which often have different lay lengths for each of the four pairs to minimize pair-to-pair crosstalk, the programmability of the DTB machine is essential. The machine can be programmed to switch lay lengths between pairs with high precision, guaranteeing compliance with complex standards.
Addressing the Challenges of Fine-Gauge Wires: Manufacturing Cat7 cables, for example, often involves working with very fine insulated wires, sometimes as small as 23 AWG or 22 AWG. These delicate conductors are highly susceptible to stretching or breaking under inconsistent tension. The sophisticated dancer and tension control systems of a modern DTB machine are crucial here. They maintain a constant, low tension on the wires throughout the bunching process, preventing stretching of the copper conductor and preserving the integrity of the insulation, thereby safeguarding the cable's electrical properties.
Beyond twisted-pair cables, Double Twist Bunching plays a critical role in the manufacturing of various high-frequency coaxial and specialized cables.
Stranded Coaxial Center Conductors: While a typical coaxial cable might have a solid center conductor, high-performance or specialized versions (e.g., for aerospace, medical equipment, or high-flex applications) often use a stranded conductor for increased flexibility and durability. The DTB machine is used to precisely bunch together a group of fine copper or copper-plated steel strands to form the core conductor. This application demands meticulous tension control to ensure the stranded conductor is uniform, free of voids, and has a smooth surface, all of which are critical for maintaining a consistent impedance and minimizing signal loss at high frequencies.
Specialized Communication Cables: The DTB machine's ability to handle fine wires and maintain precise geometric lay makes it ideal for a variety of other communication cables. This includes:
Medical Cables: These often require a bundle of very fine conductors for signals from diagnostic equipment. The bunched cable needs to be highly flexible, kink-resistant, and durable.
Automotive Cables: Modern vehicles are a network of electronic systems, and cables are required to handle sensor data, power, and high-speed infotainment signals. DTB machines are used to bunch conductors for data buses, ensuring reliable signal transmission in harsh environments.
Instrumentation and Control Cables: These cables often have multiple pairs or triads for data and control signals. DTB technology provides the consistency needed for reliable operation in industrial settings.
While Double Twist Bunching is not used to twist the glass fibers themselves, it is often a key process for the metallic or aramid strength members and conductors that are integrated into fiber optic cables. In a hybrid cable that combines both fiber optic strands and copper conductors, the DTB machine is used to precisely bunch the copper wires. Similarly, for tactical fiber cables or fiber-in-the-loop cables, a DTB machine might be used to bunch high-strength yarns like Kevlar around the fiber core to provide tensile strength, protecting the fragile optical fibers from strain and damage during installation and use.
In summary, the applications of Double Twist Bunching machines are as diverse as the cables that power our digital infrastructure. From the foundational twisted pair of a simple Ethernet cable to the intricate cores of specialized medical and automotive cables, the DTB machine provides the precision and reliability that are essential for high-performance data transmission. It is a technology that directly translates mechanical precision into superior electrical performance, making it an indispensable asset in any modern cable manufacturing facility.
For a potential user or a seasoned professional in the cable manufacturing industry, the decision to invest in a Double Twist Bunching (DTB) machine is based on more than just its production speed and core applications. It's about a deep understanding of the technical parameters that govern its operation and the ability to address common challenges that arise in the production environment. This chapter focuses on the practical, hands-on considerations that are crucial for maximizing machine performance, ensuring product quality, and justifying the investment.
Lay length, as discussed in previous chapters, is the most critical parameter in producing high-performance twisted pair and bunched cables. It is the distance over which the wires complete a full 360-degree twist. The lay length of a twisted pair cable directly influences its electrical characteristics, most notably its impedance, crosstalk, and return loss.
Why is Precision Lay Length So Important? In cables like Cat6A, which are designed for 10 Gigabit Ethernet, even a slight inconsistency in lay length can lead to impedance mismatches. This mismatch causes signal reflections, where a portion of the transmitted signal bounces back towards the source, reducing the effective signal strength and increasing the bit error rate (BER). Consistent lay length ensures a uniform characteristic impedance along the entire length of the cable, minimizing reflections and maximizing signal integrity. Furthermore, precise lay length is crucial for managing crosstalk. As data rates increase, the frequency of the signals rises, making the cable more susceptible to interference from adjacent pairs. Maintaining specific, differing lay lengths for each pair within the cable is a primary method for ensuring the cancellation of crosstalk.
How Do Modern DTB Machines Achieve This? The accuracy of lay length on a modern DTB machine is a function of a tightly synchronized, closed-loop control system. The rotation of the hollow spindle (which determines the number of twists per unit time) is precisely linked to the speed of the capstan (which pulls the wire from the machine). This synchronization is typically managed by a Programmable Logic Controller (PLC) and servo motors. The operator sets the desired lay length on a human-machine interface (HMI), and the PLC automatically calculates the required capstan speed for the given spindle RPM. This electronic synchronization provides a level of precision that is impossible to achieve with older, mechanically geared systems, guaranteeing that the lay length is consistent from the beginning to the end of the production run.
Next to lay length, tension control is the most significant operational variable. The insulated wires entering the machine and the finished bunched cable being spooled must be under constant, optimal tension.
The Problem with Inconsistent Tension: If the tension is too high, it can cause the copper conductor to stretch, a phenomenon known as necking. This stretching changes the wire’s electrical resistance and can weaken the wire, leading to breakage. If the tension is too low, the lay of the bunched cable can be loose and inconsistent, leading to a poorly formed product and a host of electrical performance issues.
The Solution: The Dancer System: The dancer system is the centerpiece of a modern DTB machine’s tension control. It’s a movable arm or pulley on a pivot, connected to a sensor (e.g., a potentiometer or an encoder). As the tension on the wire changes, the dancer arm moves, and the sensor sends a signal to the machine's control system. The PLC then instantly adjusts the speed of the capstan or the brake on the payoff stand to bring the tension back to the set point. This real-time, dynamic feedback loop ensures that the wire is processed under a perfectly controlled, constant tension, which is essential for preserving the physical and electrical integrity of the wires. For fine-gauge wires used in high-frequency data cables, this level of precision is not a luxury—it is a fundamental requirement.
A versatile DTB machine should be capable of processing a wide range of materials. Users often need to switch between different types of conductors and insulation materials.
Common Materials: DTB machines are commonly used with:
Solid or stranded copper conductors
Tinned copper
Copper-clad aluminum (CCA)
Insulated conductors (e.g., with PE, PP, FEP, or PVC insulation)
Fiberglass or aramid yarns (for strength members)
The Importance of Proper Setup: The machine’s setup—including the payoff tension settings, the take-up tension, and the dancer system calibration—must be adjusted for the specific material being used. For example, a delicate FEP-insulated wire requires a much lower tension than a PVC-insulated copper wire to avoid damage. The precision of modern machine controls allows for quick and repeatable adjustments, minimizing downtime and material waste.
Beyond the core technical aspects, day-to-day operation and maintenance are vital for maximizing the return on investment.
Bobbin Management: The time it takes to change bobbins can be a significant bottleneck. Modern DTB machines are designed with features like quick-change bobbin systems, powered bobbin lifts, and automatic traversing, which drastically reduce the time needed for changeovers, thus increasing overall machine uptime.
Energy Consumption: Energy efficiency is a growing concern. Users should inquire about the power consumption of the machine, as well as the efficiency of its motors and drive systems. A highly efficient machine can result in significant long-term operational savings.
Preventative Maintenance: A clear and consistent preventative maintenance schedule is essential for the longevity and reliable operation of a DTB machine. Key maintenance tasks include lubricating moving parts, checking and replacing bearings, inspecting belts and drive systems, and regularly cleaning the machine to remove dust and debris. A well-maintained machine is a reliable machine, and a reliable machine is the key to consistent, high-quality production.
The table below summarizes some of the key operational metrics that a prospective buyer or current user should focus on:
In conclusion, a Double Twist Bunching machine is not a simple production tool; it is a complex, precision-engineered system. By understanding and controlling its key technical parameters—especially lay length and tension—operators can ensure the production of consistently high-quality cables that meet the exacting standards of modern data communication.
Selecting a Double Twist Bunching (DTB) machine is a significant capital investment and a strategic decision that will impact a manufacturing facility's productivity, product quality, and long-term profitability. It's not a one-size-fits-all purchase. The ideal machine is one that is perfectly aligned with a company's current and future production needs. This chapter provides a comprehensive guide to evaluating and choosing the right DTB machine by highlighting the key specifications and supplier attributes that prospective buyers must consider.
Before even speaking with a supplier, a manufacturer must have a clear understanding of their production requirements. This involves an internal assessment of the types of cables they plan to produce, the target production volumes, and the physical constraints of their facility. The following specifications should be at the top of the evaluation checklist.
The size of the take-up bobbin is a critical specification. It directly determines the maximum length of finished cable that can be produced in a single, uninterrupted run.

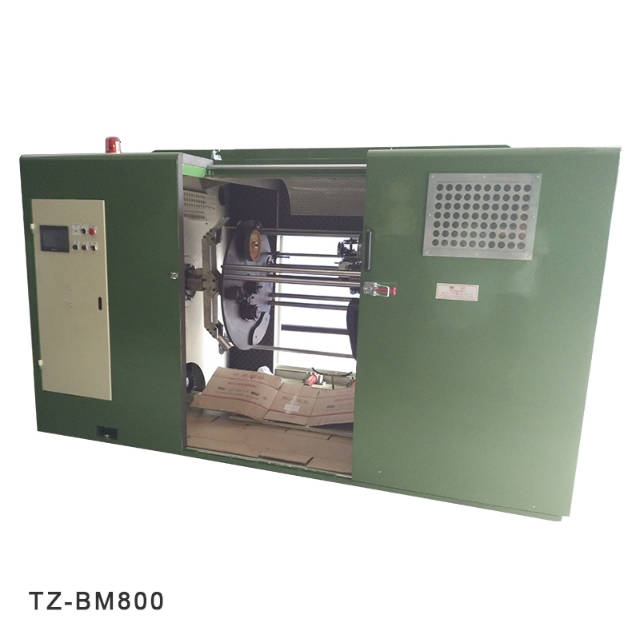

Large Bobbins: A machine with a large bobbin capacity (e.g., DIN 630 or DIN 800) is ideal for long production runs of cables, such as those used for large-scale network installations or bulk reels for distribution. A larger bobbin reduces the frequency of changeovers, which in turn maximizes machine uptime and reduces labor costs.
Small to Medium Bobbins: For facilities that produce a wide variety of shorter-length, custom, or specialized cables, a machine with a smaller or medium bobbin capacity might be more appropriate. These machines are often more compact and may offer greater flexibility for quick changeovers between different products. The key is to match the bobbin size to your average production lot size to minimize waste and maximize efficiency.
The machine's maximum rotational speed (RPM) of the spindle is a primary indicator of its potential production output. However, it's crucial to understand that raw RPM is only one part of the equation.
RPM vs. Lay Length: The actual linear production speed (meters per minute) is a function of both the RPM and the required lay length. A higher RPM is beneficial, but for a cable with a very short lay length (e.g., for high-frequency Cat7 cables), the capstan speed will be relatively low. Conversely, for a cable with a long lay length, the machine can run at a lower RPM but still achieve a high linear speed.
Balanced Performance: A good DTB machine offers a wide range of operational speeds, allowing the operator to fine-tune the process to balance speed and quality. Look for a machine that can sustain its maximum rated speed with consistent performance and minimal vibration, especially when working with fine-gauge wires.
The machine's ability to handle a range of wire gauges is a direct measure of its versatility.
Minimum and Maximum Diameter: Be sure to check the machine's specified minimum and maximum wire diameter range, both for individual conductors and for the finished bunched cable. This ensures that the machine can accommodate your current product line and any potential future product expansions.
Die and Guide Compatibility: Inquire about the ease of changing dies and guides to accommodate different wire diameters. A well-designed machine will have a modular or quick-change system that minimizes setup time, allowing for seamless transitions between different cable types.
Modern Double Twist Bunching machines are sophisticated, computer-controlled systems. The quality of the control system is paramount to their performance, ease of use, and reliability.
PLC and HMI: A high-quality machine will have a robust Programmable Logic Controller (PLC) and an intuitive Human-Machine Interface (HMI). The HMI should allow for easy input of parameters like lay length, tension, and speed. It should also provide real-time feedback on machine status, production data, and diagnostics.
Recipe Management: A very useful feature is the ability to save and recall "recipes" or "product profiles." This allows operators to quickly load pre-defined settings for a specific cable type, eliminating the need for manual setup and reducing the chance of human error.
Data Logging and Connectivity: The ability to log production data (e.g., total length produced, speed, run time) and connect to a facility's Manufacturing Execution System (MES) is becoming increasingly important for quality control and process optimization.
The relationship with the machine supplier is just as important as the machine's specifications. A quality supplier provides more than just the equipment; they provide a partnership.
Technical Support: An excellent supplier offers strong technical support, including remote diagnostics and quick response times for troubleshooting. They should have knowledgeable technicians who understand the intricacies of bunching technology and can help solve production issues.
Spare Parts and Consumables: Inquire about the availability of spare parts and wear-and-tear consumables (e.g., bearings, belts, guides). A supplier with a local or regional parts inventory can significantly reduce downtime and prevent costly production interruptions.
Training and Installation: The supplier should provide comprehensive training for your operators and maintenance staff during installation. This ensures that your team can operate the machine safely and efficiently from day one and can perform basic maintenance to keep it running smoothly.
Customization and Future-Proofing: Discuss your long-term goals with the supplier. Can they offer custom solutions or modifications to the machine to meet future needs? This forward-thinking approach can save you from having to purchase a new machine down the line as your business grows.
Choosing a Double Twist Bunching machine for communication and LAN cable manufacturing is a decision that requires a holistic approach. It’s a balance of upfront cost, long-term operational efficiency, and a supplier’s commitment to service.
By carefully evaluating these factors, manufacturers can select a DTB machine that not only meets their immediate production demands but also serves as a reliable and high-performing asset for years to come, ensuring their place at the forefront of the high-speed data cabling industry.
The journey through the intricacies of the Double Twist Bunching (DTB) machine culminates in a singular, resounding truth: this technology is not merely a tool for manufacturing, but a cornerstone of our global digital infrastructure. As data rates continue their exponential ascent, driven by innovations in cloud computing, artificial intelligence, and the Internet of Things (IoT), the demand for cables that can handle unprecedented signal loads with absolute reliability is higher than ever. The Double Twist Bunching process, with its unparalleled precision and efficiency, is the answer to this demand.
Throughout this article, we have explored how DTB machines provide the fundamental capabilities required for modern cable production. We’ve seen how their unique “two twists per revolution” principle fundamentally doubles production speed while simultaneously ensuring superior quality. We’ve dissected the critical components, from the payoff stands and capstans to the sophisticated dancer systems, each contributing to a perfectly controlled process. Most importantly, we have highlighted how these technical features directly translate into tangible benefits: the ability to achieve precise lay length for crosstalk cancellation, and the consistent tension control that prevents wire damage and preserves signal integrity. These are not abstract concepts; they are the bedrock of the superior electrical performance that differentiates a high-quality, high-speed cable from a basic wire.
For any manufacturer seeking to be a leader in the production of communication, LAN, and specialized data cables, the investment in a modern Double Twist Bunching machine is no longer a luxury—it is a strategic imperative. It is the decisive factor that allows a company to meet and exceed stringent industry standards like those for Cat6A and Cat7. It enables the production of cables with superior impedance matching, lower signal attenuation, and exceptional noise immunity, all of which are essential for the smooth and reliable flow of data that powers our economies and connects our lives.
Looking to the future, the role of DTB technology will only become more critical. As we push the boundaries of data transmission, we will require cables that are even more resistant to external and internal noise. Future generations of DTB machines will likely incorporate even more advanced automation, real-time quality monitoring with integrated sensors, and sophisticated self-correcting algorithms to further enhance precision and efficiency. They will be seamlessly integrated into intelligent manufacturing systems, providing a level of control and data logging that was unimaginable just a few years ago.
In essence, the DTB machine takes raw, individual conductors and transforms them into a highly engineered product. It is a testament to the fact that even in an age of wireless communication, the physical connection remains paramount. The silent, tireless work of these machines ensures that our wired networks are robust, reliable, and ready to carry the data of tomorrow. For manufacturers and users alike, understanding the profound impact of Double Twist Bunching is the first step toward building the high-performance networks that will define our future.
