A double twist bunching machine is a high-speed piece of equipment used in the wire and cable industry to twist multiple individual wires into a single, uniform conductor or 'bunch.' Its defining principle is that it imparts two twists onto the wire strand for every single 360-degree rotation of its bow. This ingenious mechanism makes it exceptionally efficient for producing high-quality stranded wire for applications ranging from automotive wiring and power cables to complex data and communication cables, ensuring both structural integrity and electrical performance.

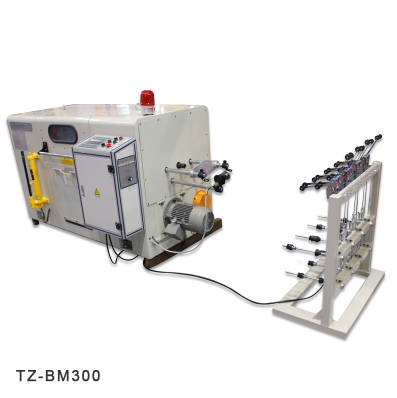

What Exactly is a Double Twist Bunching Machine?
Before diving into the mechanics, it's essential to understand the purpose of a double twist bunching machine, sometimes referred to as a double twist strander. In the world of cables, a single solid wire is often too rigid and prone to breaking when flexed. To create a flexible and durable conductor, manufacturers twist or "bunch" multiple smaller, finer wires (strands) together. This process not only increases flexibility but also enhances the wire's conductivity and overall strength. The double twist bunching machine is the workhorse that automates this process with unparalleled speed and precision.
Unlike more straightforward twisting methods, the "double twist" technology is a leap in efficiency. For every single rotation of the machine's primary moving part (the bow), the wire bundle inside receives two complete twists. This doubling effect allows the machine to operate at extremely high rotational speeds while producing a tightly and uniformly wound conductor. This is crucial for meeting the stringent quality standards of modern electronics, automotive, and aerospace industries, where consistency is non-negotiable.
The Core Principle: How Does a Double Twist Bunching Machine Work?
The working principle of a double twist bunching machine is a sophisticated, continuous process. It can be broken down into several distinct stages, each managed by a specific component, all working in perfect harmony to transform individual wires into a finished bunched conductor. Let's walk through the entire journey of the wire.
Step 1: The Pay-Off - Feeding the Wires
The process begins at the Pay-Off Stand. This is a large rack or creel that holds multiple spools of individual bare or tinned copper wires. Each wire is carefully threaded from its spool towards the machine. The critical factor at this stage is tension control. Each wire must be fed into the machine at a consistent, pre-set tension. If the tension is too loose, the wires can become tangled or overlap incorrectly. If it's too tight, the delicate wires can stretch or even break, causing a costly production halt. Modern pay-off systems use dancer arms, pneumatic controls, or magnetic powder brakes to maintain this precise tension for every single strand.
Step 2: The Gathering Point - Aligning the Strands
After leaving the pay-off stand, the individual wires converge at a gathering die or ceramic guide plate. This component features a series of holes that precisely align the wires into a circular bundle just before they enter the main twisting chamber. This ensures that all strands enter the twisting zone in the correct formation, preventing any single wire from being trapped in the center or pushed to the outside, which would compromise the final conductor's geometric and electrical properties.
Step 3: The Twisting Action - The Magic of the Bow
This is the heart of the machine. The aligned bundle of wires enters the main body and is guided onto a rotating bow. This bow, typically made of carbon fiber or a strong, lightweight alloy, rotates at very high speeds (thousands of RPM) around a stationary take-up spool cradle. Here's where the "double twist" occurs:
First Twist: As the wire bundle travels from the fixed entry point, over a guide pulley on the rotating bow, it receives its first 360-degree twist.
Second Twist: As the wire travels from the guide pulley on the bow back towards the central axis to the capstan, it receives its second 360-degree twist.
This dual-twist action is what allows the machine to achieve such high output. The bow is carefully balanced to minimize vibration at high speeds, and it is enclosed within a soundproof and safety-interlocked guard door to protect the operator.
Step 4: The Capstan - Controlling Lay Length and Tension
After being twisted, the bunched wire passes around a capstan wheel (or a pair of wheels). The capstan's role is twofold. First, it pulls the wire through the machine at a steady, controlled rate. Second, the ratio between the rotational speed of the bow and the linear speed of the capstan determines the lay length. The lay length is the axial distance required for one complete twist of the strands (e.g., 20 mm). A shorter lay length results in a tighter, more flexible bunch, while a longer lay length produces a looser bunch. This parameter is precisely controlled via the machine's PLC (Programmable Logic Controller) to meet product specifications.
Step 5: The Traverse Unit - Ensuring a Perfect Spool
The now-twisted conductor needs to be wound onto the final take-up spool neatly. This is the job of the traverse unit. This mechanism guides the wire back and forth across the width of the take-up spool, ensuring it is laid down in even, uniform layers. Without a proper traverse system, the wire would pile up in one spot, creating a messy, unstable spool that is difficult to handle in subsequent manufacturing processes (like extrusion). The traverse speed is synchronized with the take-up spool's rotation to create a perfectly level wind.
Step 6: The Take-Up - Winding the Final Product
Finally, the finished bunched wire is wound onto the take-up spool. In a double twist buncher, the take-up spool is ingeniously housed inside the machine's cradle, while the bow rotates around it. The spool is driven by its own motor, which is synchronized with the capstan to maintain consistent tension on the finished product. Once the spool is full, the machine automatically stops (or in some advanced systems, automatically cuts and transfers to a new spool), allowing the operator to safely remove the finished product.
Anatomy of a Double Twist Buncher: Key Components Explained
Understanding the function of each component is crucial for operation and maintenance. While designs vary between manufacturers, the core components remain the same.
| Component | Function | Importance |
|---|---|---|
| Pay-Off Stand | Holds and dispenses the individual source wire spools. | Crucial for consistent wire feed and initial tension control. |
| Tension Control System | Maintains uniform tension on each wire strand (e.g., dancer arms, brakes). | Prevents wire breakage, stretching, and ensures uniform bunch diameter. |
| Gathering Die | Aligns individual strands into a circular bundle before twisting. | Ensures proper geometry and a compact, round final conductor. |
| Rotating Bow | Rotates around the take-up spool to impart the two twists per revolution. | The central element of the double twist mechanism; its speed determines production output. |
| Capstan Wheels | Pulls the wire through the machine and controls the lay length. | Directly controls the final product's characteristics (tightness of twist). |
| Traverse Unit | Guides the bunched wire for even winding onto the take-up spool. | Creates a high-quality, level-wound spool ready for the next process. |
| Take-Up System | Houses and rotates the final spool to collect the finished product. | The final stage; its tension control is vital for a damage-free product. |
| PLC Control Panel | The "brain" of the machine; allows operator to set speed, lay length, tension, etc. | Enables precise, repeatable, and automated production with minimal manual intervention. |
Why Choose a Double Twist Buncher? Key Advantages Unpacked
The widespread adoption of double twist bunching technology is due to its significant advantages over older or simpler methods like single twist or tubular stranders.
The most prominent advantage is speed and productivity. By imparting two twists per revolution, these machines can produce bunched wire at a much faster rate than a single twist machine operating at the same rotational speed. This translates directly to higher output and lower manufacturing cost per meter. Furthermore, the quality of the final product is superior. The internal take-up design means the wire follows a straight, non-deflected path after the capstan, which, combined with precise tension control, results in a conductor with excellent concentricity and a stable structure, free from internal stresses.
Another key benefit is versatility. Double twist bunchers can handle a wide range of wire sizes, from ultra-fine strands for medical or electronic applications to larger conductors for power cables. They can also produce different types of bunches, including concentric, unilay, and smooth bunch constructions, simply by adjusting the machine's parameters via the PLC. This flexibility allows manufacturers to quickly adapt to different customer requirements without needing entirely different machines.
Double Twist vs. Single Twist Bunching: What's the Difference?
To fully appreciate the double twist machine, it's helpful to compare it to its predecessor, the single twist buncher. While both serve the same fundamental purpose, their mechanics and performance differ significantly.
| Feature | Double Twist Buncher | Single Twist Buncher |
|---|---|---|
| Twists per Revolution | Two | One |
| Production Speed | Extremely High | Moderate to High |
| Take-Up Spool Location | Internal (stationary cradle) | External (rotates with the flyer) |
| Wire Path | Straight path to take-up, low tension on finished wire. | Wire is guided around a flyer arm, adding tension and potential stress. |
| Finished Product Quality | Excellent. Uniform lay, good concentricity, low internal stress. | Good. Can be less uniform, especially at higher speeds. |
| Typical Applications | High-volume, high-quality production of data, automotive, and control cables. | Flexible cords, smaller production runs, some power cables. |
Where are Double Twist Bunching Machines Used? Common Applications
The versatility and efficiency of double twist bunchers make them indispensable in numerous sectors of the wire and cable industry. Their ability to produce high-quality stranded conductors is essential for:
Automotive Industry: Manufacturing flexible wiring harnesses for vehicles, which must withstand constant vibration and temperature changes.
Data and Telecommunications: Producing twisted pairs for LAN cables (e.g., Cat5e, Cat6) and other communication cables where stable electrical characteristics are paramount.
Consumer Electronics: Creating the fine, flexible wires used in everything from headphone cables to internal connections in laptops and smartphones.
Industrial and Control Cables: Manufacturing multi-core cables used for automation, robotics, and machinery control.
Aerospace and Medical: Producing high-reliability conductors where performance and consistency are a matter of safety and precision.
Maintaining Your Machine for Peak Performance and Longevity
A double twist bunching machine is a significant investment, and proper maintenance is key to maximizing its lifespan and ensuring consistent product quality. A routine maintenance schedule should include several key checks. Daily checks should involve cleaning the machine, inspecting guide pulleys and dies for wear or damage, and ensuring all safety guards and interlocks are functioning correctly. Any accumulation of copper dust can interfere with sensors and moving parts, so cleanliness is critical.
Weekly and monthly maintenance should be more in-depth. This includes lubricating all moving parts as per the manufacturer's guidelines, especially the bow bearings and capstan drive system. It's also a good time to check the tension of drive belts and the condition of the bow itself—any sign of cracking or imbalance in a carbon fiber bow requires immediate attention. Regularly calibrating the tension control systems is also vital to prevent production issues. By adhering to a strict preventive maintenance program, manufacturers can avoid unexpected downtime and ensure the machine continues to operate at peak efficiency for years.
Conclusion: The Backbone of Modern Wire Stranding
The double twist bunching machine is more than just a piece of equipment; it is a cornerstone of modern wire and cable manufacturing. Its ingenious design, which delivers two twists for a single rotation, provides an unmatched combination of speed, precision, and quality. By understanding the intricate process—from the careful tensioning at the pay-off to the precise winding at the take-up—and appreciating the function of each key component, operators and engineers can harness the full potential of this technology. For any industry that relies on high-quality, flexible, and reliable stranded wire, the double twist bunching machine remains the definitive solution, driving efficiency and innovation in the connected world.
