Views: 1 Author: Site Editor Publish Time: 2026-06-12 Origin: Site
Table of Contents

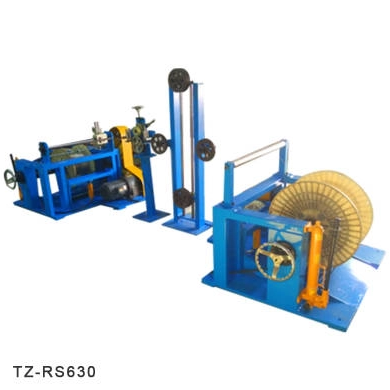

An automatic cable coiling and packing machine is used to measure, coil, cut, tie, wrap, label, and pack cables into consistent coil packages for storage, transportation, and retail or industrial distribution. For cable factories, it helps reduce manual handling, improve packing consistency, shorten production time, and support more standardized cable coil output.
In cable manufacturing, the final coiling and packing process is often underestimated. A cable may be well extruded, printed, tested, and inspected, but if the final coil is loose, uneven, poorly tied, or incorrectly labeled, it can affect storage efficiency, customer presentation, and downstream handling. This is especially important for power cables, building wires, flexible cables, control cables, communication cables, and other products sold or shipped in coil form.
A well-configured custom wire cable coiling machine can be designed according to cable diameter, coil size, required length, packing method, production speed, and factory layout. This guide explains how automatic cable coiling and packing machines work, what functions they can include, how to choose the right configuration, and what information buyers should prepare before requesting a quotation.
An automatic cable coiling and packing machine is a production line or integrated equipment system used to convert continuous cable into finished coils. Depending on the configuration, it may include cable feeding, length counting, coiling, cutting, tying, wrapping, labeling, and final packing.
The machine can be designed as a single coiling unit, a semi-automatic packing system, or a more complete cable coil packing line. The right structure depends on the cable type, production volume, coil size, packaging standard, labor arrangement, and budget.
The main purpose of an automatic cable coiling machine is to make cable coils more consistent, reduce manual operation, and improve final packing efficiency.
Common applications include:
Electrical building wire
Flexible cable
Power cable
Control cable
Communication cable
Appliance cable
Automotive wire
Low-voltage cable
PVC insulated cable
Rubber cable
Small and medium diameter cable products
The machine may be customized for different coil inner diameters, outer diameters, cable lengths, tying positions, wrapping styles, and labeling requirements.
Manual cable coiling is still used in many factories, especially for small batches or simple products. However, as production volume increases, manual coiling can become a bottleneck. Operators may struggle to keep coil size consistent, length accurate, and packaging appearance stable across different shifts.
For cable factories, automated coiling and packing can help solve several common production problems.
Production Challenge | Impact on Factory Operation | How Automation Helps |
|---|---|---|
Inconsistent coil size | Poor appearance and storage inefficiency | Standardized coil diameter and shape |
Manual length measurement | Risk of length error and customer complaints | Automatic length counting and control |
Slow hand coiling | Lower packing output and more labor input | Faster and more repeatable coiling |
Loose or uneven coils | Difficult handling and poor presentation | Controlled coiling and tying |
High labor dependence | Output varies by operator skill | More stable process control |
Packing bottleneck | Finished cable accumulates before shipment | Integrated coiling, cutting, and packing flow |
Labeling mistakes | Traceability and delivery issues | Optional labeling integration |
For high-volume cable production, coiling and packing automation is often not only a labor-saving upgrade, but also a quality control improvement.
A stable packing process helps factories deliver coils that are easier to handle, identify, store, and transport.
An automatic cable coil packing line can include different functional modules. Not every factory needs every module, so buyers should select the configuration according to actual production needs.
The feeding system guides cable from the previous process or pay-off unit into the coiling section. Stable feeding is important because cable tension, bending radius, and surface protection can affect the final coil quality.
For soft cables, feeding should avoid excessive pulling force. For stiffer cables, the machine must provide enough control to guide the cable into the coil smoothly.
Length counting is used to measure the cable before cutting or coiling. It is commonly used when factories need coils of fixed length, such as typical retail coils, distributor packages, or customer-specific order lengths.
Accurate length counting helps reduce disputes, improve order consistency, and support standardized cable coil packaging.
Length counting accuracy can be affected by cable surface, wheel pressure, slipping, cable diameter variation, and machine setup. Buyers should discuss cable type and required length tolerance with the supplier before machine configuration.
The coiling unit forms the cable into a coil with a specified inner diameter, outer diameter, width, or package shape. Coiling quality depends on cable flexibility, tension control, coiling speed, and coil forming design.
A good coiling process should avoid:
Loose coils
Uneven winding
Cable twisting
Excessive bending stress
Surface scratches
Coil deformation
Difficult unloading
For different cables, the coiling structure may need adjustment. A flexible cable and a stiffer power cable may require different coiling parameters.
After the required length is reached, the cable is cut. Cutting can be manual, semi-automatic, or automatic depending on machine configuration.
Important cutting considerations include:
Cable diameter
Conductor material
Insulation material
Cutting surface requirement
Cutting force
Blade maintenance
Safety protection
For some cables, a clean cutting surface is important for downstream termination or packaging appearance. For larger cables, the cutting unit must be matched carefully with cable structure.
After coiling, the cable coil may be tied to maintain shape. Tying can use plastic ties, wire ties, straps, or other binding methods depending on product requirements.
Common tying positions may include one, two, three, or more tie points. The number of ties depends on coil size, cable stiffness, and handling requirements.
Some cable coils require wrapping for protection, dust prevention, moisture resistance, or retail presentation. Wrapping may use stretch film, shrink film, paper tape, or other packing materials depending on market requirements.
Wrapping can improve package appearance and protect the coil during handling. However, the packing method should be selected based on cable type, package size, and customer requirements.
Labeling can include product name, length, size, batch number, barcode, QR code, brand information, or customer-specific information. Automatic or semi-automatic labeling can reduce manual mistakes and improve traceability.
Final packing may include manual collection, automatic discharge, bagging, carton packing, or transfer to a downstream packaging system. The level of automation depends on factory layout and production volume.
A complete automatic cable coiling and packing process may follow this workflow:
Step | Process | Purpose |
|---|---|---|
1 | Cable feeding | Guide cable into the machine smoothly |
2 | Length counting | Measure required cable length |
3 | Coiling | Form cable into a coil |
4 | Cutting | Cut cable after reaching set length |
5 | Coil forming | Keep coil size and shape stable |
6 | Tying or binding | Prevent coil from loosening |
7 | Wrapping | Protect and present the coil |
8 | Labeling | Add product and traceability information |
9 | Discharge or packing | Prepare coil for storage or shipment |
Not every machine includes all steps. Some factories only need automatic coiling and cutting, while others need a more complete cable coil packing line with tying, wrapping, and labeling.
Automatic cable coiling machines can be used for many cable products, but the configuration must match the cable’s physical characteristics.
Cable Type | Suitability | Key Considerations |
|---|---|---|
Building wire | High | Fixed length, stable coil size, labeling |
Flexible cable | High | Tension control and smooth coiling |
Power cable | Medium to high | Cable diameter, stiffness, cutting force |
Control cable | High | Coil appearance and length accuracy |
Communication cable | High | Surface protection and bending radius |
Appliance cable | High | Retail-style coil packing |
Automotive wire | Medium to high | Smaller diameter and batch flexibility |
Rubber cable | Medium | Surface friction and flexibility |
Stiffer cable | Depends on size | Requires stronger forming and suitable bending radius |
Before choosing a cable coiling machine, buyers should confirm cable diameter, cable stiffness, required coil size, and packing method.
These details determine whether a standard machine is suitable or whether a customized coiling system is required.
Cable factories may choose different automation levels depending on output, labor cost, product variety, and budget.
Item | Semi-Automatic Cable Coiling Machine | Fully Automatic Cable Coiling and Packing Line |
|---|---|---|
Automation level | Some manual handling required | More integrated process flow |
Typical functions | Coiling, length counting, possible cutting | Coiling, counting, cutting, tying, wrapping, labeling |
Labor requirement | Higher | Lower |
Investment cost | Usually lower | Usually higher |
Flexibility | Suitable for varied small batches | Suitable for stable or high-volume production |
Production consistency | Better than manual, depends on operator | More repeatable when properly configured |
Suitable users | Small to medium factories, varied products | Medium to large factories, higher output needs |
Space requirement | Usually smaller | Larger layout may be needed |
Semi-automatic machines are practical when product types change frequently or budget is limited. Fully automatic lines are more suitable when production volume is high and coil packing requirements are standardized.
Cable diameter is one of the first parameters to confirm. A machine designed for small wires may not handle larger or stiffer cables properly. A machine designed for larger cables may not be efficient for small flexible wires.
Some cables bend easily, while others resist coiling. The machine must form coils without damaging insulation, deforming the cable, or creating excessive stress.
Factories may need standard coil lengths or customer-specific lengths. Length counting and cutting functions should match the required packaging standard.
Coil size affects machine design, storage space, customer presentation, and carton packing. Buyers should provide target coil inner diameter, outer diameter, and coil height if available.
Different markets require different packing styles. Some cables only need tying, while others need wrapping, labeling, or bagging. Packing method strongly affects machine configuration.
Higher output may require more automated handling, faster coiling speed, automatic tying, and integrated packing. Lower output may be suitable for simpler equipment.
Factories producing many cable sizes should consider adjustment convenience. A machine that is difficult to change may reduce overall efficiency even if its running speed is high.
A cable coil packing line must fit the available production space. Buyers should consider feeding direction, operator access, maintenance space, and downstream handling.
For accurate machine recommendation, suppliers need detailed cable and packing information. This helps avoid wrong configuration and unnecessary cost.
Information Needed | Why It Matters |
|---|---|
Cable type | Determines machine structure and handling method |
Cable diameter range | Confirms suitable feeding, coiling, and cutting units |
Cable material | Affects friction, flexibility, and cutting requirements |
Required length per coil | Determines length counting and cutting setup |
Coil inner diameter | Affects coil forming design |
Coil outer diameter | Affects machine size and discharge method |
Coil width or height | Important for final package control |
Packing method | Determines tying, wrapping, labeling, or bagging modules |
Required output | Helps evaluate automation level |
Factory layout | Helps design line direction and space arrangement |
Labeling requirement | Determines printing or labeling module |
Existing pain points | Helps supplier recommend practical improvements |
For an efficient inquiry, buyers should provide cable diameter, coil size, required length, packing method, and expected output before requesting a cable coiling machine quotation.
Taizheng provides custom wire cable coiling machine solutions that can be discussed based on cable specifications and packing requirements.
Lower price may not mean lower production cost. If the machine cannot match cable diameter, coil size, or packing method, it may cause downtime, poor coil quality, or additional manual work.
Two cables with similar diameter may behave differently during coiling. Material, insulation thickness, conductor structure, and flexibility all affect machine selection.
Coiling, tying, wrapping, labeling, and carton packing are different functions. Buyers should confirm which steps need automation before quotation.
Factories with many cable sizes need machines that are easy to adjust. Long changeover time can reduce real productivity.
Manual workers can adjust by experience, but automatic machines require clearer product specifications. Coil size, tie position, label position, and packing material should be standardized as much as possible.
A reliable supplier should not only provide machine specifications but also help buyers clarify product requirements and production goals.
Useful questions to ask include:
What cable diameter range can the machine handle?
Can the machine coil both flexible and stiffer cables?
Does it include length counting and automatic cutting?
What tying or binding methods are available?
Can wrapping or labeling be integrated?
What coil size range can be produced?
How long does changeover usually take?
What packing materials are compatible?
What maintenance parts need regular replacement?
Can the machine be customized for factory layout?
What information is needed before machine design?
You can visit Taizheng Machine to learn more about wire and cable machinery solutions, or review the custom wire cable coiling machine page for related coiling equipment options.
Selection Question | Why It Matters |
|---|---|
What cable types will be packed? | Determines machine suitability |
What is the minimum and maximum cable diameter? | Confirms feeding, coiling, and cutting design |
Is the cable flexible or stiff? | Affects coiling structure and bending control |
What length is required per coil? | Determines counting and cutting needs |
What coil size is required? | Affects forming and packing design |
Is tying required? | Determines binding module |
Is wrapping required? | Determines film packing or wrapping module |
Is labeling required? | Supports traceability and retail packing |
What is the target output? | Determines automation level |
How often will product size change? | Affects changeover design |
What is the factory layout? | Determines line arrangement |
What problems exist in current packing? | Helps define the improvement target |
An automatic cable coiling and packing machine is equipment used to measure, coil, cut, tie, wrap, label, and pack cables into finished coils. It is commonly used in cable factories to improve packing efficiency, coil consistency, and production flow.
An automatic cable coiling machine can handle many cable types, including building wire, flexible cable, power cable, control cable, communication cable, appliance cable, and low-voltage cable. The machine configuration depends on cable diameter, stiffness, coil size, and packing method.
A cable coiling machine usually uses a length counting device to measure cable movement before cutting or coiling. The counting result can be affected by cable slipping, surface condition, pressure setting, and cable diameter, so machine setup should match the cable type.
A cable coiling machine mainly forms cable into coils, while a cable packing machine may include tying, wrapping, labeling, bagging, or final packaging. In many production lines, both functions are integrated into one automatic cable coil packing line.
To choose an automatic cable coil packing line, confirm your cable diameter range, cable type, required length, coil inner and outer diameter, packing method, labeling needs, output target, and factory layout. These parameters help the supplier recommend a suitable configuration.
Yes, cable coiling machines can often be customized according to cable diameter, coil size, length counting requirement, cutting method, tying method, wrapping style, labeling requirement, and production layout. Customization is common because cable products and packing standards vary by factory.
For a cable coiling machine quotation, provide cable type, cable diameter range, required coil length, coil inner diameter, coil outer diameter, packing method, output requirement, and sample photos or drawings if available. This helps the supplier evaluate machine configuration more accurately.
An automatic cable coiling and packing machine helps cable factories improve final packing efficiency, reduce manual handling, standardize coil size, improve length consistency, and support better product presentation. Depending on production needs, the machine can include length counting, coiling, cutting, tying, wrapping, labeling, and final packing functions.
For buyers, the right machine should be selected based on cable diameter, cable stiffness, coil size, required length, packing method, output target, and factory layout. A clear inquiry with detailed cable and packaging information will help suppliers recommend a more suitable solution.
If your factory needs to improve cable coil packing efficiency or replace manual coiling with a more stable process, you can evaluate Taizheng’s custom wire cable coiling machine and discuss your cable diameter, coil size, and packing method for a suitable configuration.
