In the intricate world of wire and cable manufacturing, the process of stranding or bunching stands as a critical pillar. It's the step where individual wires are precisely twisted together to form a conductor, directly impacting the final product's flexibility, conductivity, mechanical strength, and electrical performance. A poorly stranded cable can suffer from increased resistance, reduced lifespan, and even pose safety risks.
For manufacturers, the choice of stranding equipment is paramount. Among the most prevalent technologies are the Double Twist Bunching Machine and the Tubular Stranding Machine. Each offers distinct advantages and caters to specific production needs, presenting a common dilemma for engineers and production managers. This comprehensive guide aims to dissect these two technologies, comparing their principles, applications, and operational characteristics to help you make an informed decision for your production line.

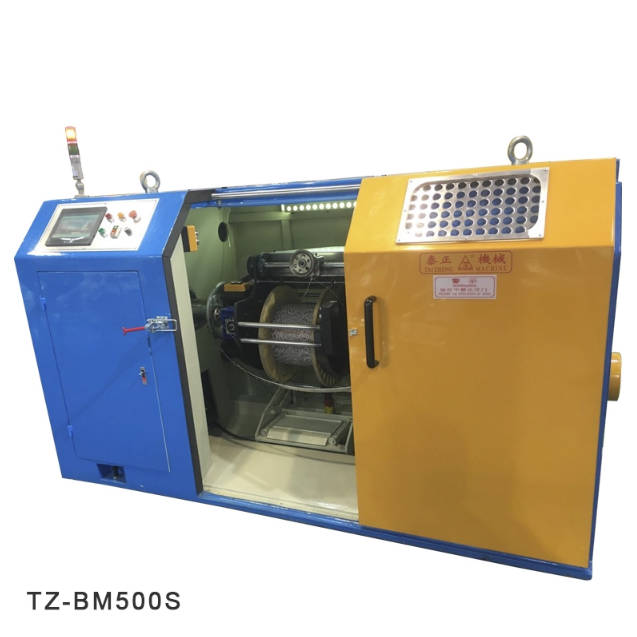

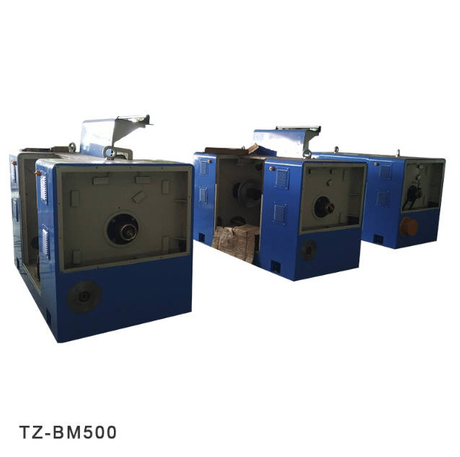

The Double Twist Bunching Machine is a cornerstone of modern wire and cable production, celebrated for its efficiency and the high quality of its output.
At its heart, a Double Twist Bunching Machine operates on the principle of imparting two twists to the conductor for every single revolution of its rotating bow. Individual wires are fed from supply bobbins through a central point, then guided around a rotating bow arm, and finally taken up onto a finished spool. This ingenious design allows for extremely high production speeds as it effectively doubles the twist rate per unit of rotation compared to single-twist methods.
Key Characteristics:
High-Speed Operation
Exceptional Efficiency (Two twists per bow revolution)
Precise Lay Length Control
Effective Back-Twist Elimination, ensuring concentricity and reduced wire stress.
Double Twist Bunching Machines are exceptionally versatile, making them ideal for a wide range of applications:
Fine wire bunching (e.g., communication cables like LAN cables, automotive wiring harnesses, medical device wires).
Stranding of insulated conductors into multi-core cables.
Production of high-flexibility speaker wires and control cables.
Specialty wires requiring consistent electrical properties and superior concentricity.
The popularity of the Double Twist Bunching Machine stems from several compelling advantages:
Higher Production Speeds: Double Twist Bunching Machines offer significantly higher linear speeds and twists per minute compared to other methods, leading to superior output and increased productivity. This is crucial for meeting high-volume demands.
Superior Product Quality: They consistently produce conductors with excellent concentricity and uniformity, minimizing wire stress and damage. This results in cables with consistent electrical performance and longer service life.
Versatility in Wire Gauges: Modern machines can handle a broad spectrum of wire diameters, from incredibly fine filaments (down to 0.05 mm) to medium-gauge wires (up to 5.0 mm), making them a flexible investment.
Energy Efficiency (Modern Designs): Contemporary Double Twist Bunching Machine manufacture prioritizes energy-efficient motors and intelligent control systems, reducing operational costs.
Reduced Footprint: Often more compact for a given output than other stranding technologies, optimizing factory floor space.
While highly advantageous, some considerations for Double Twist Bunching Machines include:
Initial investment cost can be higher for advanced, high-speed models.
Maintenance, while simplified in newer designs, requires specific expertise.
Tubular stranding machines represent an older, yet still highly relevant, technology primarily used for heavier-duty applications.
A Tubular Stranding Machine consists of a large, rotating tube within which multiple wire bobbins are loaded. As the tube rotates, the wires from these bobbins are twisted together and formed into a conductor that exits one end of the machine. The bobbins themselves do not rotate, but are held stationary within the rotating tube, allowing for simple wire payout.
Tubular stranders are typically chosen for:
Stranding medium to large bare conductors for power cables (e.g., overhead transmission lines).
Production of steel ropes and cables requiring high mechanical strength.
Some specialized armored cables.
Robustness and Durability: Built for heavy-duty, continuous operation with robust construction.
Larger Bobbin Capacity: Can accommodate significantly larger wire spools, reducing the frequency of changeovers for very long production runs.
Excellent for heavier gauge wires and applications demanding high tensile strength.
Capable of producing compact or shaped conductors.
Lower Production Speeds: Tubular stranding machines generally operate at lower RPMs compared to Double Twist Bunching Machines, impacting overall throughput significantly.
Higher energy consumption due to the substantial mass of the rotating tube.
Can be quite noisy during operation.
Require a much larger floor space due to their size and the need for access.
Potential for wire stress if not properly managed, as true back-twist is not inherent in all designs.
Let's put these two technologies head-to-head.
Feature | Double Twist Bunching Machine | Tubular Stranding Machine |
Twists per Revolution | 2 | 1 |
Max RPM (Bows/Cage) | High (e.g., 2000-3500+ rpm) | Moderate (e.g., 300-800 rpm) |
Linear Speed (m/min) | Very High (e.g., 100-350+ m/min) | Moderate (e.g., 20-100 m/min) |
Ideal Wire Gauge Range | Fine to Medium (0.05-5.0 mm) | Medium to Large (1.0-50.0 mm+) |
Export to Sheets
The sheer speed advantage of a Double Twist Bunching Machine is undeniable for applications suited to its design.
The Double Twist Bunching Machine excels in producing highly concentric and uniform cables with minimal wire damage, crucial for electrical and data transmission performance. Tubular stranders, while capable, may introduce more wire stress and are less suited for applications demanding extreme flexibility or signal integrity.
For facilities with limited space, the compact design of modern Double Twist Bunching Machines offers a significant advantage over bulkier Tubular Stranding Machines. Modern Double Twist Bunching Machine manufacture focuses on user-friendly interfaces, advanced automation, and reduced noise levels, enhancing the operator environment and simplifying maintenance. Tubular machines, by nature, are more power-intensive and can be louder.
While the initial capital expenditure for an advanced Double Twist Bunching Machine might seem higher, its superior speed, efficiency, and lower operational energy consumption often lead to a lower total cost of ownership (TCO) and a faster return on investment (ROI) for appropriate applications. When considering a Twist Bunching Machine factory, always factor in long-term operational costs.
The optimal choice hinges on your specific production requirements:
Wire Material and Gauge: For fine copper, tinned copper, or insulated wires, the Double Twist Bunching Machine is typically the preferred choice. For larger bare copper or aluminum conductors, a tubular strander might be more suitable.
Desired Production Volume: High-volume production of smaller conductors clearly favors the speed of a Double Twist Bunching Machine.
Required Cable Properties: If high flexibility, excellent concentricity, and superior electrical performance are critical, the double twist method is generally superior.
Budget and Long-Term Investment: Analyze both initial costs and projected operational expenses.
Facility Space: Evaluate available floor space and ceiling height.
After-Sales Support: Partnering with a reputable Double Twist Bunching Machine manufacture that offers excellent installation, training, spare parts availability, and technical support is crucial for long-term success.
"How does a Double Twist Bunching Machine prevent wire damage at high speeds?" Through precise tension control systems, meticulously designed wire paths, and a unique twisting mechanism that minimizes stress on individual conductors.
"What is the typical lifespan and maintenance schedule for a Double Twist Bunching Machine?" With proper preventive maintenance, modern machines from a reputable Double Twist Bunching Machine manufacture can last for decades. Regular lubrication, inspection of wear parts (like bow guides and bearings), and calibration are typical.
"Can Double Twist Bunching Machines handle both bare and insulated wires?" Yes, they are highly adaptable and can process both bare and insulated conductors with appropriate adjustments and accessories.
"What automation features are available on modern Double Twist Bunching Machines?" Modern machines feature advanced PLC/HMI controls, automatic tension regulation, fault detection, automatic wire breaking sensors, and even integration into smart factory systems for real-time monitoring.
"What kind of support can I expect from a Double Twist Bunching Machine factory?" Expect comprehensive support including pre-sales consultation, custom machine design, installation supervision, operator training, remote diagnostics, and readily available spare parts to ensure minimal downtime.
Both Double Twist Bunching and Tubular Stranding Machines play vital roles in the cable industry. However, for manufacturers focused on high-speed, high-quality production of fine to medium gauge wires, especially for sensitive applications like communication, automotive, and data cables, the Double Twist Bunching Machine stands out as the superior choice. Its inherent efficiency, precision, and versatility make it an invaluable asset.
Making the right decision requires a thorough assessment of your specific needs, production goals, and a careful consideration of the long-term benefits. We highly recommend consulting directly with experienced Double Twist Bunching Machine manufacture representatives to discuss your unique requirements and explore the latest technological advancements.
