In the rapidly evolving landscape of wire and cable manufacturing, the quest for higher efficiency, better quality, and lower scrap rates is never-ending. Whether you are producing high-frequency data cables, fire-resistant power lines, or specialized aerospace wiring, the choice of equipment on your factory floor dictates your long-term profitability.
One of the most common questions we encounter from seasoned production managers is: "Should I use a taping attachment on my single twisting machine, or should I invest in a dedicated, standalone taping machine?"
This article is designed to provide a deep, technical dive into this comparison. We understand that you aren't just looking for a machine; you are looking for a solution to production bottlenecks and quality inconsistencies. Let’s explore the nuances of cable taping machine efficiency and why the specialized approach often outweighs the "all-in-one" method.
To understand efficiency, we must first understand the fundamental mechanical differences between these two setups.
A single twisting machine is a versatile workhorse designed primarily for laying up multiple cores. Adding a taping head to this line allows the manufacturer to twist and tape in a single pass. While this sounds efficient on paper, the taping process is essentially "slave" to the twisting process. The synchronization of the tape's pitch depends entirely on the take-up speed and the rotational speed of the twisting bow.

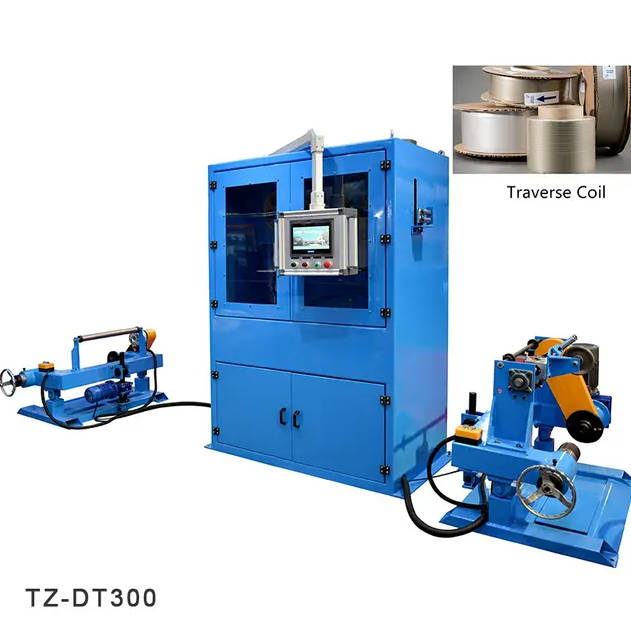

A standalone wire taping machine is engineered with a singular focus: the precise application of tape (Mica, Aluminum Mylar, PTFE, or Kapton) onto a conductor or cable core. These machines are built with high-speed heads that rotate independently of any twisting mechanism, allowing for ultra-precise tension control and significantly higher linear speeds.
The fundamental difference in efficiency lies in "Process Specialization." A dedicated taping machine is optimized for the unique physical properties of the tape material, whereas a taping attachment is often a compromise between two different mechanical forces.
In cable production, efficiency is not just about how fast a machine runs; it is about how much "good" cable is produced per hour. High-speed production is meaningless if it results in high scrap rates due to tape breakage or poor overlap.
A dedicated cable taping machine provides superior efficiency because it utilizes active tension control systems, often managed by high-response PLC and magnetic powder brakes or servo motors, ensuring that the tape is applied with consistent force regardless of the reel's decreasing diameter.
When taping delicate materials like Mica tape for fire-resistant cables or thin PTFE for medical applications, the margin for error is nearly zero.
Integrated Units: Often use passive friction braking. As the tape spool gets smaller, the tension increases, leading to "necking" of the insulation or tape snapping.
Dedicated Machines: Feature "constant tension" algorithms. The machine automatically adjusts the torque as the spool empties, maintaining a deviation of less than 0.1N in high-end models.
The "Pitch" (the distance between one wrap and the next) must be perfectly consistent to ensure electrical integrity. The overlap percentage is the most critical factor in cable shielding effectiveness. A dedicated taping machine’s head is synchronized via electronic gearing (E-Cam) to the capstan, ensuring that even during acceleration or deceleration, the overlap remains within ±1% of the target.
Many users believe that a single-pass twisting and taping process is faster. However, when we look at the actual output over a 24-hour shift, the data often tells a different story.
In an integrated line, the entire production speed is limited by the slowest component.
If your twisting machine can run at 100 meters per minute, but your taping head can only maintain quality at 40 meters per minute, your expensive twisting machine is running at 40% capacity.
Conversely, if the tape breaks, the entire twisting line must stop, causing potential "bird-nesting" or tension loss in the twisted cores.
We often hear from clients who are hesitant to add another machine to their floor. Here are the most common doubts addressed with technical sincerity:
If you are processing expensive materials like silver-plated copper or high-grade Kapton, the reduction in scrap alone usually pays for a dedicated machine within 12 to 18 months. Furthermore, because a standalone machine runs much faster, it can often handle the output of three or four separate twisting lines.
While floor space is valuable, production density is more important. A dedicated vertical or horizontal taping machine has a relatively small footprint. By separating the processes, you remove the bottleneck from your twisting department, allowing your twisting machines to do what they do best: twist at high speeds.
Professional dedicated machines are designed for modularity. By swapping the taping head (e.g., from a tangential head to a concentric head), you can switch between heavy Mylar shielding and delicate Mica fire-proofing in a fraction of the time it takes to recalibrate an integrated line.
Different sectors have different "pain points" when it comes to taping. A dedicated machine addresses these specifically:
Mica tape is brittle. If the bending radius is too sharp or the tension is uneven, the tape develops micro-cracks. In a fire, these cracks lead to insulation failure. Dedicated taping machines for fire-resistant cables use large-diameter guide rollers and specific "low-impact" tape paths to preserve the integrity of the Mica layer.
For Cat 7 or Cat 8 cables, the "Internal Cross-talk" is controlled by the shielding. If the tape overlap varies by even a millimeter, the cable may fail its frequency test. The precision of a standalone machine ensures the "Return Loss" and "Attenuation" specs are met consistently.
Weight is everything in aerospace. Manufacturers must use the thinnest possible tape with the tightest overlap. A dedicated machine’s ability to handle ultra-thin materials without stretching them is the difference between a certified product and a rejected batch.
When calculating efficiency, we must look at the Total Cost of Ownership (TCO).
Energy Efficiency: Modern dedicated taping machines use regenerative drives. When the head decelerates, energy is fed back into the system.
Labor Costs: Because these machines are highly automated with "broken tape" sensors and "end of spool" predictors, one operator can often manage three machines simultaneously.
Maintenance: A taping head attached to a twister is often hard to reach and maintain. Standalone machines are built with open-access frames, reducing "Mean Time To Repair" (MTTR).
At the end of the day, our goal is to help you build a production line that runs smoothly, predictably, and profitably.
While a single twisting machine with a taping attachment is a viable entry-level solution for low-spec cables, a dedicated taping machine is the superior choice for any manufacturer aiming for high-speed production, specialized material handling, and a scrap rate of near zero.
If you are currently facing challenges with tape wrinkles, frequent breaks, or slow production speeds, it may be time to move away from the "all-in-one" compromise and embrace the precision of a specialist.
Q: Can a dedicated taping machine handle multiple layers of tape simultaneously?
A: Yes. Many dedicated machines are built with multiple heads (2, 3, or even 4 heads) in a single line, allowing you to apply shielding, insulation, and bedding tapes in one pass with independent tension control for each layer.
Q: What is the main advantage of a Concentric Taping Head over a Tangential one?
A: Concentric taping heads are more efficient for high-speed production because the tape reel is centered on the cable axis, minimizing centrifugal force and allowing for much higher rotational speeds compared to tangential heads.
Q: How do I know if my tape tension is correct?
A: Professional machines feature real-time HMI displays showing the actual tension in Newtons or Grams. If your machine doesn't show this, you are relying on guesswork, which is the primary cause of cable failure.
Q: What is the average setup time for a dedicated machine?
A: With recipe management systems in modern PLCs, switching between different cable specs takes less than 15 minutes, as the pitch, tension, and speed parameters are pre-saved.
