Views: 2 Author: Site Editor Publish Time: 2025-09-25 Origin: Site
In industries ranging from telecommunications and manufacturing to entertainment and energy, efficient cable management is not just a matter of organization—it's a critical component of operational success, safety, and profitability. Miles of wire and cable are foundational to modern infrastructure, but handling them in bulk presents significant challenges. This is where the cable re-spooling machine becomes an indispensable asset.

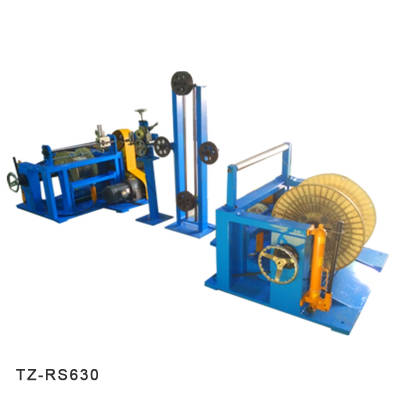

A cable re-spooling machine is a specialized piece of equipment designed to efficiently, accurately, and safely transfer cable, wire, rope, or other flexible materials from one reel or spool to another. Its primary role is to break down large, industrial-sized master reels into smaller, more manageable lengths for distribution, installation, or retail sale. It can also be used to inspect cable, measure lengths precisely, or consolidate remnants from multiple spools to minimize waste.
The benefits of integrating a high-quality wire spooler into your operations are immediate and substantial. Firstly, they introduce a level of efficiency and time savings that is impossible to achieve through manual labor. A task that could take multiple workers hours to complete—often with inconsistent results—can be accomplished by a single operator in a fraction of the time. This automation directly translates to reduced labor costs and increased throughput. Secondly, these machines vastly improve the handling and quality of the cable. With precise tension control and guided winding, the cable is spooled evenly without kinks, twists, or damage, presrving its integrity and performance characteristics.
Conversely, businesses that neglect proper re-spooling equipment face a host of common, costly challenges. Manually handling large reels often leads to tangled cables, which are difficult to manage and can result in significant material waste when damaged sections must be cut away. Inaccurate length measurements lead to inventory discrepancies and customer dissatisfaction. Most importantly, the lack of proper equipment creates serious safety hazards. Manually lifting heavy spools and controlling unwinding cable can lead to severe back injuries, strains, and accidents. A professional cable winding machine mitigates these risks, creating a safer work environment for employees.
This guide will walk you through everything you need to know to select the perfect cable re-spooling machine for your business, from understanding your specific needs to evaluating ROI and planning for long-term maintenance.
Before you can even begin looking at machine specifications, you must first conduct a thorough internal assessment. Choosing the right equipment is not about finding the "best" machine on the market, but about finding the machine that is best suited to your unique operational requirements. Answering the following questions will provide a clear framework for your decision-making process.
Not all cables are created equal, and the machine you choose must be compatible with the full range of products you handle. Document the following characteristics for every type of wire or cable you process:
Wire Diameter and Gauge: What is the minimum and maximum diameter of the cables you handle? A machine designed for fine-gauge fiber optic cables will not be suitable for heavy-duty power cables, and vice versa. The machine's tensioning system and traverse guide must accommodate this range.
Cable Material and Flexibility: Are you working with stiff, armored cable, highly flexible coaxial cable, or delicate fiber optics? The material affects the required tension and the design of the guides and rollers. Stiffer cables require more robust construction and a more powerful drive system.
Spool and Reel Requirements: Catalog the dimensions of the spools you use. This includes the flange diameter, overall width, and bore (arbor hole) diameter of both your source (payout) and destination (take-up) reels. A common mistake is selecting a machine that cannot accommodate the largest reel sizes a business might encounter in the future.
Your production demand will be a primary driver in determining the level of automation and speed you require.
Low Volume / Infrequent Use: If you only re-spool cable a few times a month, a simpler, semi-automatic, or even a manual-assist machine might be sufficient. The priority here is safety and accuracy over high speed.
Medium Volume / Regular Use: For businesses that re-spool daily, a powered, semi-automatic machine with features like a digital length counter and an automatic traverse winder is essential. The focus is on balancing cost with a significant boost in efficiency and consistency.
High Volume / Continuous Use: If re-spooling is a core, continuous part of your production line, you need a heavy-duty, fully automatic cable coiler or re-spooling system. These machines offer high speeds, programmable controls, integration with other systems, and minimal operator intervention, maximizing throughput.
The physical space where the machine will be used is a critical factor that is often overlooked.
Space Constraints: Accurately measure the floor space available. Do you have a long, narrow area or a more compact square space? This will influence whether a vertical or horizontal machine design is more appropriate. Remember to account for clearance around the machine for loading/unloading spools and for operator safety.
Indoor vs. Outdoor Use: If the machine will be exposed to the elements, moisture, or dust, you will need a model with appropriate environmental protection, such as stainless steel components and sealed electronics (e.g., an IP65 rating).
Integration with Existing Workflows: How will the new machine fit into your current process? Consider the flow of materials. Where will master reels be stored? How will finished spools be moved to the next stage (e.g., shipping or assembly)? The machine's layout and orientation should complement, not obstruct, your workflow.
By carefully analyzing these three areas—cable specifications, production volume, and operational environment—you will build a detailed profile of your needs, allowing you to filter out unsuitable options and focus on the machines that will truly benefit your business.
The market offers a wide variety of re-spooling machines, each designed to solve specific challenges. Understanding the fundamental design differences and specialized variants is key to narrowing down your search.
This refers to the orientation of the spool's axis during operation. Each has distinct advantages.
This describes the mechanism used to mount and drive the spools.
Shafted Models: These are the traditional design where a solid steel shaft (axle) is inserted through the center bore of the spool. The shaft is then lifted and secured into the machine's cradles.
Pros: Generally less expensive, robust, and reliable for standard spool sizes.
Cons: Can be slow to load and unload, as the heavy shaft must be handled for every reel change. It can be difficult to handle spools with damaged or non-standard arbor holes. The operator must handle a heavy shaft, which can be an ergonomic concern.
Shaftless Models: Also known as "pintle-arm" machines, these feature two independent, cone-tipped arms that move in to engage the spool's arbor holes from either side.
Pros: Shaftless designs offer significantly faster and safer loading/unloading, as there is no heavy shaft to handle. They are highly versatile and can easily accommodate a wide range of reel widths and spools with damaged bores. Most heavy-duty models are shaftless.
Cons: Typically more expensive and mechanically more complex than shafted designs.
Beyond these basic designs, many machines are built for specific tasks:
Light-Duty Spoolers: Designed for smaller cables, lower volumes, and retail environments. They are often portable or mounted on casters.
Heavy-Duty Spoolers: Built with rugged, heavy-gauge steel frames, powerful motors, and high-capacity components to handle the largest and heaviest spools of power cable, steel wire rope, or umbilical cables.
Automatic Coiling and Tying Machines: These systems go a step further than re-spooling. After winding a pre-set length of cable into a neat coil, the machine automatically cuts it and then binds the coil with plastic wrap or ties, making it ready for packaging. This is ideal for high-volume production of retail-length products.
Decoiling/Uncoiling Machines (Payouts): These are specialized machines designed solely for the purpose of safely and smoothly paying out cable from a master reel. They are often used as the input component of a larger processing line (e.g., feeding a cutting and stripping machine). They must have a reliable braking or tensioning system to prevent over-spooling.
Traverse Winding Machines: These machines feature a sophisticated, programmable guide (the "traverse") that moves back and forth to lay the cable perfectly across the spool drum, layer by layer. A precise traverse winding system is crucial for creating dense, stable, and tangle-free spools, especially at high speeds. Advanced systems can automatically adjust the traverse pitch based on the cable's diameter.
With a clear understanding of your needs and the types of machines available, you can now evaluate specific models based on a detailed set of criteria.
This is the most fundamental checkpoint. The machine must be physically capable of handling your products.
Spool Weight and Dimensions: Check the manufacturer's stated maximum spool weight capacity. As a rule of thumb, this should be at least 25% greater than the heaviest reel you currently use to allow for future growth. Verify the maximum and minimum spool flange diameter and overall width the machine can accommodate.
Payout and Take-Up Speeds: The machine's speed, often measured in feet or meters per minute, must align with your production goals. Look for machines with variable speed control, as you will need to run at slower speeds for larger cables or when starting a new spool.
Adaptability: How versatile is the machine? Can it handle your full range of cable diameters? Does it come with different-sized bushings or pintles to fit various arbor hole sizes? A machine that can adapt to many jobs provides better long-term value.
Beyond raw speed, several features contribute to a machine's overall efficiency.
Level of Automation: Does the machine have a programmable length counter that automatically stops at the target length? Is the traverse guide automatic and synchronized with the spool's rotation? Does it have an automatic or semi-automatic cutting feature? Each level of automation reduces operator input, minimizes errors, and increases throughput.
Programmability and Controls: A modern wire spooler should have an intuitive user interface (often a touchscreen HMI). Look for the ability to store recipes or pre-set jobs (e.g., "Job 1: 500 ft of CAT6 cable on Reel Type A"). This allows for quick, repeatable changeovers with minimal chance of operator error.
Advanced Features: High-end machines may offer features like web break detection (which automatically stops the machine if the cable breaks or runs out), slow start/stop ramping for smoother handling of heavy reels, and even automatic splicing capabilities for continuous production.
A re-spooling machine is a significant investment that should last for decades.
Frame Construction: The machine's frame should be constructed from heavy-duty, welded steel, not bolted-together lighter gauge metal. A robust frame minimizes vibration at high speeds and ensures long-term structural integrity.
Component Quality: Inquire about the components used. Are the motors, gearboxes, and electronics from reputable, well-known brands? This not only speaks to the machine's reliability but also makes it easier to source spare parts in the future.
Finish and Protection: A quality powder coat or industrial paint finish will protect the machine from rust and corrosion, especially in demanding environments.
Safety should be a non-negotiable priority. A well-designed machine protects both the operator and the equipment.
Tension Control: Proper tension control is perhaps the single most important feature for both safety and quality. Inadequate tension can create a loose, tangled spool. Excessive tension can stretch or damage the cable and, in a worst-case scenario, cause the cable to snap, creating a dangerous "whiplash" event. Look for adjustable mechanical or electronic tensioning systems.
Guarding and E-Stops: All rotating parts, chains, and potential pinch points must be fully enclosed by safety guards. The machine must be equipped with multiple, easily accessible emergency stop buttons (E-stops).
Overload Protection: The drive system should have electrical and/or mechanical overload protection to prevent damage to the motor if the spool jams.
Ergonomic Design: Consider the ergonomics of loading and unloading. Are the controls placed at a comfortable height? Does the machine minimize the need for the operator to bend and lift in awkward positions?
Your business will grow, and your machine should be able to grow with it.
Upgrade Paths: Ask the supplier about potential upgrades. Can a more advanced control system be added later? Can you add an integrated cutter or a coiling head?
Supplier Support and Customization: A reputable supplier will work with you to customize a machine to your exact needs. They might offer different drive packages, custom guarding, or integration with your existing production management software.
The financial analysis of purchasing a cable re-spooling machine extends beyond the initial price tag. A proper evaluation requires looking at the total cost of ownership and the long-term savings it will generate.
To calculate the return on your investment, follow these steps:
Calculate Annual Labor Savings: (Number of workers reduced) x (Average hourly wage) x (Hours per week spent on spooling) x (52 weeks).
Estimate Annual Material Savings: (Average feet of cable wasted per month) x (Cost per foot) x (12 months).
Sum Annual Savings: Add the labor savings, material savings, and any other quantifiable benefits (e.g., value of increased production).
Calculate Payback Period: (Total Cost of Machine + Installation) / (Total Annual Savings).
The payback period is the time it takes for the machine to pay for itself through the savings it generates. For many businesses, a quality re-spooling machine has a payback period of just 12-24 months, making it an excellent investment.
When budgeting, be sure not to overlook hidden costs:
Shipping and Rigging: These machines are large and heavy. The cost of freight shipping and hiring professional riggers to move the machine into place can be substantial.
Power and Utility Upgrades: Does the machine require a specific voltage or a compressed air supply that you don't currently have at the installation site?
Operator Training: While it generates long-term savings, there is an initial productivity dip while operators learn the new system. Factor in the cost of their time during this training period.
Your relationship with the machine doesn't end after the purchase. Proper maintenance and good operational practices are essential for maximizing its lifespan and ensuring it remains a productive asset for years to come.
A well-maintained machine is a reliable machine. Look for machines designed for easy servicing.
Ease of Access: Are lubrication points, motors, and gearboxes easily accessible? Or are they hidden behind panels that are difficult to remove?
Common Maintenance Tasks: Typical routine maintenance includes:
Daily: Visual inspection for any loose bolts or damaged parts. Wiping down the machine.
Weekly: Lubricating chains and bearings as specified by the manufacturer. Checking drive belt tension.
Monthly: Inspecting electrical connections and safety switches.
Documentation: The machine should come with a comprehensive manual that clearly outlines the maintenance schedule and procedures.
The quality of the manufacturer or supplier is just as important as the quality of the machine itself.
Warranty: What does the warranty cover, and for how long? A comprehensive warranty is a sign that the manufacturer stands behind its product.
Training: Does the supplier offer on-site training for your operators and maintenance staff? Proper training is the foundation of safe and efficient operation.
After-Sales Support and Parts: How responsive is their support team? Before buying, ask about the availability and lead time for critical spare parts like motors, bearings, and control components. A machine that is down for weeks waiting for a part from overseas is a major liability. Prioritize suppliers with a strong domestic presence and a good reputation for customer service.
Always Wear PPE: Operators should always wear appropriate Personal Protective Equipment, including safety glasses and steel-toed boots.
Secure the Work Area: Keep the area around the machine clear of clutter. Ensure no one is standing near the rotating spools during operation.
Inspect Reels Before Loading: Never load a reel with a severely damaged flange or drum, as it could fail under tension.
Start Slow: When starting a new spool, always begin at a slow speed to ensure the cable is tracking correctly before ramping up to full speed.
Never Leave a Running Machine Unattended: An operator should always be present and attentive while the machine is in motion.
Choosing the right cable re-spooling machine is a strategic decision that can pay dividends in efficiency, safety, and profitability. The process begins with a deep, honest assessment of your specific business needs—the types of cable you handle, your production volume, and your unique operational environment. From there, you can navigate the various types of machines, from space-saving vertical models to high-capacity shaftless designs, and evaluate them against a checklist of critical factors: capacity, efficiency, durability, and safety.
By carefully considering the total cost of ownership and calculating a realistic return on investment, you can justify the initial expenditure and avoid the common pitfall of being shortsighted. Remember that the partnership with your supplier is key; their support, training, and parts availability are crucial for long-term success.
Before making a final purchase, we strongly encourage you to consult with equipment experts, ask for references, and if possible, see a machine in operation or send samples of your cable for a test run.
The technology in this field continues to advance. Future trends point toward even greater automation, with robotics for loading and unloading spools and smart, IoT-connected systems that can provide real-time production data and predictive maintenance alerts. By investing in the right equipment now, you are not just solving today's cable management challenges; you are laying the groundwork for a more efficient and scalable future.
