What Causes Defects in Cable Bundling and How Can a Double Twist Bunching Machine Prevent Them?

Introduction:

In today’s rapidly evolving manufacturing landscape, cable production plays an integral role in industries ranging from telecommunications and data networking to automotive wiring and power distribution. The quality and consistency of cable bundles are critical not only to ensure the cables function optimally in their end applications but also to reduce production waste and maintenance costs. When defects occur in cable bundling, they can lead to compromised electrical performance, reduced mechanical strength, and increased safety risks. This has prompted many manufacturers to explore advanced bundling solutions, such as a Double Twist Bunching Machine or other state-of-the-art Wire Twisting Equipment.

In this article, we will examine the most common defects that arise in cable bundling operations and identify their root causes. We will then explore how a Double Twist Bunching Machine – also often referred to as a Cable Bunching Machine – addresses these core issues, ultimately helping manufacturers produce higher-quality products at a lower overall cost. From consistent tension control to reduction of strand misalignment, we will shine a light on best practices and machine features that help prevent kinking, tangling, and insulation damage. By the conclusion, you will have a clear sense of how a Double Twist Bunching Machine can serve as a High-Speed Bunching Machine that significantly enhances both output and quality in cable production.

1. Common Defects in Cable Bundling

One cannot address the role of a Double Twist Bunching Machine in preventing defects without first clearly identifying what those defects are. Although the specific issues can vary depending on the type of cable, insulation material, and production environment, a handful of recurring defects are common in most cable manufacturing processes.

• Misalignment or Uneven Strand Distribution
  One of the most frequent problems in cable manufacturing is the irregular spacing of strands throughout the cable bundle. This defect manifests when individual conductor strands twist or overlap unevenly, causing sections of the finished cable to have either too many or too few strands in a given cross-section. Not only does this lead to compromised mechanical stability, but it also affects voltage carrying capacity or signal integrity in high-speed data cables.

• Insulation Damage and Deforming
  When cable strands are subjected to excessive tension or mechanical stress during the twisting or bunching process, the insulation wrapping each conductor may stretch, crack, or tear. Even minor damage to insulation can become a significant hazard, allowing for unintended contact between active conductors and drastically increasing the risk of an electrical short. Where manufacturing standards are strict, such damage often results in scrapping significant lengths of cable or expensive rework.

• Kinking and Tangling Issues
  Cables can kink when they bend too sharply or twist uncontrollably during production. Tangling, on the other hand, may produce nests of wire that disrupt the manufacturing line entirely. These problems frequently lead to substantial downtime, as operators must stop the line, untangle or unjam the wires, and discard the affected length of cable. Consistent tension and controlled twisting speeds are central to avoiding these problems.

• Excessive Diameter Variation
  Another common defect is an inconsistent cable diameter caused by fluctuating tension in the twisting process. Varying diameter adversely impacts downstream operations such as jacketing or over-braiding, and can also cause the final cable product to fit improperly into connectors or insulation housings. In many industries, such as automotive, uniform cable diameter is crucial for meeting stringent safety and performance requirements.

• Surface Imperfections (Scratches or Abrasions)
  Finally, surface imperfections like scratches, abrasions, or scuff marks often result from cables rubbing against poorly maintained guide surfaces or from friction while passing through machinery components. These defects, while sometimes cosmetic, can turn into weak spots that degrade the cable’s environmental resistance. In outdoor or high-temperature applications, scratched surfaces are vulnerable to moisture, heat, and other environmental stressors that may accelerate cable failure.

By recognizing these specific issues, manufacturers can dedicate time and resources to improving their processes and selecting the right equipment, such as a High-Speed Bunching Machine, to ensure consistently high-quality cable output.

2. Root Causes of Cable Bundling Defects

Understanding the direct causes of defects is the first step, but digging deeper into why they happen provides essential insights for selecting an appropriate solution. Although specific production environments will present unique challenges, the root causes fall into a few broad categories:

• Raw Material Inconsistencies
  The quality of incoming wire and insulation materials set the baseline for the entire cable production process. If raw conductors vary in diameter or tensile strength, or if insulation thickness is inconsistent along the reel, no amount of careful twisting can entirely correct these variations. Consistent sourcing standards and stringent quality checks at the material supplier stage are vital in preventing downstream defects.

• Machine-Related Limitations
  Outdated or poorly maintained equipment lacks the advanced features needed to precisely control tension and twisting rates. Conventional single-strand or single-twist machines may not be equipped to handle modern production speeds or exacting quality standards required by customers. In comparison, a Double Twist Bunching Machine or specialized Cable Bunching Machine offers advanced synchronization and tension control that reduce many mechanical issues.

• Operator Errors
  Even the most advanced Wire Twisting Equipment is vulnerable to human errors. Incorrect setup parameters, inconsistent feed rates, or mishandling of the cables during reel changes can result in abrupt tension spikes and strand misalignment. As factories push to automate more processes, emphasis on skilled operator training remains essential for tasks that cannot yet be fully automated.

• Environmental and Process Parameters
  Temperature and humidity fluctuations can affect the physical properties of the insulation. In high-humidity environments, for example, moisture can seep beneath poorly fitted insulation or cause slipping in friction-based tension systems. Additionally, airborne contaminants like dust or oil residues can accumulate on contact surfaces, degrading performance over time.

• High-Speed Production Demands
  The drive to increase throughput often leads manufacturers to push equipment beyond recommended operating speeds. When twisting rates ramp up to high levels, the slightest imbalance in tension or minor mechanical misalignment can result in cumulative defects. This is one of the clearest areas where investing in appropriately rated, High-Speed Bunching Machine equipment can avert significant issues.

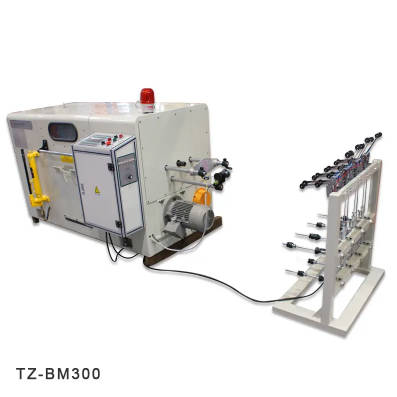

3. Introduction to Double Twist Bunching Machines

With a clear view of the defects and their deeper causes, we turn our attention to the Double Twist Bunching Machine, also known in some contexts as a Cable Bunching Machine. This technology, which represents a marked evolution over single twist or conventional bunching apparatus, offers advanced solutions to many of the problems highlighted so far.

A Double Twist Bunching Machine is a specialized piece of Wire Twisting Equipment that simultaneously twists multiple strands in a symmetrical, balanced manner. Unlike single twist machines, which only twist one end of the cable, a Double Twist Bunching Machine rotates both ends in a synchronized fashion. This design provides exceptional control over tension and strand alignment, producing cables with highly uniform diameters, minimized internal stresses, and consistent electrical properties.

4. Key Features and Benefits of Double Twist Bunching Machines

Before exploring exactly how these machines prevent defects, let us outline the core features and benefits that define them:

• Consistent Tension Control
  A hallmark of modern Double Twist Bunching Machines is the sophisticated tension regulation system that continuously measures and adjusts tension on each strand. This prevents the overstretching or slack that leads to kinking, tangling, and insulation damage.

• Precision Twisting Mechanics
  By rotating both ends of the cable simultaneously, a Double Twist Bunching Machine ensures that each turn of the twist is uniformly spaced. This symmetrical method mitigates the risk of misalignment and helps achieve near-flawless concentricity in the final cable bundle.

• High-Speed Operation Without Sacrificing Quality
  Many cable manufacturers must fulfill large orders under tight deadlines. Consequently, they require Wire Twisting Equipment capable of high throughput rates. A High-Speed Bunching Machine designed with robust components and advanced software can sustain faster twisting speeds without unwanted tension spikes or mechanical vibrations.

• Automation and User-Friendly Interfaces
  Features such as programmable logic controllers (PLCs), touchscreen interfaces, and real-time monitoring systems reduce the likelihood of operator errors. Automating critical parameters like feed rate, twist pitch, and reel changeover times elevates consistency and eases the workload on operators.

• Versatility in Handling Different Materials
  From copper to aluminum and from single- to multi-layer insulation systems, a well-built Double Twist Bunching Machine can handle diverse conductor types. This versatility enables manufacturers to serve a broad customer base while maintaining high quality standards.

5. How Double Twist Bunching Machines Prevent or Minimize Defects

The link between the machine’s engineering features and the most common defects in cable bundling is crucial to understand. Here is how the Double Twist Bunching Machine directly tackles each major defect type:

• Reduction of Strand Misalignment and Bending Stress
  Because the machine twists both ends in unison, each strand experiences roughly equal tension and movement. This synchronized twisting keeps strands in their designated positions within the cable bundle, preventing the layered misalignment that might compromise electrical or mechanical performance. By controlling bending stress as the strands rotate, the machine also reduces the risk of kinks forming.

• Maintaining Insulation Integrity Through Controlled Tension
  A significant factor behind insulation damage is irregular tension. Double Twist Bunching Machines employ closed-loop feedback systems to measure tension at multiple points on each strand, calibrating machine speed and spool feeding rates on the fly. This precision means that insulation rarely stretches beyond its elastic limit, thereby reducing the prevalence of tears or cracks.

• Superior Surface Finish and Reduced Abrasion
  High-precision guiding elements and smooth mechanical paths reduce friction between the cable and the machine’s contact surfaces. By ensuring that the cable glides smoothly—even at higher speeds—manufacturers mitigate the risks of scratching or scuffing. Regular machine maintenance, such as monitoring the condition of bows and pulleys, further bolsters surface quality.

• Real-Time Monitoring and On-the-Spot Corrections
  Modern Double Twist Bunching Machines often come equipped with sensors that detect variations in torque load or spool feed rates. When the machine detects tension anomalies or other early warning signs of product variation, it automatically adjusts parameters or alerts the operator, thereby halting the development of more serious defects.

• Optimized Performance at High Speeds
  With robust mechanical construction and balanced rotating components, a Double Twist Bunching Machine experiences less vibration and mechanical stress at elevated operating speeds. Consequently, manufacturers can swiftly ramp up production to meet demand without jeopardizing cable quality due to mechanical limitations.

6. Practical Considerations for Buyers

For those considering the adoption of a Double Twist Bunching Machine or an upgrade to a High-Speed Bunching Machine, several practical factors will guide effective decision-making:

• Identifying Production Requirements
  Buyers should assess the types of cables they produce, including strand counts, conductor materials (e.g., copper, aluminum), and insulation specifications. Understanding the diameter range and required twist pitch is also integral. A thorough analysis of annual production volume and typical order sizes helps pinpoint the machine that can handle required throughput without being under- or over-specified.

• Assessing Machine Specifications
  Key machine attributes—maximum twist speed, reel capacity, tension control range, and motor horsepower—should align with the needs of the production line. Some machines are designed for extremely fine wires, where tension must be minimal, while others handle heavier gauge conductors for power applications. Confirm compatibility with existing line equipment, such as pay-off stands and take-up reels, that are integral to the overall setup.

• Maintenance and Operator Training
  Even the best equipment requires consistent maintenance. Bows should be inspected, bearings lubricated, and electrical components calibrated at recommended intervals. Additionally, training programs should be established to help operators understand how to manage the machine’s control panel, load and unload reels safely, and respond correctly to alert signals.

• Return on Investment Calculation
  While robust Double Twist Bunching Machines may have higher upfront costs compared to basic twisting devices, it is critical to account for long-term savings. Reduced scrap, fewer reworks, and faster production start-ups add up significantly over time. Calculating return on investment (ROI) requires factoring in the cost of machine downtime, maintenance, labor, and the value of consistently high-quality cable output.

• Case Studies and Customer Testimonials
  Real-world examples can provide a valuable roadmap for prospective buyers. Look for testimonials from companies producing similar cables under comparable operating conditions. These insights can illuminate critical aspects such as service support from the manufacturer, machine reliability over time, and potential process optimizations discovered post-installation.

7. Conclusion

What ultimately causes defects in cable bundling is a predictable set of mechanical, material, and human factors. From misaligned strands and insulation damage to tangling and surface imperfections, each type of defect threatens manufacturing efficiency and final product reliability. However, by integrating a Double Twist Bunching Machine or another type of High-Speed Bunching Machine into the production line, manufacturers can systematically mitigate these challenges.

The distinct design features—balanced twisting, advanced tension control, and real-time monitoring—render the Double Twist Bunching Machine a truly transformative piece of Wire Twisting Equipment for modern cable production. Operators can achieve consistent quality, keep up with high-volume orders, and significantly reduce the occurrence of scrapped cable or quality-related downtime.

For prospective buyers, the path forward involves analyzing specific production needs and machine capabilities. Invest time in understanding twist speeds, tension range, and any optional features like automated reel loading. Ensure that you account for both the initial price of the machine and the long-term operational cost savings. Seek out testimonials or case studies from relevant industries to confirm that the equipment can handle your particular cable configurations under real-world conditions.

In an industrial environment that increasingly demands cables with zero tolerance for defects—whether for critical data lines, automotive wiring harnesses, or power distribution networks—the tools that enable reliable, repeatable, and efficient production are more valuable than ever. A Double Twist Bunching Machine checks all of these boxes. By addressing the core causes of cable bundling defects and offering robust, high-speed, automated functionalities, this technology paves the way toward a new standard of excellence in wire and cable manufacturing.

Ultimately, every cable producer aims to maintain peak performance while delivering products that meet or surpass industry standards. If you are looking to upgrade your equipment, streamline your production lines, or broaden the range of cables you can offer, investigating Double Twist or Cable Bunching Machine options is a logical next step. With the right Wire Twisting Equipment in place—and a commitment to robust operator training and materials management—defects can indeed be minimized, and productivity can thrive in even the most demanding market conditions.
