Air Coiling vs. Mandrel Coiling: Different Methods in Wire Cable Coiling Machine Design

Views: 1     Author: Site Editor     Publish Time: 2025-06-23      Origin: Site

1. Introduction: The Art and Science of Wire Cable Coiling

In the dynamic world of wire and cable production, the journey from raw material to finished product culminates in a critical step: coiling. This seemingly straightforward process is, in fact, an art and a science, directly influencing the final product's quality, ease of handling, and market appeal. For professionals seeking a new Wire Cable Coiling Machine, understanding the nuanced differences between coiling methodologies is paramount. This article delves into the two primary design philosophies: Air Coiling and Mandrel Coiling. Our goal is to equip you with the insights needed to make an informed decision, addressing common questions and helping you select the optimal coiling solution for your specific needs.

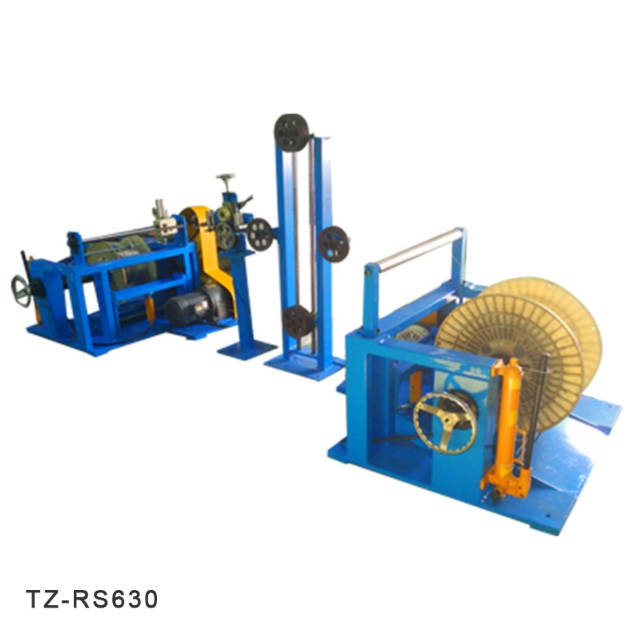

Snipaste_2025-07-07_16-23-37


2. Understanding the Coiling Fundamentals: How It Works

Before dissecting the specific coiling methods, let's briefly touch on the fundamental purpose and general components of a Wire Cable Coiling Machine.

2.1 The Purpose of Coiling

Coiling is far more than just winding up cable; it's a strategic process designed to:

  • Protect the Cable: A well-formed coil protects the conductor and insulation from damage during storage and transport.

  • Ensure Ease of Handling: Coils are designed for convenient dispensing, whether on a job site or in a retail setting.

  • Optimize Storage and Transportation: Compact, uniform coils maximize space efficiency.

  • Enhance Aesthetics and Market Presentation: A neat, professional-looking coil reflects positively on product quality and brand image.

2.2 Key Components of a Wire Cable Coiling Machine (General)

Regardless of the coiling method, most Wire Cable Coiling Machines share core components that facilitate the process:

  • Pay-off Stand: Holds the large spool of finished cable from which the coiling machine draws material.

  • Tension Control System: Crucial for maintaining consistent tension on the cable as it's coiled, preventing stretching or slack.

  • Traversing Mechanism: Guides the cable neatly side-to-side to ensure even winding and a uniform coil width.

  • Coiling Head/Station: The heart of the machine, where the cable is actually formed into a coil.

  • Take-up System: Typically includes a strapping or tying unit to secure the finished coil.


3. Deep Dive into Coiling Methods: Air Coiling

Air coiling represents a modern and increasingly popular approach, especially for flexible cables.

3.1 Principle of Air Coiling

In Air Coiling, the cable is formed into a coil without a physical core or mandrel. Instead, a precise ballet of rotating arms or "fingers" guides and forms the cable into its desired coil shape. The machine's sophisticated control systems continuously adjust speed and tension, ensuring the cable maintains its integrity and takes on a consistent form as it's laid down. This method relies heavily on the cable's inherent flexibility and the machine's precise management of force and trajectory. Leading Wire Cable Coiling Machine manufacturers continually innovate in this area to achieve superior coil quality.

3.2 Advantages of Air Coiling

Air coiling offers compelling benefits that drive efficiency and versatility:

  • Exceptional Flexibility: One of the most significant advantages. Air coiling machines allow for easy, tool-less adjustment of coil diameters and widths. This makes them incredibly versatile for production lines handling diverse product specifications, minimizing changeover times.

  • Reduced Handling and Faster Cycles: With no mandrels to load or unload, the coiling process is streamlined. This eliminates a significant manual intervention point, leading to faster cycle times and increased throughput.

  • Lower Consumables Cost: The absence of physical mandrels means there's no need for reusable mandrel management or the ongoing expense of disposable ones. This contributes directly to lower operating costs.

  • Gentle on Cable: By avoiding direct contact with a rigid mandrel, there's inherently less stress applied to the cable during coiling. This reduces the risk of insulation damage, deformation, or stretching, particularly beneficial for sensitive cables.

  • Versatility in Cable Types: Air coiling is suitable for a wide range of flexible cable types, especially those designed to be easily dispensed without tangling, such as REELEX coils.

3.3 Limitations/Considerations for Air Coiling

While highly advantageous, air coiling isn't a universal solution:

  • Sophisticated Control Systems: Achieving and maintaining perfect coil integrity in the air often requires more advanced and precise control systems, which can add to the machine's complexity and initial cost.

  • Suitability for Stiff Cables: It can be less suitable for very stiff or large-diameter cables that possess significant "memory" and struggle to hold their circular shape without the consistent internal support of a mandrel.

  • Potential for Less Compact Coils: Without the constraint of a physical core, there's a theoretical potential for slightly less compact coils if tension and forming are not precisely controlled.

  • Cable Property Dependence: Optimal air coiling relies on the cable itself having certain properties (e.g., flexibility, minimal memory) to naturally form a stable, round coil.

3.4 Typical Applications for Air Coiling Machines

Air coiling machines are the go-to choice for a variety of products, including:

  • Flexible power cords and extension cords

  • Communication cables (e.g., LAN cables, patch cords, telephone cables)

  • Speaker wires

  • Smaller diameter control cables

  • Specialty cables designed for tangle-free dispensing systems (e.g., REELEX style coils)


4. Deep Dive into Coiling Methods: Mandrel Coiling

Mandrel coiling represents a more traditional approach, particularly valuable for rigid or heavy cables.

4.1 Principle of Mandrel Coiling

Mandrel coiling involves winding the cable directly onto a physical core or "mandrel". This mandrel, often made of steel or sturdy plastic, dictates the inner diameter of the coil. As the cable is laid onto the rotating mandrel, the traversing system ensures uniform winding. Once the coiling is complete, the mandrel is either withdrawn (if collapsible or removable) or remains as part of the finished package (if disposable). Wire Cable Coiling Machine suppliers offer a wide array of mandrels to suit various cable types and coil dimensions.

4.2 Advantages of Mandrel Coiling

Mandrel coiling provides distinct benefits, especially for more demanding cable types:

  • Superior Coil Stability and Uniformity: The presence of a physical core ensures a highly stable and precisely formed coil. This is particularly crucial for stiffer cables that need continuous internal support to maintain their shape.

  • Achieves Compactness: Mandrel coiling can typically achieve tighter, more compact coils, which can be advantageous for optimizing storage density or meeting specific packaging requirements.

  • Robust Support for Stiff Cables: For cables with inherent memory, high rigidity, or large diameters that resist bending, mandrel coiling provides the essential support to force them into the desired coil configuration.

  • Simpler Mechanical Design (in some cases): While not universally true, some basic mandrel coiling systems can have a simpler mechanical design compared to the intricate controls needed for air coiling.

  • High Consistency: Due to the fixed nature of the mandrel, this method provides highly repeatable results for identical coil dimensions.

4.3 Limitations/Considerations for Mandrel Coiling

However, mandrel coiling comes with its own set of challenges:

  • Limited Flexibility and Increased Changeover Time: This is a key drawback. Different mandrels are required for each specific coil diameter, leading to significant changeover time and the need for a large inventory of tooling.

  • Increased Handling and Labor: The processes of loading and unloading mandrels, along with their storage and management, add to cycle time and labor requirements. This can impact overall production efficiency.

  • Potential for Cable Stress: The cable can experience more localized stress during the winding process, especially upon mandrel withdrawal, potentially leading to insulation deformation or minor structural changes.

  • Consumables and Logistics: If disposable mandrels are used, this adds an ongoing material cost. If reusable, they require substantial storage space and a robust logistics system to manage their return and reuse.

4.4 Typical Applications for Mandrel Coiling Machines

Mandrel coiling machines are preferred for:

  • Heavy power cables and distribution cables

  • Rigid control cables with multiple cores

  • Specialty cables with unique or non-circular cross-sections

  • Longer length coils where stability during storage and transportation is paramount

  • Any cable type where a perfectly defined inner coil diameter is a critical specification.


5. Head-to-Head Comparison: Choosing the Right Wire Cable Coiling Machine

Let's summarize the core differences to help guide your decision:

Feature

Air Coiling

Mandrel Coiling

Coil Diameter Adjustability

High (tool-less, highly flexible)

Low (requires specific mandrels for each size)

Coil Stability (Internal)

Good (dependent on cable & control)

Excellent (mandrel provides rigid support)

Cable Stress During Coiling

Lower (gentler process)

Higher (especially during withdrawal)

Changeover Time

Minimal (fast product changes)

Higher (mandrel changeover and handling)

Tooling/Consumables

Minimal/None (no mandrels needed)

Mandrels (reusable or disposable, adds cost)

Automation Potential

Very High (less manual intervention)

Moderate (mandrel handling can be automated, but adds complexity)

Suitable Cable Types

Flexible, small-to-medium diameter, communication, automotive, appliance cables

Stiff, large diameter, heavy power, control, specialty cables

Space Requirement

Often more compact

Can require more space for mandrel storage and handling


5.1 Flexibility and Changeover

Air coiling machines hold a significant advantage in terms of flexibility and rapid changeover. Their ability to adjust coil dimensions via software or simple mechanical adjustments, without the need to swap physical mandrels, makes them ideal for environments with diverse product lines and frequent changeovers.

5.2 Coil Quality and Stability

For cables that inherently struggle to hold their shape (e.g., very stiff, large-diameter cables), mandrel coiling provides superior internal coil stability and uniformity. The fixed support ensures a consistent inner diameter and a tightly wound, structurally sound coil.

5.3 Throughput and Automation Potential

Due to the absence of mandrel handling, air coiling often allows for higher throughput and greater automation potential. The continuous nature of the process with minimal manual intervention streamlines production. While mandrel loading/unloading can be automated, it adds layers of mechanical complexity and still represents a discrete step.

5.4 Investment and Operating Costs

The initial investment for a sophisticated air coiling machine with advanced controls might be comparable to or slightly higher than a basic mandrel coiler. However, operating costs for air coiling are generally lower due to reduced labor, absence of mandrel procurement/management costs, and often greater energy efficiency (as there’s no heavy mandrel to rotate).

5.5 Cable Type Suitability

This is perhaps the most critical differentiator. If your cables are generally flexible, smaller to medium in diameter, and prioritize tangle-free dispensing, an air coiling machine from a reputable Wire Cable Coiling Machine factory is likely your best bet. If you're dealing with stiff, heavy, large-diameter cables where internal coil support and consistent geometry are paramount, then a mandrel coiling machine is the more robust and appropriate solution.


6. Addressing Common User Questions

Let's tackle some frequently asked questions that arise when considering these coiling methods:

  • "Can an air coiling machine handle very stiff cables?" While air coiling excels with flexible cables, its effectiveness diminishes significantly with very stiff cables that possess strong "memory." These cables may not hold their shape well without the continuous internal support of a mandrel, leading to loose, unstable, or non-uniform coils. Specialized air coiling designs can push these limits, but generally, there's a threshold where mandrel coiling becomes necessary.

  • "What type of cable benefits most from tangle-free (REELEX) coiling?" Tangle-free coiling, often achieved through specific air coiling designs, primarily benefits flexible, smaller-to-medium diameter cables that are typically dispensed by end-users (e.g., LAN cables, patch cords). The unique figure-eight or random wind pattern prevents the cable from twisting upon dispensing, greatly enhancing user experience.

  • "Are automated mandrel loading/unloading systems common?" Yes, for high-volume production using mandrel coiling, automated systems for loading empty mandrels and unloading full coils are quite common. These systems significantly reduce manual labor and improve cycle times, though they add to the initial machine complexity and investment.

  • "How does cable memory affect the choice between the two methods?" Cable memory – its tendency to revert to its original straightened form – is a crucial factor. Cables with high memory are challenging for air coiling as they resist forming a stable coil in the air. For such cables, the rigid support of a mandrel is often essential to overcome this memory and achieve a tightly formed, consistent coil.

  • "What impact does the coiling method have on downstream packaging?" The coiling method directly influences the shape and stability of the coil, which in turn dictates the type of packaging required. Air coiled bundles often fit well into carton boxes or can be strapped directly. Mandrel coiled bundles, especially large or stiff ones, may require more robust strapping, specialized pallets, or even custom cradles for transport.

  • "Can a Wire Cable Coiling Machine be designed with both capabilities?" While a single machine rarely features seamlessly interchangeable air and mandrel coiling heads due to their fundamentally different mechanical designs, some Wire Cable Coiling Machine manufacturers or Wire Cable Coiling Machine suppliers might offer modular lines where different coiling stations (air or mandrel) can be integrated downstream, allowing for a versatile overall production setup.


7. Conclusion: Strategic Investment in Coiling Technology

The choice between an Air Coiling and a Mandrel Coiling machine is a strategic investment that profoundly impacts your production efficiency, product quality, and cost-effectiveness. There's no universally "superior" method; the optimal decision hinges entirely on the specific properties of the cable you produce, your desired coil characteristics, and your overall production goals.

For nimble, high-speed production of flexible, smaller-to-medium diameter cables, an Air Coiling Machine from a leading Wire Cable Coiling Machine factory offers unparalleled flexibility and operational efficiency. Conversely, for robust, high-stability coiling of stiff, large-diameter, or heavy cables, the steadfast support of a Mandrel Coiling machine remains the reliable choice.

We strongly encourage you to engage directly with reputable Wire Cable Coiling Machine manufacturers or Wire Cable Coiling Machine suppliers. Provide them with detailed specifications of your cables and your production volume. This collaborative approach will enable them to offer expert insights, potentially conduct trials with your specific materials, and ultimately guide you to the precise Wire Cable Coiling Machine that will serve as a valuable asset to your operations, driving both efficiency and unwavering quality.
