Choosing Twist Bunching Machine: Double Twist Bunching vs. Tubular Stranding

Views: 2     Author: Site Editor     Publish Time: 2025-06-18      Origin: Site

1. Introduction: The Critical Choice in Wire Assembly

In the intricate world of wire and cable manufacturing, the process of combining multiple individual wires into a unified conductor is foundational. This crucial step, often referred to as bunching or stranding, directly impacts the final product's electrical performance, mechanical flexibility, and overall quality. For professionals tasked with specifying equipment, making the right choice between different machine technologies is paramount. This article aims to guide you through the decision-making process, focusing on two dominant technologies: Double Twist Bunching (DTB) and Tubular Stranding. We'll address common questions and considerations to help you select the optimal solution for your specific cable production needs, ensuring you find the best Twist Bunching Machines to meet your requirements.

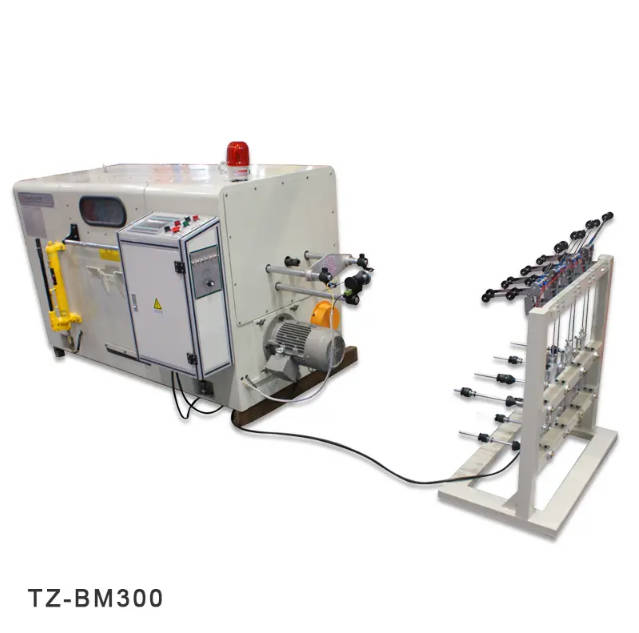

Snipaste_2025-06-30_17-40-59

2. Understanding the Fundamentals: What Each Technology Does

Before diving into comparisons, it's essential to grasp the core mechanics of each technology.

2.1 Double Twist Bunching (DTB) Explained

The Double Twist Bunching (DTB) machine is a highly efficient solution for twisting multiple wires together to form a concentric conductor. Its defining characteristic is the "double twist" mechanism. Wires are fed from individual spools, guided through a central die, and then wrapped around a rotating bow. Each full rotation of the bow imparts two twists into the wire bundle – one as the wires enter the bow and another as they exit. The finished conductor is then taken up onto a spool. This continuous twisting action, without the need for the supply spools to rotate, is what allows for high production speeds. Many leading Twist Bunching Machines manufacturers specialize in optimizing this design for various wire types.

2.2 Tubular Stranding Explained

Tubular Stranding machines, conversely, operate on a different principle. In this setup, individual wire spools are loaded into a large, rotating "cage" or "tube." As the entire tube rotates, the wires are laid up around a central core wire or former, forming a concentrically stranded conductor. The take-up bobbin typically rotates in sync with the cage, ensuring a precise lay length. This method is often associated with heavier-duty applications and can accommodate a significantly higher number of wires than a typical DTB machine. You'll find many reputable Twist Bunching Machines suppliers offering robust tubular stranding solutions for demanding applications.


3. Performance Metrics and Operational Advantages: A Direct Comparison

Understanding the operational differences is key to making an informed investment.

3.1 Production Speed and Efficiency

Double Twist Bunching machines generally offer significantly higher production speeds, particularly for finer wires and lower strand counts. Because the supply spools remain stationary, the only rotating mass is the lightweight bow, allowing for very high RPMs and thus a high number of twists per minute. This translates to substantial throughput.

Tubular Stranding machines, while efficient in their own right, operate at slower speeds. The need to rotate the entire cage containing numerous heavy spools limits the achievable RPM. However, what they lack in raw speed for finer wires, they make up for in capacity for larger bundles or more wires per lay.

3.2 Wire Diameter and Strand Count Capabilities

For Double Twist Bunching, the sweet spot typically lies with fine to medium gauge wires, accommodating anything from delicate single strands up to configurations of 7, 19, 37, or even 61 wires. They are excellent for producing highly flexible conductors.

Tubular Stranding excels with larger gauges, higher strand counts, and often serves as a preliminary step for stranding multiple layers of conductors into robust power cables or ropes. If your production involves hundreds of wires or substantial cross-sections, tubular stranding is often the go-to solution.

3.3 Lay Length and Product Quality

Both technologies can achieve excellent product quality, but with nuances. DTB machines provide remarkably consistent lay length, which is crucial for achieving uniform electrical properties and excellent flexibility in the final conductor. The inherent back-twist capability in many DTB designs also helps to minimize torsion in the individual wires, enhancing conductor fatigue resistance.

Tubular Stranding offers very precise control over the lay length due to the synchronized rotation of the cage and take-up. This precision is often preferred for more rigid or compact conductors where specific geometric arrangements are critical.

3.4 Energy Consumption and Noise Levels

DTB machines are generally more energy-efficient as they involve less rotating mass, leading to lower power consumption during operation. Their design also typically results in quieter operation compared to tubular stranders.

Tubular Stranding machines, with their heavy rotating cages, naturally consume more energy. They can also generate higher noise levels, necessitating stricter acoustic insulation in the production environment. When considering a Twist Bunching Machines factory setup, these environmental factors are important.

3.5 Maintenance and Downtime

Double Twist Bunching machines are typically easier to operate and maintain. Threading is generally simpler, and bobbin changes are quicker, contributing to less downtime. This ease of use often makes them a preferred choice for high-volume production lines.

Tubular Stranding machines can have more complex threading procedures and longer setup times due to the large number of spools and the sheer size of the machine. Maintenance can also be more involved, given the larger number of rotating components.

Feature

Double Twist Bunching (DTB)

Tubular Stranding

Speed

High (especially for fine/medium wires)

Moderate (higher capacity for large bundles)

Wire Diameter

Fine to Medium Gauge

Medium to Large Gauge

Strand Count

Typically up to 61 wires

High (hundreds of wires possible)

Lay Length

Consistent, good for flexibility

Very precise, good for rigid/compact conductors

Energy Usage

Lower (less rotating mass)

Higher (heavy rotating cage)

Noise Level

Lower

Higher

Maintenance/Downtime

Easier threading, quicker changes, less downtime

More complex threading, longer setup, higher maintenance

Flexibility of Conductor

High

Moderate to Low (depending on construction)


4. Application Suitability: Matching Technology to Your Product

The ultimate decision hinges on the specific characteristics of the cable you intend to produce.

4.1 When to Choose Double Twist Bunching (DTB)

Double Twist Bunching machines are the workhorses for applications requiring high flexibility, consistent quality, and efficient production of bunched conductors. If your product line includes:

  • Data cables (e.g., Cat5/6/7)

  • Automotive wiring

  • Electronic wires

  • Speaker wires

  • Appliance cords

  • Flexible power cords

...then a DTB machine from a reputable Twist Bunching Machines supplier is likely your ideal choice. They are particularly adept at handling insulated wires without damage due to the precise tension control and gentle handling.

4.2 When to Choose Tubular Stranding

Tubular Stranding machines are indispensable for robust, high-capacity applications where large cross-sections, high strand counts, or complex stranding patterns are required. Consider tubular stranding if you are producing:

  • Large power transmission cables

  • Overhead conductors

  • Control cables with numerous cores

  • Steel wire ropes

  • Submarine cables

  • Preliminary stranding of segments for very large conductors

This technology provides the mechanical stability and capacity needed for such demanding products.


5. Key Considerations for Your Investment

Beyond the technical specifications, several practical factors will influence your purchase decision.

5.1 Initial Investment Cost

Generally, for comparable throughput of finely stranded conductors, Double Twist Bunching machines may have a lower initial entry cost. However, the investment heavily depends on the machine's capacity, level of automation, and specific features. Tubular stranders, especially large-scale ones, typically represent a more significant capital outlay.

5.2 Operating Costs

Consider the long-term picture: energy consumption, maintenance frequency and cost, and labor requirements. As discussed, DTB machines usually offer lower operating costs due to their efficiency and simpler maintenance.

5.3 Space Requirements

If factory floor space is at a premium, Double Twist Bunching machines are typically more compact than their tubular counterparts, which can occupy considerable linear space due to their rotating cages and associated infrastructure. This is a crucial factor when designing or expanding your Twist Bunching Machines factory.

5.4 Operator Skill Level

While modern machines from top Twist Bunching Machines manufacturers feature advanced HMIs and automation, DTB machines are generally more straightforward to operate and require less specialized training for routine tasks. Tubular stranders, due to their complexity and size, may require more experienced operators and technicians.

5.5 Future Expansion and Versatility

Think about your future product roadmap. Can the chosen machine adapt to varying wire sizes, strand counts, or new cable designs? Some machines offer modular designs allowing for upgrades, while others are highly specialized.


6. Common Questions Addressed

Here are answers to some frequently asked questions from users considering bunching machines:

  • "Can a DTB machine handle insulated wires?" Yes, most modern Double Twist Bunching machines are perfectly capable of handling insulated wires without damaging the insulation, thanks to precise tension control systems and specialized guides. This is a major advantage for producing flexible control or communication cables.

  • "Is tubular stranding always necessary for very large cables?" While tubular stranding is highly effective for large, high-strand-count cables, advancements in DTB technology have pushed their upper limits. However, for extremely large cross-sections or very high numbers of wires (e.g., hundreds), tubular stranding often remains the most practical and efficient solution due to its inherent design for heavier loads.

  • "What are the limitations of Double Twist Bunching for very high strand counts?" For very high strand counts (e.g., over 91 wires), the physical size and rotational inertia of the bow in a DTB machine can become limiting, affecting speed and efficiency. Additionally, achieving perfect concentricity with a very large number of wires in a single pass can be challenging compared to the precise lay-up of a tubular strander.

  • "How does back-twist affect conductor properties in each machine type?" In Double Twist Bunching machines, the back-twist mechanism (often controlled electronically) ensures that the individual wires entering the bunching point are untwisted before they are laid up. This significantly reduces residual torsion in the finished conductor, enhancing its flexibility and fatigue resistance. Tubular stranders, while not inherently imparting back-twist in the same way, achieve precise lay lengths through their rotational mechanics.

  • "What's the typical lifespan of these machines, and what factors influence it?" Both types of machines, when sourced from reputable Twist Bunching Machines manufacturers, are built for durability and long service life, often exceeding 15-20 years with proper maintenance. Factors influencing lifespan include the quality of components, regularity of preventive maintenance, operating conditions (e.g., cleanliness, temperature), and the intensity of use. Investing in machines with readily available spare parts from your chosen Twist Bunching Machines suppliers is also key.


7. Conclusion: Making an Informed Decision

Choosing between Double Twist Bunching and Tubular Stranding is a strategic decision that will impact your production capabilities, product quality, and long-term operational costs. There is no single "best" machine; the optimal choice depends entirely on your specific product portfolio, desired output, wire materials, and quality requirements.

For high-speed production of flexible, fine to medium-gauge bunched conductors, the efficiency and precision of Double Twist Bunching Machines are often unmatched. For heavier, larger-diameter cables requiring high strand counts and robust construction, Tubular Stranding machines provide the necessary power and capacity.

We highly recommend engaging directly with experienced Twist Bunching Machines manufacturers or Twist Bunching Machines suppliers. Share your detailed product specifications and production goals. They can provide tailored advice, conduct trials, and help you select the precise machine configuration that will drive the greatest efficiency and quality for your cable production line.
