In the high-precision world of wire and cable manufacturing, the quality of your finished product is dictated by the mechanics of your bunching process. Whether you are producing standard power cables or high-frequency data transmission lines, the choice between a Back Twist Bunching Machine and a Non Back Twist Bunching Machine is one of the most critical technical decisions you will make.
This guide provides a comprehensive technical breakdown to help engineers and procurement specialists understand the structural differences, performance metrics, and ROI implications of these two technologies.
To understand the difference, we must first look at the physics of a "twist." In a standard wire bunching process, multiple individual strands are twisted together to form a single conductor. However, how those individual strands behave during the rotation determines the mechanical stress left within the cable.
In a non-back twist (or regular) bunching machine, the payoff reels are stationary or rotate in a way that allows the individual wires to twist around their own axes as they are being bunched. A non-back twist bunching machine creates residual torsion in the individual strands because the wire is twisted once around the bundle and once around its own axis for every lay length.
This results in "stored energy" within the conductor. If you cut a non-back-twist cable, the strands often tend to "fray" or "spring back" because of this internal stress.
A Back Twist Bunching Machine utilizes a specialized payoff system (often planetary or with a dedicated untwisting mechanism) that rotates the individual wire bobbins in the opposite direction of the main twist. The fundamental principle of back twist bunching is to neutralize the torsion of individual strands by rotating the payoff bobbins 360° in the opposite direction for every 360° of the bunching rotation, resulting in a stress-free "dead" conductor.

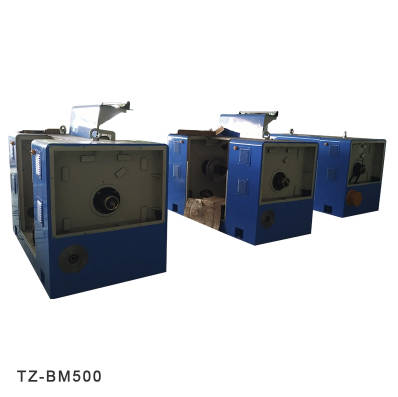

Non-back twist machines, often referred to as Double Twist Bunching Machines or High-Speed Bunchers, are the workhorses of the general cable industry.
High-Speed Production: Because the payoff system is relatively simple, these machines can reach incredibly high RPMs (often between 2,000 to 4,000 twists per minute).
Operational Simplicity: With fewer moving parts in the payoff section, maintenance is straightforward and requires less specialized technical training.
Lower Capital Expenditure (CAPEX): These machines are significantly more affordable than back-twist counterparts, making them ideal for high-volume, low-margin products.
The primary drawback is Residual Torsion. For high-end electronics, this torsion can lead to:
Kinking: The wire may twist into loops during subsequent processing.
Inconsistent Diameter: Internal stress can cause slight variations in the conductor's outer diameter (OD).
Reduced Flex Life: In robotic applications, residual stress leads to faster metal fatigue.
Non back twist bunching machines are the industry standard for manufacturing building wires, THHN/THWN cables, automotive primary wires, and standard flexible power cords where mechanical stress does not impact electrical performance.
As cable specifications move toward 5G, 6G, and high-speed automation, the Back Twist machine has become a necessity rather than an option.
In high-frequency data cables (like CAT6A, CAT7, or HDMI 2.1), the physical geometry of the strands must be perfect. Any internal twist in the individual copper strands can cause variations in impedance and increase "crosstalk" (interference).
Planetary Payoff: The bobbins are mounted on a carriage that keeps them in a constant vertical orientation even as the entire unit rotates.
Active Tension Control: Precision sensors ensure that every strand—from the inner layer to the outer layer—has identical tension, preventing "birdcaging."
Programmable Back-Twist Ratio: Modern machines allow users to adjust the ratio (e.g., 33%, 50%, or 100% back-twist) to suit specific material properties.
The primary advantage of back twist bunching is the production of "dead" strands—conductors with zero residual torsion—which ensures consistent electrical properties and superior flexibility for high-frequency data cables and robotic applications.
The following table summarizes the key performance indicators (KPIs) for both machine types:
Feature | Non Back Twist Machine | Back Twist Machine |
Primary Goal | High Output / Speed | Stress-Free Quality |
Max RPM (Average) | 2,500 - 4,500 RPM | 500 - 1,200 RPM |
Internal Stress | High (Residual Torsion) | Zero to Minimal |
Best For Materials | Copper, Aluminum, CCA | Silver-plated Copper, Alloy, Ultra-fine Wire |
Typical Products | Power cables, House wiring | LAN cables (Cat 6/7/8), Medical, Aerospace |
Footprint | Compact | Large (Requires Payoff Space) |
Price Point | Competitive / Low | Premium / High |
If your facility is moving toward high-value specialized cables, you must evaluate the following scenarios:
For Ethernet cables (Cat 6 and above), the "lay length" must be perfectly consistent. Back twist bunching is non-negotiable for high-frequency cables because it prevents the individual strands from shifting during the insulation and jacketing process, thereby maintaining structural return loss (SRL) within strict limits.
Cables used in industrial robots undergo millions of bending cycles. A non-back-twist conductor has "built-in" stress that pushes against the insulation from the inside. A back-twist conductor sits "dead" inside the jacket, significantly extending the cable’s flex life and preventing premature failure in the field.
When dealing with ultra-fine wires (sometimes thinner than a human hair), even a small amount of torsion can cause the wire to snap during the bunching process. Back-twist machines provide the gentle handling required for these delicate materials.
Choosing the right machine is a balance between Output Volume and Market Positioning.
The Case for Non Back Twist: If you are competing in a market where "Price per Meter" is the only metric (like standard household wire), the speed of a double-twist non-back-twist machine is essential to maintain profitability.
The Case for Back Twist: While the machine is slower and more expensive, it allows you to enter the High-Margin markets (Medical, 5G, EV, Defense). The "scrap rate" for high-end cables is also significantly lower on back-twist machines because the wire behavior is more predictable.
Even with the best machine, manufacturers often face technical hurdles. Here are the most common questions from our users:
"Birdcaging" occurs when the outer strands are longer than the inner strands, causing them to bulge outward like a cage.
Solution: In non-back-twist machines, check the over-run tension. In back-twist machines, ensure your back-twist ratio is matched to the lay length.
Technically, yes, for Cat 5. However, for Cat 6 and above, you will likely fail the "Return Loss" and "Crosstalk" tests during quality control. The residual torsion creates "periodic irregularities" that disrupt the signal.
Daily: Check ceramic eyelets for wear (grooves in eyelets cause wire scratches).
Weekly: Inspect tension brake pads.
Monthly: Lubricate planetary gears (for back-twist models) and check flyer balance.
Deciding between a Back Twist and Non Back Twist Bunching Machine depends entirely on your end product's requirements. If speed and cost-efficiency for basic electrical conductors are your goals, the Non Back Twist machine is your best asset. However, if you are looking to future-proof your factory for the demands of high-speed data, electric vehicles, and robotics, the precision of a Back Twist machine is a mandatory investment.
When selecting a machine, always prioritize tension consistency and the ability to handle the specific tensile strength of your raw materials to ensure long-term production stability.
