Industrial Silicone Plastic Cable Wire Extruder Line | TaiZheng

HS code：84772090
Model：TZ-ES(45-120)
Application：Silicone Cable
Suitable materials：silicone rubber HTV,RTV...etc
Production capacity：120 m/min（OD=4.0,T=0.8mm）
Warranty：12 months


Availability:



Inquire

Industrial Silicone Plastic Cable Wire Extruder Line

Silicone rubber cables offer excellent properties against fire protection demands, can be used on many different applications requesting extreme environments and temperature ranges between-55℃ and up to 260℃ without loosing any one of their physical properties.
Silicone rubber cables are flame resistance and low smoke.
TAIZHENG produces the whole range of extrusion lines for silicone cables equipped with a combination of infrared and hot air tunnel curing ovens that keeps the cable clean allowing to be used on medical equipment.
Prepared with feeding rolls design.
Short screw length(L/D )ratio(14D)optimized for processing silicone rubbers.
Water cooling with temperature regulation on barrel zones and screw.
Self-centering water cooling cross-heads with thermo regulation.

wire extruder wire extruder line cable extruder industrial extruder plastic Extruder Silicone Wire Extruder

Product Message

Related Products

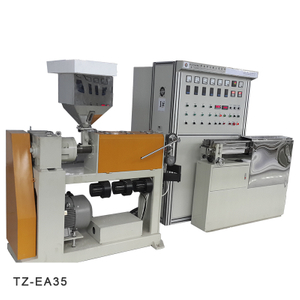

ABS Filament Extruder | Plastic Extrusion Machines | TaiZheng

Rubber Extrusion Line | Extrusion Machinery - TaiZheng

Teflon Extruder | Wire Cable Extrusion Machine - TaiZheng

PVC Coating Extruder

Model	Screw Diam	L/D Ratio	Screw Speed	Silicone Output	Main Motor
TZ-ES45	45 mm	14:1	80 rpm	40 kg/hr	11kw
TZ-ES65	65 mm	14:1	80 rpm	100 kg/hr	22kw
TZ-ES80	80 mm	14:1	80 rpm	180 kg/hr	30kw
TZ-ES90	90 mm	14:1	70 rpm	280 kg/hr	55kw
TZ-ES120	120 mm	14:1	60 rpm	400 kg/hr	90kw

LINE COMPOSITION		EXTRUSION LINE MODEL
LINE COMPOSITION		TZ-ES45	TZ-ES65	TZ-ES80	TZ-ES90	TZ-ES120
Pay-off	Active pay-off	●	●	○	○	○
Pay-off	Passive pay-off	○	○	●	●	●
Wire straightener		●	●	●	●	●
Pre-heater		○	○	—	—	—
Powder applicator		—	○	○	○	○
Single screw extruder		●	●	●	●	●
Cross-head	Self-centering	●	●	○	○	○
Cross-head	Manual adjustable	○	○	●	●	●
Granules/stripe feeding device	Hopper dryer	○	○	○	○	○
Granules/stripe feeding device	Silicone Stripe feeder	●	●	●	●	●
infrared ray vulcanizing oven		○	○	○	○	○
Printing device	Ink-jet printer	○	○	○	○	○
Printing device	Gravure printing device	●	●	●	●	●
Laser diameter gauge	X single dimensional	●	●	●	●	●
Laser diameter gauge	X-Y two dimensional	○	○	○	○	○
Hot air tunnel curing oven		●	●	●	●	●
Capstan	Dual wheel capstan	●	●	●	●	○
Capstan	Caterpillar	—	—	○	○	●
Accumulator	Horizontal accumulator	●	●	●	●	○
Length counter	Encoder type	●	●	●	●	●
Spark tester(customer-specified)		○	○	○	○	○
Oil finish device		○	○	○	○	○
Take-up	Dual bobbin use	●	●	●	○	○
Take-up	Single bobbin use	○	○	○	●	●
Line control system	HMI	●	●	●	●	●
Line control system	HMI+IPC	○	○	○	○	○
Remarks		● Standard/○ Optional/ —None

Model	Screw Diam	L/D Ratio	Screw Speed	Silicone Output	Main Motor
TZ-ES45	45 mm	14:1	80 rpm	40 kg/hr	11kw
TZ-ES65	65 mm	14:1	80 rpm	100 kg/hr	22kw
TZ-ES80	80 mm	14:1	80 rpm	180 kg/hr	30kw
TZ-ES90	90 mm	14:1	70 rpm	280 kg/hr	55kw
TZ-ES120	120 mm	14:1	60 rpm	400 kg/hr	90kw

LINE COMPOSITION		EXTRUSION LINE MODEL
LINE COMPOSITION		TZ-ES45	TZ-ES65	TZ-ES80	TZ-ES90	TZ-ES120
Pay-off	Active pay-off	●	●	○	○	○
Pay-off	Passive pay-off	○	○	●	●	●
Wire straightener		●	●	●	●	●
Pre-heater		○	○	—	—	—
Powder applicator		—	○	○	○	○
Single screw extruder		●	●	●	●	●
Cross-head	Self-centering	●	●	○	○	○
Cross-head	Manual adjustable	○	○	●	●	●
Granules/stripe feeding device	Hopper dryer	○	○	○	○	○
Granules/stripe feeding device	Silicone Stripe feeder	●	●	●	●	●
infrared ray vulcanizing oven		○	○	○	○	○
Printing device	Ink-jet printer	○	○	○	○	○
Printing device	Gravure printing device	●	●	●	●	●
Laser diameter gauge	X single dimensional	●	●	●	●	●
Laser diameter gauge	X-Y two dimensional	○	○	○	○	○
Hot air tunnel curing oven		●	●	●	●	●
Capstan	Dual wheel capstan	●	●	●	●	○
Capstan	Caterpillar	—	—	○	○	●
Accumulator	Horizontal accumulator	●	●	●	●	○
Length counter	Encoder type	●	●	●	●	●
Spark tester(customer-specified)		○	○	○	○	○
Oil finish device		○	○	○	○	○
Take-up	Dual bobbin use	●	●	●	○	○
Take-up	Single bobbin use	○	○	○	●	●
Line control system	HMI	●	●	●	●	●
Line control system	HMI+IPC	○	○	○	○	○
Remarks		● Standard/○ Optional/ —None
