Views: 0 Author: Site Editor Publish Time: 2026-09-28 Origin: Site
Table of Contents

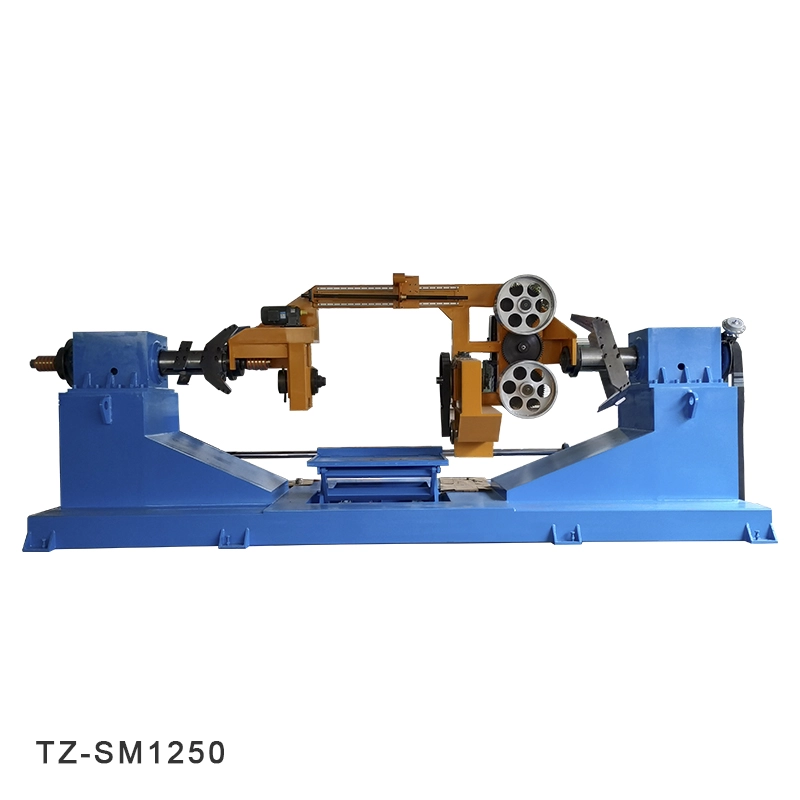

A double twist bunching machine operates at high rotational speeds to strand multiple copper conductors into uniform bundles. In wire and cable manufacturing, equipment reliability directly governs strand tension, pitch accuracy, and scrap rates. Unplanned downtime caused by component wear stalls downstream extrusion lines and wastes raw copper through sudden line breaks. Implementing a structured preventive maintenance program protects mechanical alignment, stabilizes dynamic tension, and extends the service life of critical assemblies.
This guide provides a practical, time-based maintenance checklist for double twist copper wire bunching equipment. It covers high-wear components, routine inspection intervals, thermal and lubrication parameters, and defect-driven troubleshooting steps to keep manufacturing lines operating within design specifications.
In high-speed double twist bunching, two twists are inserted into the conductor bundle for every single revolution of the flyer bow. A machine running at 2,000 RPM introduces 4,000 twists per minute. At these rotational velocities, minor mechanical misalignments, dynamic imbalances, or worn wire contact points create compounding physical stress.
Reactive maintenance—waiting for a component to break before servicing—introduces three major operational penalties:
High Material Scrap: An unexpected shutdown at operating speed often snaps fine copper strands inside the closing die or along the flyer path. Splicing or restringing wastes operator hours and discards expensive drawn copper.
Compound Machine Damage: A failed bow guide or bearing at high RPM can distort the internal cradle, score internal drive shafts, or damage magnetic hysteresis tension units.
Loss of Geometrical Consistency: Gradual wear on capstans, pulleys, and traverse guides degrades lay length uniformity, resulting in conductor diameter variations that create diameter-control failures during subsequent insulation extrusion.
A proactive maintenance routine shifts work from emergency repairs to predictable component adjustments. By inspecting high-stress zones on planned intervals, operators maintain uniform line tension and maximize production uptime across their double twist bunching and stranding machines.
To run an efficient maintenance program, maintenance crews must concentrate attention on the four functional subsystems subject to friction, centrifugal force, and continuous mechanical stress.
Assembly | Primary Wear Mechanisms & Failure Indicators |
1. Flyer Bow & Guides | Delamination, micro-fractures, and groove wear from running copper wire. |
2. Pulleys & Wire Path | Ceramic eyelet chipping, guide pulley bearing flat spots, and conductive copper dust accumulation. |
3. Spindle & Cradle Support | High-speed grease degradation, dynamic rotor unbalance, and abnormal thermal rise or vibration. |
4. Take-Up & Traversing Mechanism | Friction brake pad wear, erratic clutch torque output, loose traverse drive belts, and screw backlash. |
The flyer bow is typically engineered from specialized carbon fiber or flexible alloy composites to minimize rotational inertia. As the bow rotates through the air, it encounters continuous aerodynamic drag and centrifugal bending forces. Concurrently, bare copper wires pass through the integrated ceramic or tungsten carbide guide eyelets at speeds often exceeding several hundred meters per minute.
Key inspection priorities include checking for delamination along the edges of composite bows, ensuring all mounting hardware matches torque specifications, and verifying that eyelets remain securely bonded without micro-cracks that shave copper.
The entry guide, closing die, internal transfer pulleys, and capstan wheels directly contact the running copper conductors. Over time, bare copper creates abrasive grooves in ceramic surfaces or hard-anodized pulleys. A grooved pulley pinches outer strands, inducing irregular tension that causes strand crossover or "birdcaging." Operators must confirm that every wire guide turns freely without axial play or resistance.
The main spindle and internal cradle bearings support both static loads (the bobbin and mechanical cradle) and dynamic centrifugal forces generated during rotation. Bearing wear introduces structural vibration, which propagates into the take-up assembly. Contamination by fine airborne copper dust accelerates raceway pitting. Routine monitoring focuses on vibration levels, acoustic emissions, and running temperatures.
Uniform spooling onto the internal take-up bobbin requires responsive tension adjustment as the spool diameter builds from bare barrel to full capacity. Whether tension is governed by magnetic powder clutches, hysteresis units, or pneumatic friction brakes, worn brake linings or erratic torque output will cause either stretched conductor strands (excessive tension) or loose, looping packages (insufficient tension). Traverse guide rails, lead screws, and reversing mechanisms must also remain free of backlash to prevent edge-piling on the bobbin flanges.
The following matrix organizes inspection tasks by operational frequency. This schedule serves as a baseline framework that maintenance managers can adapt to their specific production cadence, alloy specifications, and plant environment.
Frequency | Target Subsystem | Action Required | Verification & Acceptance Standard |
Per Shift / Daily | Machine Chamber & Bow | Clean out loose copper dust using industrial vacuum equipment. Inspect flyer bow for surface impact marks. | Enclosure free of conductive debris; bow surfaces smooth with zero signs of fiber fraying or delamination. |
Per Shift / Daily | Wire Guides & Pulleys | Manually spin every guide pulley along the wire line. Inspect ceramic eyelets for chips or groove wear. | All pulleys rotate smoothly with zero drag; ceramic rings intact without copper grooving. |
Per Shift / Daily | Safety Interlocks & Braking | Test emergency stop buttons, cradle cover interlocks, and pneumatic/mechanical brake response. | Rotor stops within OEM-specified deceleration window; motor power cuts immediately upon cover release. |
Weekly | Drive Belts & Pulleys | Inspect flat belts, V-belts, and timing belts for cracking, tooth wear, and proper tension deflection. | Belt deflection complies with manufacturer gauge; no belt dust or pulley misalignment visible. |
Weekly | Take-Up Bobbin Clamping | Inspect bobbin pintles, locking pins, and pneumatic clamping cylinders. | Bobbin seats securely without runout or loose axial play during operation. |
Monthly | Main Spindle & Bearings | Check lubrication levels; replenish grease using manufacturer-specified grade and volume. | Clean grease purge; no blackening or metallic glitter in expelled grease. |
Monthly | Traverse & Lay Mechanism | Clean and lubricate guide rods and traverse lead screws. Inspect guide wheels for clearance. | Traverse shifts smoothly at bobbin flanges without hesitation, binding, or audible backlash. |
Monthly | Pneumatic & Brake System | Drain water traps from air filter-regulators. Check brake pad thickness and air line integrity. | Air pressure stable at target operating PSI; brake pad thickness well above minimum wear limits. |
Quarterly | Tension Calibration | Measure static and dynamic line tension across empty-to-full bobbin cycles using a tensiometer. | Measured tension values match the line recipe within specified operating tolerance. |
Quarterly | Dynamic Rotor Balance | Inspect dynamic balance of the rotor and flyer assembly using portable vibration analysis tools. | Overall vibration velocity remains within acceptable machine balance standards (e.g., ISO 10816 limits). |
Quarterly | Electrical & Control Cabinet | Clean ventilation filters; inspect slip rings/carbon brushes (if equipped); tighten terminal screws. | Cabinet interior clean and dry; brushes show adequate spring pressure and uniform contact. |
Bearing failures in bunching machinery frequently trace back to improper lubrication practices: using the incorrect grease chemistry, introducing abrasive dust during greasing, or over-filling bearing cavities.
Factor | Operational Requirement |
Grease Chemistry | High-speed synthetic grease (NLGI grade 2 with fully synthetic base oil). |
Replenishment Method | Metered application via calibrated manual grease gun or centralized lubrication system. |
Permissible Delta-T ($\Delta T$) | Temperature rise must not exceed 30°C to 35°C above shop-floor ambient temperature. |
Absolute Thermal Limit | Continuous bearing running temperature must remain below 70°C to 75°C. |
Over-lubrication is as hazardous as starvation in high-speed equipment. Packing excessive grease into a bearing cavity causes fluid churning, which generates elevated operating temperatures, degrades base oils, and blows past protective seals.
Always clean grease zerks and dispensing nozzles before injecting grease to avoid forcing ambient copper dust into the bearing races.
Use a calibrated manual grease gun or automated metering unit to apply only the volume designated in the OEM maintenance manual.
Purge ports must remain open during re-lubrication to vent excess lubricant.
Main spindle and cradle support bearings should be routinely checked with an infrared thermometer or built-in RTD sensors:
Normal Operating Temperature: Typically ranges between 45°C and 65°C depending on ambient factory conditions and operating speeds.
Maximum Safe Rise: The temperature rise ($\Delta T$) should not exceed 30°C to 35°C above the ambient shop-floor temperature.
Warning Threshold: Any bearing running consistently above 70°C to 75°C requires immediate shutdown and evaluation for lubrication starvation, over-greasing, contamination, or preload misalignment.
When copper bunching lines produce substandard cable packages, the underlying cause is frequently traced to mechanical wear rather than raw material defects. Use this troubleshooting table to correlate finished conductor defects with specific maintenance oversights.
Observed Production Defect | Probable Mechanical Root Cause | Corrective Maintenance Action |
Frequent wire breakage at bow entry or exit | Cracked ceramic eyelet; grooved guide pulley; micro-cracks on the bow leading edge. | Replace damaged ceramic eyelet; dress or swap out grooved pulleys; conduct non-destructive crack check on bow. |
Uneven lay length (pitch inconsistency) | Slipping capstan drive belt; worn internal haul-off gears; erratic take-up motor synchronization. | Re-tension or replace drive timing belts; inspect gear teeth for backlash; check encoder coupling integrity. |
Loose outer strands ("Birdcaging") | Insufficient back-tension on individual supply bobbins; dirty or worn pre-twisting closing die. | Inspect and re-calibrate pay-off tension units; clean copper buildup from the closing die or replace worn die. |
Conductor stretching or necking | Excessive take-up tension; sticking magnetic clutch; seized internal path pulley. | Calibrate take-up brake/clutch torque profile; inspect and free all guide pulleys along the wire path. |
Ragged or uneven bobbin spooling (Edge piling) | Traverse mechanism backlash; worn reversing micro-switches or sensors; improper traverse pitch setting. | Eliminate mechanical play in traverse lead screw; adjust end-limit proximity switches; re-zero guide carriage. |
Excessive machine vibration and hum | Rotor dynamic unbalance from uneven bow wear; worn main spindle bearings; loose cradle hardware. | Check flyer bow balance; tighten all cradle fasteners; measure bearing vibration spectrum to detect race defects. |
Routine preventive maintenance maximizes the lifespan of wire machinery, but operating aging equipment beyond its economic life cycle eventually erodes profitability. Plant managers must evaluate whether an older machine warrants continued component replacement or full line modernization.
Evaluation Metric | Maintain & Overhaul Existing Machine | Invest in Equipment Replacement |
Machine Structural Integrity | Machine frame and cradle geometry remain square and true; bedplate shows no distortion. | Frame exhibits structural twisting, foundation fatigue, or thermal distortion. |
Nature of Wear | Wear is strictly isolated to modular wear parts (bearings, ceramic guides, bows, belts). | Core transmission shafts, internal casting housings, and main gearing are heavily worn. |
Tension & Quality Consistency | Mechanical or magnetic tension units continue to hold tolerance after recalibration. | Unable to achieve consistent lay length or tension on modern fine/superfine wire specs. |
Downtime vs. Production Ratio | Routine maintenance downtime accounts for less than 5% of monthly production capacity. | Unscheduled downtime, broken bows, and bearing replacements consume excessive shifts. |
Operational Upgrade Path | Manual adjustments are sufficient for the target cable portfolio. | Plant requires automated closed-loop tensioning, SCADA integration, and reduced energy draw. |
An overhaul is cost-effective when the core structural elements—the machine frame, cradle frame, and motor mounts—remain true, free of fatigue cracks, and geometrically aligned. In this scenario, replacing consumables such as ceramic guides, flyer bows, timing belts, and spindle bearings returns the unit to near-original operational parameters at a fraction of capital expenditure.
Modern high-speed bunching lines incorporate structural and control advantages that older platforms cannot match through retrofits alone:
Advanced Carbon Fiber Geometry: Modern bows engineered for reduced aerodynamic drag cut motor power draw while reducing noise levels.
Closed-Loop Electronic Tension Control: Digital load cells and active servo feedback eliminate manual tension adjustment as the bobbin fills, directly preventing wire stretch on fine gauges.
Automated Lubrication and Condition Monitoring: Built-in thermal and vibration sensors alert operators to bearing anomalies before catastrophic seizure occurs.
If an older machine demands continuous mechanical realignment, generates persistent vibration that ruins bearings prematurely, or cannot maintain uniform pitch on modern fine-wire specifications, maintenance managers should consult an experienced bunching machine manufacturer like Taizheng to assess the return on investment of new high-efficiency machinery.
Flyer bows do not have a uniform expiration date; their lifespan depends on operating RPM, running hours, and wire alloys. However, bows should be removed and inspected under strong light every month for edge fraying, surface delamination, or mounting hole elongation. Any bow exhibiting surface cracks, abnormal flexibility, or groove wear through its protective coating must be replaced immediately to prevent catastrophic mid-operation fracture.
Excessive copper dust indicates abrasive friction along the wire path. The most frequent causes are grooved ceramic guides, seized or stiff pulleys that scrape rather than roll with the wire, an improperly aligned closing die, or excessive back-tension on the pay-off stand. Cleaning the chamber daily prevents conductive dust from entering bearing seals and electrical cabinets, but the root cause must be corrected by inspecting every wire-contact point.
Yes. If the take-up bobbin brake or magnetic clutch applies excessive torque, the pulling force exerted on the newly formed conductor bundle exceeds the elastic limit of soft-annealed copper. This stretches the outer strands, reducing their cross-sectional area and causing resistance failures during electrical testing. Tension must scale down progressively as the bobbin diameter increases.
Before loading wire and pressing the cycle start button, operators should:
Verify that the flyer bow path and chamber floor are free of loose tools, scrap wire, and copper dust.
Spin all path pulleys by hand to verify smooth rotation with no binding.
Check the mechanical security of the flyer bow mounting bolts.
Verify that the bobbin clamp mechanism is locked and safety interlocks engage properly when the cover closes.
Consistent preventive maintenance transforms double twist bunching from an unpredictable, break-prone process into a stable, high-throughput manufacturing operation. By addressing high-wear items—such as flyer bows, ceramic path guides, spindle bearings, and take-up clutches—on a strict, time-based schedule, wire and cable producers avoid the high costs of scrap copper, broken tooling, and lost line availability.
When maintenance logs show diminishing returns on an aging machine, upgrading to robust machinery with streamlined maintenance access and precise tension controls ensures long-term competitiveness.
High-RPM Vulnerability: Double twist bunchers introduce two twists per revolution; mechanical wear on bows and pulleys scales exponentially with rotational speed.
Four Core Wear Zones: Routine inspections must prioritize the flyer bow, wire path pulleys/guides, spindle bearings, and the take-up tension/traverse drive.
Time-Structured Protocols: Shift-level dust removal, weekly belt checks, monthly metered lubrication, and quarterly balance/tension calibrations form an effective defense against unexpected downtime.
Defect-Driven Diagnosis: Stranding faults such as birdcaging, strand elongation, and pitch variation are direct indicators of specific mechanical maintenance oversights.
Controlled Lubrication: Over-greasing high-speed bearings causes thermal spikes and seal degradation; bearing operating temperatures should not exceed 70°C to 75°C.
Q: How often should flyer bows be replaced on a double twist buncher?
A: Bows should be inspected monthly for delamination, edge cracking, or eyelet wear and replaced immediately upon detecting surface damage or dynamic imbalance.
Q: What causes excessive copper dust inside the bunching chamber?
A: Groove wear on ceramic guides, seized pulleys, misaligned closing dies, or excessive wire line tension rubbing against conductors.
Q: Can incorrect brake tension cause wire elongation during bunching?
A: Yes. Excessive take-up tension pulls soft-annealed copper past its yield point, reducing strand cross-sectional area and causing electrical resistance failures.
Q: What daily startup checks should operators complete before running copper strands?
A: Clear chamber debris, verify free rotation of all guide pulleys, check flyer bow mounting tightness, and test safety cover interlocks.
