Continuous cable extrusion lines operate best under steady-state thermal and mechanical equilibrium. Any downstream disruption—such as stopping to cut a coil or unload a finished package—forces the line to slow down or halt entirely, resulting in insulation wall-thickness variations, surface marks, and scrapped compound. Successfully pairing an auto coiler for extrusion line operations resolves this bottleneck by decoupling the steady exit speed of the extruder from the discrete physical actions of coiling, cutting, and reel transfer.
Achieving reliable line-speed synchronization requires three integrated systems: an active dancer or accumulator buffer, closed-loop PLC communication across drives, and dual-station automatic transfer mechanics. This guide breaks down the engineering principles behind continuous take-up synchronization, outlines an evaluation framework for matching an auto coiler to existing lines, and provides a structured troubleshooting checklist for resolving speed and tension mismatch.
The fundamental conflict between extrusion lines and downstream packaging lies in their operating modes: extrusion is continuous and fluid, while coiling is cyclical and discrete.
When an extrusion line runs, the screw RPM, melt temperature, head pressure, and caterpillar puller speed are tightly balanced. Slowing down the line to change a spool shifts melt dwell time inside the barrel, which destabilizes cable wall thickness and eccentricity. Conversely, downstream packaging demands cyclical, non-continuous actions:
Reaching target coil length.
Snaring and cutting the moving cable.
Indexing empty tooling into position.
Clamping, winding, and binding the completed coil.
Stage | Process Unit | Operational Mode & Velocity | Core Function in Synchronization |
Upstream Primary | Extrusion Line (Screw & Capstan) | Continuous, Steady-State Speed | Maintains constant melt flow, head pressure, and linear haul-off rate without deceleration. |
Intermediate Decoupling | Dancer / Storage Accumulator | Dynamic Variable Buffer Storage | Absorbs linear cable surplus and dampens tension spikes during downstream reel indexing. |
Downstream Packaging | Dual-Head Auto-Coiler | Modulated Spindle & Turret Speed | Accelerates, winds, cuts, and ties completed coils, recovering buffer via 15%–25% speed overhead. |

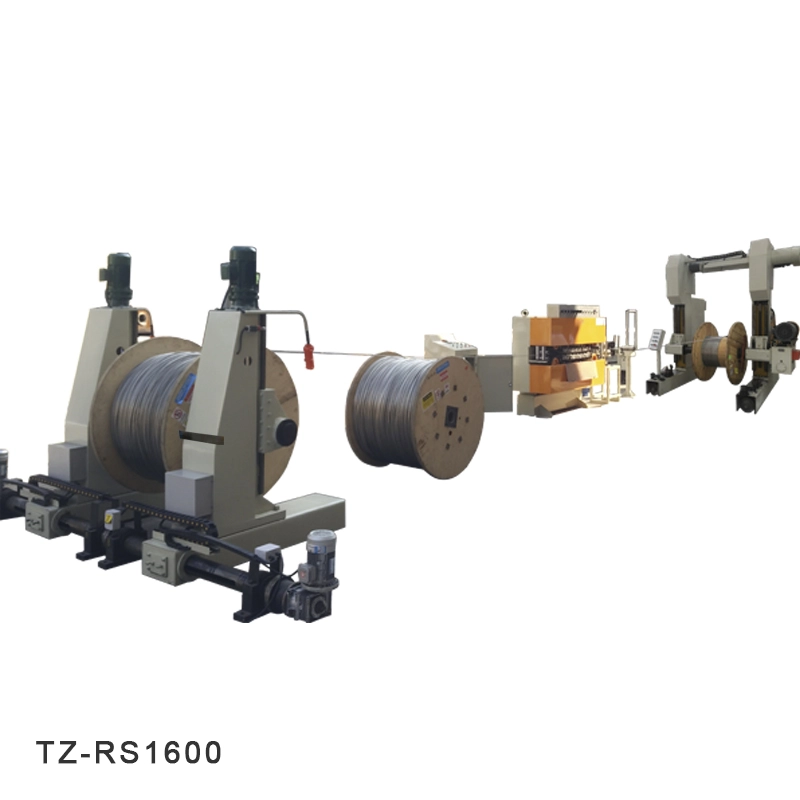

Without an inline automatic coiling machine, plants rely either on oversized manual take-up systems that require constant operator intervention or off-line rewinding. Off-line rewinding introduces secondary handling labor, increases floor space requirements, and risks jacket scuffing during secondary pay-off. An inline synchronized coiler eliminates these inefficiencies, provided the tension variations induced by winding radius changes and turret cutovers are actively compensated.
Maintaining synchronization across acceleration, steady running, and transfer cycles depends on three primary subsystems working concurrently.
The dancer arm or vertical multi-pass accumulator serves as the mechanical shock absorber between the capstan and the coiler.
Dynamic Tension Sensing: As the winding reel fills, its effective diameter expands, causing winding speed demands to shift continuously. The dancer uses pneumatic or counterweight loading to maintain constant linear tension on the cable.
Position Feedback: A rotary potentiometer or non-contact angular encoder on the dancer pivot reads the physical position of the arm. If the arm moves upward, the coiler is pulling faster than the extruder delivers; if it drops, the coiler is lagging. This positional displacement generates a +/- 10V or digital offset signal directly to the coiler's variable frequency or servo drive.
Cutover Buffering: During the 1 to 3 seconds required for the coiler traverse to re-index and the shear blades to actuate, the accumulator stores line output without requiring the upstream extruder to decelerate.
Modern continuous extrusion coiling requires digital coordination between the primary line capstan (master) and the coiling spindle (slave).
Master Speed Feed-Forward: The line controller transmits the primary line speed reference to the coiling unit via industrial fieldbus (such as Profinet, EtherCAT, or hardwired pulse trains). This establishes base rotational speed.
PID Trim Correction: The dancer arm position sensor provides the closed-loop feedback variable. The coiler PLC executes a real-time PID algorithm that trims the spindle motor output, ensuring the take-up matches exact surface velocity regardless of package diameter buildup.
Traverse Synchronization: The traversing mechanism (guide arm) must continuously adapt its pitch to line velocity and instantaneous spool RPM. If traverse pitch fails to track line speed, coils develop uneven shoulders, cable overlap, or loose nesting that jams downstream packaging lines.
To keep the extrusion line moving during coil packaging, high-productivity lines utilize a dual-head or turret configuration.
Station A (Winding): Receives the cable at steady production speed until the preset length counter is satisfied.
Transfer Sequence: The turret pivots or indices Station B (empty mandrel/reel) into the line-of-pass.
Cut and Snare: A pneumatically or servo-driven fly-knife shears the cable, while mechanical grippers capture the new leading end onto Station B’s core without interrupting linear line travel.
Station A (Packaging): While Station B winds the next coil, Station A collapses its mandrel, applies strapping or stretch film, and ejects the finished package to a conveyor.
Integrating dedicated custom wire and cable coiling machine hardware ensures these discrete pneumatic and servo movements occur within the time window established by the upstream buffer storage.
Pairing an auto coiler with an existing line requires evaluating mechanical, electrical, and dimensional criteria to avoid selecting an undersized or incompatible unit.
Evaluation Parameter | Engineering Implication | Verification / Buyer Action |
Line Speed Margin | The coiler must have a top mechanical speed 15% to 25% higher than max line speed to recover accumulated buffer after reel transfer. | Confirm maximum extruder run speed and match with coiler spindle RPM limits. |
Cable Outer Diameter (OD) & Bend Radius | Stiff or large-OD cables resist tight bend radii and require larger accumulator sheaves and coiler mandrels to prevent jacket whitening or core kink. | Provide minimum and maximum cable OD, jacket material (e.g., PVC, XLPE, LSZH), and minimum bend radius. |
Tension Control Range | Delicate communication cables or soft insulation require low-gram tension control; heavy building wire requires firm tension to prevent loose coils. | Verify dancer pneumatic regulator sensitivity and load-cell integration options. |
Package Dimension Envelope | Coil inside diameter (ID), outside diameter (OD), and traverse height define mandrel expansion geometry and auto-taper capabilities. | Define finished coil size matrix, weight limits, and strapping/binding requirements. |
Control Architecture Interface | The coiler must read signals from the master line (Run/Stop, Line Speed Analog/Bus, E-Stop circuit, Length Count). | Audit plant communication standards (e.g., Ethernet/IP, Profinet, discrete 24V I/O). |
Factory engineers can review tailored winding configurations and mandrel options through specialized automatic coiling machine systems designed around their specific package profiles.
When line-speed synchronization falters, symptoms typically appear as surface damage, dimensional inconsistency, or machine trips. The troubleshooting matrix below addresses common inline synchronization faults:
Symptom | Probable Mechanical / Electrical Cause | Corrective Action |
Dancer arm oscillating (hunting) during steady run | PID loop gain is overly aggressive; pneumatic backpressure in the dancer cylinder is fluctuating. | Tune drive PID velocity loop (reduce proportional gain, adjust integral time); verify pneumatic supply has a dedicated precision regulator and filter. |
Cable jacket scuffing or diameter necking | Spindle acceleration lags behind capstan; dancer is bottoming out due to excessive tension setting. | Reduce dancer mechanical counterweight/pressure; verify master line speed feed-forward signal is reacting without network latency. |
Uneven coil build (ridges or loose edges) | Traverse pitch does not match cable OD; traverse reversal delay is miscalculated at high line speed. | Re-calibrate traverse ratio in the HMI recipes; check traverse encoder resolution and mechanical play in the ball-screw or linear belt. |
Accumulator overflows during transfer cut | Turret indexing or cut-and-clamp mechanical cycle time exceeds the storage capacity of the accumulator. | Reduce mechanical transfer cycle time via pneumatic flow controls; verify coiler catch-up speed margin is set high enough to empty the buffer. |
Before issuing a specification request or finalizing procurement for an inline auto coiler, compile the following operational parameters:
Extrusion Line Performance Metrics:
Line speed baseline: Minimum operating speed, nominal running speed, and maximum design line speed (m/min).
Acceleration and deceleration ramp times (seconds from zero to full speed).
Upstream caterpillar/capstan drive model and controller brand.
Product & Material Specifications:
Cable construction types (solid conductor, stranded building wire, multi-conductor sheath).
Overall diameter (OD) tolerance ranges (min. OD vs. max. OD).
Sheath friction characteristics (e.g., tacky elastomeric jackets vs. slick nylon-coated wires).
Packaging Configuration Requirements:
Target coil dimensions: Core ID, maximum coil OD, and traverse width range.
Coil weight specifications (minimum and maximum kg/coil).
Secondary packaging steps: In-line film wrapping, PP strapping, or manual unloading staging.
Site & Automation Standards:
Incoming supply voltage, frequency, and local safety circuit requirements.
Preferred PLC platform and communications interface for interlock handshake.
Floor space footprint constraints, including required line-of-pass centerline height.
Decoupling is Essential: Continuous extrusion lines cannot stop for discrete packaging; auto-coilers resolve this via dual-station transfers and active mechanical storage.
Three Pillar Architecture: Stable inline synchronization requires dynamic buffering (dancer/accumulator), real-time feed-forward/feedback controls (PLC/encoder), and rapid automatic transfer mechanics.
Speed Margin Requirement: The auto-coiler’s mechanical top speed must exceed line speed by 15% to 25% to recover stored cable buffer after every reel switchover.
Tension Dictates Quality: Mismatched tension results in stretched insulation, diameter defects, or loose coils that derail automated binding systems downstream.
Modern auto-coilers equipped with proportional pneumatic regulators or load-cell closed loops store tension recipes in the HMI. When switching between flexible elastomeric jackets and semi-rigid building wire, operators select the product recipe, which automatically sets dancer air pressure, traverse pitch ratios, and acceleration envelopes without manual mechanical adjustment.
The required buffer length is calculated by multiplying maximum production line speed by the total time required for cut-and-transfer actions, plus a safety margin:
$$\text{Buffer Length} = \text{Line Speed (m/s)} \times \text{Transfer Time (s)} \times 1.25$$
The exact accumulator stroke and number of sheaves must be engineered based on line speed, cable stiffness, and permissible bend radius.
During acceleration and deceleration, standard open-loop speed matching is insufficient due to reel inertia. The PLC utilizes master capstan acceleration curves to pre-calculate required spindle torque, while the displacement sensor on the tension dancer provides real-time trimming to compensate for reel inertia and diameter changes.
