Selecting a dependable double twist bunching machine manufacturer in China requires balancing mechanical balance, tension stability, and post-sale technical readiness against machine cost. A double twist buncher twists conductor strands twice for each internal rotor rotation, doubling the production output of a traditional single-twist design. However, operating at high rotational speeds introduces dynamic vibration, wire surface scratching, and wire breakages if the builder cuts corners on structural fabrication or dynamic balancing.
This guide evaluates five established Chinese bunching machinery builders across engineering strengths, bobbin capacities, and application targets. It covers the technical criteria essential for vetting suppliers, a breakdown of machine specifications across typical wire gauges, and an overseas procurement verification protocol to ensure long-term production reliability.
Modern cable plants focus heavily on throughput per square meter of floor space. The double twist bunching machine serves as the industry standard for stranding bare copper, tinned copper, aluminum alloys, and insulated cores. By imparting two twists per rotor revolution via the rotating flyer bow, these units deliver high linear line speeds while maintaining a compact factory footprint compared to tubular or planetary stranders.
China's wire equipment sector has developed two distinct tiers:
Standard mass-market machine assemblers that rely on outsourced castings and basic tension systems.
Precision machinery builders that utilize dynamic balancing rigs, CNC-machined internal bows, PLC-synchronized capstan drives, and high-grade bearing assemblies.
For international cable plants, distinguishing between these tiers determines whether a machine runs smoothly or suffers from chronic line stoppages and uneven conductor pitch.
Evaluating a Chinese machinery manufacturer requires examining mechanical balance, tension control, and raw component traceability.
At rotational speeds exceeding 2,000 RPM, any center-of-gravity misalignment generates centrifugal forces that transmit directly to the main spindle bearings.
Bow Material & Aerodynamics: Precision manufacturers utilize high-strength carbon fiber or aerospace-grade aluminum alloy bows fitted with ceramic or tungsten carbide wire eyelets. The bow must possess sufficient rigidity to eliminate deflection under aerodynamic drag.
Dynamic Balancing Verification: Inquire whether the rotor assembly undergoes multi-plane dynamic balancing before assembly. Unbalanced bows induce frame vibration, causing accelerated bearing wear, premature bow fracturing, and localized heating.
Uniform strand tension is critical to prevent "bird-caging," loose strands, or strand elongation.
Tension Feedback Loops: Premium equipment incorporates magnetic powder clutches, hysteresis tensioners, or dual-inverter dancer systems that adjust pay-off and take-up tension continuously as the bobbin fills.
Capstan & Traverse Geometry: Dual active capstans synchronized via PLC maintain stable pitch control. Smooth, programmable traverse pitch mechanisms prevent wire overlapping, ridge formation, or edge jamming on the take-up bobbin.
Safety Sensors: Reliable machines feature instant optical or electromechanical wire-break detection sensors that halt rotation before broken strands whip inside the enclosure.
A machine's service life relies on its core internal components:
Bearings: Verify if main spindle bearings are sourced from recognized precision brands (such as SKF, NSK, or FAG).
Electronics & Drives: Siemens, Schneider, or Inovance PLCs and variable-frequency drives (VFDs) provide stable motor synchronization and simplify international sourcing for replacement electronics.
Cabinet Machining: Look for builders with in-house horizontal machining centers capable of milling the bearing blocks and frame surfaces in a single clamp setting, ensuring axial alignment.
Manufacturer | Core Specialization | Typical Bobbin Range | Best-Fit Cable Plant Application |
Taizheng | High-Precision & Fine Wire Bunching & Stranding Systems | 300 mm to 800 mm | Automotive, data, electronic, and Class 5/6 flexible conductors |
Smarter Machinery | Heavy-Duty Stranding and Large-Conductor Equipment | 630 mm to 1250 mm+ | High-voltage power cables and overhead transmission conductors |
Jiangsu Jiacheng Technology | High-Volume Standard Cable Production Lines | 500 mm to 1000 mm | General building wire and continuous standard copper runs |
Wuxi Hengtai Cable Machinery | Turnkey Drawing, Stranding & Extrusion Integration | 400 mm to 800 mm | New plant setups seeking linked, multi-stage machinery packages |
Dongguan Qipang Machinery | Compact Machinery and Basic Take-Up Ancillaries | 300 mm to 630 mm | Budget-sensitive small factories and light-gauge assembly lines |

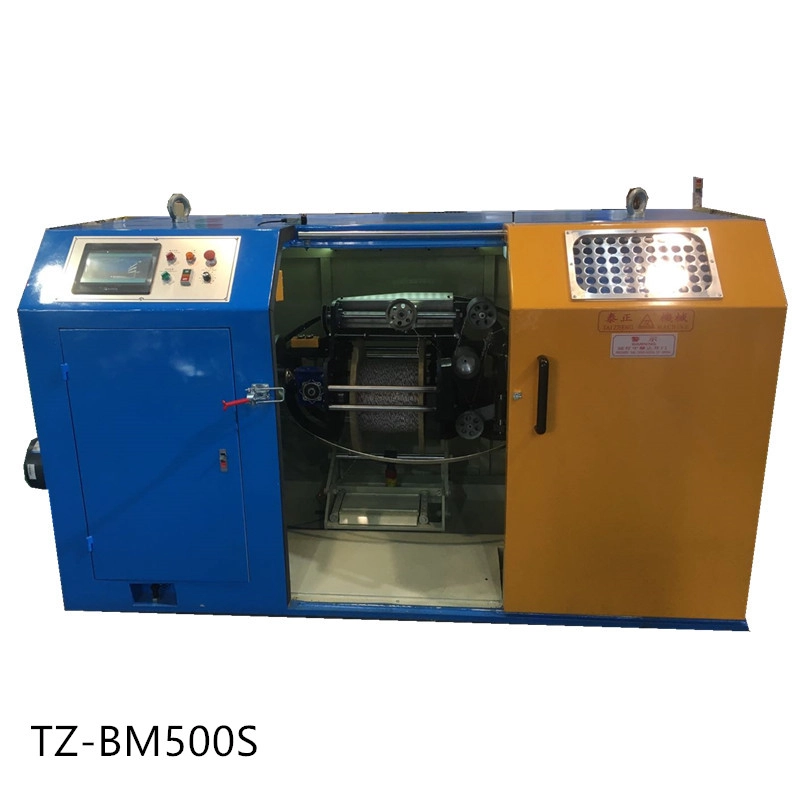

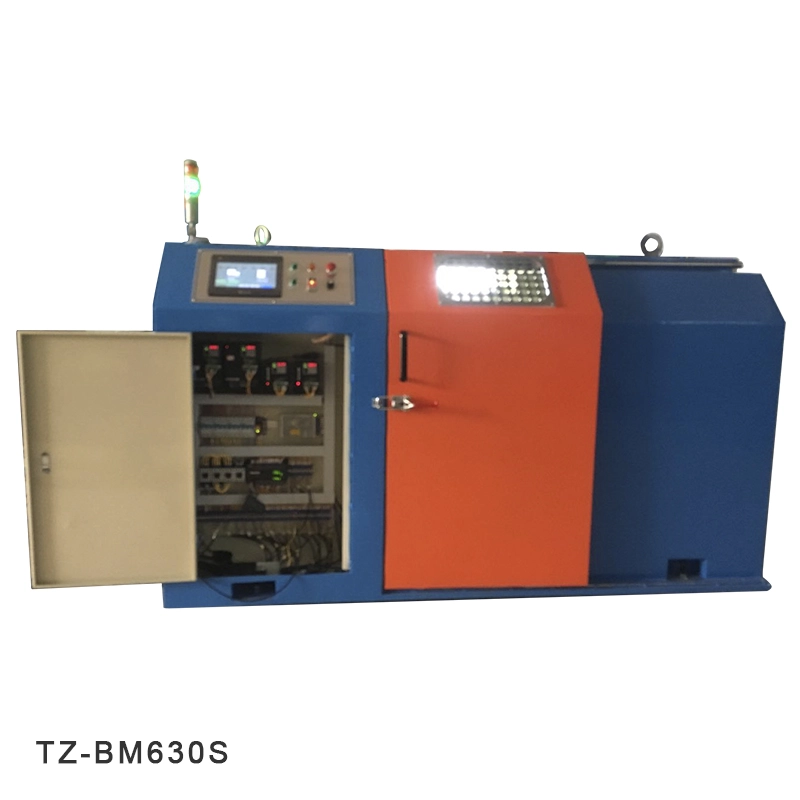

Taizheng specializes in high-speed, precision-engineered wire bunching equipment tailored for bare copper, fine multi-strand conductors, and specialized alloy wires. The company's bunching and stranding machines emphasize high dynamic balance, advanced tension stability, and low strand breakage rates.
By integrating carbon fiber bows, precision ceramic guidance paths, and PLC-controlled dual-capstan take-up mechanisms, Taizheng's machines maintain tight pitch tolerances and prevent conductor scratch marks. This engineering focus makes their equipment well-suited for Tier-1 and Tier-2 cable producers manufacturing Class 5 and Class 6 flexible conductors, automotive harness wire, high-frequency data cables, and medical wire assemblies.
Smarter Machinery focuses on medium-to-large-capacity stranding lines. While they manufacture smaller units, their primary strength resides in large-format double twist bunchers (800 mm to 1250 mm bobbin diameters and larger) designed for compacted conductors, overhead lines, and multi-core power cable assembly. Their frames feature heavy welded construction to dampen vibrations during large-cross-section stranding.
Jiangsu Jiacheng provides integrated lines for standard industrial cable factories. Their double twist equipment is built for continuous, standardized operations such as building wire (THHN/THWN) and standard power conductor bunching. Jiacheng appeals to large domestic and regional cable manufacturers prioritizing high volume, straightforward maintenance, and standardized mechanical layouts.
Wuxi Hengtai supplies comprehensive equipment packages, integrating upstream wire drawing, intermediate bunching, and downstream extrusion lines. Their double twist bunchers are designed to integrate into unified plant automation systems. This profile suits project investors setting up complete cable operations who prefer a single point of machinery delivery.
Dongguan Qipang serves small-to-medium wire workshops and electronic wire producers. Their machinery catalog features small-footprint bunching machines and versatile spooling equipment. While lacking the advanced multi-axis synchronization of high-precision platforms, Qipang offers an accessible price-to-performance ratio for low-volume production lines.
Bobbin Size (OD) | Infeed Single Wire Dia. | Total Cross-Section Range | Primary Conductor Applications |
300 mm – 400 mm | 0.05 mm – 0.25 mm | 0.035 mm² – 2.5 mm² | Ultra-fine copper, micro-coaxial, medical wire, sensor leads |
500 mm – 630 mm | 0.10 mm – 0.40 mm | 0.20 mm² – 6.0 mm² | Automotive cables, appliance wire, power cords, Class 5 flexible wire |
800 mm – 1000 mm | 0.25 mm – 0.80 mm | 2.5 mm² – 35.0 mm² | Industrial power cords, battery wire, building wire, multi-core bunching |
1250 mm+ | 0.50 mm – 1.60 mm+ | 10.0 mm² – 120.0 mm²+ | Large power cables, overhead cables, compacted Class 2 conductors |
Bare Copper Stranding: Requires high-speed operation where thermal expansion of guide rings is minimized via hardened ceramic eyelets.
Tinned Copper & Silver-Plated Wire: Demands broad-radius pulleys, mirror-polished guides, and reduced-friction bows to prevent stripping or scratching the protective surface plating.
Aluminum & Aluminum Alloy Wire: Aluminum tends to shed fine metallic powder at high speeds. Choose machinery with dedicated dust-sealed bearing housings and vacuum or compressed-air cleaning ports around the internal traverse area.
Step 1: Dynamic Vibration & Noise Inspection
Run the machine dry at 100% rated RPM; verify vibration amplitudes and operating noise remain within specified engineering tolerances.
Step 2: Loaded Wire Stranding Test Run
Strand copper conductor at standard production line speed for 60+ continuous minutes; verify pitch uniformity and lay length accuracy.
Step 3: Tension Stability & Deceleration Check
Execute an emergency stop at full rotation speed; check wire for over-stretching, necking down, or breaks.
Step 4: Surface Finish & Thermal Inspection
Inspect stranded conductor under magnification for scratches, strip marks, or loose strands; log bearing housing temperatures to ensure thermal stability.
Step 5: Critical Clearance & Lock Verification
Confirm safety interlocks, pneumatic cradle locks, and bobbin loading ramps engage reliably without binding.
To prevent prolonged plant downtime while waiting for international freight shipments, overseas buyers should request a two-year operational spare-parts kit with the initial equipment order:
2–3 replacement flyer bows fitted with factory-calibrated eyelets
1 set of primary spindle bearings
Complete replacement ceramic and tungsten carbide guide ring sets
Spare transmission timing belts and flat belts
Replacement electromagnetic brake pads or clutch discs
2 dedicated wire break sensors and optical encoder units
Output Efficiency: A double twist bunching machine imparts two twists per rotor cycle, offering twice the output speed of single-twist units for flexible and semi-rigid conductors.
Vibration Control is Critical: At operating speeds between 1,500 and 3,000 RPM, structural rigidity, bow aerodynamics, and dynamic balance determine bearing life and wire quality.
Manufacturer Positioning: Chinese manufacturers serve distinct market tiers—Taizheng focuses on high-precision, fine-wire bunching with tight pitch tolerances, while other builders specialize in heavy-gauge stranding, turnkey projects, or entry-level lines.
Match Bobbins to Application: Machine sizing must follow wire gauge and take-up requirements, ranging from 300 mm bobbins for fine medical/data wire to 1250 mm+ bobbins for heavy industrial power cables.
Structured FAT Verification: Always require pre-shipment FAT running at maximum rated RPM, with continuous strand testing to verify dynamic balance, pitch uniformity, and surface finish before dispatch.
A single twist machine imparts one twist to the conductor for every single rotation of the cradle or flyer, whereas a double twist machine imparts two twists per rotation. Consequently, double twist machines offer significantly higher production speeds and linear output, making them the primary choice for flexible wire, data cables, and standard conductor stranding. Single twist machines are generally reserved for delicate cabling processes, specialty shielded pairs, or laying up pre-insulated cores with tight back-twist requirements.
When an internal flyer bow lacks proper dynamic balance, the centrifugal imbalance generates high-frequency vibrations at high operating speeds. This vibration leads to uneven strand tension, loose conductor pitch, wire scratching, and frequent wire breakages. Over time, dynamic imbalance causes premature spindle bearing failure, motor drive faults, and bow fracturing, resulting in costly unscheduled downtime.
Standard lead times for double twist bunching machines typically range between 45 and 90 days, depending on machine size and customization requirements. Standard production models (such as 500 mm or 630 mm units with standard drive packages) are often completed closer to 45–60 days, whereas larger machines (800 mm to 1250 mm) or units requiring custom PLC programming and specialized pay-off systems require 75 to 90 days. Always confirm production schedules directly with the manufacturer during contract negotiations.
Yes, depending on the machine’s internal wire path configuration, capstan setup, and tension controls. Double twist bunchers routinely handle Class 5 and Class 6 flexible conductors, as well as compact Class 2 semi-rigid conductors. However, when stranding rigid wires or large conductor cross-sections, the machine must be configured with heavy-duty carbide dies, high-torque capstans, and reinforced flyer bows to accommodate the higher bending resistance of the material.
